Product Summary

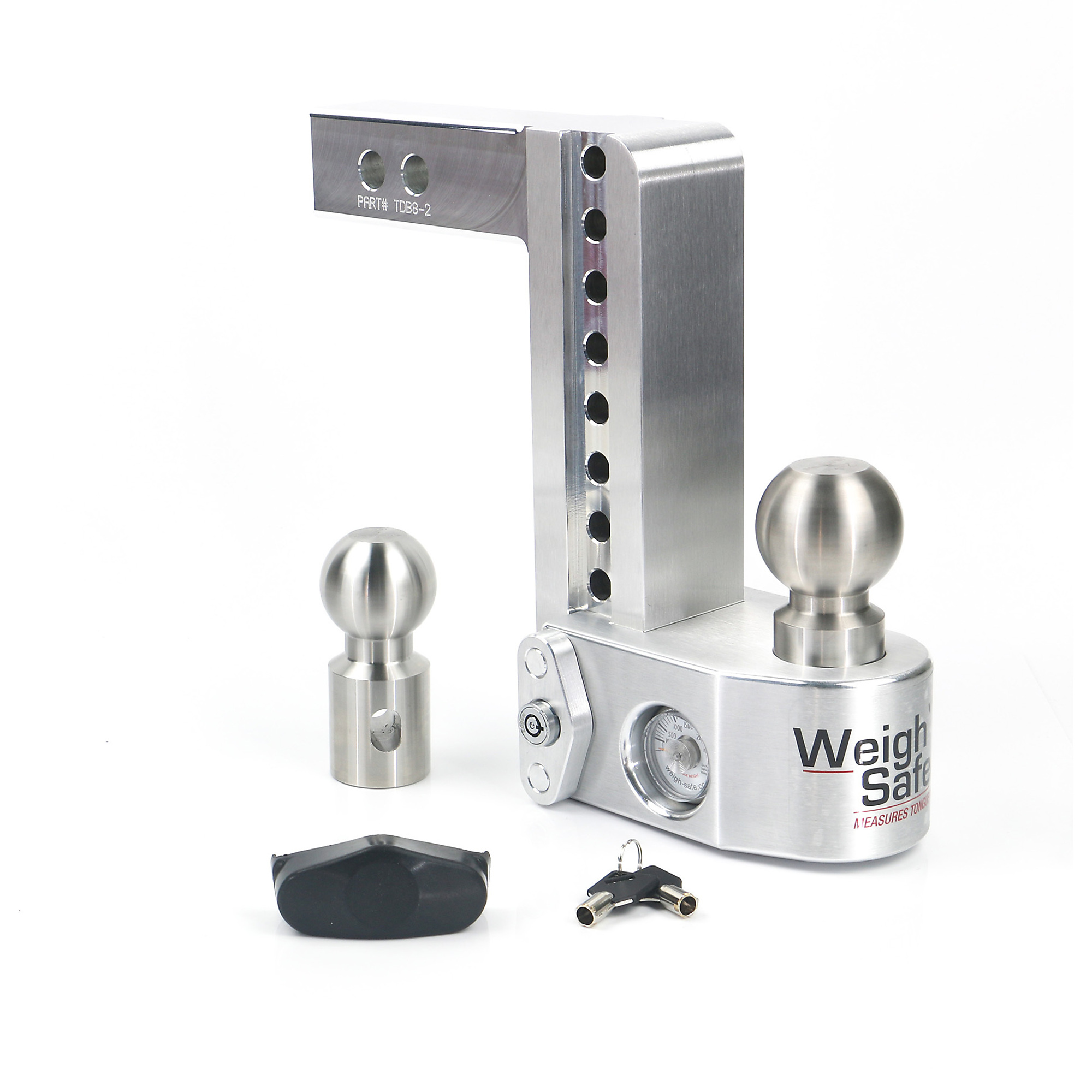

Weigh Safe’s built-in scale, measuring your tongue weight is as easy as coupling your trailer to your ball mount. Simply hook-up your trailer to the Weigh Safe ball mount just as you would any other ball mount. The weight of your trailer will push down on the hitch ball, which in turn pushes down on an internal hydraulic piston that sits on a bed of oil. When the piston drops into the oil, the pressure reading is sent out to the scale.

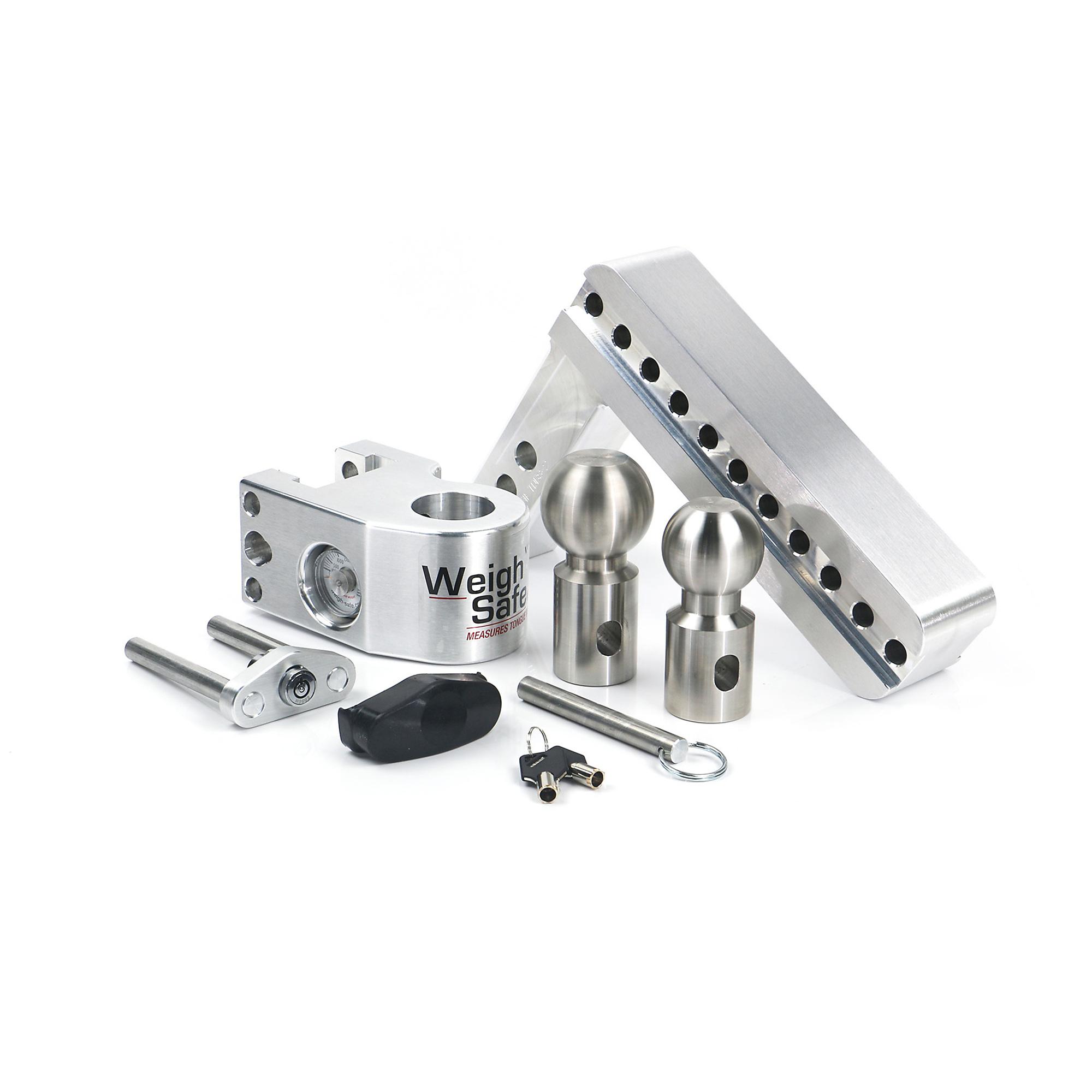

What's Included

    (7) 1- Drawbar 1-Slider w/ Gauge 1-2" Towball 1-2-5/16" Towball 1- Ball Retaining Pin 1- Lockplate Assembly 1-Dust Lock cover

Features + Benefits

  • Tongue weight scale built into the ball mount platform helps you balance your trailer
  • Promotes safe towing – lets you know if your load needs to be adjusted before you tow
  • Simple operation – automatically provides a measurement every time you couple your trailer
  • Efficient and hassle-free – eliminates the need for separate or commercial scales
  • 6065 T6 billet aluminum shank and mounting platform provide superior strength and durability

Key Specs

AttributeSpecification

item#

5311406

Brand

Weigh-Safe

Manufacturer's Warranty

5 year limited warranty

Ship Weight

20.0 LB

Gross Towing Weight

12,500 lb

Ball Diameter

2-5/16 in

Class Rating

Class V

Receiver Opening

2 in

Shank Diameter

8 in

Shank Length

5.5 in
AttributeSpecification

Fits Receivers

2 in

Rise

9 in

Drop

8 in

Material

Aluminum

Tongue Weight

1,500 lb

Hitch Pin Included

No

Balls Included

2

Ball Diameter Hole

4.1 in

Product Weight

20.0000 lb

Dimensions L x W x H (in.)

14.0 x 9.25 x 4.25 in

Warranty

Manufacturer's Warranty

5 year limited warranty
