Product Summary

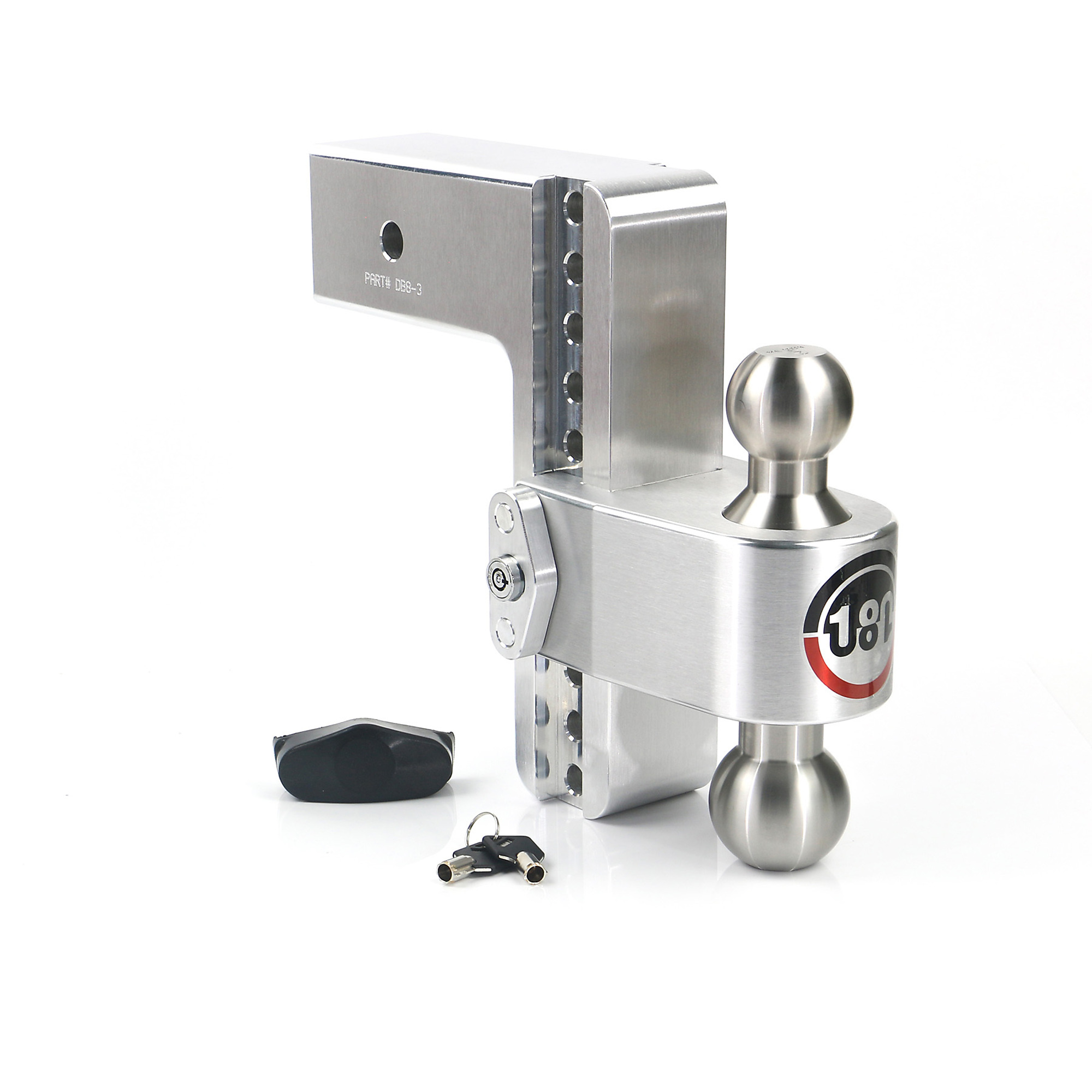

The Weigh-Safe Drop Hitch is a versatile and robust towing solution designed to meet the demands of heavy-duty applications. Featuring an 8-inch drop and a 3-inch shank, this hitch is engineered to provide optimal towing alignment and stability for a variety of trailer configurations. With an impressive capacity of 21,000 lbs., it is built to handle substantial loads with ease, making it ideal for commercial and industrial use. The hitch includes a 2-5/16 inch ball, ensuring compatibility with a wide range of trailers. Constructed with a sleek brushed aluminum finish, it not only offers a durable and corrosion-resistant surface but also an aesthetically pleasing appearance. The stainless steel tow balls and optional chrome tow ball enhance durability and provide a reliable connection between the hitch and trailer. This Class V hitch is designed for maximum performance and longevity, ensuring safe and efficient towing for all your heavy-duty needs.

What's Included

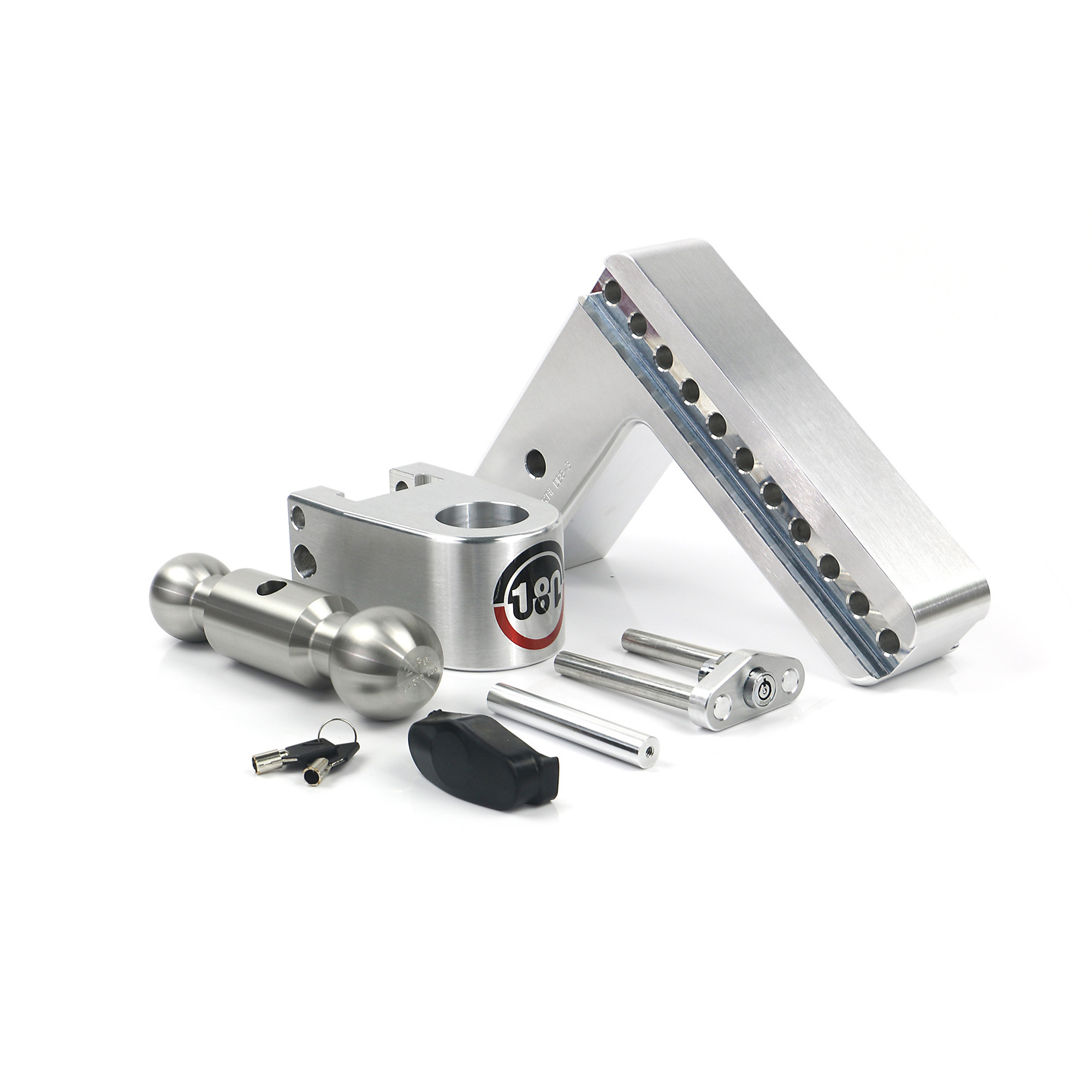

    (7) 1- Drawbar 1-Slider w/ Gauge 1-2" Towball 1-2-5/16" Towball 1- Ball Retaining Pin 1- Lockplate Assembly 1-Dust Lock cover

Features + Benefits

  • V5 & J684 Certified
  • Promotes safe towing – lets you know if your load needs to be adjusted before you tow
  • Simple operation – automatically provides a measurement every time you couple your trailer
  • Efficient and hassle-free – eliminates the need for separate or commercial scales
  • 6092 T6 billet aluminum shank and mounting platform provide superior strength and durability

Key Specs

AttributeSpecification

item#

5311570

Brand

Weigh-Safe

Manufacturer's Warranty

5 year limited warranty

Ship Weight

21.0 LB

Gross Towing Weight

21,000 lb

Ball Diameter

2-5/16 in

Class Rating

Class V

Receiver Opening

3 in

Shank Diameter

12 in

Shank Length

5.5 in
AttributeSpecification

Fits Receivers

3 in

Rise

9 in

Drop

8 in

Material

Aluminum

Tongue Weight

2,200 lb

Hitch Pin Included

No

Balls Included

2

Ball Diameter Hole

4.1 in

Product Weight

21.0000 lb

Dimensions L x W x H (in.)

14.0 x 9.25 x 4.25 in

Warranty

Manufacturer's Warranty

5 year limited warranty
