The ball mount will come with (1) 2" ball and (1) 2 5/16" ball.

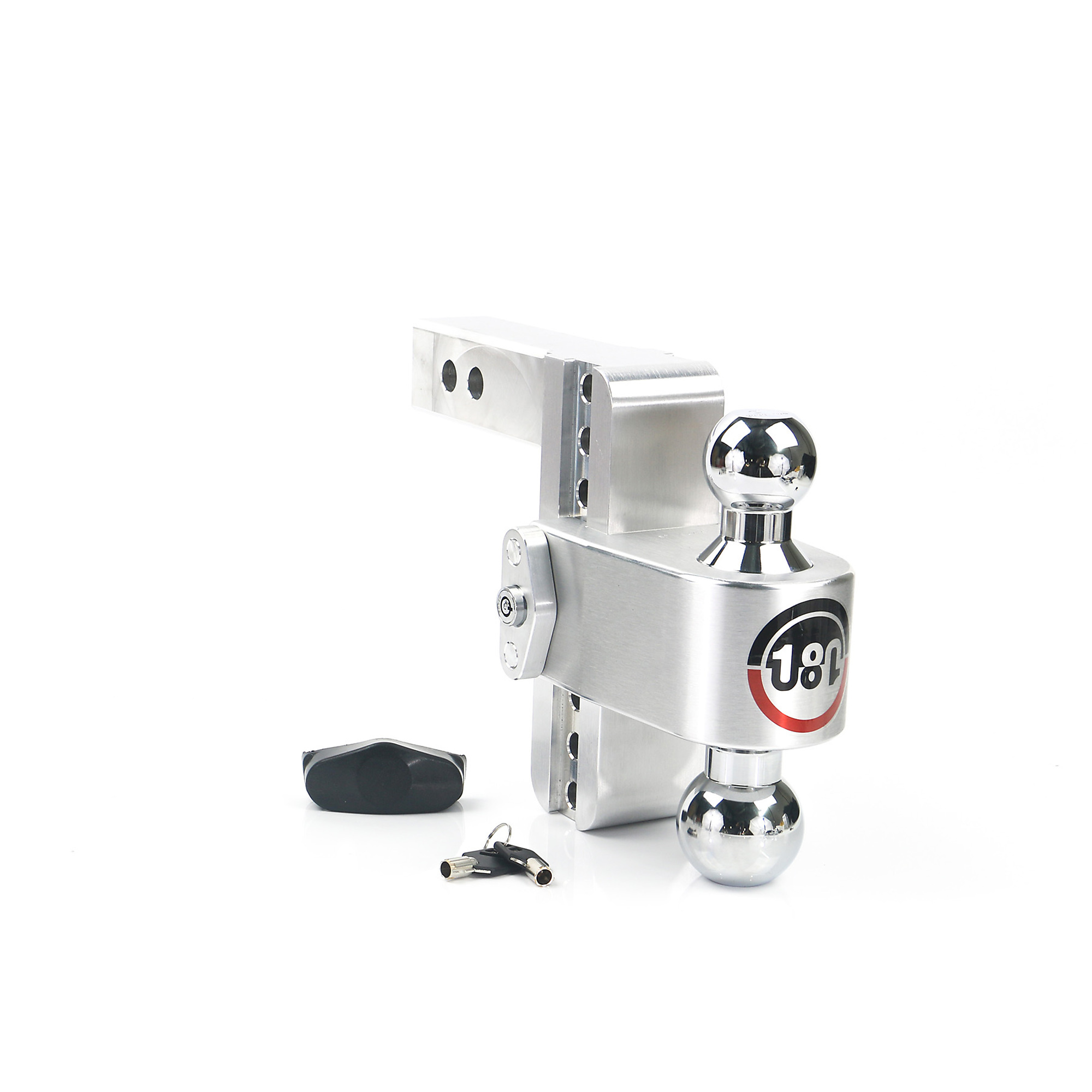

Weigh Safe 180 Turnover Ball Hitch - 6in. Drop, 2in. Shank, 12500-Lb. Gross Towing Weight, Class V, Model# CTB6-2
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$234.00
- V5 & J684 Certified
- Promotes safe towing – lets you know if your load needs to be adjusted before you tow
- Simple operation – automatically provides a measurement every time you couple your trailer
- Efficient and hassle-free – eliminates the need for separate or commercial scales
- 6096 T6 billet aluminum shank and mounting platform provide superior strength and durability
Prop 65 Warning: See Details
See full description
What's Included

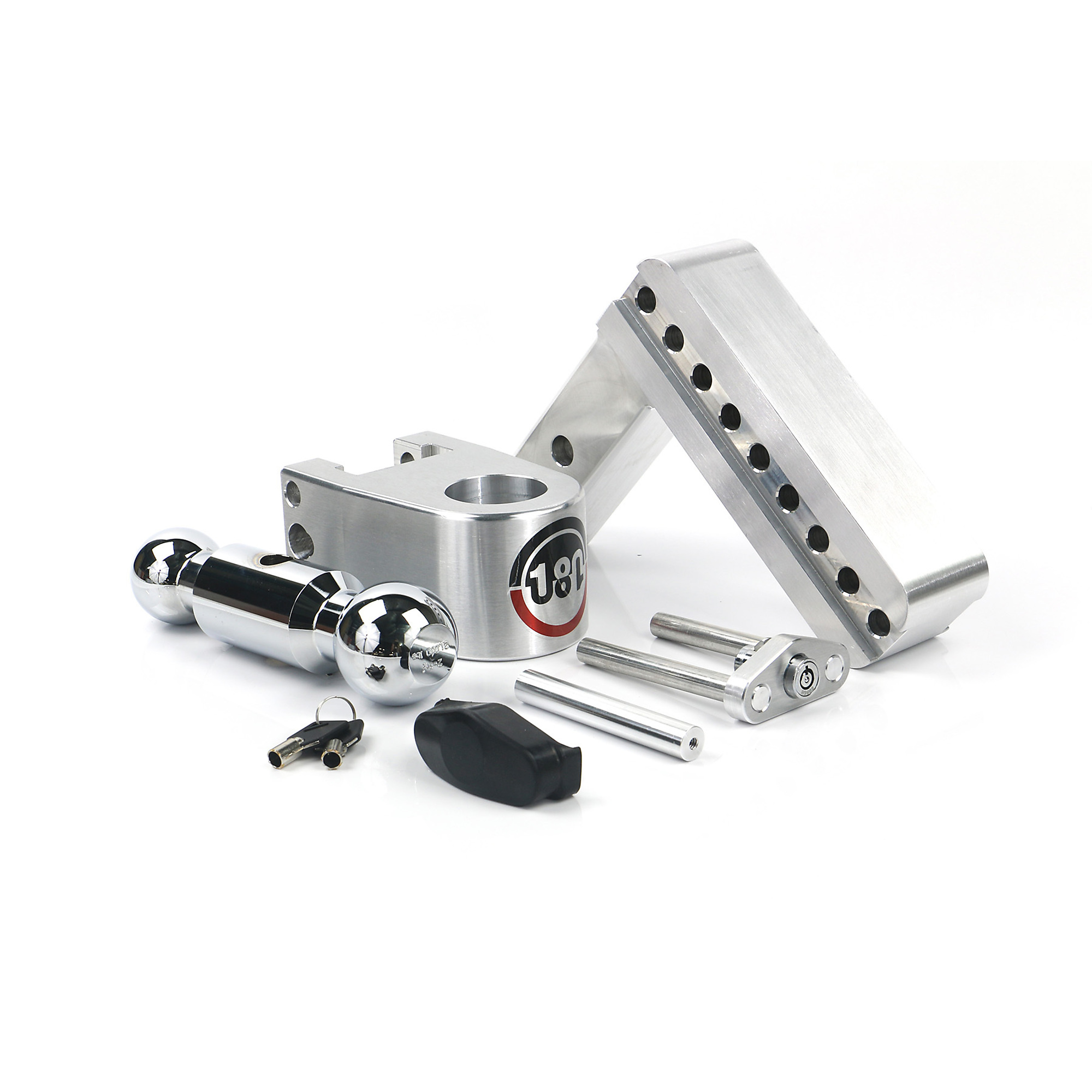

- (7) 1- Drawbar 1-Slider w/ Gauge 1-2" Towball 1-2-5/16" Towball 1- Ball Retaining Pin 1- Lockplate Assembly 1-Dust Lock cover
Features + Benefits
- V5 & J684 Certified
- Promotes safe towing – lets you know if your load needs to be adjusted before you tow
- Simple operation – automatically provides a measurement every time you couple your trailer
- Efficient and hassle-free – eliminates the need for separate or commercial scales
- 6096 T6 billet aluminum shank and mounting platform provide superior strength and durability
See All Double Ball Mount
See All Weigh-Safe Double Ball Mount
Currently Viewing This Product
Specifications
Specifications
Weigh Safe 180 Turnover Ball Hitch - 6in. Drop, 2in. Shank, 12500-Lb. Gross Towing Weight, Class V, Model# CTB6-2
Weigh-Safe Drop Hitch - 8in. Drop, 3in. Shank, 21,000-Lb. Capacity, 2-5/16in. Ball, Class V, Model# LTB8-3
Weigh Safe TB Drop Hitch - 8in. Drop, 2.5in. Shank, 18500-Lb. Capacity, 2-5/16in. Ball Diameter, Class V, Model# CTB8-2.5
Weigh-Safe 180 Turnover Ball Hitch - 10in. Drop, 2in. Shank, 12500 Lb. Capacity, 2-5/16in. Ball Diameter, Class V, Model# CTB10-2-KA
Gross Towing Weight
Same
12,500 lb
21,000 lb
18,500 lb
12,500 lb
Ball Diameter
Same
2-5/16 in
2-5/16 in
2-5/16 in
2-5/16 in
Class Rating
Same
Class V
Class V
Class V
Class V
Receiver Opening
Same
2 in
3 in
2-1/2 in
2 in
Shank Diameter
Same
8 in
12 in
10 in
8 in
Shank Length
Same
5.5 in
5.5 in
5.5 in
5.5 in
Fits Receivers
Same
2 in
3 in
2.5 in
2 in
Rise
Same
7 in
9 in
9 in
11 in
Drop
Same
6 in
8 in
8 in
10 in
Material
Same
Aluminum
Aluminum
Aluminum
Aluminum
Tongue Weight
Same
1,500 lb
2,200 lb
2,200 lb
1,500 lb
Hitch Pin Included
Same
No
No
No
Yes
Balls Included
Same
2
2
2
2
Ball Diameter Hole
Same
4.1 in
4.1 in
4.1 in
4.1 in
Product Weight
Same
19.0000 lb
21.0000 lb
20.0000 lb
21.0000 lb
Dimensions L x W x H (in.)
Same
14.0 x 9.25 x 4.25 in
14.0 x 9.25 x 4.25 in
14.0 x 9.25 x 4.25 in
14.0 x 9.25 x 4.25 in
