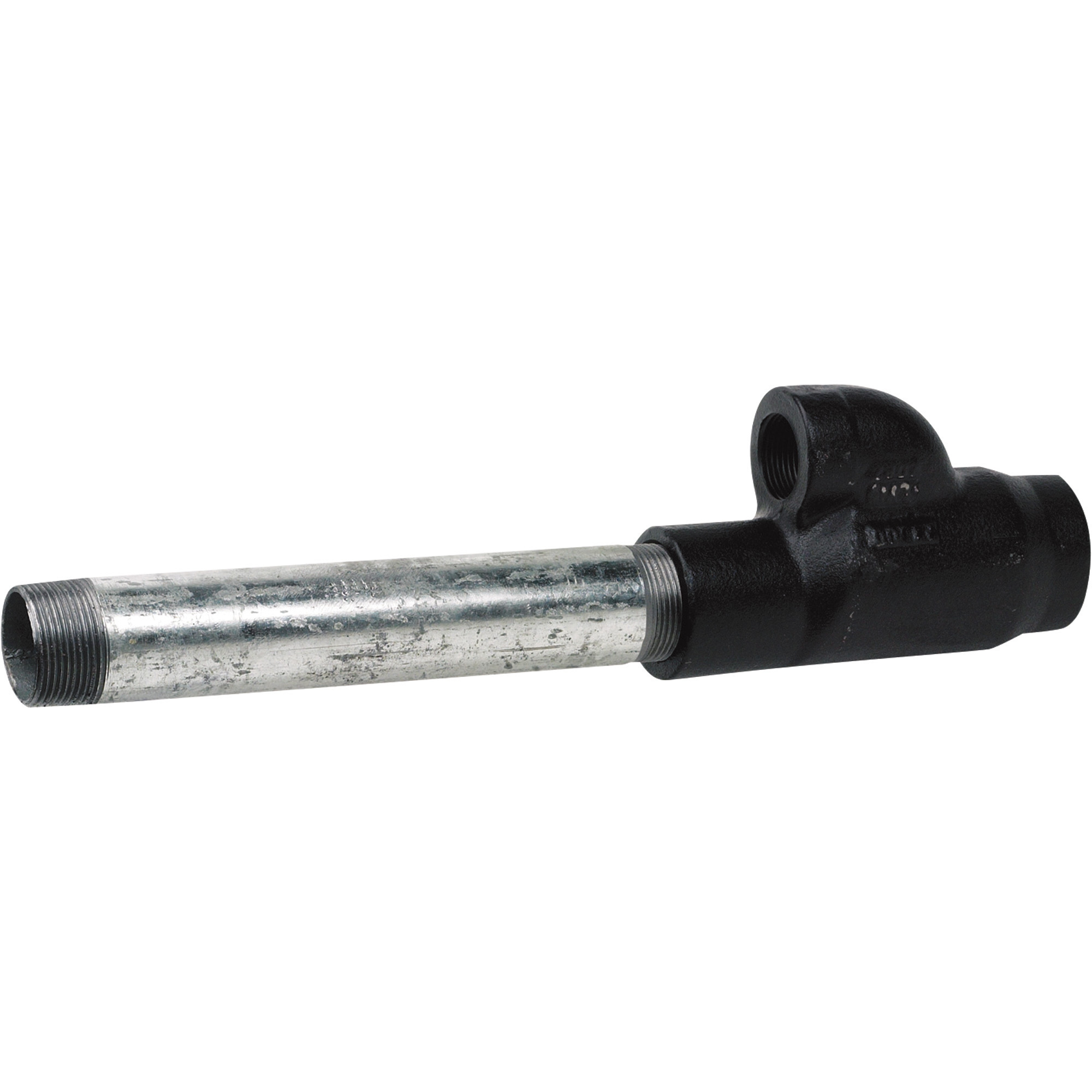

Wayne Jet Assembly for Deep Well Jet Pump, Item# 109261

Item# 109269
Wayne Jet Assembly for Deep Well Jet Pump, Item# 109261

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Wayne Jet Assembly for Deep Well Jet Pump, Item# 109261

Click or Tap image to Zoom

$72.99

  • Shipping:

    Factory shipped

  • Store Pickup:

  • For use with Item# 109261
  • Requires minimum 4in. well casing

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

This Wayne Jet Assembly is for use with Wayne 1/2 HP deep well jet pump. Designed for applications drawing water from 90 to 100 feet down.

What's Included

    (1) Jet assembly

Downloads

Product Manual

Features + Benefits

  • For use with Item# 109261
  • Requires minimum 4in. well casing

Key Specs

AttributeSpecification

item#

109269

Brand

Wayne

Manufacturer's Warranty

12 months parts/12months labor

Ship Weight

5.6 LB
AttributeSpecification

Accessory Type

Jet Assembly

Outlet Diameter

3/4 in

Compatible With

1/2 Hp Deepwell Jet Pump

Reviews

Questions & Answers

Questions

1–10 of 10 Questions
Sort by:

  1. "Wayne Jet Assembly for Deep Well Jet Pump, Item# 109261"

    can you use this on a 1 hp Wayne pump? Need to pump water from 80 ft.

    1 answer

    1. This item is a jet assembly for use on a deep well jet pump only. It will not work with the shallow well jet pump.

      Helpful?

  2. measures

    I need to know the measures for each of 3 outlets.

    1 answer

    1. The Wayne pump has 1 1/4" ports at the top and bottom. The center port is 3/4".

      Helpful?

  3. Will this jet assembly work on a well 150 to 200 feet deep,

    I mean, What is its maximun working pressure?

    1 answer

    1. The Wayne Jet Assembly can pump vertically up to 90 ft. It is design for use with item #109261.

      Helpful?

  4. Does this Jet need a Well Point?

    Or, any other point on it's bottom end?

    1 answer

    1. This unit does not need a well point. However you will need the attached items, well casing with an inside diameter of 4inches minimum, a foot valve, two pipes for the drive side and the suction side, and a nipple to connect them.

      Helpful?

  5. Will this jet assembly work on a well 20 to 40 feet deep

    1 answer

    1. This Wayne Jet Assembly is for use with Wayne 1/2 HP deep well jet pump (listed below) Designed for applications drawing water from 90 to 100 feet down. Requires minimum 4in. Well casing.

      Helpful?

  6. What is the pipe fitting sizes?

    Item # 109269

    1 answer

    1. The jet assembly has a 3/4" discharge.

      Helpful?

  7. what is the entire diamenter of jet will it fit in 2" pvc

    1 answer

    1. The Wayne Jet Assembly requires a minimum of 4" well casing.

      Helpful?

  8. Is the jet pump assembly item number 109261 made of brass??

    1 answer

    1. No, this Wayne jet assembly is made of cast iron and galvanized piping.

      Helpful?

  9. Can you get different sizes?

    1 answer

    1. No, we do not offer any other sized jet assembly at this time.

      Helpful?

  10. What size are the input/output hookups?

    1 answer

    1. The jet assembly outlets are standard 3/4" size.

      Helpful?

Warranty

Manufacturer's Warranty

12 months parts/12months labor
