Pump is ready to accept an 1 1/2 in. male fitting.

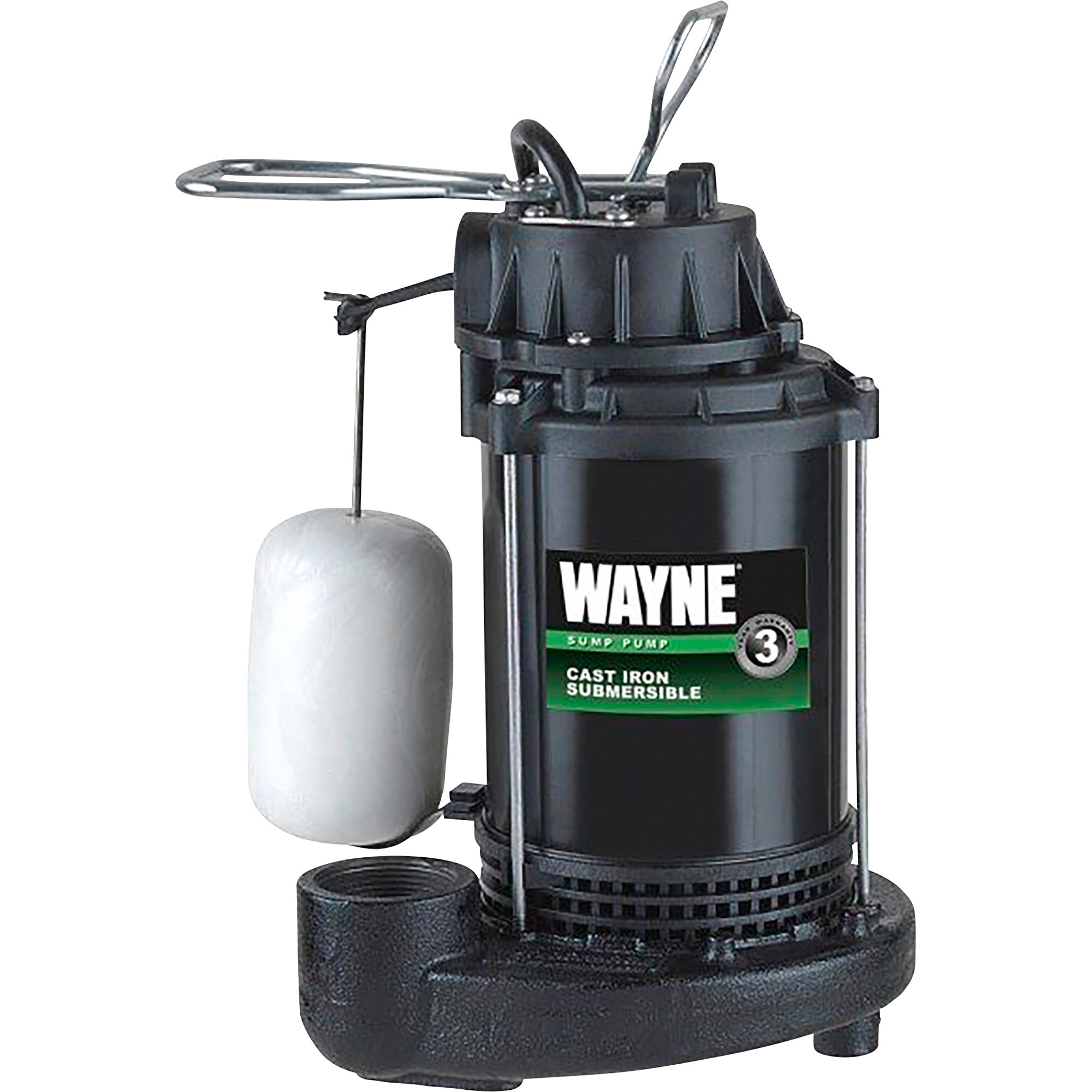

Wayne Cast Iron Submersible Sump Pump, 4600 GPH, 1/3 HP, 1 1/2in., Model# CDU790
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$164.99

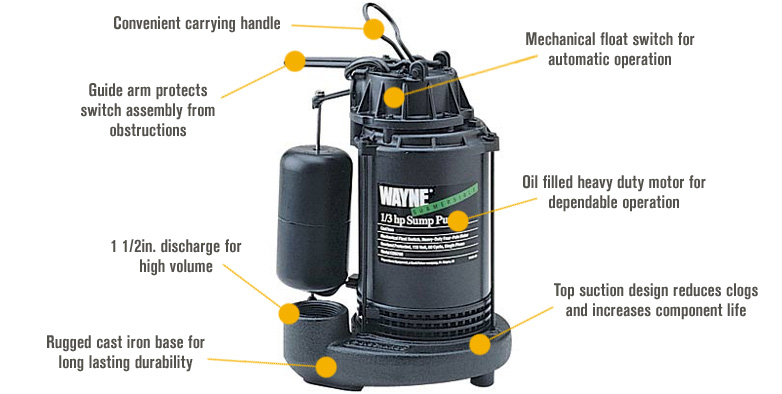

- Thermally protected motor
- Cast iron construction with corrosion-proof thermoplastic top
- Top suction strainer filters debris
- High capacity 1 1/2in. NPT discharge port
- Glass reinforced poly-carbonate impeller with steel shaft is designed for years of use
See full description
Price for all two:
$227.98
What's Included
- (1) Submersible sump pump
Downloads
Features + Benefits
- Thermally protected motor
- Cast iron construction with corrosion-proof thermoplastic top
- Top suction strainer filters debris
- High capacity 1 1/2in. NPT discharge port
- Glass reinforced poly-carbonate impeller with steel shaft is designed for years of use
- Stainless steel fasteners for superior corrosion-resistance
- Permanently lubricated ball bearing
- 120°F max fluid temperature
- 9 3/4in. dia. x 11 1/2in.H
- UL and CSA listed
-
what type of output fitting is on the pump?
-
Helpful?
-
Pump has 1.5" theaded female port
Helpful?
-
The submersible pump has a 1-1/2" NPT discharge port.
Helpful?
-
-
Wayne Cast Iron Submersible Sump Pump - 3800 GPH, 1/3 HP, 1 1/2in., Model# CDU790"
HP, 1 1/2in., Model# CDU790" what is the deepest footage it will pump from
-
Thank you for the question on the CDU790 sump pump.
It will pump up 20'.Helpful?
-
Since the total lift on this pump is 20ft, it is not recommended to go any deeper than 20 ft.
Helpful?
-
-
what is the gph. rating at 10 feet up hill?
i need to pump out a basement and the nearest window is 10 feet above the actual pump.
-
I don.t know the gph@ 10, but can verify that they work great at keeping up with 2 in. / hour rain at 11 feet. Have 5 pumps around the foundation (4 interior and 1 exterior) and three of the recently failed after 7 years of daily pumping at 11 feet.
Helpful?
-
The discharge rate at 10 feet for this sump pump is 2270 gallons per hour.
Helpful?
-
-
Will this pump handle 180 degree water? Will it fit in a 5 gallon bucket?
1 answer-
The pump will handle temperatures up to 120 degrees Fahrenheit. The dimensions of the pump are 11-1/2" high and 9-3/4" wide. It should fit into a 5 gallon bucket.
Helpful?
-
-
HOW LONG IS THE ELECTRICAL CORD?
1 answer-
The power cord is 8 feet long.
Helpful?
-
Accessories We Recommend
This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.
See All Sump Pumps
See All Wayne Sump Pumps
Currently Viewing This Product
Specifications
Specifications
Wayne Cast Iron Submersible Sump Pump, 4600 GPH, 1/3 HP, 1 1/2in., Model# CDU790
Wayne Basement Guardian Submersible Sump Pump System,1/2 HP Primary, 12V Backup, Model# BGSP50
Wayne Sump Pump System, 1/2 HP Primary, 12V Backup, Model# WSS30VN
Wayne Stainless Steel/Cast Iron Submersible Sump Pump, 5,400 GPH, 1 HP, 1 1/2in. Port, Model# CDU1000
Max. Flow
Same
4,600 GPH
5,100 GPH
5,100 GPH
6,100 GPH
Volts
Same
120
Multi
Multi
120
Amps
Same
3.5
3.8
3.8
9.8
Power Cord Length
Same
96 in
96 in
96 in
96 in
Housing Material
Same
Thermoplastic
Cast-Iron
Cast-Iron
Stainless Steel
Horsepower
Same
0.33
0.5
0.5
1
Product Weight
Same
-
lb
lb
lb
Dimensions L x W x H (in.)
Same
-
13.5 x 9.0 x 15.5 in
13.0 x 9.0 x 12.0 in
10.0 x 10.0 x 14.0 in
