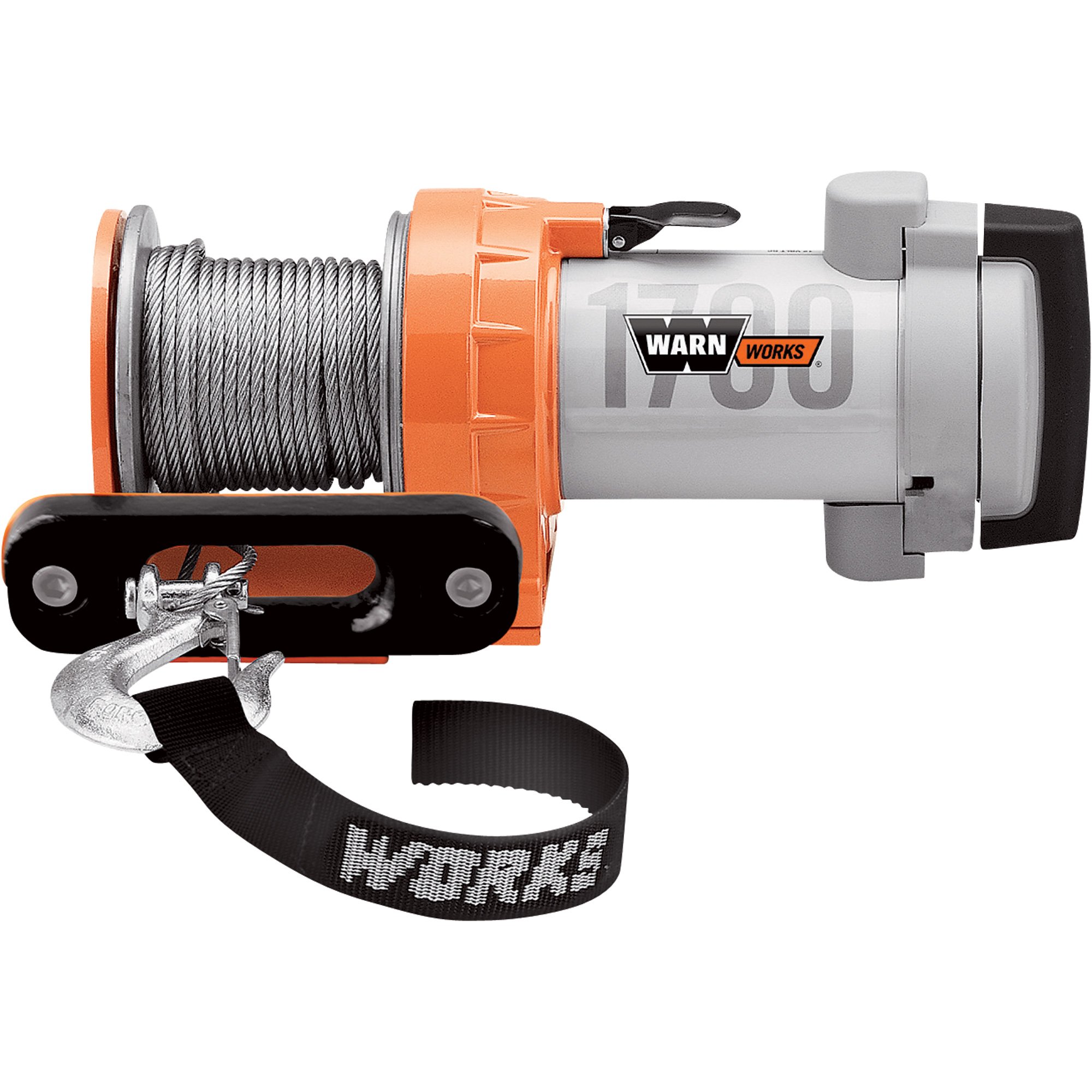

WARN Works® 1700 12V DC Powered Winch — 1700-Lb. Capacity, Model# 601700

Item# 142000
WARN Works® 1700 12V DC Powered Winch — 1700-Lb. Capacity, Model# 601700

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

WARN Works® 1700 12V DC Powered Winch — 1700-Lb. Capacity, Model# 601700

Click or Tap image to Zoom

  • Pulling Capacity: 1700 lbs.
  • Switch Type: Dial; motor or remote mounted
  • Motor: Permament Magnet
  • HP: 1.9 HP 3in. diameter
  • Power Requirements: 12V DC (250 Amp minimum)

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The WARN Works® 1700 has an easy-to-use, heavy-duty rotary control switch for power-in or power-out. The control switch can be mounted on the motor or remotely. Robust product design allows this winch to take worker abuse and features proper gear ratios for controlled load pulling and easy-to-use control systems. A powerful pulling tool in a surprisingly small package. U.S.A.

Downloads

Product Manual

Features + Benefits

  • Pulling Capacity: 1700 lbs.
  • Switch Type: Dial; motor or remote mounted
  • Motor: Permament Magnet
  • HP: 1.9 HP 3in. diameter
  • Power Requirements: 12V DC (250 Amp minimum)
  • Gear Train: Split ring gear
  • Gear Ratio: 222:1
  • Clutch: Lever, multi-directional operation
  • Unit is not rated for lifting. Misapplication voids warranty
  • Brake: Self-locking geartrain, dynamic braking (rated load holding)
  • Length: 10in.
  • Width x Height: 4.57in. x 5.18in.
  • Wire Rope: 5/32in. x 35ft.
  • Drum Dimensions: 2.0in. x 3.0in.
  • Fairlead: Hawse
  • Hole Pattern: Two holes on 3.1in. center
  • Electrical Leads: Two 6in. x 6-gauge cables

Key Specs

AttributeSpecification

item#

142000

Brand

WARN Works
AttributeSpecification

Manufacturer's Warranty

12 months parts / 12 months labor

Ship Weight

16.8 LB
