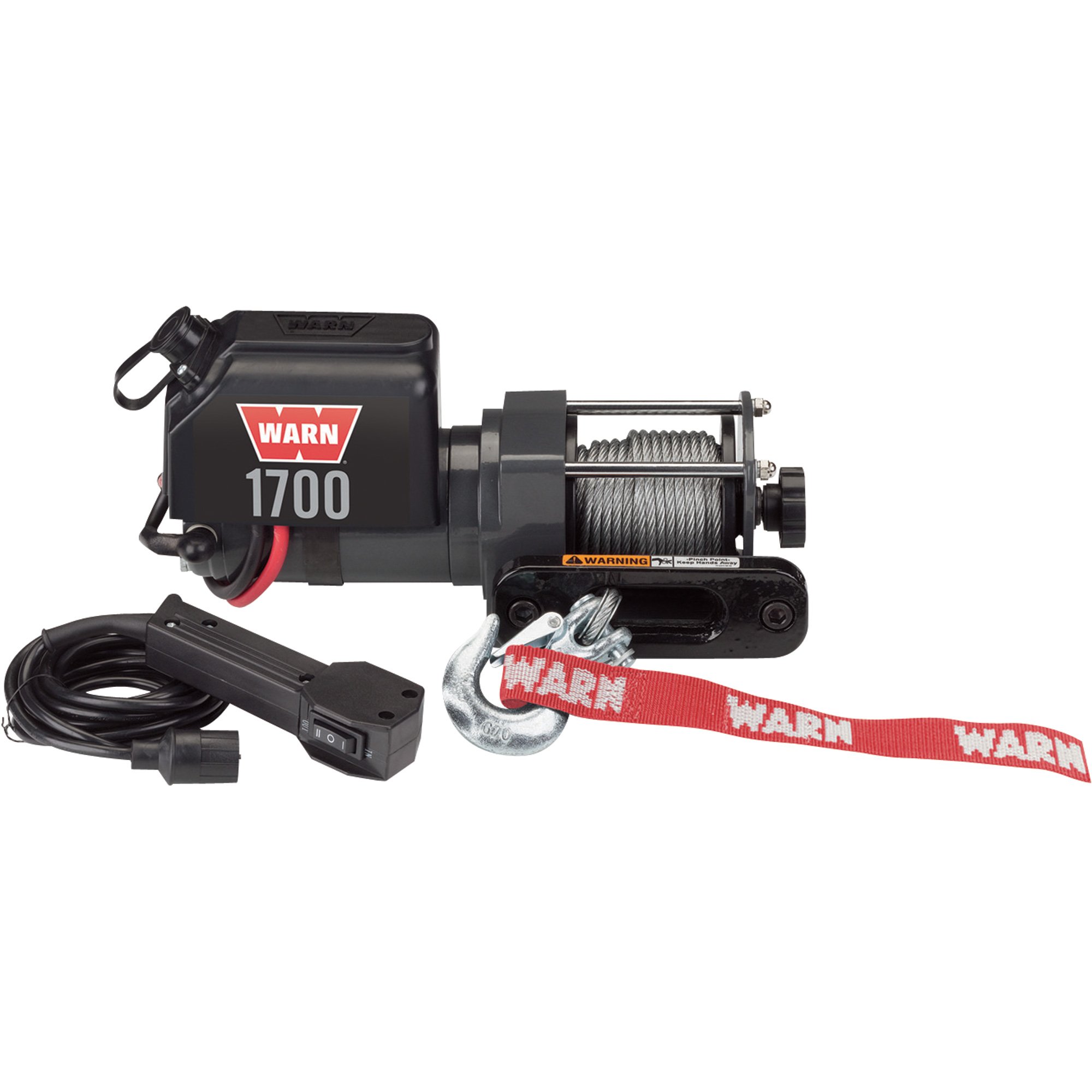

WARN Utility Winch — 1700-Lb. Capacity, 12 Volt DC, Model# Warn 1700 DC

Item# 147022
WARN Utility Winch — 1700-Lb. Capacity, 12 Volt DC, Model# Warn 1700 DC

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

WARN Utility Winch — 1700-Lb. Capacity, 12 Volt DC, Model# Warn 1700 DC

Click or Tap image to Zoom

  • 1700-lb. single line pulling capacity
  • 1.7 HP 12V DC permanent magnet motor
  • 35 feet of 5/32in. wire rope with latched hook
  • Self-braking transmission promotes safety
  • Includes pendant remote control for operation from up to 12ft. away

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This WARN® compact utility winch is a dynamo for smaller jobs. It is built to handle lighter loads up to 1700 lbs. An efficient 1.7 HP motor requires minimal amp draw. Winch is loaded with features like a pull and turn freespooling clutch, split ring geartrain, self-braking transmission and handheld remote for safe, precise operation.

What's Included

  • (1) Winch
  • (1) Wire rope with latched hook
  • (1) 12ft. pendant control
  • (1) Mounting hardware

Features + Benefits

  • 1700-lb. single line pulling capacity
  • 1.7 HP 12V DC permanent magnet motor
  • 35 feet of 5/32in. wire rope with latched hook
  • Self-braking transmission promotes safety
  • Includes pendant remote control for operation from up to 12ft. away

Key Specs

AttributeSpecification

item#

147022

Brand

WARN

Manufacturer's Warranty

12 months parts / 12 months labor

Ship Weight

20.6 LB

Horsepower

1.7 HP

Capacity (Line Pull)

1,700 lb

Gear Type

Other

Line Speed

7.2 ft./min.
AttributeSpecification

Gear Ratio

153:1

Rope Length

35 ft

Rope Diameter

5/32 in

Brake Type

Transmission

Remote

Yes

Remote Cord Length

12 ft

Freespooling

Yes

Fairlead Type

Hawse

Reviews

Questions & Answers

12 Reviews This action will navigate to reviews.

Questions

1–10 of 24 Questions
Sort by:

  1. Can you use 1/4" cable on this machine?

    I am going to use the winch to lift a 300 lb load that already has a 1/4" cable attached. Can I just thread the cable onto the spool? Total cable length <20'

    1. This unit is designed and built as a winch for horizontal pulling only. This unit is not designed for lifting.

      Helpful?

    2. with 20' of 1/4" cable you might run out of spool before you get it up,just a thought.

      Helpful?

    3. It is recommended that you use 5/32" cable.

      Helpful?

  2. Could you put this on an atv to lift a snow plow?

    1. yes

      Helpful?

    2. As long as the plow is under the capacity, this can be used on a snow plow. Proper mounting and setup would be the users responsibility.

      Helpful?

  3. Can this be wired to work on AC

    Can you wire a DC winch to plug into a normal 110 outlet?

    1. NO.

      Helpful?

    2. A DC (direct current) winch like this Warn utility winch cannot be wired to work on AC power (alternating current). Warn does not have a transformer to change AC power to the 12 Volt DC power required to run this winch on either.

      Helpful?

  4. Is the winch / motor water proof? Can it be left in the bed of the truck un covered, in the rain / snow elements?

    1. It is weather resistant. I have one mounted on my 4 wheeler and one on my truck crane,both stay out doors year round. The truck crane winch is about 4 years old and still works fine.

      Helpful?

    2. The WARN Utility Winch should always be stored in a protected, clean, dry area when not in use.

      Helpful?

  5. Is this hard wired or can I just clip it to the battery when is used?

    1. I bought alligator clips and clip it on to my spare boat battery and it works great.

      Helpful?

    2. This utility winch comes with battery connector cables that have ends with terminals, not alligator clip connectors. Click the link below to view compatible quick connect plugs that would allow faster connection to the battery.

      Helpful?

  6. How much does the brake hold?

    I am thinking of using this for a swing keel on a boat. The keel is about 900#. I need to be able to power it up and down, hold where ever I stop it and a manual back up crank would be very good.

    1. i'm not sure but my boat weight about 3000 lbs and I pull it up a slight hill with the WARN and the brake doesn't seem to have any problems holding it/no slipping so far. I have had it for about seven months.

      Helpful?

    2. The braking capacity of the WARN 1700 DC is the same as the pulling, 1700 lbs. All winches are designed for pulling horizontally, and are not meant to hold a vertical load. A hoist should be used for vertical applications.

      Helpful?

  7. this winch have winch in and winch out?

    1. Yes, it does.

      Helpful?

    2. Yes, this Warn winch has power in and power out.

      Helpful?

  8. I need a longer electrical lead, about 25 foot to reach my trailer including a disconnect. Ideas? Thanks!!

    What guage cable do I need to buy to make this lead?

    1. I looked around for a cheap set of jumper cables, if you are using 1700# winch you can get by with #6 wire size, but I would go larger if possible to reduce the line loss (Amps). Just cut of the clamps and solder on the ends. You can buy quick disconnects at Northern or other places on the net.

      Helpful?

    2. This Warn winch comes with 12 gauge wire originally. To safely extend this out to 25 feet, you will need to use 6 gauge wire.

      Helpful?

  9. Can I convert this winch to a rope/capstan config?

    I want to replace the steel cable/capstan and install a rope/capstan. The capstan must have an open end to loop the rope on to the capstan while in use. Does either of the 2 rope capstan's you sell fit the Warn 1700 DC winch? Is there a kit available to do this? Is there a rope/capstan conversion kit for any of your winches?

    1 answer

    1. The manufacturer does not recommend using rope.

      Helpful?

  10. could this winch pull and hold roughly 300lbs on an incline without slipping out cable.

    1 answer

    1. This winch is capable of pulling the 300 pounds up the incline. It is not capable of holding the weight though without slippage happening.

      Helpful?
