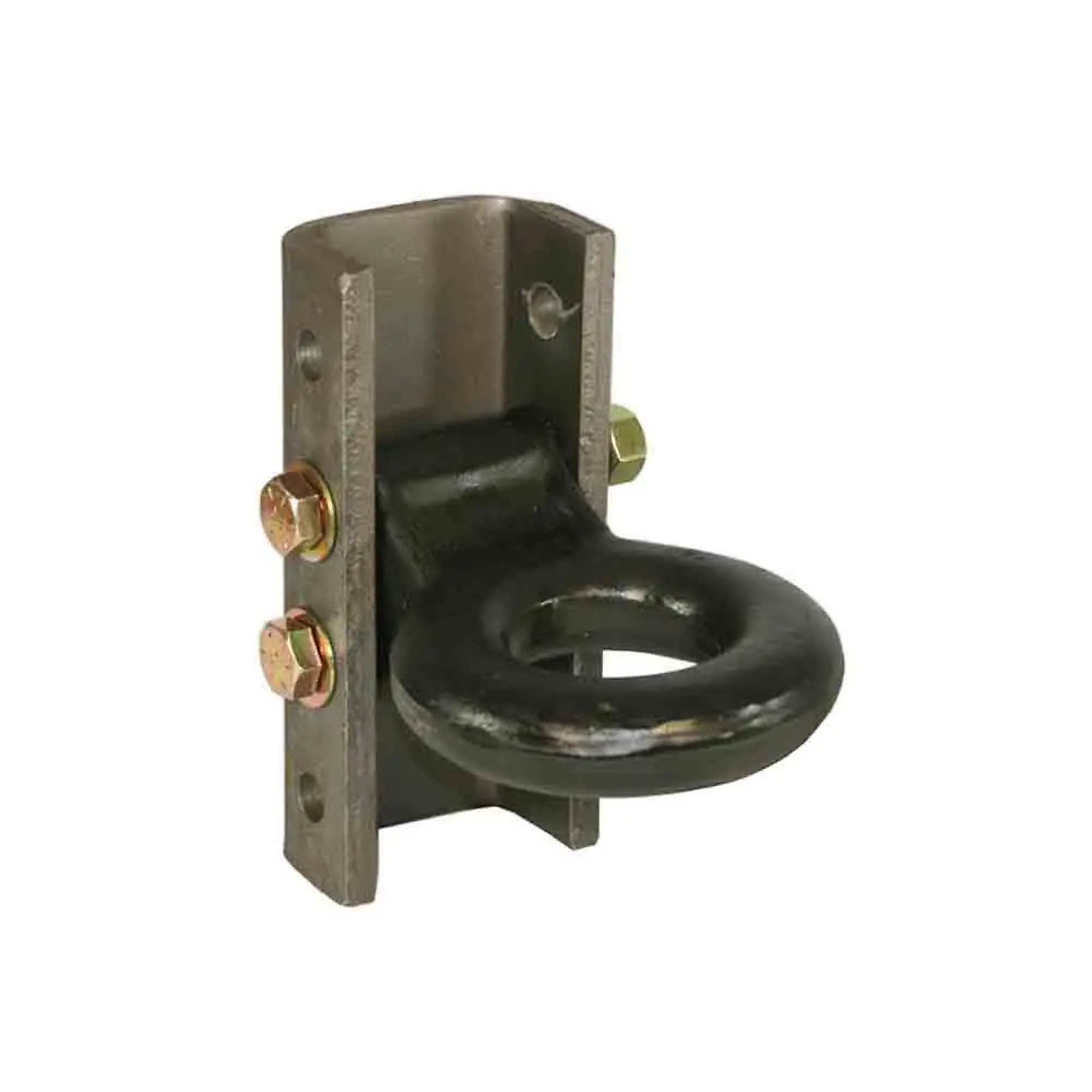

Wallace Forge Adjustable Forged Tow Ring with 3-Position Channel Assembly — 30K Capacity, 2.5in. Ring ID, Model# AR3-049

Item# 6924394
Wallace Forge Adjustable Forged Tow Ring with 3-Position Channel Assembly — 30K Capacity, 2.5in. Ring ID, Model# AR3-049

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Wallace Forge Adjustable Forged Tow Ring with 3-Position Channel Assembly — 30K Capacity, 2.5in. Ring ID, Model# AR3-049

Click or Tap image to Zoom

  • Raw Finish
  • Do not weld forged rings, channel only
  • Do not overly torque or tighten nuts to try and take the play out. Failure will occur if nuts and bolts are over-torqued.
  • Made in USA

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

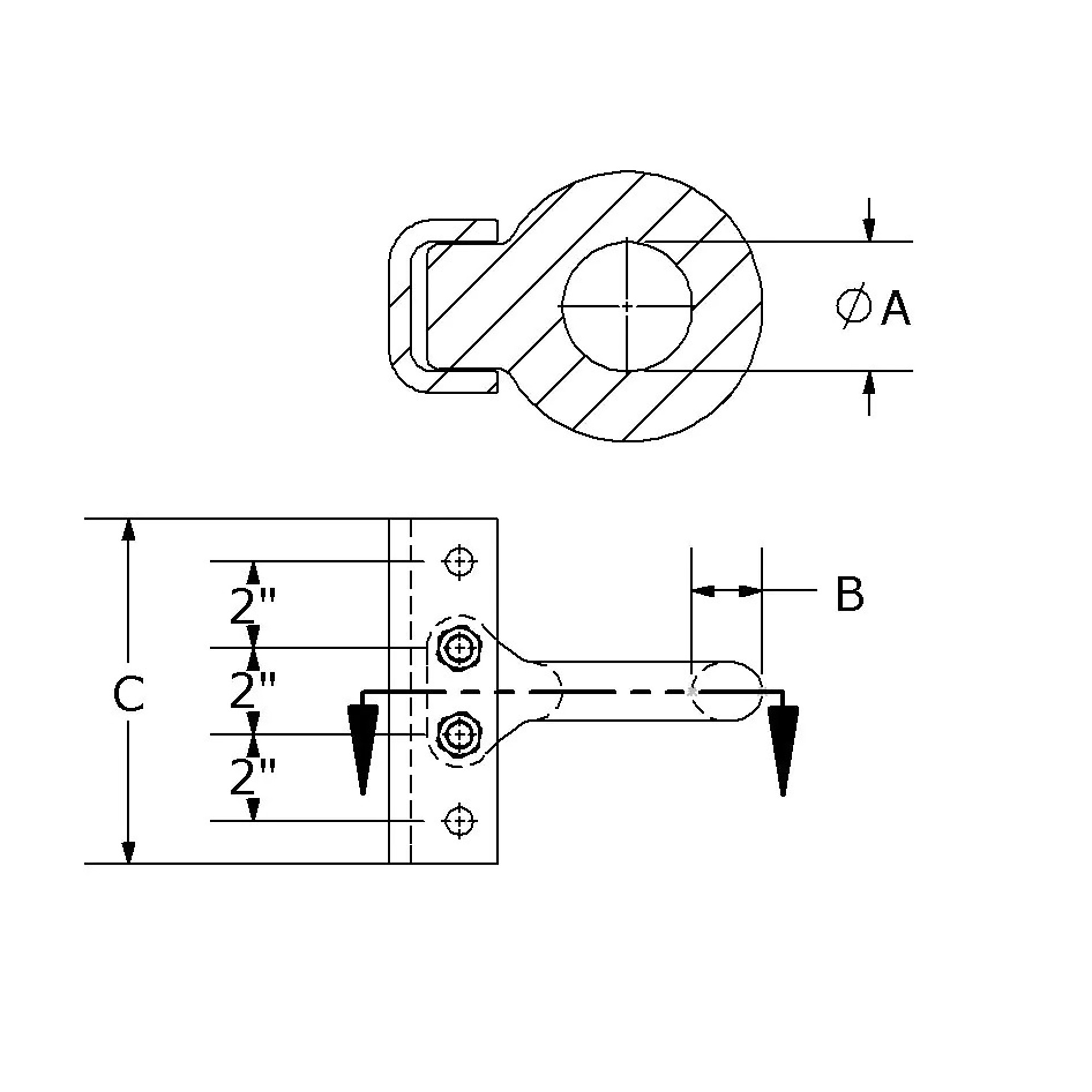

Assembly includes a lunette ring, 3 position channel and grade 8 mounting hardware. Dimensions of ring- 2-1/2in. I.D, 1-3/8in. ring thickness diameter and fits in a 2-7/8in. channel (included). Channel height 8in. overall and can be moved in increments of 2in.

What's Included

    (1) Pintle Product

Features + Benefits

  • Raw Finish
  • Do not weld forged rings, channel only
  • Do not overly torque or tighten nuts to try and take the play out. Failure will occur if nuts and bolts are over-torqued.
  • Made in USA

Key Specs

AttributeSpecification

item#

6924394

Brand

Wallace Forge

Manufacturer's Warranty

5 year limited warranty

Ship Weight

21.0 LB

Material

Steel
AttributeSpecification

Max. Gross Trailer Weight

30,000 lb

Max. Tongue Weight

2,000 lb

Eyelet Diameter I.D.

2.5 in

Product Weight

21.0000 lb

Dimensions L x W x H (in.)

16.0 x 15.0 x 6.0 in
