Works great for stain, no thinning required

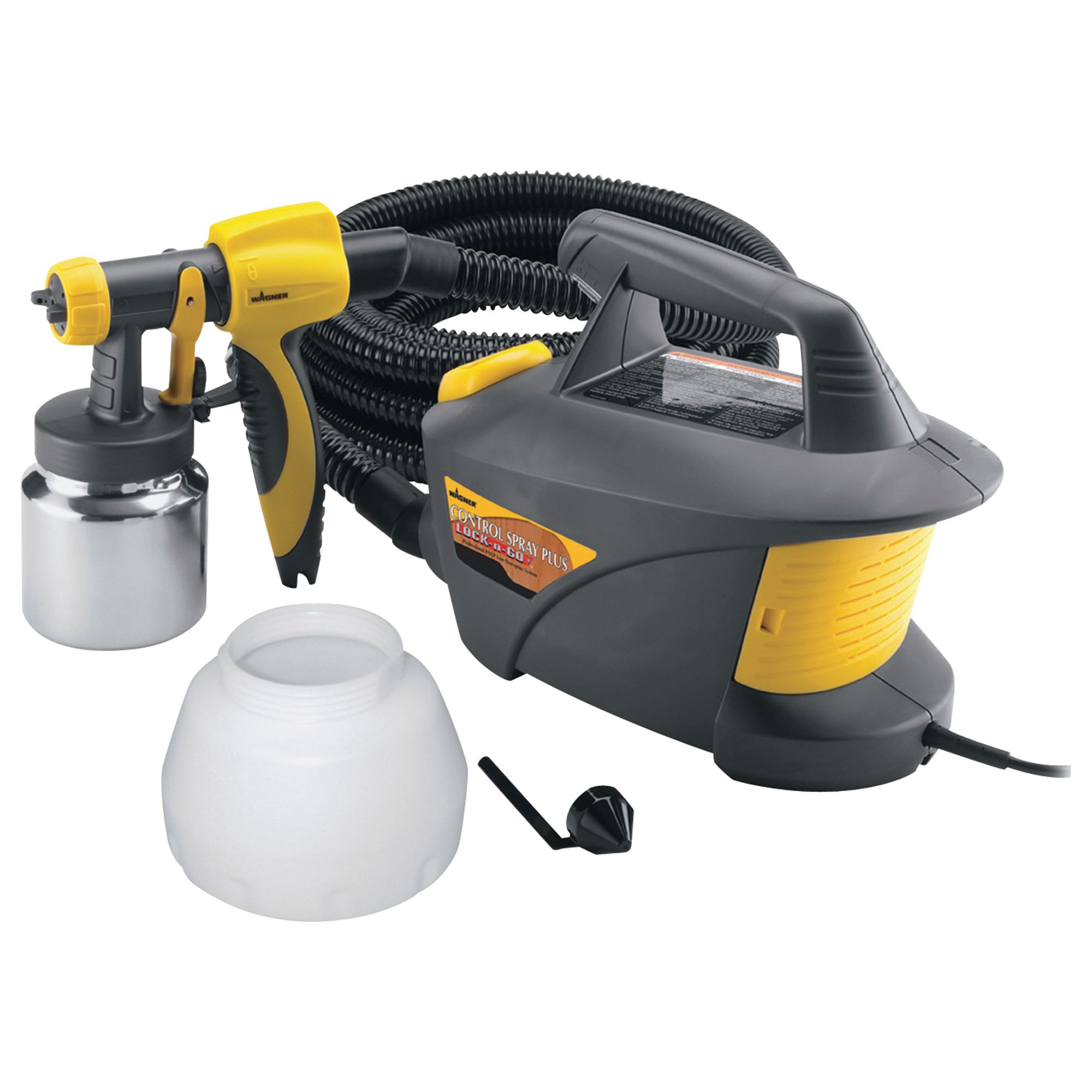

Wagner Control Spray Plus HVLP Low Overspray System, Model# 0518070
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
- Sprays enamels, varnishes, shellacs, lacquers, oils, stains, urethanes
- 3 spray patterns: vertical, horizontal or round
- Lock-n-Go™ technology minimizes overspray
- Variable speed sprayer with trigger pull
- 1-qt. metal cup for fine finishes
See full description
-
what about oil based stains?
-
Helpful?
-
This Wagner Control Spray Plus HVLP Low Overspray System is capable of spraying oil based stains.
Helpful?
-
Yes, the Control Spray Plus can spray oil base materials.
Helpful?
-
-
Is this unit noisy? I have an older Wagner portable unit that is so noisy that I don't use.
-
The sprayer will make about the same amount of noise as a vacuum cleaner.
Helpful?
-
No the sprayer is not that noisey, the 20 foot hose puts you far enough away that it isn't bothersome.
Helpful?
-
This will be comparable to a vacuum cleaner noise. There is not a decibel rating on this system.
Helpful?
-
-
use of behr high gloss enamel paint
will the Wagner control Spray plus HVLp system work for painting interior doors using Behr high gloss enamel paint?
If not what do you recommend?-
Yes, it will work with enamel paint.
Helpful?
-
Yes, you can use almost any kind of paint you only need to be careful with the thinning of the paint and after you finish clean the sprayer very well.
Helpful?
-
Yes, this would be able to spray enamels.
Helpful?
-
-
would this product be good to paint a fence?
-
Yes, this product will work good for painting a fence.
Helpful?
-
definitively yes , you can paint everything with this sprayer it very easy.
Helpful?
-
Yes, this unit would work for painting a fence. In that situation the low overspray feature would especially valuable.
Helpful?
-
-
Will this sprayer work at 90 Degree angle
-
It's not recommend to angle the sprayer more than 45 degrees.
Helpful?
-
We do not recommend angling the sprayer more than 45 degrees or you may struggle spraying or with paint running back into the sprayer. Even with a 45 degree angle you can spray ceilings or down at a deck surface without much difficulty.
Helpful?
-
-
how thin must the house paint i have treid to use these before and nothing but trouble with them
-
Most of the time "house paint" will be latex paint. The Control Spray Plus is not meant for use with latex paint. It is a thin-bodied materials sprayer for things like stains, sealers, varnish, other oil-based materials. Latex paint in general is too thick for this unit.
Helpful?
-
Most of the time "house paint" will be latex paint. The Control Spray Plus is not meant for use with latex paint. It is a thin-bodied materials sprayer for things like stains, sealers, varnish, other oil-based materials. Latex paint in general is too thick for this unit. If you wish to use an HVLP sprayer with latex paint, we would suggest using the Control Spray Max or the PaintREADY units by Wagner.
Helpful?
-
-
how well does this sprayer work on ceilings
-
HVLP sprayers are high volume, low pressure for a finer finish and better control. You can use it for ceilings but it may take longer than an airless sprayer.
Helpful?
-
The Control Spray Plus is a High Volume Low Pressue (HVLP) sprayer. Which will give you a finer finish, better control, and less overspray. You can use it to paint a ceiling, but it would not be the sprayer I would recommend because it is going to take you longer than if you were using an airless sprayer and you may need to thin your paint.
Helpful?
-
-
How long is the electric (115V) cable?
-
The power cord measures 6 feet long.
Helpful?
-
The cord length is 6 feet.
Helpful?
-
-
Is this sprayer adequate to paint the exterior of a home?
-
Yes this item would work to spray the outside of a home as it sprays thin-bodied materials in patterns from 1/2in. to 12in. wide with more control than a brush, spray can or high pressure paint sprayer. However the attached item would work as well has it is an HVLP (high volume low-pressure) sprayer.
Helpful?
-
It could be used, but is not the sprayer I would recommend using one of our airless sprayers like our Power Painter Max. The Control Spray Plus is an HVLP sprayer and they are designed to give you a finer finish and produce less overspray.
Helpful?
-
-
Is is possible to spray paint a ceiling with this sprayer?
-
Yes, this sprayer can spray overhead.
Helpful?
-
Yes, you can spray overhead with this model.
Helpful?
-
Accessories We Recommend
This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.
3M Virtua Protective Safety Glasses, Clear Lens, Model# 11228-00000-100
Item # 547021
$1.99
Reg $4.99Save 60%
Order today to get this price.
See All Paint Sprayers
See All Wagner Paint Sprayers
Currently Viewing This Product
Specifications
Specifications
Wagner Control Spray Plus HVLP Low Overspray System, Model# 0518070
Titan ControlMax 1700 HE Airless Spray Paint Gun, 0.6 HP, 120V, 10 Amp, 1500 PSI, Model# 0580009
Titan ControlMax 1900 PRO HE Airless Spray Paint Gun, 0.7 HP, 110V, 10 Amp, 1600 PSI, Model# 0580008
Titan ControlMax 1500 HE Airless Spray Paint Gun, 0.55 HP, 120V, 10 Amp, 1500 PSI, Model# 0580005
Volts
Same
120
120
110
120
Capacity
Same
-
5 Gal
5 Gal
5 Gal
Horsepower
Same
-
0.6
0.7
0.55
Amps
Same
-
10
10
10
Max. Flow Rate
Same
-
0.33 GPM
0.4 GPM
0.29 GPM
Max. PSI
Same
-
1,500
1,600
1,500
Max. Tip Size
Same
-
0.017 in
0.019 in
0.015 in
Hose Length
Same
-
30 ft
50 ft
25 ft
Product Weight
Same
-
23.1000 lb
39.7000 lb
19.4000 lb
Dimensions L x W x H (in.)
Same
-
16.0 x 18.25 x 13.5 in
32.0 x 20.0 x 17.0 in
16.0 x 18.25 x 13.5 in
