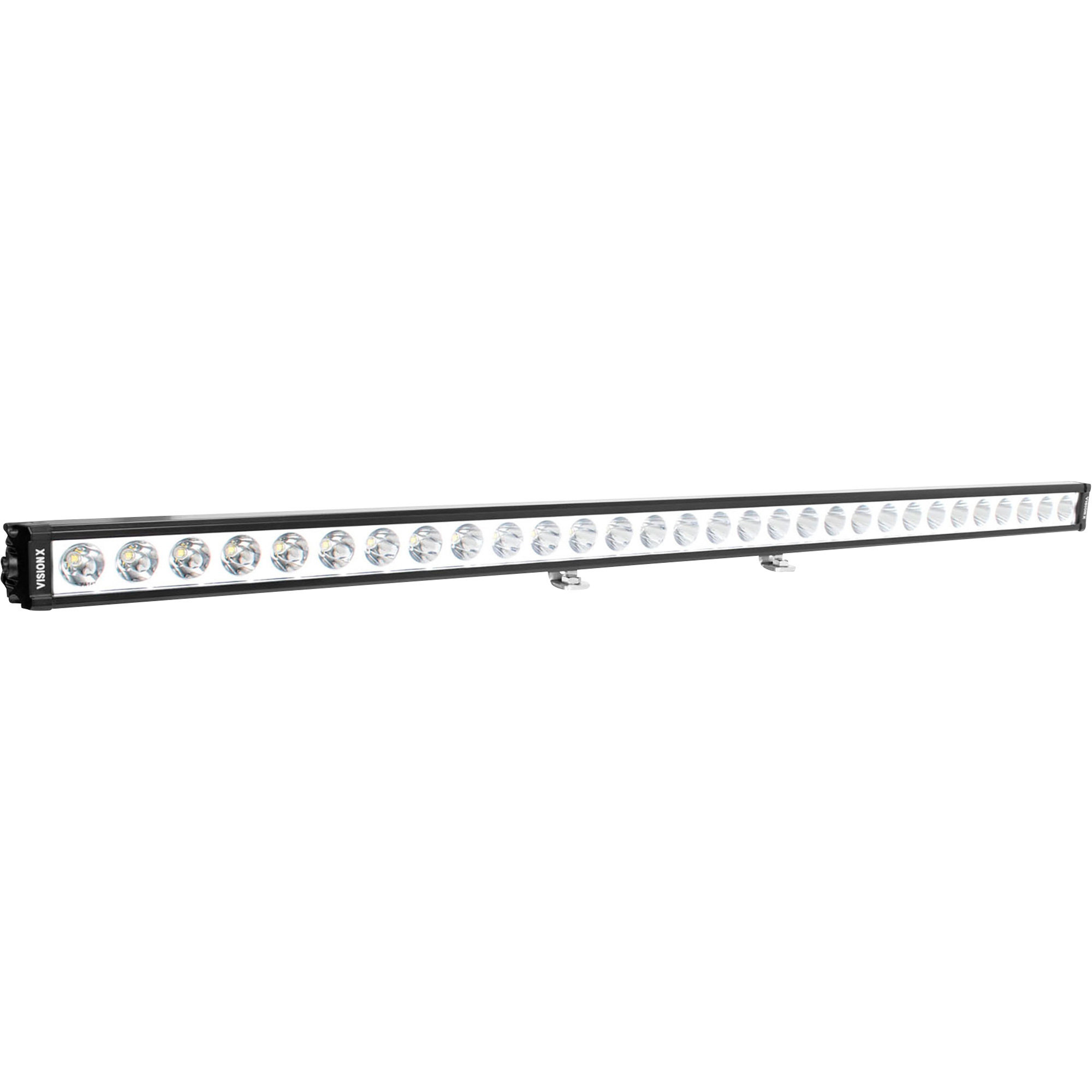

Vision X XPL Halo Series LED Light Bar - 40in. Length, 30 Cree LEDs, 16,050 Lumens, Permanent Mount, Model# XPL-H30EMH

Item# 101423
1 Included
Vision X XPL Halo Series LED Light Bar - 40in. Length, 30 Cree LEDs, 16,050 Lumens, Permanent Mount, Model# XPL-H30EMH

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Vision X XPL Halo Series LED Light Bar - 40in. Length, 30 Cree LEDs, 16,050 Lumens, Permanent Mount, Model# XPL-H30EMH

Click or Tap image to Zoom

$729.00

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • 30 separate 5 Watt Cree LEDs produce 11,235 Lumen output

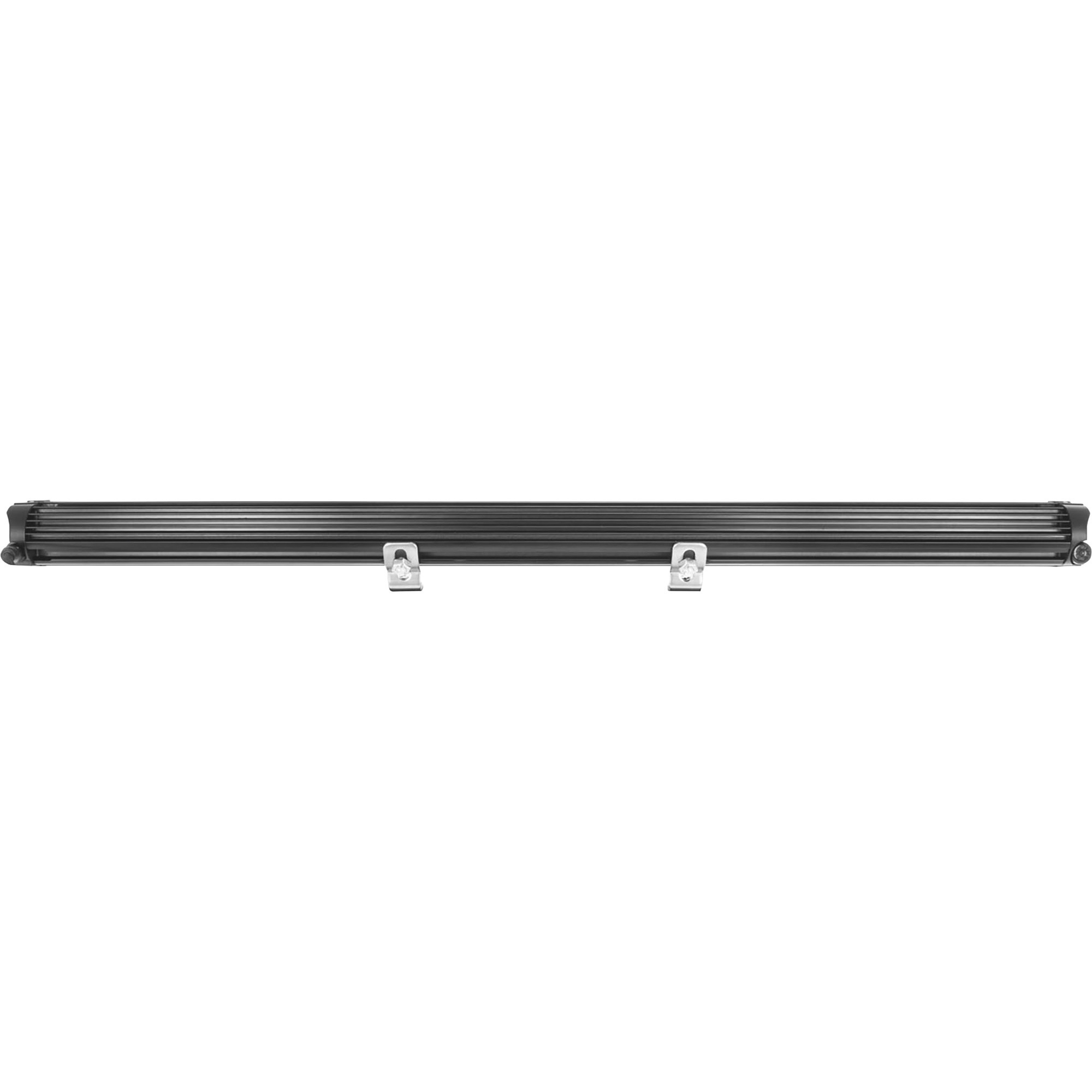

  • Multiple mounting options: Mount with side wings off each end cap or mount with Vision X's foot mounting design- both options allow for adjustability once installed, enabling the light to be aimed for optimal visibility
  • Ultra-slim housing design takes up less space and rides well on the vehicle
  • Daytime Running Backlit Halo Iris Reflector Technology provides superior light distance
  • Plug and Play harness for fast and easy hookup

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

This 40in.L Vision X XPL Halo Series LED Light Bar combines the distance power of Iris Reflector Technology with an ultra-slim housing design. Utilizing a powerful 5W Cree LED, the XPL light is able to produce up to 16,050 lumens and over 2,000ft. of usable light. Comes standard with newly redesigned mounting feet and the option to add a wiring harness and/or side wing mounts. 39.65in.L x 2.17in.W x 2.01in.H overall size.

What's Included

    (1) 40in. light bar (1) Wiring harness (1) Mounting hardware

Downloads

Product Manual

Features + Benefits

  • 30 separate 5 Watt Cree LEDs produce 11,235 Lumen output
  • Multiple mounting options: Mount with side wings off each end cap or mount with Vision X's foot mounting design- both options allow for adjustability once installed, enabling the light to be aimed for optimal visibility
  • Ultra-slim housing design takes up less space and rides well on the vehicle
  • Daytime Running Backlit Halo Iris Reflector Technology provides superior light distance
  • Plug and Play harness for fast and easy hookup
  • 9-32V DC operation with 45 Watts and 3.75 Amp draw
  • Spot beam pattern offers strong focused light Delivers 16,050 Raw Lumens/11,235 Effective Lumens
  • IP67/69K rating for dust and water resistance
  • -40°C to +80°C operational temperature range

Key Specs

AttributeSpecification

item#

101423

Brand

Vision X

Manufacturer's Warranty

Lifetime Limited warranty

Ship Weight

12.0 LB

Light Type

LED

Lens Color

Clear

Included (qty.)

1

Product Type

Light Bars
AttributeSpecification

Shape

Rectangle

Connector Type

Plug and Play

Bulbs Per Light (qty.)

30

Lumen Output

16,050

Housing Material

Multiple

Mounting Hardware Included

Yes

Product Weight

12.0000 lb

Dimensions L x W x H (in.)

39.65 x 2.17 x 2.01 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

Lifetime Limited warranty
