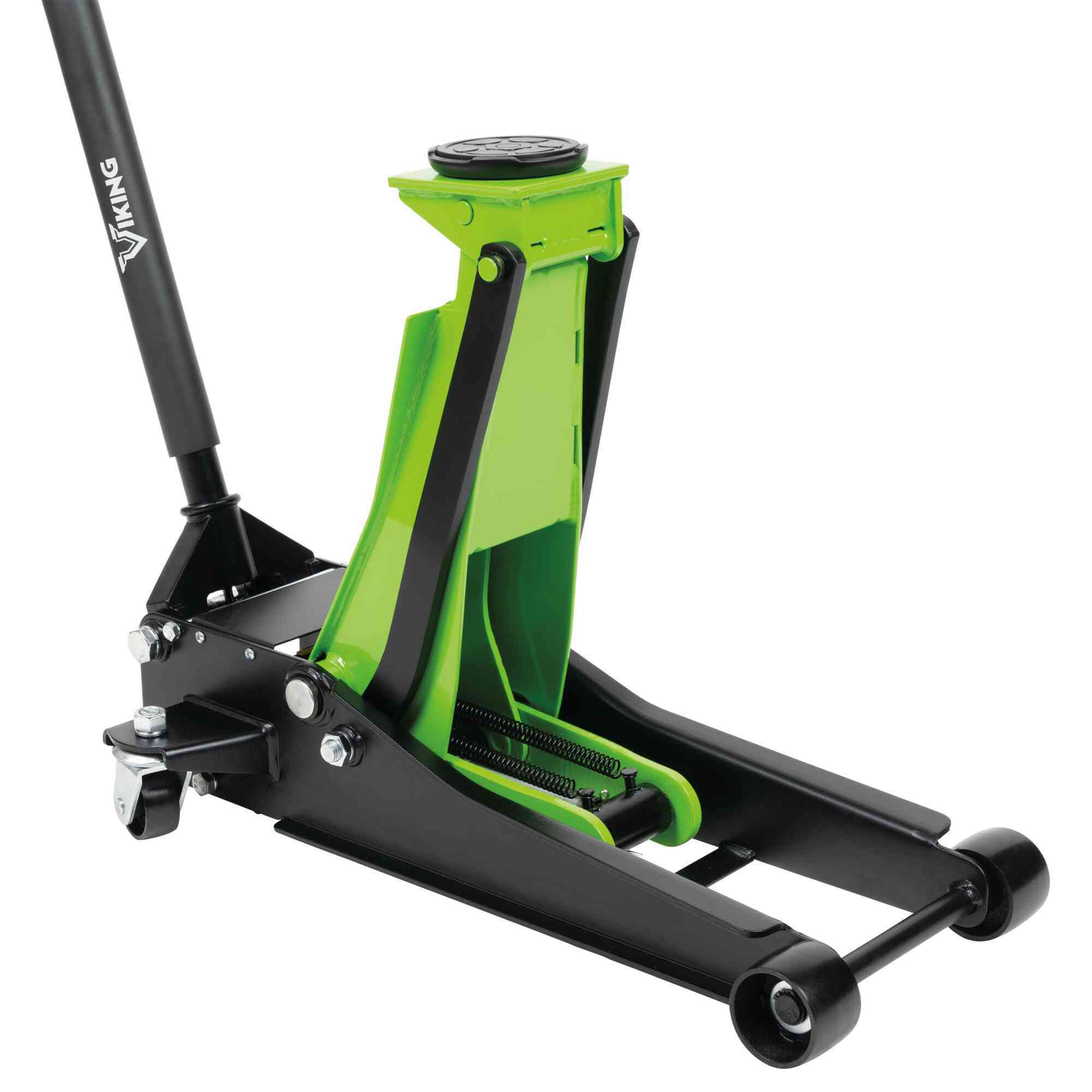

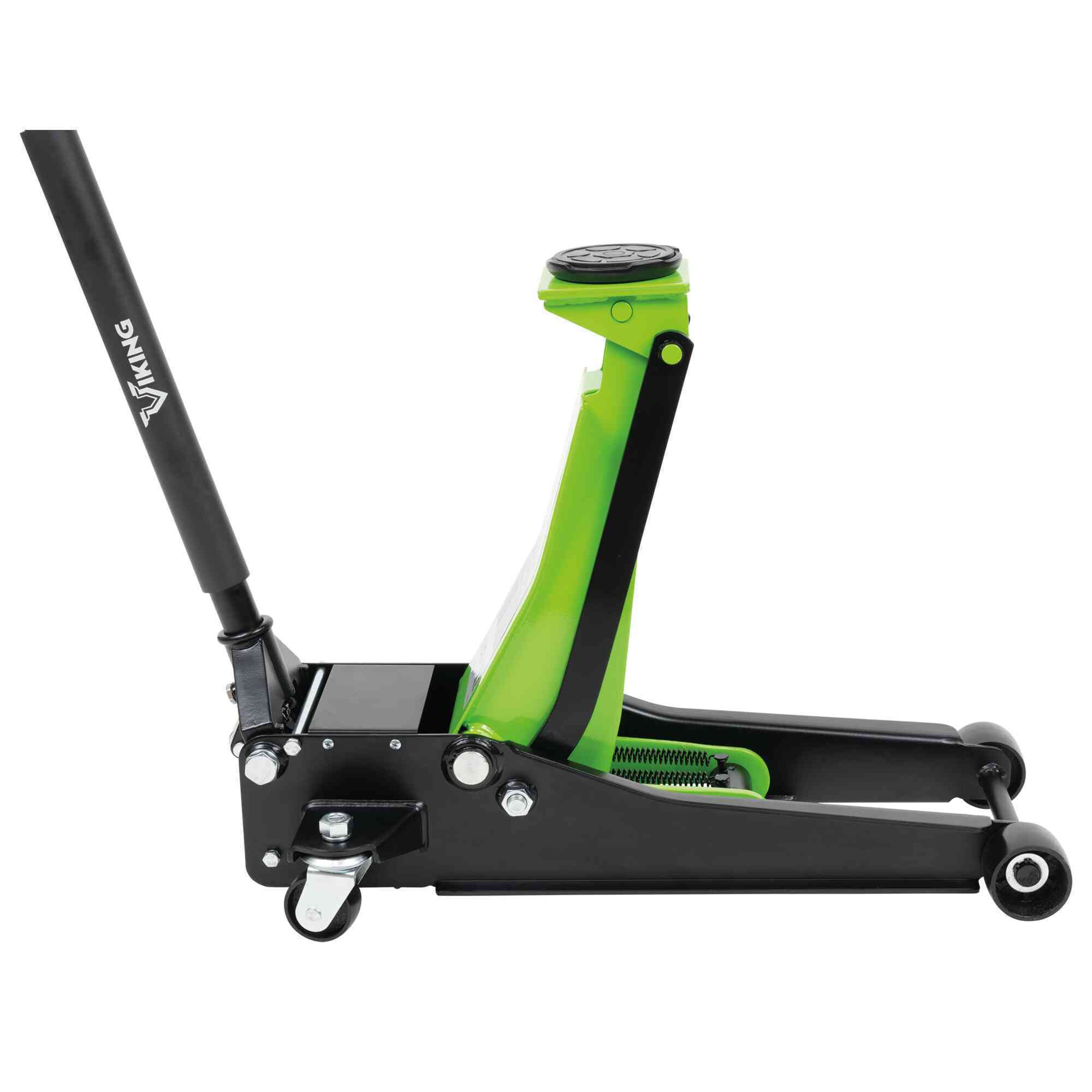

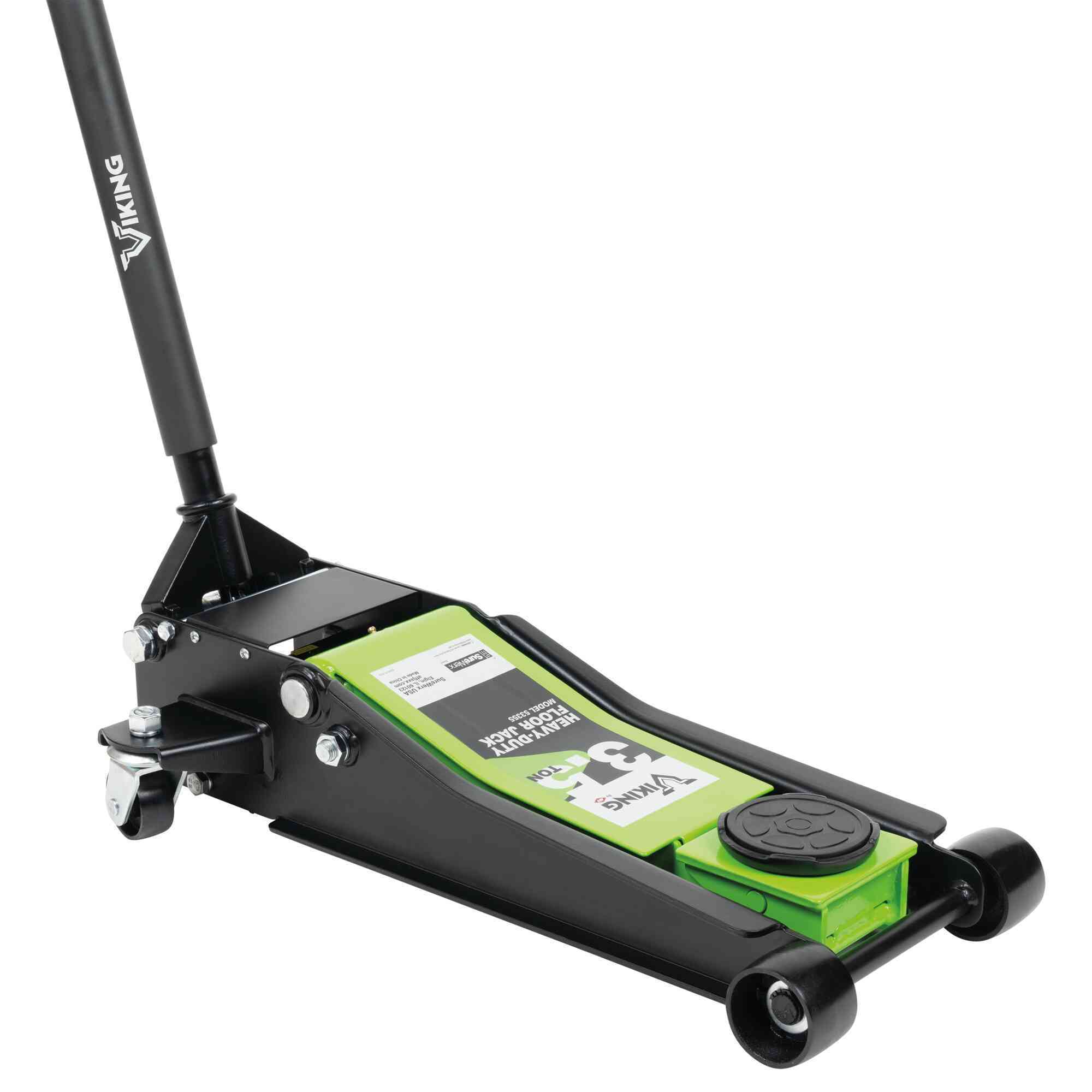

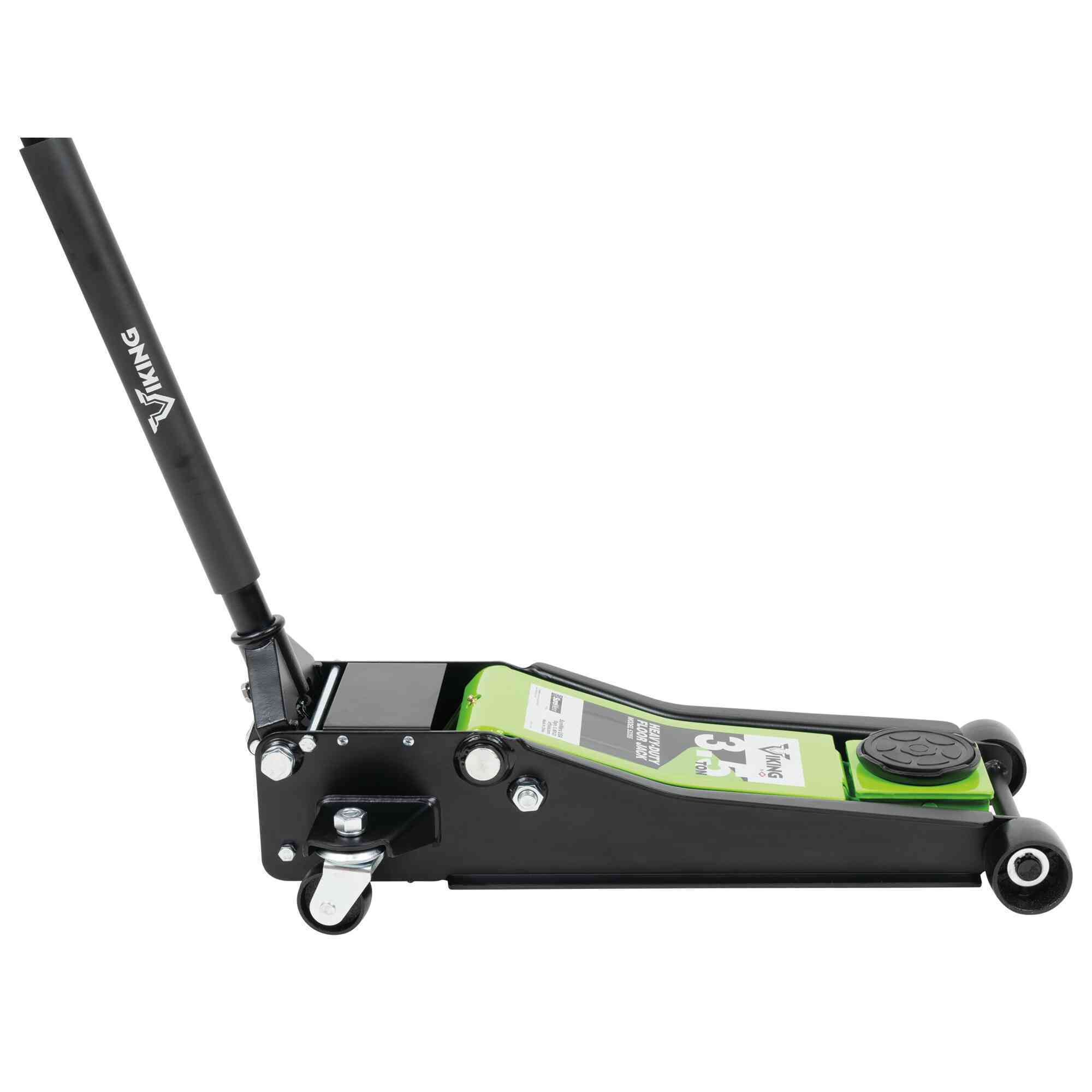

Viking by American Forge & Foundry - Service Jack - 3.5 Ton Capacity - Lightning™ Lift - Short Chassis - 2 pc Handle - 3.75" Min H to 20.5" Max H - Model # 53355

Item# 7083822
Viking by American Forge & Foundry - Service Jack - 3.5 Ton Capacity - Lightning™ Lift - Short Chassis - 2 pc Handle - 3.75" Min H to 20.5" Max H - Model # 53355

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Viking by American Forge & Foundry - Service Jack - 3.5 Ton Capacity - Lightning™ Lift - Short Chassis - 2 pc Handle - 3.75" Min H to 20.5" Max H - Model # 53355

Click or Tap image to Zoom

$319.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Lightning hydraulic lift system quickly raises the saddle in one pump to load and the vehicle to desired lift height.
  • Ball-bearing rear mounted swivel casters for easy maneuverability
  • Equipped with safety bypass valve to prevent overloading.
  • 2pc handle includes bumper pad for vehicle protection.
  • Meets or exceeds 2019 ASME PASE Standards

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Designed with the professional service technician in mind, AFF service jacks are built to withstand the rigors of everyday use and are among the most durable in the industry today. Heavy gauge steel, UV powder coated paint, upgraded seals and overload protection are just some of the features that make AFF service jacks stand out in the shop. Capacity: 3.5 Ton Minimum Height: 3.75in. Maximum Height: 20.5in. Power Type: Hydraulic Operation Type: Manual Quick Lift Feature: Lightning™ Lift - Single Piston One Pump to Load Release Assembly: U-Joint Chassis Type: Short Chassis Service Jack Chassis Length (in.): 27in. Chassis Width (in.): 14.4in. Handle Type: Straight Handle Length (in.): 45.3in. Handle Type (Pcs): 2 Saddle Size: 4.25in. Includes Saddle Pad: Yes Saddle Pad Material: Rubber Handle Bump Protector: Yes Rear Casters: Qty 2 Front Wheels: Qty 2 Hydraulic Return Spring: Yes Overload Bypass Valve: Yes Handle Return Spring: Yes Handle Docking Position: 75° Service Parts Available: Yes Weight (lb.): 92 Lbs.

What's Included

    (1) Service Jack
Play Item Video

Features + Benefits

  • Lightning hydraulic lift system quickly raises the saddle in one pump to load and the vehicle to desired lift height.
  • Ball-bearing rear mounted swivel casters for easy maneuverability
  • Equipped with safety bypass valve to prevent overloading.
  • 2pc handle includes bumper pad for vehicle protection.
  • Meets or exceeds 2019 ASME PASE Standards

Key Specs

AttributeSpecification

item#

7083822

Brand

American Forge & Foundry

Manufacturer's Warranty

1 year limited warranty

Ship Weight

92.0 LB

Lift Capacity

3.5 Tons

Max. Lift Height

20.5 in

Power Source

Hydraulic

Low Profile

Yes
AttributeSpecification

Material

Steel

Product Type

Service Jack

Min. Lift Height

3.75 in

Handle Included

Yes

Safety Valve

Yes

Product Weight

92.0000 lb

Dimensions L x W x H (in.)

33.3 x 8.1 x 16.9 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
