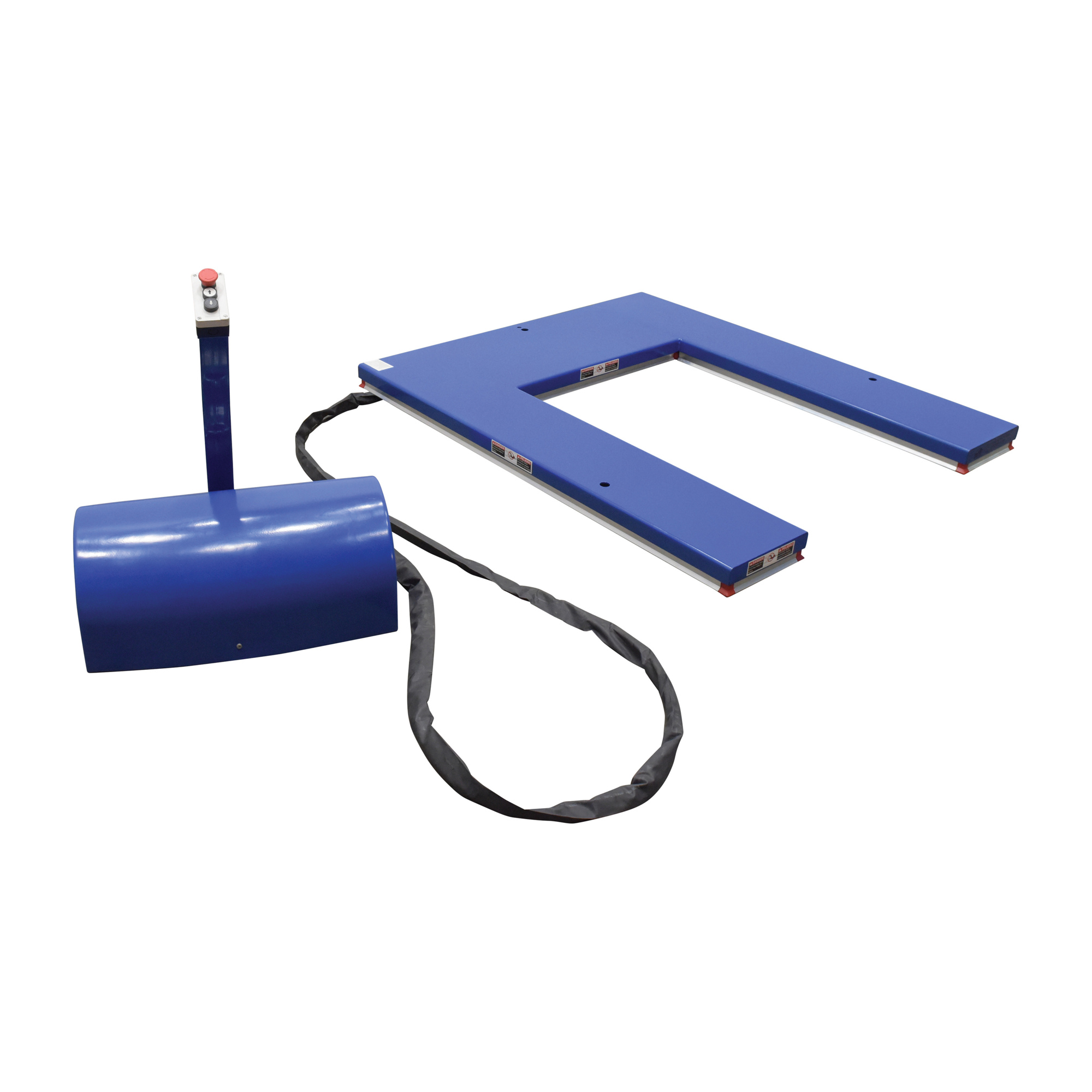

Vestil U-Type Electric Lift Table - 3000-Lb. Capacity, 4.25in. to 33.5in. Height, Steel, Model# EHU-3

Item# 4476188
Vestil U-Type Electric Lift Table - 3000-Lb. Capacity, 4.25in. to 33.5in. Height, Steel, Model# EHU-3

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Vestil U-Type Electric Lift Table - 3000-Lb. Capacity, 4.25in. to 33.5in. Height, Steel, Model# EHU-3

Click or Tap image to Zoom

$4696.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Low profile "U" type electric lift table has an open center that enables a pallet truck to place a load on the platform
  • Equipped with a pressure relief valve that prevents overloading and a flow control valve that controls the lowering speed
  • Up and down push button raises and lowers the unit
  • Features toe guards, velocity fuse in cylinders, safety maintenance props, and an emergency stop buttons for safety

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The low profile electric lift tables with the unique, steel constructed, "U" design provides an open center that enables a pallet truck to place a load on the platform. This lift table features an external power pack equipped with a pressure relief valve that prevents overloading and a flow control valve that controls the lowering speed. The remote power pack comes complete with a cover to protect the motor from dust and debris. The up and down push button raises and lowers the unit and is located on the control box. Safety features include toe guards, velocity fuse in cylinders, safety maintenance props, and an emergency stop button on the control box. The power supply has pedestal mounted push buttons. When using a pallet truck in conjunction with model, only open bottom pallets are to be used.

What's Included

    (1) Lift Table

Downloads

Product Manual
Additional Product Info Additional Product Info2 Additional Product Info3
Safety Data Sheet

Features + Benefits

  • Low profile "U" type electric lift table has an open center that enables a pallet truck to place a load on the platform
  • Equipped with a pressure relief valve that prevents overloading and a flow control valve that controls the lowering speed
  • Up and down push button raises and lowers the unit
  • Features toe guards, velocity fuse in cylinders, safety maintenance props, and an emergency stop buttons for safety

Key Specs

AttributeSpecification

item#

4476188

Brand

Vestil

Manufacturer's Warranty

1 year limited warranty

Ship Weight

832.0 LB

Capacity

3,000 lb

Lowered Height

4.25 in

Raised Height

33.5 in
AttributeSpecification

Platform Length

63 in

Platform Width

53.5 in

Material

Steel

Tilting

No

Product Weight

832.0000 lb

Dimensions L x W x H (in.)

63.0 x 53.5 x 4.25 in

Reviews

Questions & Answers

Questions

  1. What is the width of between the two arms on this equipment?

    1 answer

    1. The distance between the two arms is 29 3/4".

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
