This bollard is made of schedule 10 steel with a wall thickness of .12 inches.

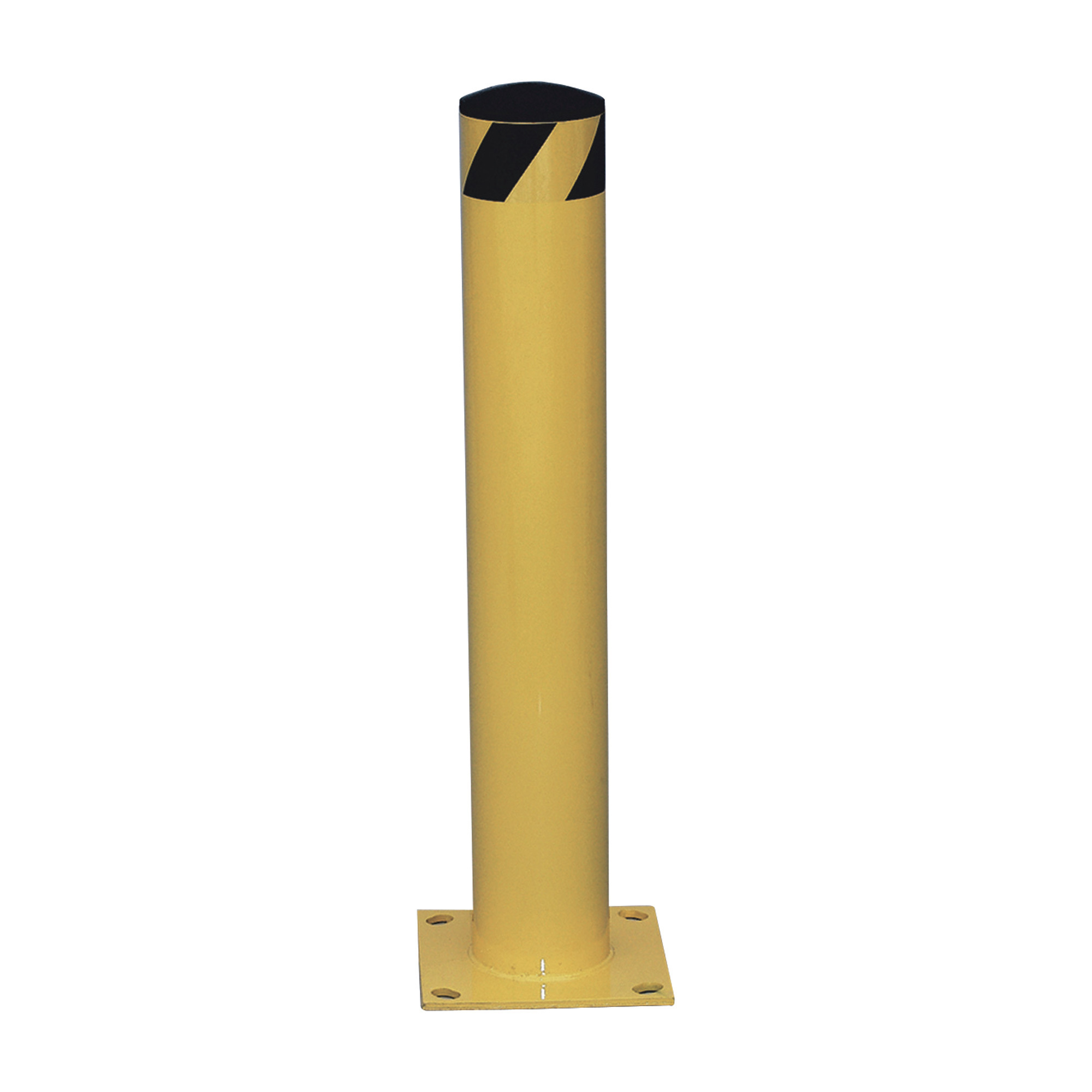

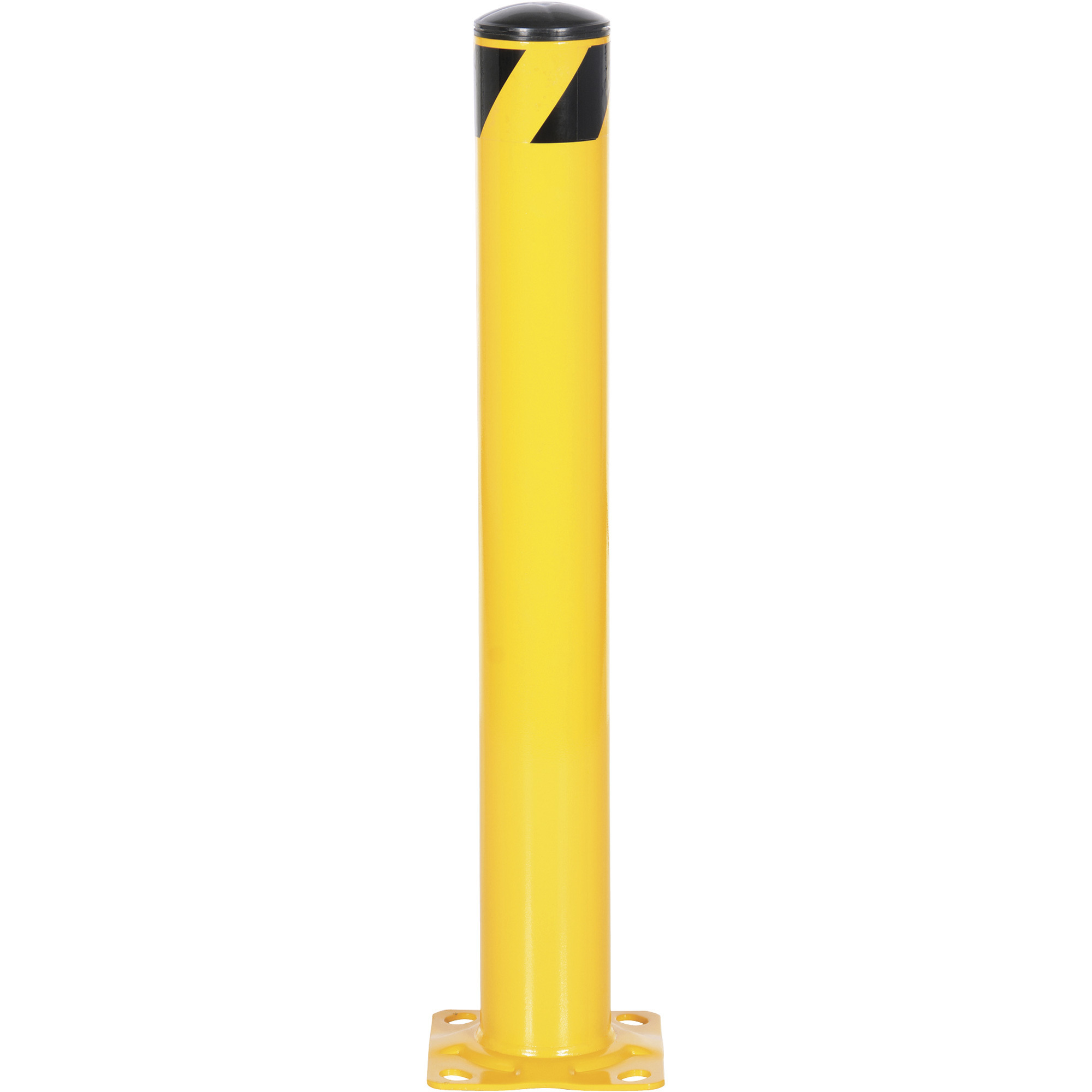

Vestil Steel Pipe Safety Bollard - 36in.H, 4.5in. dia., Powder-Coated, Model# BOL-36-4.5
On Sale
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$75.46
Choose Options for complete product description, reviews and purchasing.
HEIGHT|DIAMETER

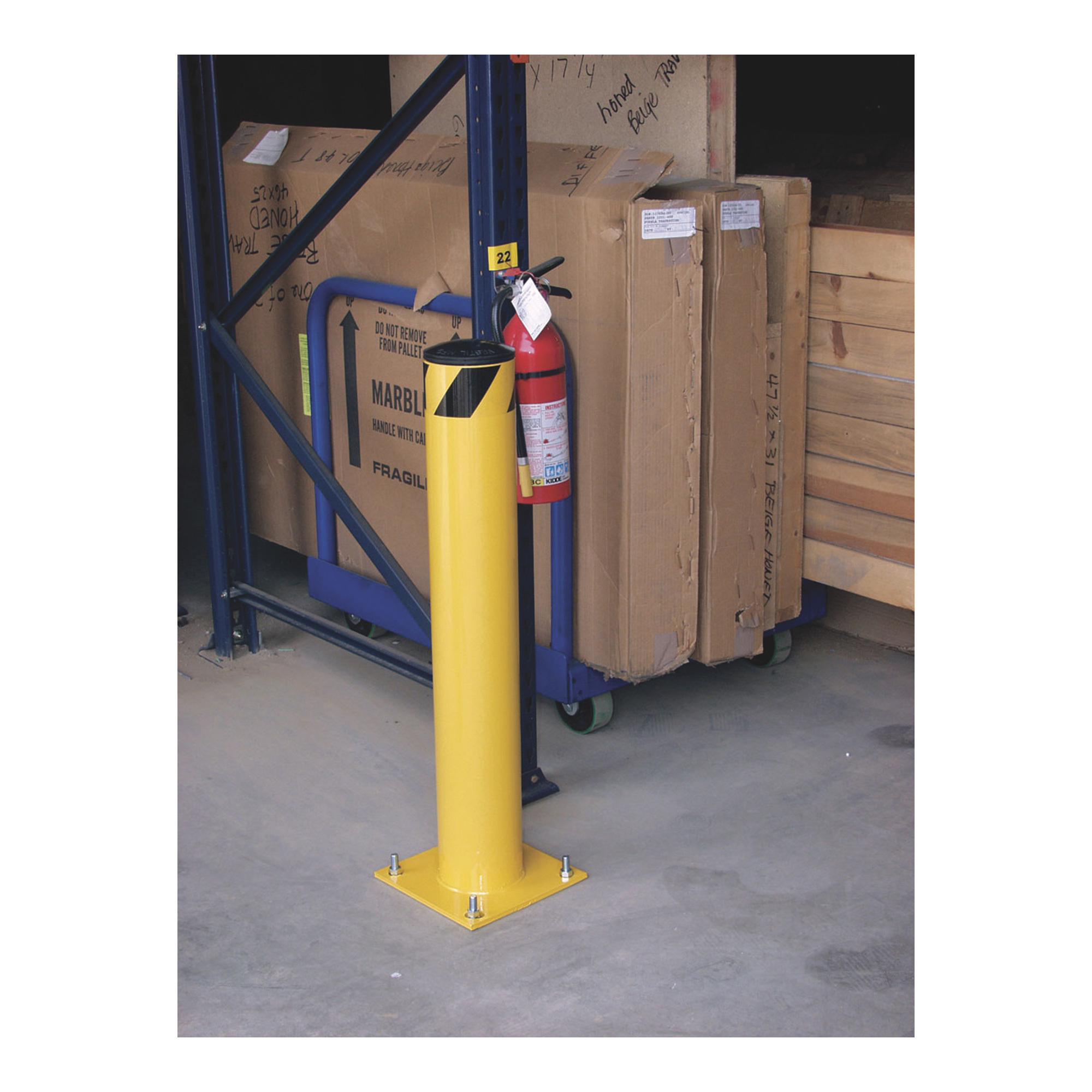

- Can be used both indoors and outdoors to protect work areas, racking and personnel
- Welded steel construction with powder-coated safety yellow finish

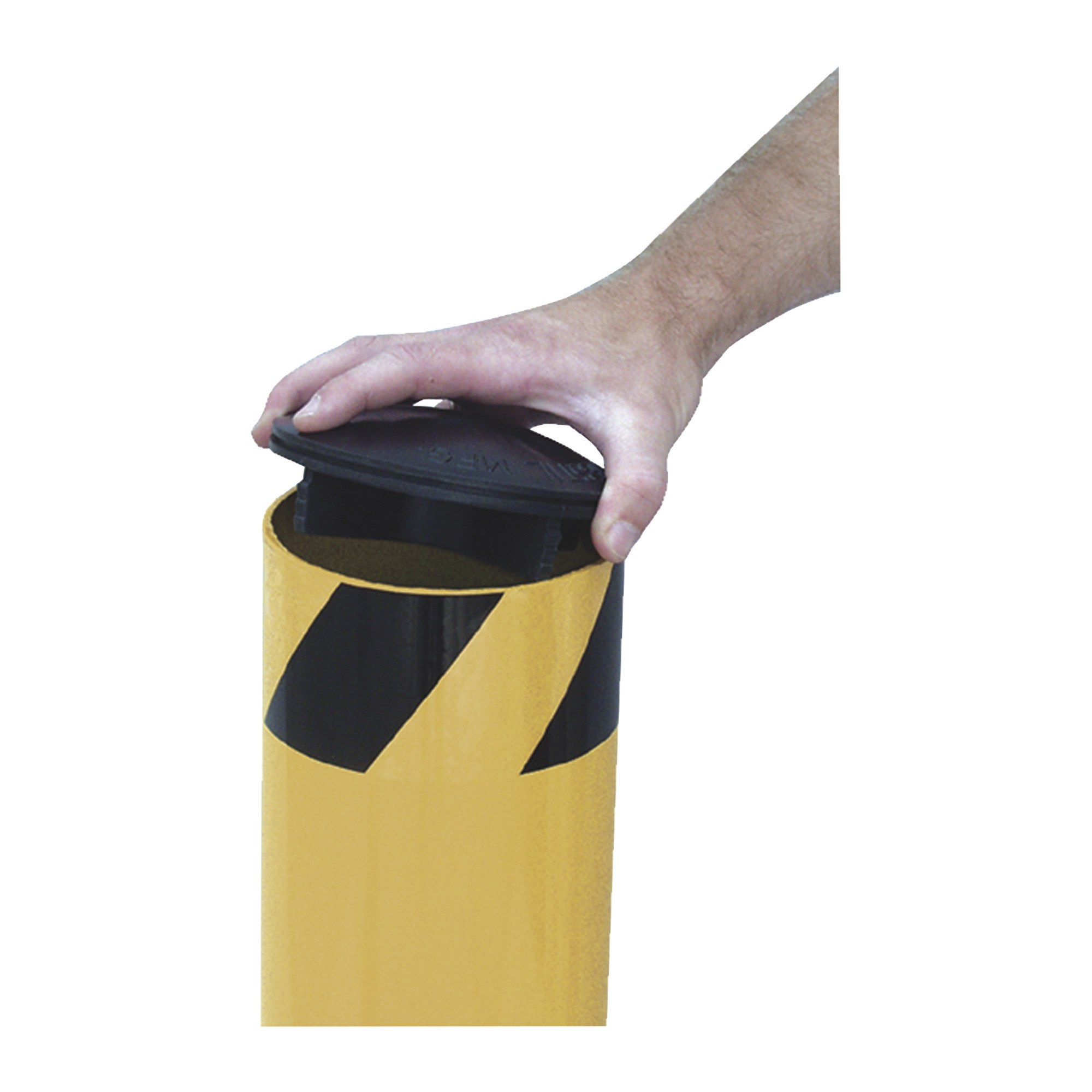

- Molded rubber caps are removable
- 8 in. x 8 in. base plate with 4 pre-drilled mounting holes
- Mounting kits and replacement caps available (sold separately)
See full description
-
What is the wall thickness of the 4.5" pipe
Client says I need sch 40 - .237" wall thickness
-
Helpful?
-
This bollard is built of schedule 10 steel
Helpful?
-
-
What is the schedule or wall thickness of the pipe?
1 answer-
This bollard is made of schedule 10 steel with a wall thickness of .12 inches.
Helpful?
-
-
How thick is the base plate?
1 answer-
The base plate thickness on this Vestil Safety Bollard is 1/4".
Helpful?
-
-
Hardware for 36" bollard
Can I ues the 5" concrete hardware on an asphalt driveway.
If not what do you recommend to fasten the bollard to the driveway.1 answer-
You can use 5" concrete hardware and mount this bollard on a asphalt driveway. At Northern we recommend using four 3/4" by 4" concrete anchor bolts.
Helpful?
-
-
Is there an installation guide?
1 answer-
The Vestil Steel Pipe Safety Bollard does not come with an installation guide. It is the customers responsibility to properly secure the bollard. It will simply use 4 bolts on the base plate, and whether mounting in concrete, metal, wood, or other material, you would need to install the item yourself.
Helpful?
-
