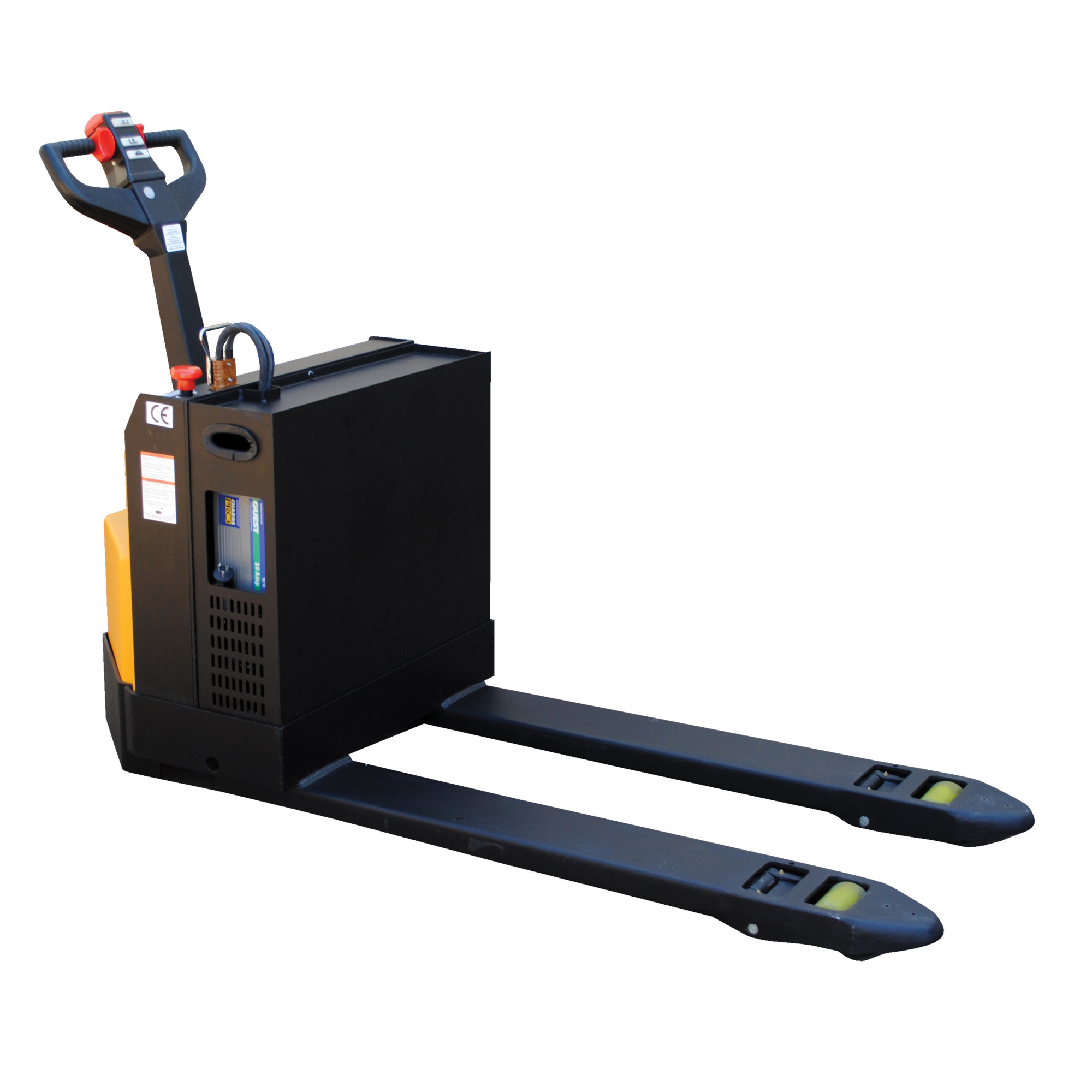

Vestil Steel Pallet Truck with Rider Platform — 20in. x 48in., 4500-Lb. Capacity, Black, Model# EPT-2048-45-RP

Item# 7182409
Vestil Steel Pallet Truck with Rider Platform — 20in. x 48in., 4500-Lb. Capacity, Black, Model# EPT-2048-45-RP

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Vestil Steel Pallet Truck with Rider Platform — 20in. x 48in., 4500-Lb. Capacity, Black, Model# EPT-2048-45-RP

Click or Tap image to Zoom

$9826.39

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Fully-powered pallet truck makes movement of pallets quick and easy
  • Includes fingertip raise and lower buttons for operator convenience
  • Safety belly reverse button improves worker safety
  • Easy-to-operate throttle for forward and reverse direction

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The fully powered electric pallet truck has an easy and quick operation. The unit raises and lowers loads with a push of a button. It can maneuver loads in warehouses and trailers. The reinforced welded forks have adjustable tie-rods that provide long service. The high-torque DC drive and lift motors handle heavy-duty jobs. Unit includes integral battery charger, battery level gauge, and emergency battery disconnect. The truck rolls smoothly on poly-on-steel, steer and load wheels. Ergonomic handle features easy to operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, proprietary safety-enhancing emergency reverse function, and horn. When the proprietary safety-enhancing emergency reverse function is actuated, the emergency reverse belly switch instantly reverses direction and moves the unit forward (away from the operator) until the switch is released or after 1.5 seconds have elapsed. The built-in safety circuit will automatically disable the entire unit if the emergency reverse belly switch is activated for more than 1.5 seconds after which the unit must be re-set to return to normal operating conditions. This state-of-the-art safety device provides a high degree of operator protection. Includes an electromagnetic disc brake with automatic dead-man feature that activates when the user releases the handle. Also includes a stand-on platform, which flips up when not in use.

What's Included

    (1) 20x48 Pallet Truck Rider Plf

Downloads

Product Manual
Additional Product Info Additional Product Info2
Safety Data Sheet

Features + Benefits

  • Fully-powered pallet truck makes movement of pallets quick and easy
  • Includes fingertip raise and lower buttons for operator convenience
  • Safety belly reverse button improves worker safety
  • Easy-to-operate throttle for forward and reverse direction

Key Specs

AttributeSpecification

item#

7182409

Brand

Vestil

Manufacturer's Warranty

1 year limited warranty

Ship Weight

888.0 LB

Load Capacity

4,500 lb

Fork Length

48 in

Min. Lift Height

3.4 in

Max. Lift Height

7.8 in

Turning Radius

52 in
AttributeSpecification

Includes Scale

No

Wheel Type

Poly-on-Steel

Roller Wheel Size

3 in

Outside Fork Width

20 in

Power Source

Electric

Volts

24

Steering Wheel Size

10 in

Product Weight

816.0000 lb

Dimensions L x W x H (in.)

80.75 x 30.0 x 51.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
