Product Summary

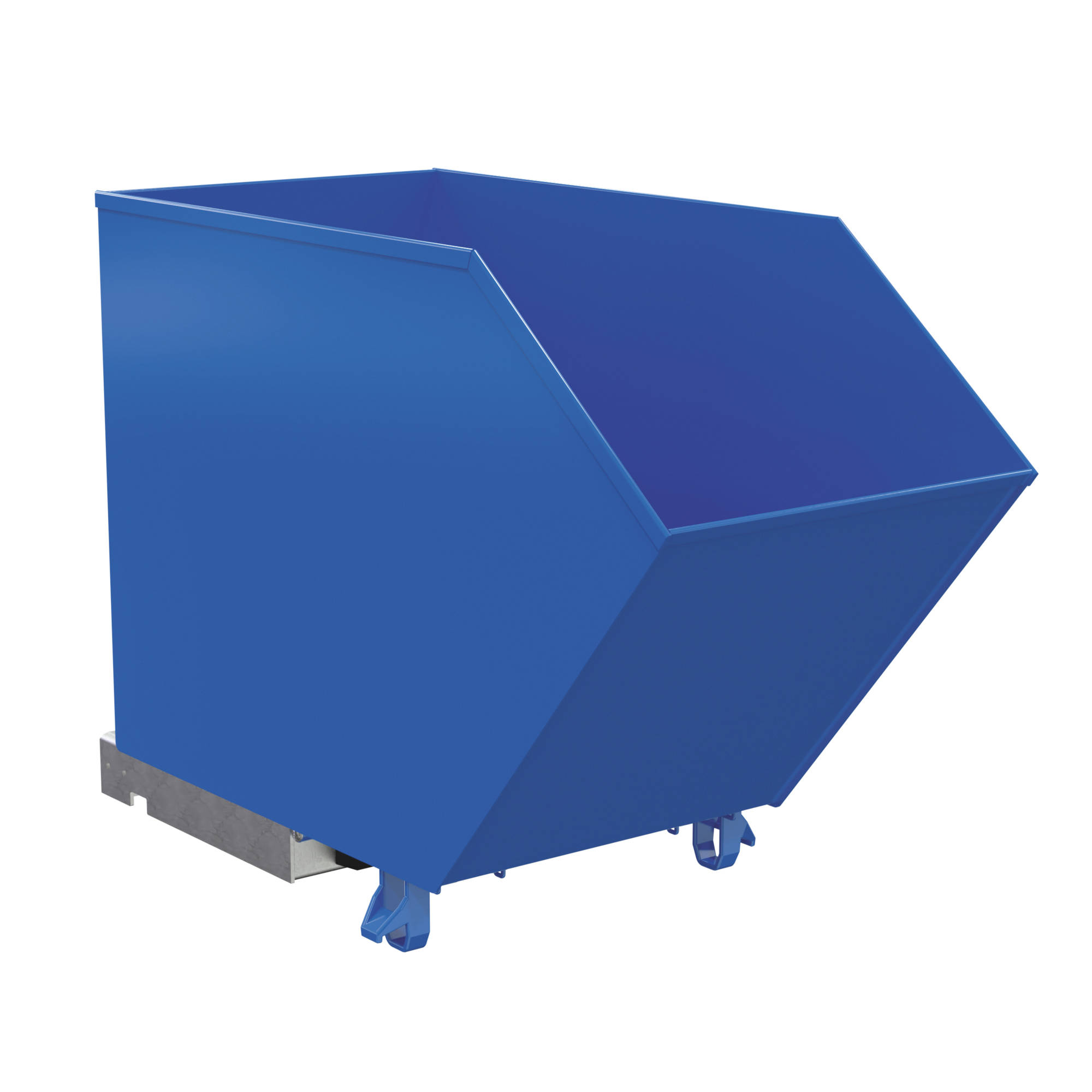

The Medium Duty Low Profile 90 degree self-dumping steel Hopper feature a full ninety (90) degree dump angle with a cushioned rubber bumper stop. The low profile design is essential for convenient loading. Dumping with a fork truck is quick and simple. A cable is pulled from the seat of the fork truck to dump the hopper. The unit returns to an upright and locked position when lowered to the ground. Fork pockets are 22in. long and are capped on the end to allow for 90 degrees dump. The included safety restraint/chain must be securely attached to the lift truck carriage without slack. Models with same overall width may be stacked. For example, models H-25 may be stacked with H-50’s, the H-100’s can be stacked with H-150’s, while the H-200 hoppers can only be stacked with other H-200 series models. Never stack hoppers more than 3 high.

What's Included

    (1) Hopper

Features + Benefits

  • Low-profile design makes loading easier
  • Included manual pull-cable dumps hopper from seat of fork truck
  • Full 90 degree dump angle returns to upright position when lowered to ground
  • Features heavy-duty latch mechanism for worker safety

Key Specs

AttributeSpecification

item#

7166361

Brand

Vestil

Manufacturer's Warranty

3 month limited warranty

Ship Weight

279.0 LB

Capacity

4,000 lb

Volume

0.75 yd³

Color

Blue
AttributeSpecification

Dump Angle

90 °

Fork Pocket Centers

22.13 in

Fork Pockets Height

2 in

Fork Pockets Width

7 in

Product Weight

279.0000 lb

Dimensions L x W x H (in.)

56.56 x 27.0 x 38.63 in

Warranty

Manufacturer's Warranty

3 month limited warranty
