The base is 17 5/8" left to right and 22 3/4" front to back.

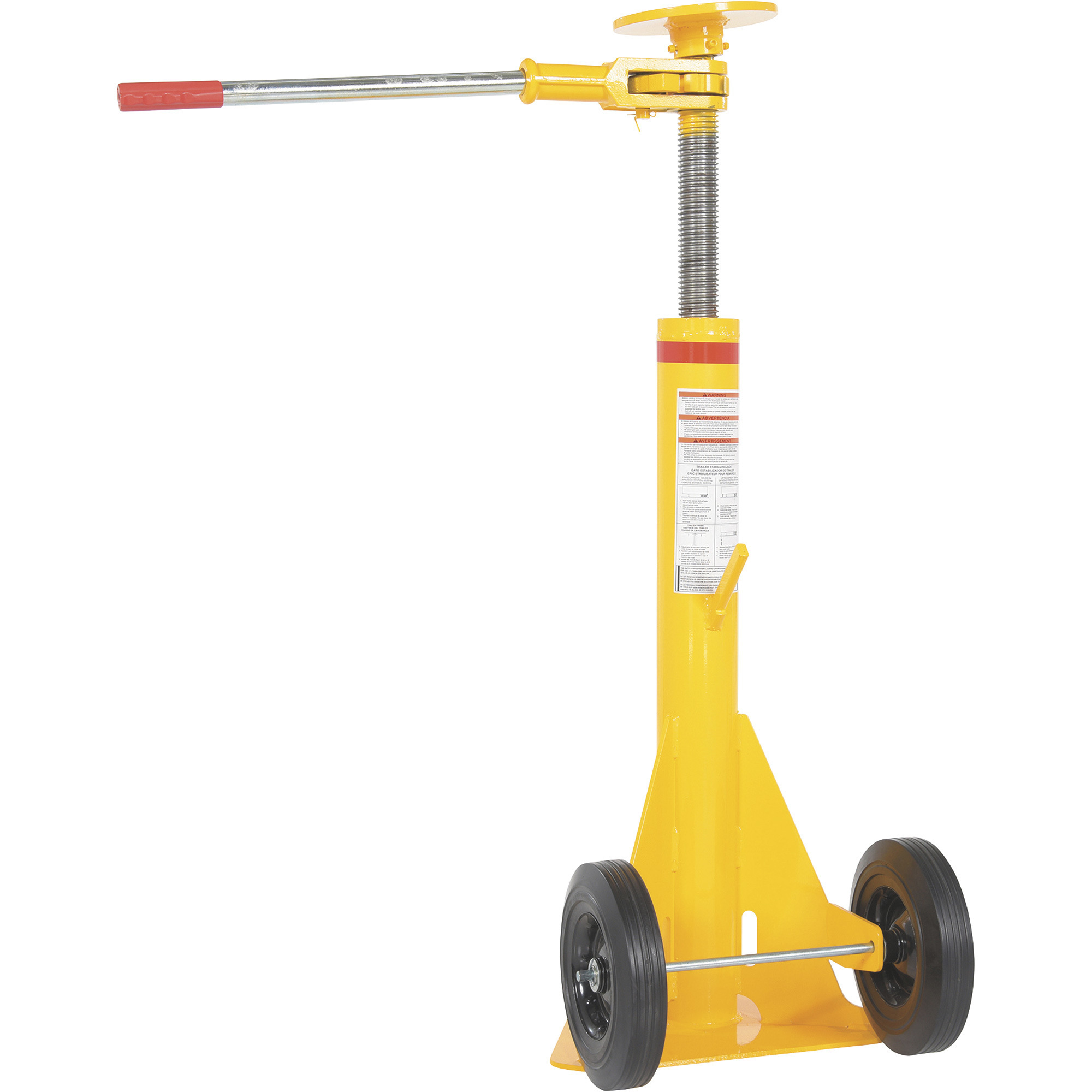

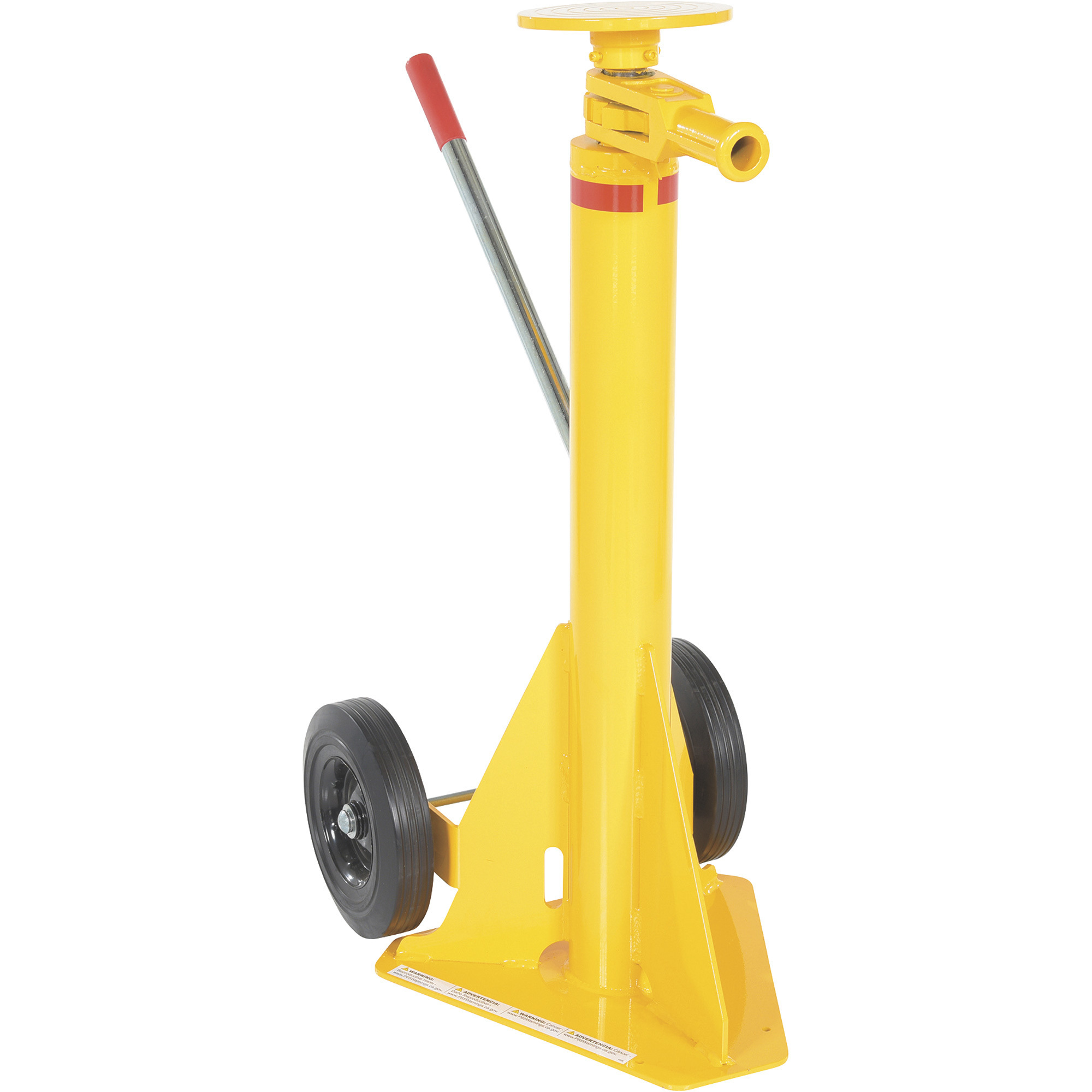

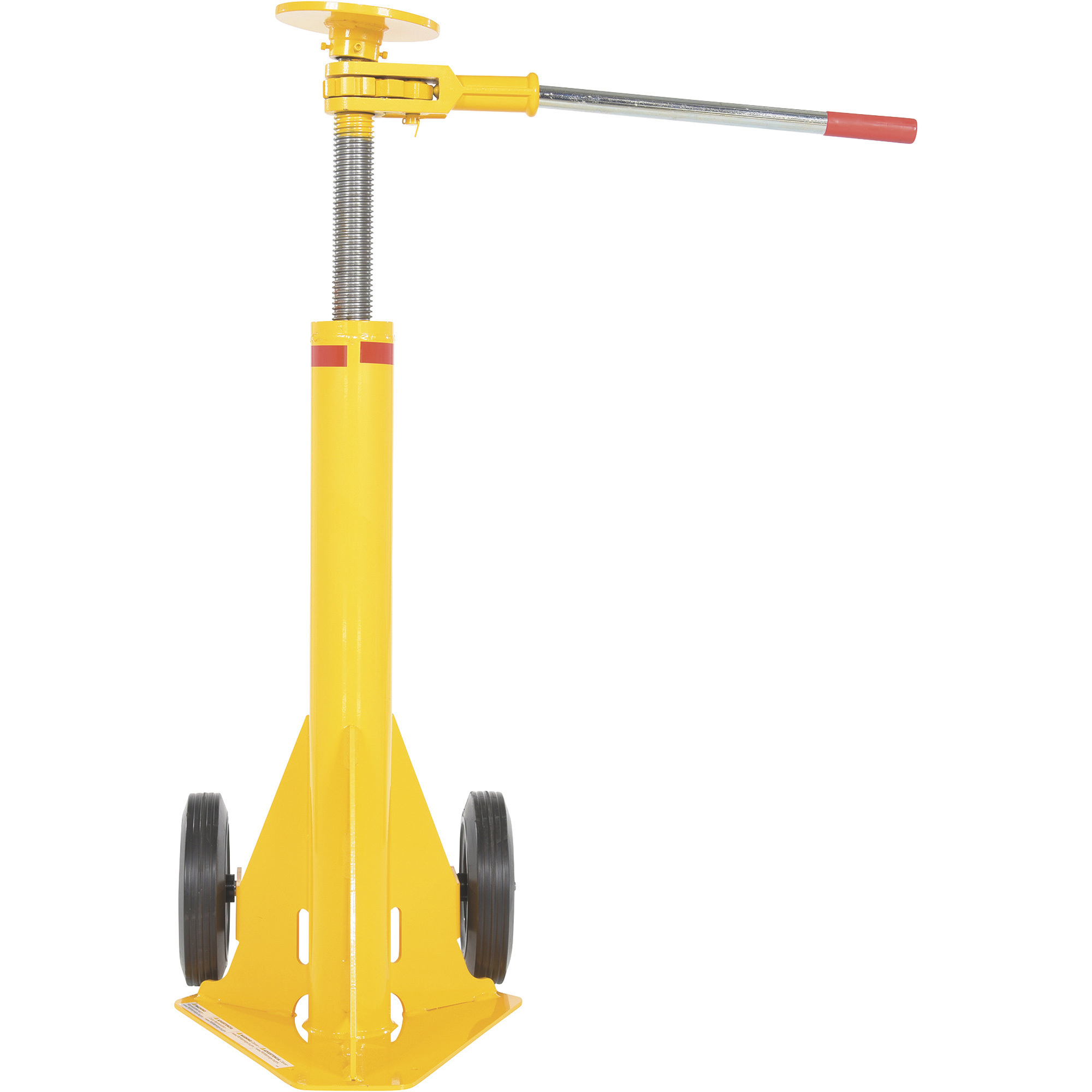

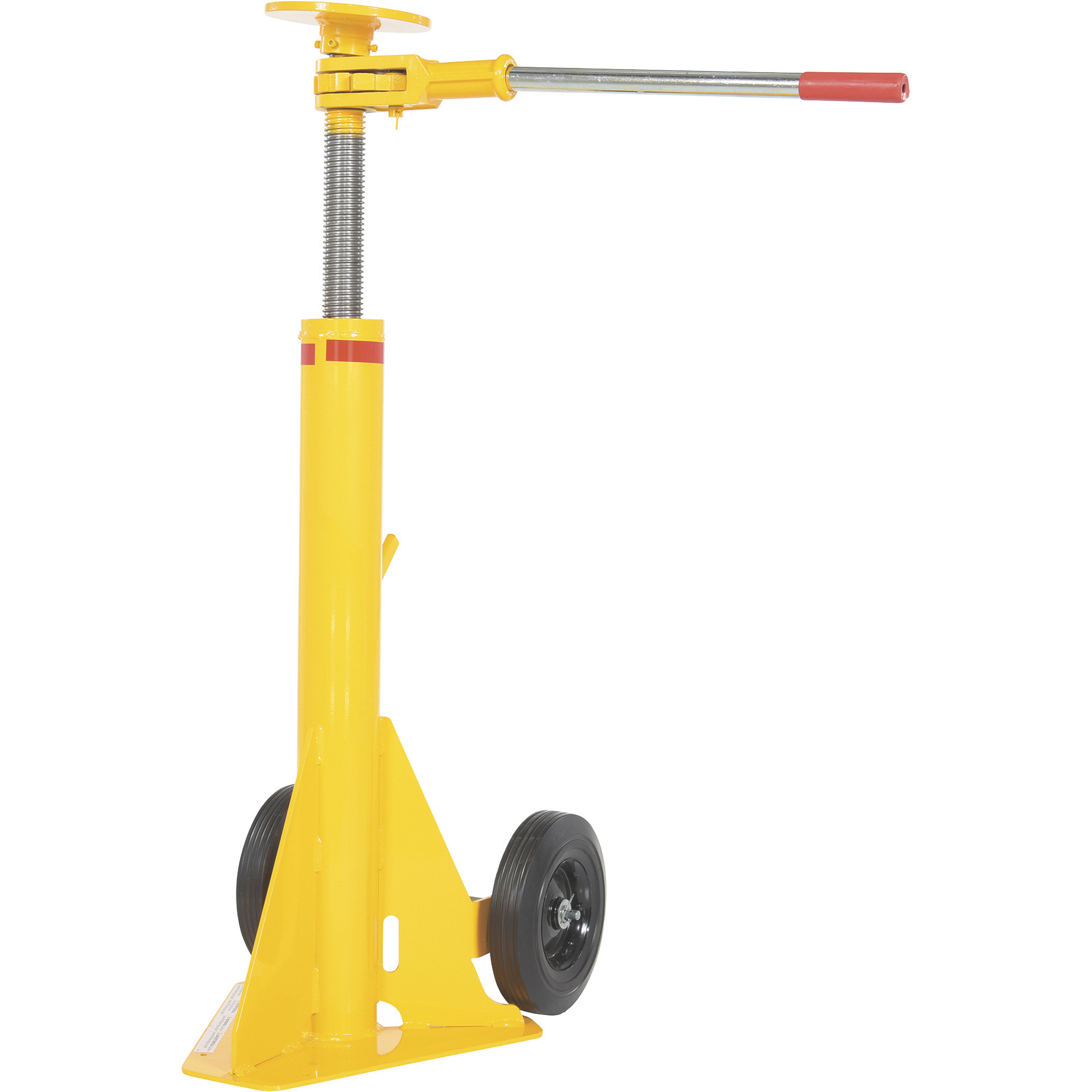

Vestil Stabilizing Trailer Jack - 40,000-Lb. Capacity, 39in. to 51in. Lift Range, Model# LO-J
Top Seller
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$308.38
Buy 4 or more at $296.04 ea.
- Used to prevent up-ending semi-trailers when they are not connected to a tractor during loading and unloading operations
- Also used to level trailers parked on sloped ground and to prevent landing gear from sinking into a soft surface
- High strength steel construction
- Flush-type zerk fitting for easy lubricating
- ACME screw
See full description
What's Included
- (1) Stabilizing jack (1) Handle
Features + Benefits
- Used to prevent up-ending semi-trailers when they are not connected to a tractor during loading and unloading operations
- Also used to level trailers parked on sloped ground and to prevent landing gear from sinking into a soft surface
- High strength steel construction
- Flush-type zerk fitting for easy lubricating
- ACME screw
- Meets OSHA regulations when used with wheel chocks
- Powder-coat safety yellow finish
- Steel construction
- Includes reflective collar for visibility at night
- Uniform static capacity - 100,000 lbs; Uniform lifting capacity - 40,000 lbs.; Service range - 39in. to 51in.
- 10in. hard rubber wheels
See All Semi-Truck Trailer Stabilizing Jacks
See All Vestil Semi-Truck Trailer Stabilizing Jacks
Currently Viewing This Product
Specifications
Specifications
Vestil Stabilizing Trailer Jack - 40,000-Lb. Capacity, 39in. to 51in. Lift Range, Model# LO-J
Vestil Trailer Stabilizing Jack - 100,000-Lb. Static Capacity, Steel, 50in. Max Height, Model# SP-TOP-R
Vestil Trailer Stabilizing Jack - 40,000-Lb. Lifting Capacity, 45in. to 57in. Service Range, Safety Yellow, Model# HI-J
Material
Same
Steel
Steel
Steel
Static Load Capacity (lbs.)
Same
100,000
100,000
100,000
Max. Height
Same
51 in
50 in
57 in
Min. Height
Same
39 in
41 in
45 in
Wheel Size
Same
10 in
-
-
Wheel Material
Same
Rubber
-
-
Static Capacity
Same
100,000 lb
100,000 lb
100,000 lb
Height Range (in.)
Same
39–51
41–50
45–57
Lift Capacity
Same
40,000 lb
40,000 lb
40,000 lb
Product Weight
Same
137.0000 lb
138.0000 lb
141.0000 lb
Lift Capacity To Full Height (lbs.)
Same
40,000
40,000
40,000
Dimensions L x W x H (in.)
Same
48.0 x 40.0 x 45.0 in
48.0 x 40.0 x 45.0 in
48.0 x 40.0 x 50.0 in
