The pit size required for this Vestil dock leveler is 85" front to back, 84" left to right, and 24.5" deep. Vestil also recommends a 1/2" slope from back to front of the pit for drainage.

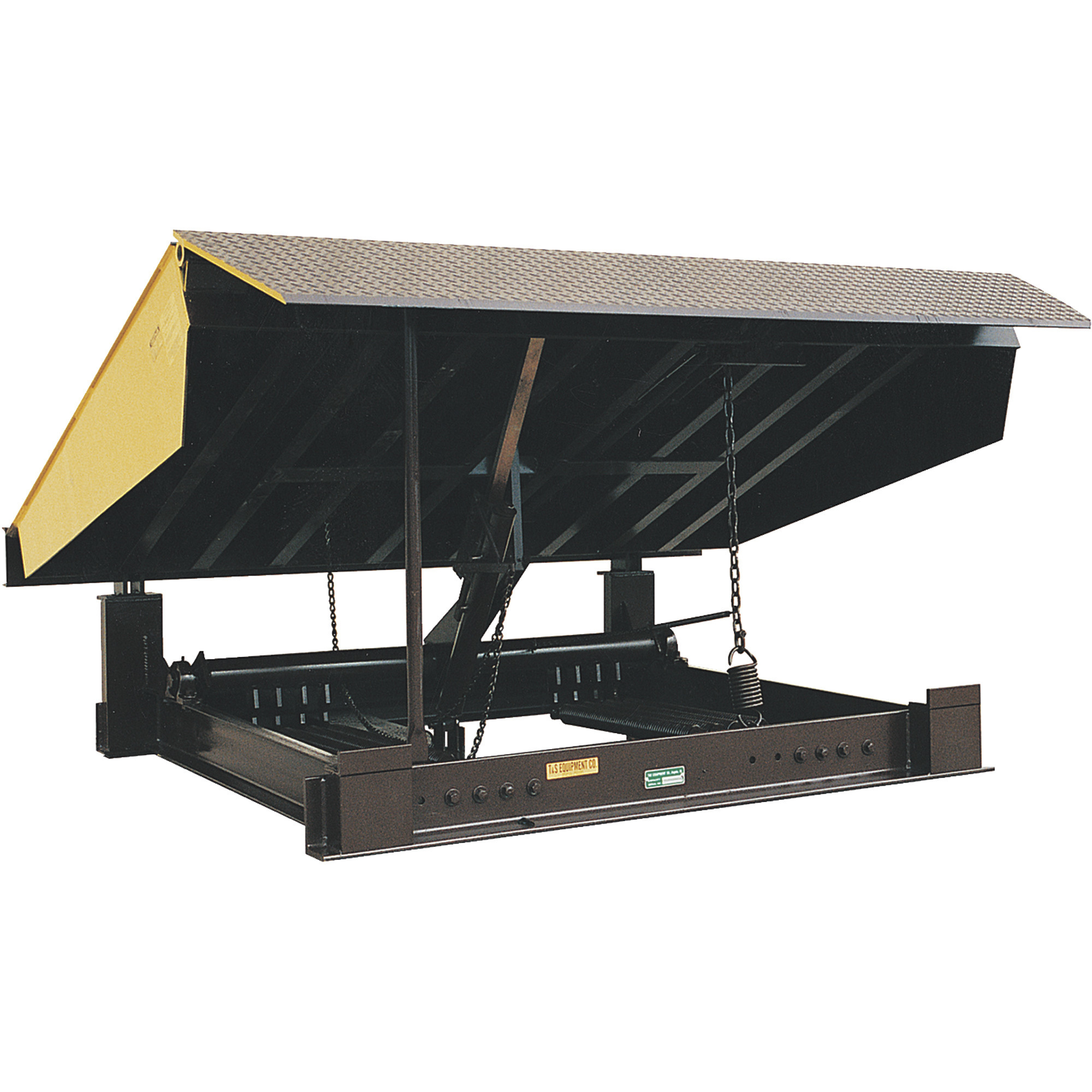

Vestil Pull-Chain Mechanical Dock Leveler - 25,000-Lb. Capacity, 8ft.4in. x 7ft., Steel, Model# RR-78-25
On Sale
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$7049.99
Choose Options for complete product description, reviews and purchasing.
CAPACITY (LBS.)
OVERALL SIZE W/LIP-W X L

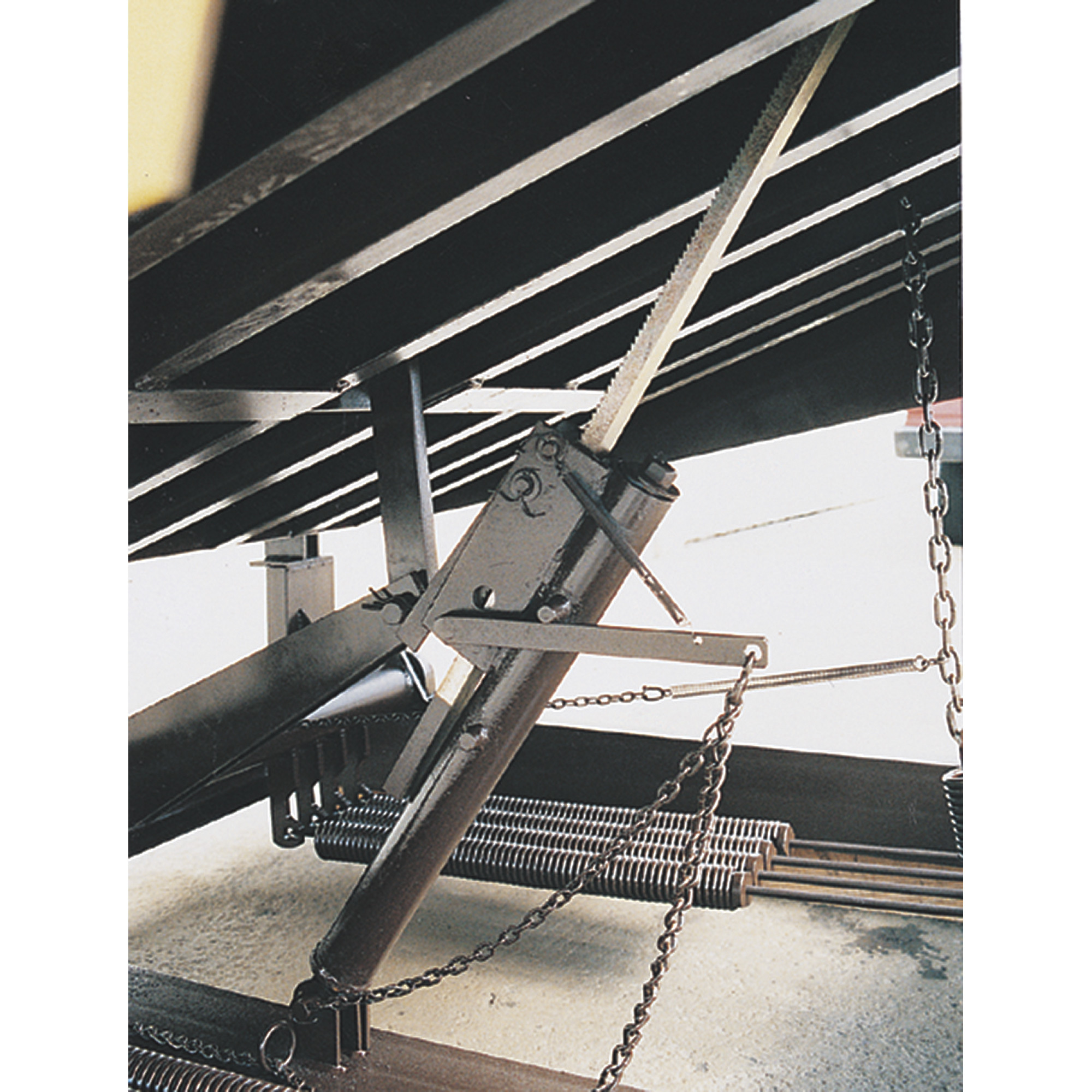

- Smooth, pull-chain operation
- All heavy-duty construction features 1/4in. checkered plate deck (55,000 PSI) steel
- 6in. structural steel support understructure
- 16in. long lip
- Service range 12in. above and below dock
See full description
What's Included
- (1) Dock leveler
