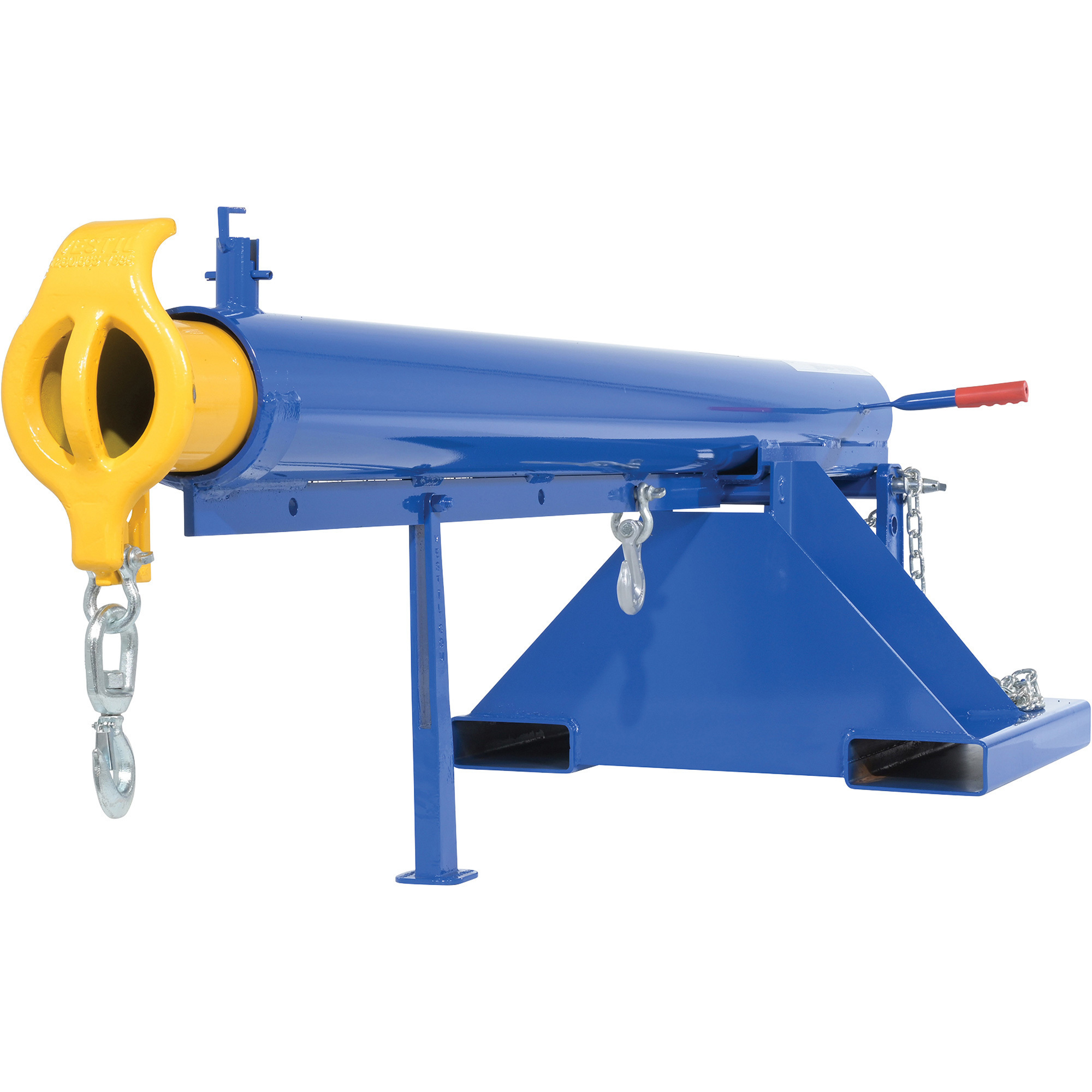

Vestil Orbital Boom Lift - 4,000-Lb. Capacity, Telescoping, Model# LM-OBT

Item# 143530
"Vestil Orbital Boom Lift - 4,000-Lb. Capacity, Telescoping, Model# LM-OBT"
Top SellerOn Sale
Vestil Orbital Boom Lift - 4,000-Lb. Capacity, Telescoping, Model# LM-OBT

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Vestil Orbital Boom Lift - 4,000-Lb. Capacity, Telescoping, Model# LM-OBT

Click or Tap image to Zoom

$2226.14

Choose Options for complete product description, reviews and purchasing.

CAPACITY (LBS.)

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Unique performance, convenience, and safety features are built into every Lift Master Boom
  • Fabricated from structural steel; welded to meet AWS
  • Creates a rugged and durable boom that will provide long term service
  • Durable, powder-coat finish
  • Orbit boom features a locking detent

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Equipped with a unique counterbalance system and safety drop-lock pin for quick and easy height adjustment. Telescopes from 86 5/8in. to 146 5/8in. with 7 1/2in. W x 2 1/2in.H fork openings on 24in. centers. Angles up to 37 degrees.

What's Included

    (1) Orbital boom lift (2) Lifting hooks (1) Safety chain

Downloads

Product Manual
Additional Product Info Additional Product Info2
Play Item Video

Key Specs

AttributeSpecification

item#

143530

Brand

Vestil

Manufacturer's Warranty

1 year limited warranty

Ship Weight

463.0 LB

Capacity

4,000 lb

Extended Length

146.63 in

Extended Retracted

86.63 in
AttributeSpecification

Telescoping

Yes

Overall Length

146.63 in

Fork Pocket Centers

24 in

Material

Steel

Product Weight

463.0000 lb

Dimensions L x W x H (in.)

89.0 x 32.0 x 24.0 in

Reviews

Questions & Answers

5 Reviews This action will navigate to reviews.

Questions

1–7 of 7 Questions
Sort by:

  1. Does it come with certification and load capacity tables?

    1 answer

    1. The orbital boom lift does not come with the certificate of compliance. It can be obtained from the manufacturer. It will include load capacity documentation.

      Helpful?

  2. How much weight can it handle extended all the way out and what is that distance flat. G

    1 answer
    Originally posted on "Vestil Lift Master Telescoping Orbiting Fork Truck Boom - 147in. Extended Length, 6,000-Lb. Capacity, Model# LM-OBT-6-24"

    1. When not extended at 36", the weight capacity is 6,000 Lbs. When fully extended at 146 5/8" it would have a weight capacity of 1,800 Lbs.

      Helpful?

  3. Can you provide a Certificate of Conformance with this unit ? Its for NASA

    1 answer
    Originally posted on "Vestil Lift Master Telescoping Orbiting Fork Truck Boom - 147in. Extended Length, 6,000-Lb. Capacity, Model# LM-OBT-6-24"

    1. A certificate of conformance is not sent with the product. This can be obtained from the manufacturer directly.

      Helpful?

  4. Can this unit be used with a telehandler to off load wall segments from a semi-truck?

    1 answer
    Originally posted on "Vestil Lift Master Telescoping Orbiting Fork Truck Boom - 147in. Extended Length, 6,000-Lb. Capacity, Model# LM-OBT-6-24"

    1. The unit can be used with a telehandler.

      Helpful?

  5. Is 6,000 rating full extension? If not what is rating when extended fully?

    1 answer
    Originally posted on "Vestil Lift Master Telescoping Orbiting Fork Truck Boom - 147in. Extended Length, 6,000-Lb. Capacity, Model# LM-OBT-6-24"

    1. The 6,000 lb capacity rating includes when the boom is fully extended.

      Helpful?

  6. Will it stand in up position off of forklift by itsself

    1 answer
    Originally posted on "Vestil Lift Master Telescoping Orbiting Fork Truck Boom - 147in. Extended Length, 6,000-Lb. Capacity, Model# LM-OBT-6-24"

    1. When this fork truck boom is not on a fork lift, it should be in the storage position which is retracted and lowered. We cannot recommend raising the boom if the unit is standing alone.

      Helpful?

  7. Fork pocket size. Will this work with 4" forks ?

    1 answer

    1. The fork opening on this unit is 7 1/2" x 2 1/2". A 4" fork would work just fine with this unit so long as it is secured well.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
