Vestil Mechanical Dock Leveler - 66in.W, 25,000-Lb. Capacity, 5in. Service Range, Brown, Model# FM-2566

Item# 143051
"Vestil Mechanical Dock Leveler - 66in.W, 25,000-Lb. Capacity, 5in. Service Range, Brown, Model# FM-2566"
Vestil Mechanical Dock Leveler - 66in.W, 25,000-Lb. Capacity, 5in. Service Range, Brown, Model# FM-2566

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

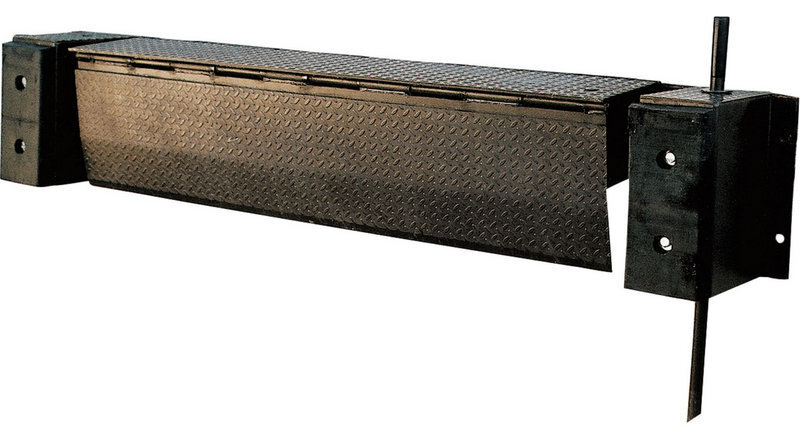

Vestil Mechanical Dock Leveler - 66in.W, 25,000-Lb. Capacity, 5in. Service Range, Brown, Model# FM-2566

Click or Tap image to Zoom

$1692.18

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Edge-O-Dock leveler permanently attaches to face of dock
  • Recommended for docks to be at least 48in. high
  • When trailer departs, lip drops automatically behind face of bumpers
  • Concrete recess is not required
  • Comes complete with bumpers and installation instructions

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Vestil Mechanical Dock Leveler permanently attaches to dock to create a ramp to trailer. Offers service range of 5in. up and 5in. down. Lip drops automatically behind bumper face when trailer departs.

What's Included

    (1) Dock leveler (2) Bumpers (1) Handle (1) Installation kit

Downloads

Product Manual
Additional Product Info Additional Product Info2 Additional Product Info3
Play Item Video

Features + Benefits

  • Edge-O-Dock leveler permanently attaches to face of dock
  • Recommended for docks to be at least 48in. high
  • When trailer departs, lip drops automatically behind face of bumpers
  • Concrete recess is not required
  • Comes complete with bumpers and installation instructions
  • Standard ramping is 29in. with 36 5/8in.L long ramping available for smaller grades
  • Steel dock edge or approach ramp required for proper installation
  • Mechanical Edge-O-Dock is operated by placing actuation handle into pocket of inner lip and pulling it down toward floor
  • Operator then pushes handle forward until lip rests on truck bed
  • As trailer departs, lip retracts behind bumper face automatically
  • Painted brown finish

Key Specs

AttributeSpecification

item#

143051

Brand

Vestil

Manufacturer's Warranty

1 year limited warranty

Ship Weight

556.0 LB

Capacity

25,000 lb

Operation

Pneumatic

Volts

115

Phase

Single-phase
AttributeSpecification

Height Difference

5 in

Product Type

Leveler

Quick Stop System

No

OSHA Approved

Yes

ANSI Approved

Yes

Product Weight

556.0000 lb

Dimensions L x W x H (in.)

66.0 x 14.0 x 18.0 in

Reviews

Questions & Answers

6 Reviews This action will navigate to reviews.

Questions

1–4 of 4 Questions
Sort by:

  1. Does this include mounting hardware?

    1 answer
    Originally posted on "Vestil Mechanical Dock Leveler - 72in.W, 20,000-Lb. Capacity, Brown, Model# FM-2072"

    1. The dock leveler will come with standard mounting hardware. Depending on your application, it may require additional hardware.

      Helpful?

  2. Ramp Width?

    Is the ramp itself 72" wide or is that the width of the entire unit with bumpers?

    1 answer
    Originally posted on "Vestil Mechanical Dock Leveler - 72in.W, 20,000-Lb. Capacity, Brown, Model# FM-2072"

    1. The ramp itself measures 72" wide. Each bumper on the side of the ramp measures 8" wide. The total width of the ramp with both bumpers is 88" wide.

      Helpful?

  3. What are the exact measurments of this item

    If there is a cut sheet I would appreciate it.

    1 answer
    Originally posted on "Vestil Edge-O-Dock Leveler - Pneumatic Operation, 5in. Service Range, Model# FM-2078"

    1. The overall dimensions for the Vestil Edge-O-Dock Dock Leveler is 15"L x 104"W x 18"H.

      Helpful?

  4. Do you sell replacement bumpers for this model, and if so what is the part number and the cost?

    1 answer
    Originally posted on "Vestil Mechanical Dock Leveler - 72in.W, 20,000-Lb. Capacity, Brown, Model# FM-2072"

    1. Replacement bumpers for the Vestil Mechanical Dock leveler are available through our Parts department. Please call 1-800-222-5381 for pricing and availability.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
