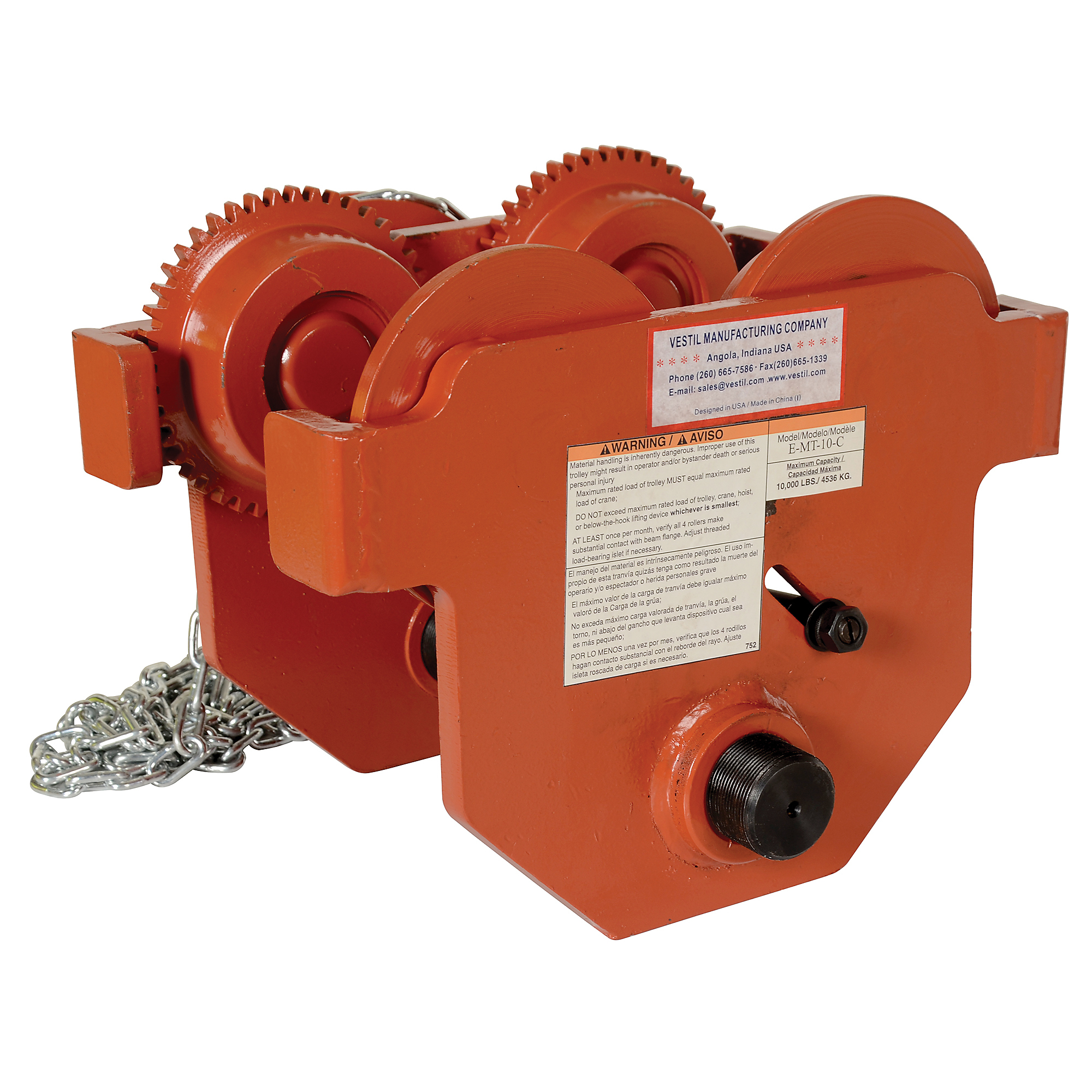

Vestil Steel Geared Eye Manual Trolley - 10000-Lb. Capacity, 11.75in. Max Beam Height, Orange, Model# E-MT-10-C

Item# 4868851
Vestil Steel Geared Eye Manual Trolley - 10000-Lb. Capacity, 11.75in. Max Beam Height, Orange, Model# E-MT-10-C

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Vestil Steel Geared Eye Manual Trolley - 10000-Lb. Capacity, 11.75in. Max Beam Height, Orange, Model# E-MT-10-C

Click or Tap image to Zoom

$739.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Special design works with S, H, W and M type I-beams
  • Turning center screw with eye easily adjusts trolley width
  • Solid steel construction provides long lasting rugged use
  • Sealed bearings provide long life

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

This low profile manual trolley has been designed to quickly install on virtually any S, H, W and M type I-beam. The width of the trolley is adjusted by rotating the center rod with lifting eye clockwise or counterclockwise. Once the hoist (not included) is attached, the center rod cannot be rotated which prevents the trolley width from accidentally changing. This geared trolley is ideal for when precise positioning of the trolley is required. It includes four (4) rollers with sealed bearings for long life. A lifting eye is located at the bottom of the trolley for attaching a hoist (not included). The trolley features steel construction and a painted finish.

What's Included

    (1) Manual Trolley

Downloads

Product Manual
Additional Product Info

Features + Benefits

  • Special design works with S, H, W and M type I-beams
  • Turning center screw with eye easily adjusts trolley width
  • Solid steel construction provides long lasting rugged use
  • Sealed bearings provide long life

Key Specs

AttributeSpecification

item#

4868851

Brand

Vestil

Manufacturer's Warranty

3 month limited warranty

Ship Weight

103.0 LB

Style

Manual Trolley

Capacity

10,000 lb

Adjustable

Yes
AttributeSpecification

Geared

Yes

Max. Beam Height

11.75 in

Min. Flange Width

3 in

Max. Flange Width

9 in

OSHA Approved

Yes

Product Weight

98.0000 lb

Dimensions L x W x H (in.)

14.625 x 14.125 x 11.75 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

3 month limited warranty
