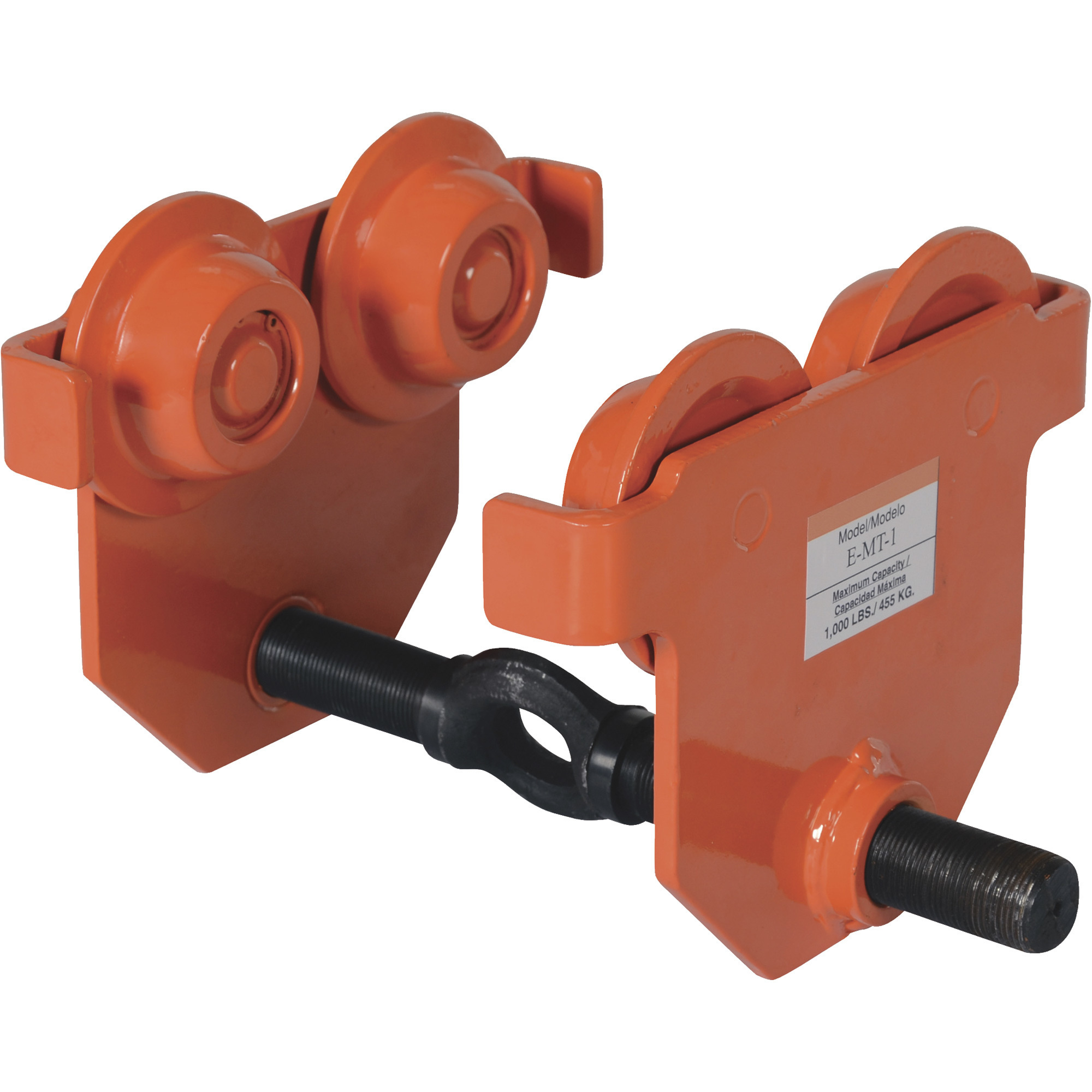

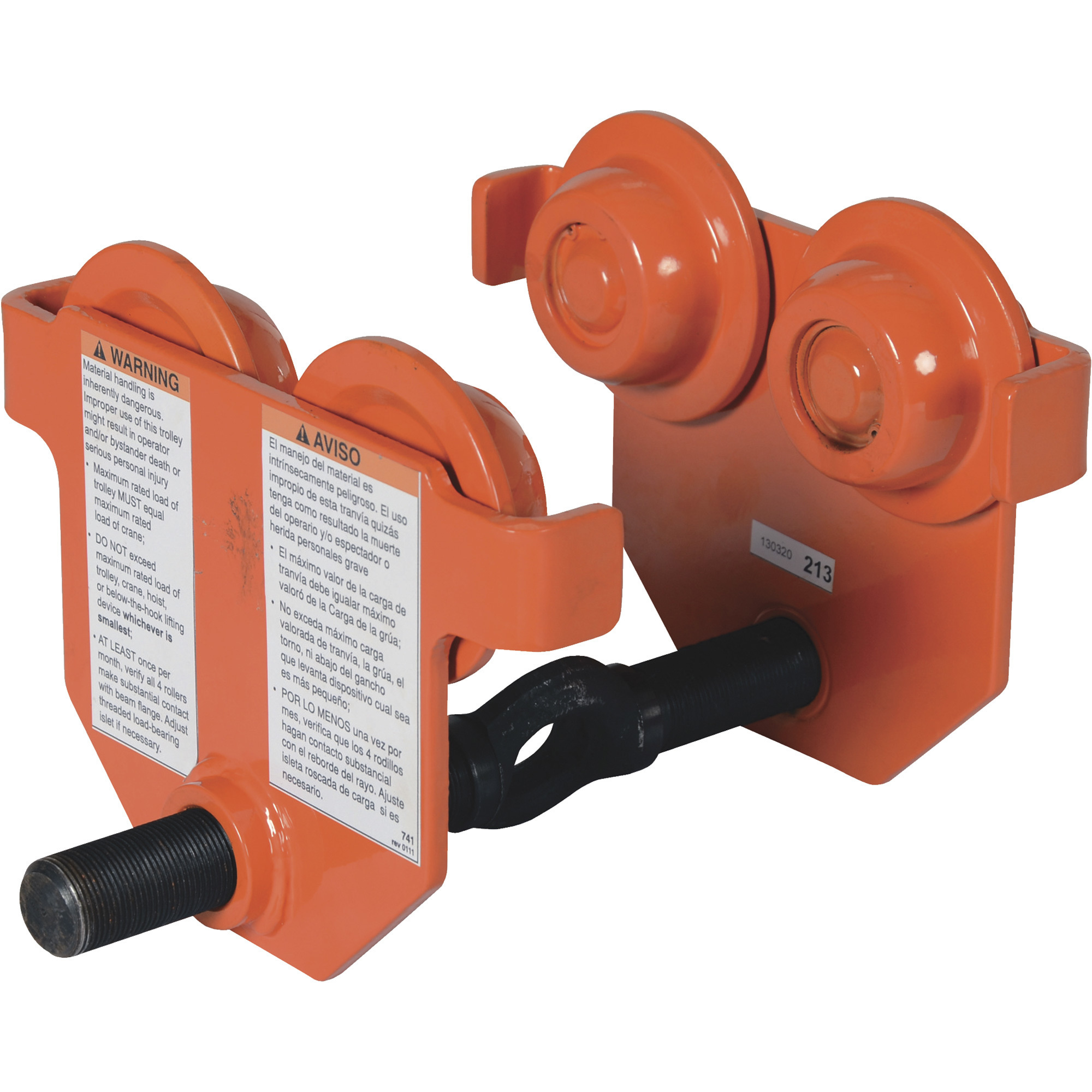

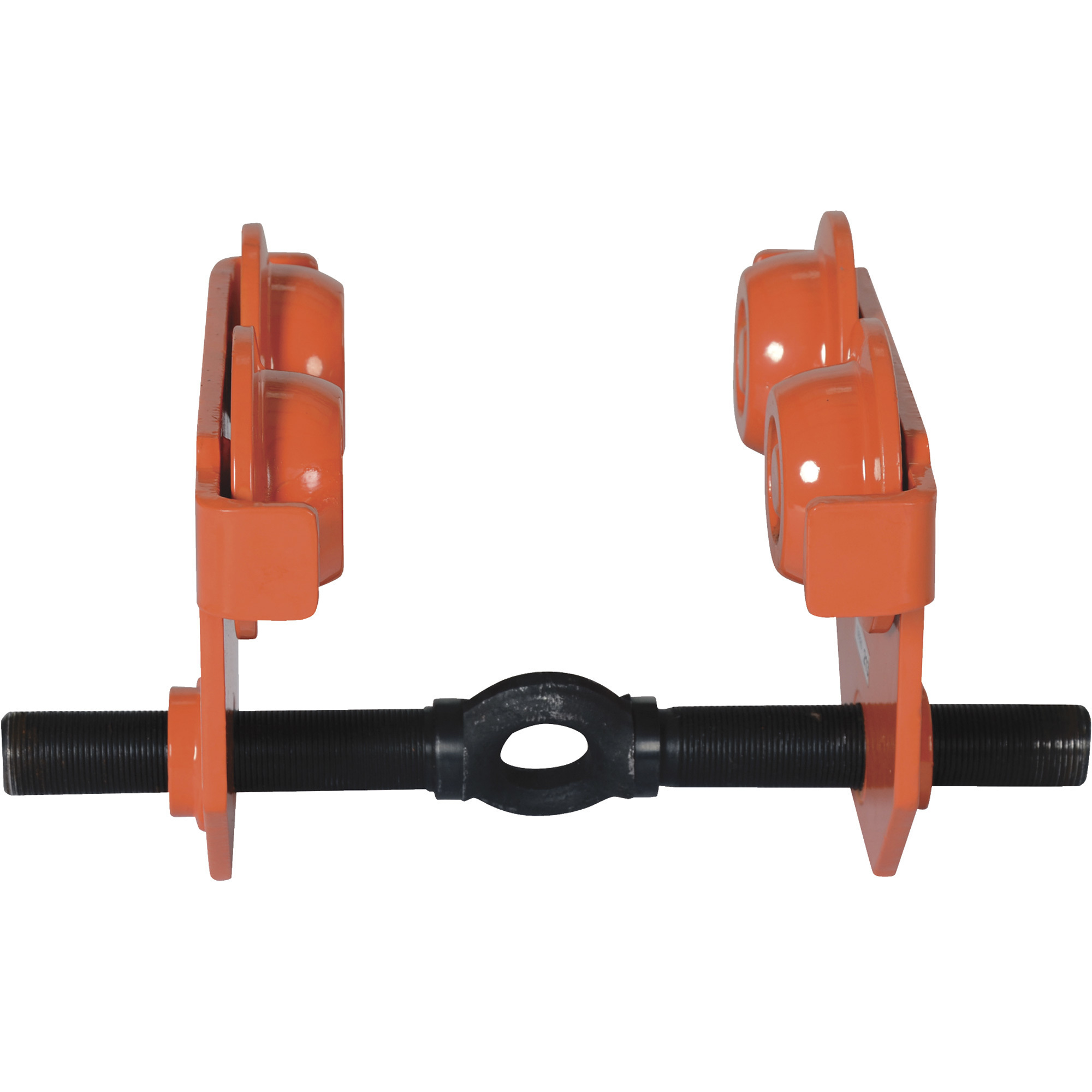

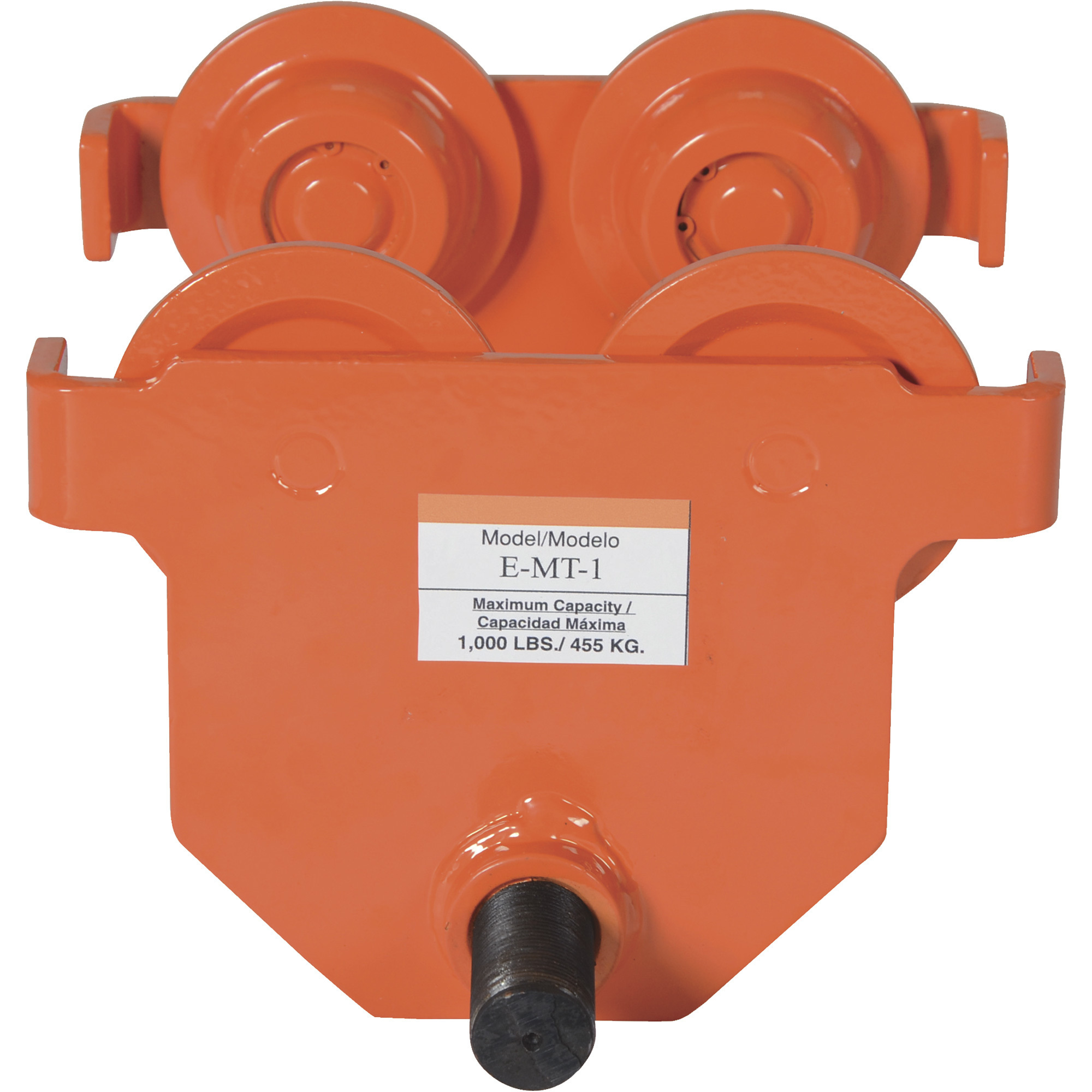

Vestil Manual Eye Trolley - 1,000-Lb. Capacity, Adjustable Width, Painted Finish, Model# E-MT-1

Item# 856711
On Sale
Vestil Manual Eye Trolley - 1,000-Lb. Capacity, Adjustable Width, Painted Finish, Model# E-MT-1

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Vestil Manual Eye Trolley - 1,000-Lb. Capacity, Adjustable Width, Painted Finish, Model# E-MT-1

Click or Tap image to Zoom

$131.63

Choose Options for complete product description, reviews and purchasing.

CAPACITY (LBS.)

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Width is adjusted by rotating the center rod with lifting eye clockwise or counterclockwise
  • Once hoist (sold separately) is attached, center rod cannot be rotated which prevents trolley width from accidentally changing
  • Lifting eye is located at the bottom of the trolley for attaching a hoist (sold separately)
  • Painted finish
  • 2 1/2in. headroom; 2in. to 8 5/8in. I-beam flange; height is measured from bottom of wheel to bottom of hooking eye

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Vestil Manual Eye Trolley is a robust and versatile solution designed for efficient material handling in various industrial settings. With a 1,000-lb. capacity, this trolley is engineered to accommodate S-, H-, W-, and M-type I-beams, providing flexibility and reliability for different beam configurations. Its adjustable width feature ensures a secure and customized fit, enhancing stability and performance during use. The trolley's painted finish adds durability and protection against wear and corrosion, making it suitable for demanding environments. Easy to install and operate, the Vestil Manual Eye Trolley is an essential tool for improving workflow and safety in warehouses, manufacturing plants, and construction sites.

What's Included

    (1) Eye manual trolley

Downloads

Product Manual
Additional Product Info

Key Specs

AttributeSpecification

item#

856711

Brand

Vestil

Manufacturer's Warranty

3 month limited warranty

Ship Weight

12.0 LB

Style

Manual Trolley
AttributeSpecification

Capacity

1,000 lb

Min. Flange Width

2 in

Max. Flange Width

8.62 in

Product Weight

12.0000 lb

Dimensions L x W x H (in.)

9.0 x 7.0 x 12.0 in

Reviews

Questions & Answers

3 Reviews This action will navigate to reviews.

Questions

1–5 of 5 Questions
Sort by:

  1. how big is the opening where the hoist or hook attatches

    1 answer

    1. The eye on this Vestil trolley has a 1" inside diameter.

      Helpful?

  2. Can your 1100 lb electric hoist be attached to this trolley?

    1 answer

    1. Our Strongway electric cable hoist, with a line capacity of 1100 lbs., is not recommended for use with this trolley.

      Helpful?

  3. How long is the center rod on this trolley?

    1 answer

    1. The manufacturer(Vestil) does not list the overall length of the center rod on this trolley, only that it is useable on a I-Beam up to 7 inches wide.

      Helpful?

  4. What is the height (diameter) of the wheel tread?

    1 answer

    1. The diameter of the wheel is 3 5/16.

      Helpful?

  5. can it be mounted on an aluminum I beam/min size?

    1 answer

    1. This trolley can mount on virtually any S-type I-beam with a flange width of 2 to 7".

      Helpful?

Warranty

Manufacturer's Warranty

3 month limited warranty
