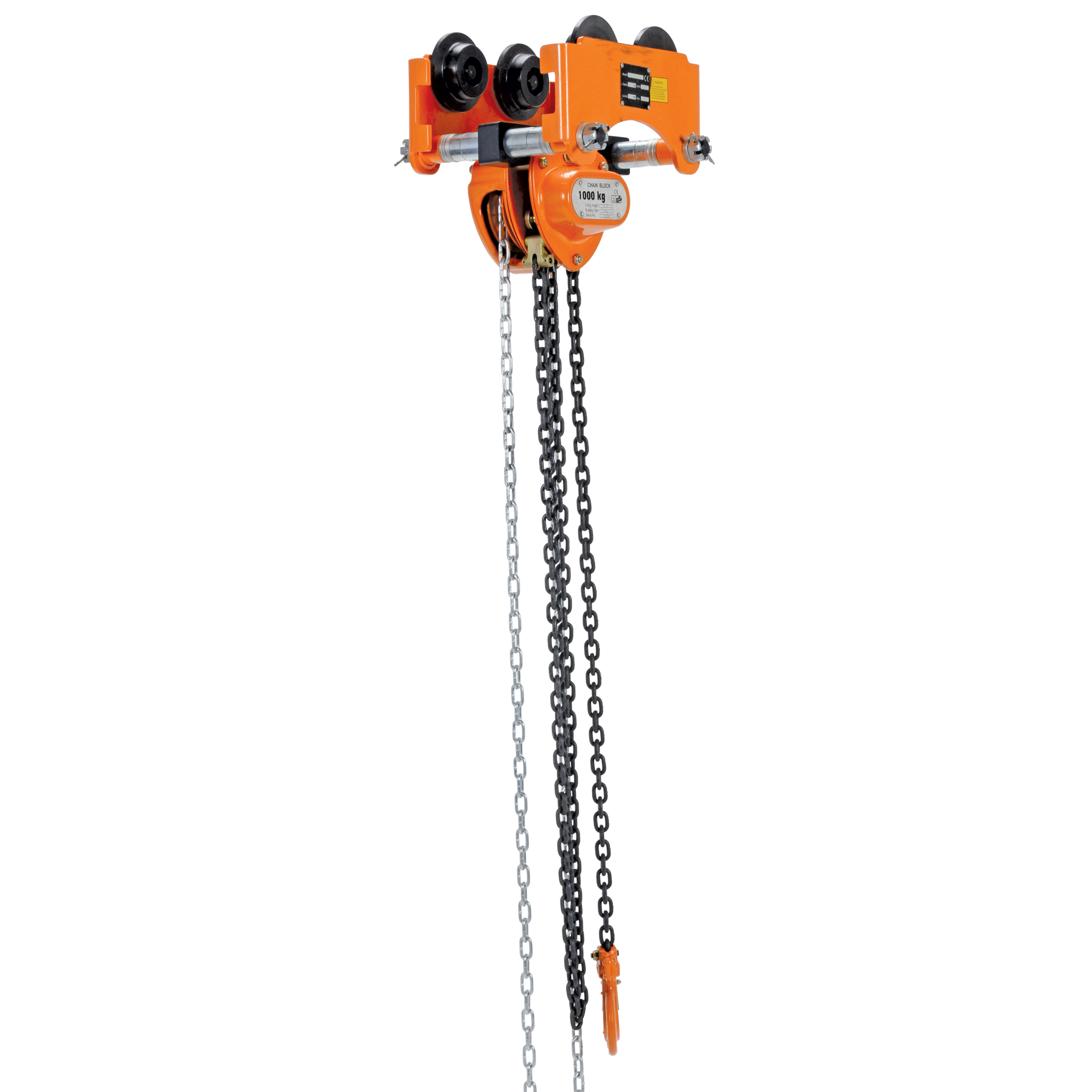

Vestil Low Headroom Chain Hoist with Push Trolley - 2000-Lb. Capacity, 13ft. Lift Height, Steel, Model# LOW-2P

Item# 5082025
Vestil Low Headroom Chain Hoist with Push Trolley - 2000-Lb. Capacity, 13ft. Lift Height, Steel, Model# LOW-2P

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Vestil Low Headroom Chain Hoist with Push Trolley - 2000-Lb. Capacity, 13ft. Lift Height, Steel, Model# LOW-2P

Click or Tap image to Zoom

$399.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Compact design works well in locations where more headroom is required
  • Heavy-duty industrial steel construction provides long lasting use
  • Chain hoist features ten foot of vertical lift
  • Bright orange color for strong visibility

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Use this low headroom Chain Hoist geared trolley to gain additional raised hook height. Chain hoist hook travel is ten (10) feet. Fits on wide flange or S-type I-beam.

What's Included

    (1) Push Chain Hoist Option Trolly

Downloads

Product Manual

Features + Benefits

  • Compact design works well in locations where more headroom is required
  • Heavy-duty industrial steel construction provides long lasting use
  • Chain hoist features ten foot of vertical lift
  • Bright orange color for strong visibility

Key Specs

AttributeSpecification

item#

5082025

Brand

Vestil

Manufacturer's Warranty

3 month limited warranty

Ship Weight

63.0 LB
AttributeSpecification

Capacity

2,000 lb

Lift Height

13 ft

Product Weight

55.0000 lb

Dimensions L x W x H (in.)

12.0 x 10.5 x 10.0 in

Reviews

Questions & Answers

Questions

1–4 of 4 Questions
Sort by:

  1. 12Ft. track of what grade and size is required?

    1 answer

    1. It would have a track length of 12ft and would require a beam with a wide flange (W) or S-type I-beam. The track must have a flange width between 2 1/2" and 8" and must be rated to support a minimum of 2,000 lbs plus the weight of the hoist and trolley. The grade would be A992 for standard steel beams.

      Helpful?

  2. Does this item come with the chain hoist and beam trolley or just the trolley? Chain hoist in picture states it's rated for 1000 lbs. however ad lists it as 2000 lbs.

    1 answer

    1. This is a low headroom chain hoist which includes the push trolley. It has a 10 foot lift. The uniform capacity of this model, LOW-2P, is 2,000 lbs.

      Helpful?

  3. How narrow of a beam and what's the minimum height of the beam

    1 answer

    1. The beam will fit at beam width of 2 1/2" to 8 5/8". There is no minimum beam height listed.

      Helpful?

  4. How wide does it open up.  Will it fit a 10” beam

    1 answer

    1. The maximum the trolley will open is 8 5/8", it would not fit a 10" beam.

      Helpful?

Warranty

Manufacturer's Warranty

3 month limited warranty
