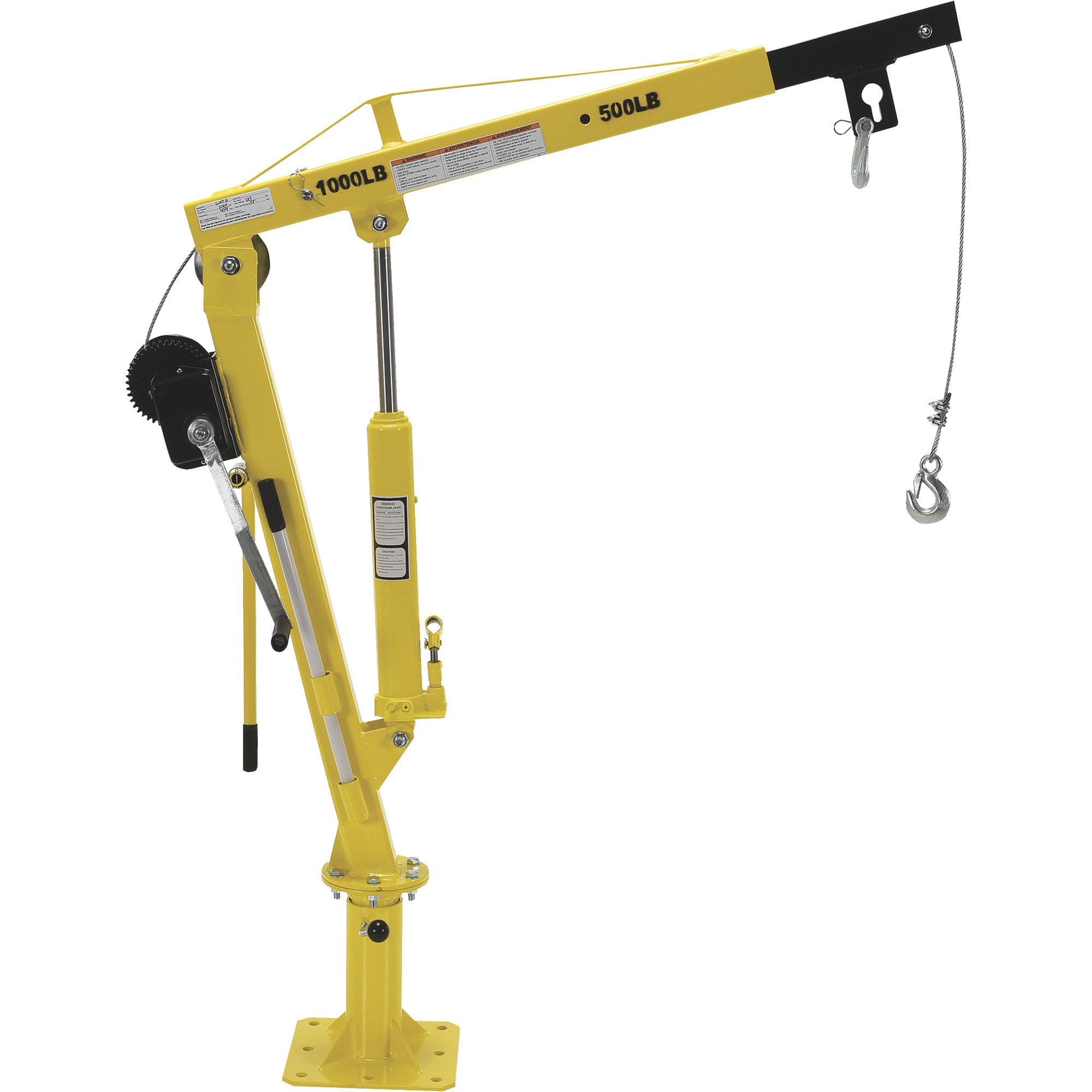

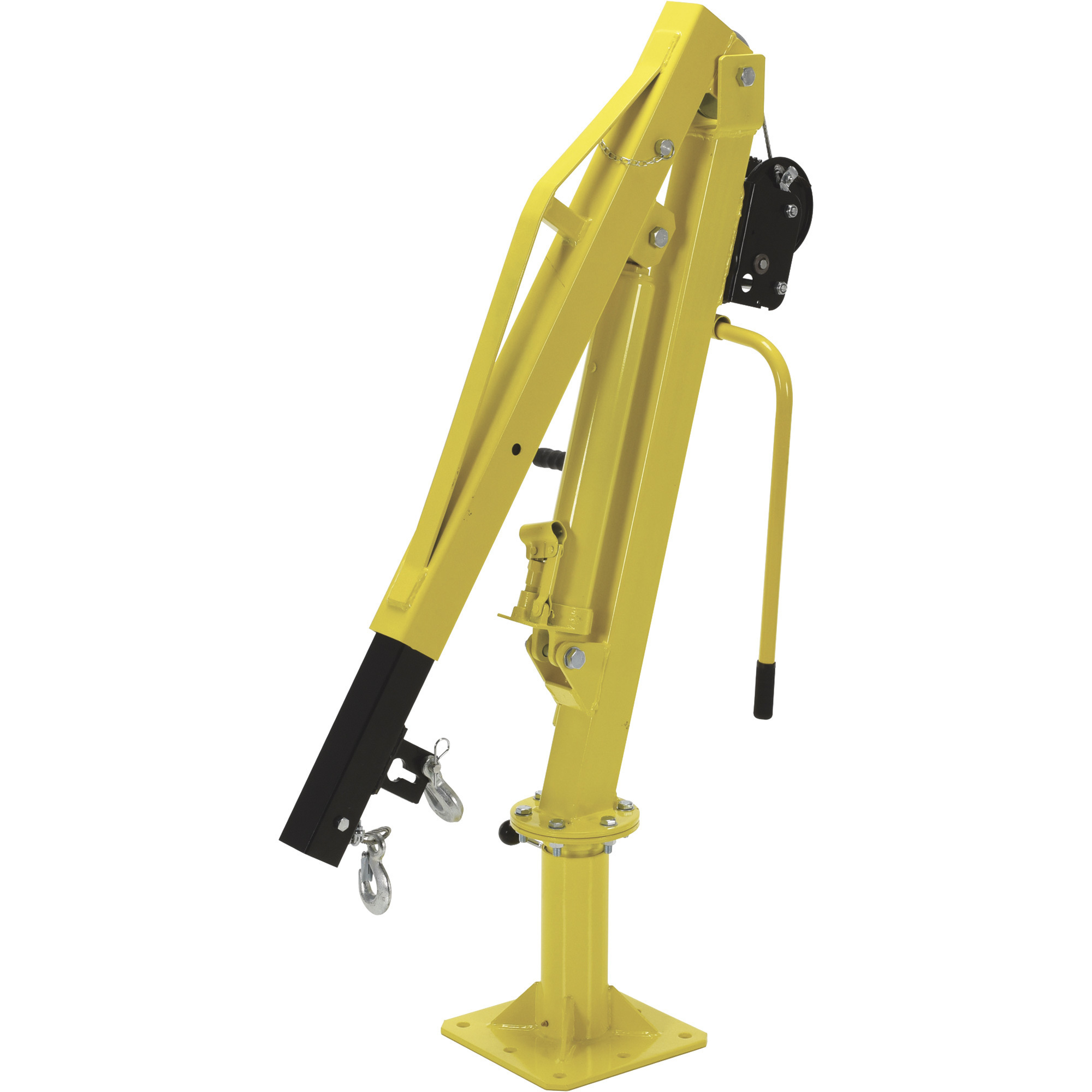

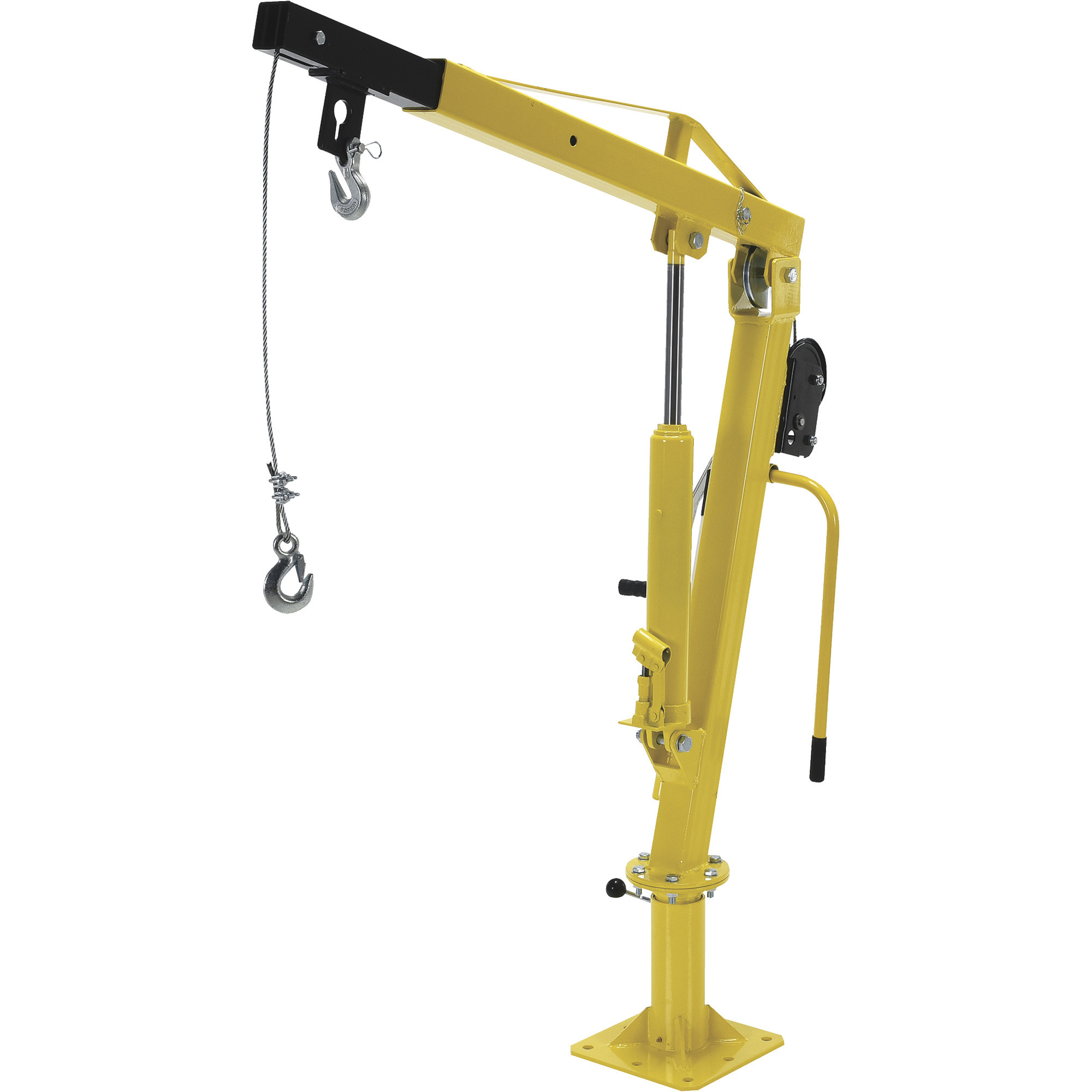

Vestil Hydraulic Pickup Truck Jib Crane with Hand Winch - 500 lbs. Extended, 1,000 lbs. Retracted, Model# WTJ-2

Item# 856318
Top Seller
Vestil Hydraulic Pickup Truck Jib Crane with Hand Winch - 500 lbs. Extended, 1,000 lbs. Retracted, Model# WTJ-2

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Vestil Hydraulic Pickup Truck Jib Crane with Hand Winch - 500 lbs. Extended, 1,000 lbs. Retracted, Model# WTJ-2

Click or Tap image to Zoom

$569.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Extended boom lift range: 0 to 102in.
  • Retracted boom load capacity: 1,000 lbs.; Extended boom load capacity at 102in.: 500 lbs.
  • Maximum usable cable length 108in.
  • Retracted boom reach: 30 1/4in. Retracted boom lift range: 13in to 90 1/2in.

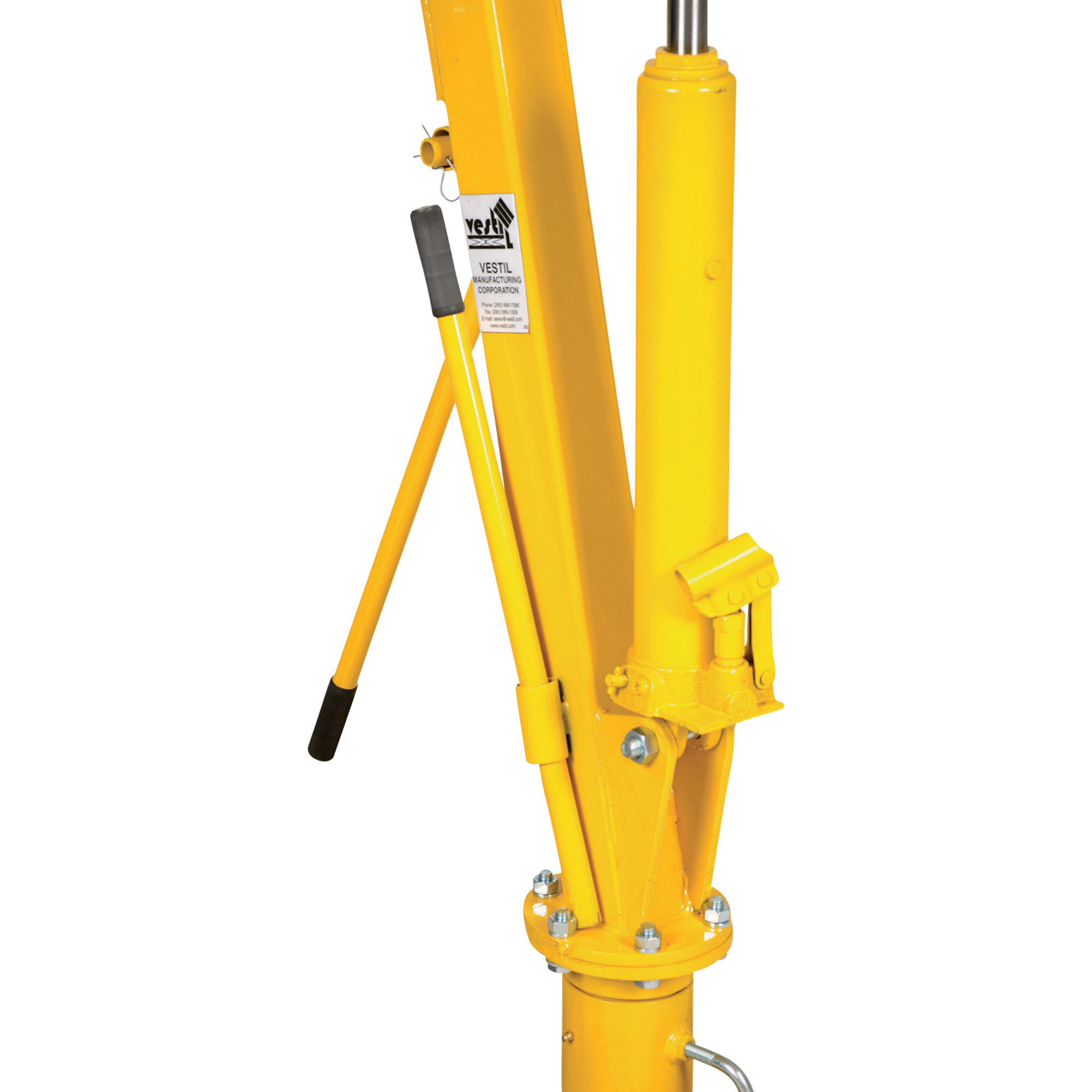

  • Telescopic boom design with manual hydraulic hand pump to pivot boom up and down

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Vestil Hydraulic Pickup Truck Jib Crane with Hand Winch is a versatile and powerful lifting tool designed for use in pickup truck beds. This crane can lift loads up to 1,000 lbs. when retracted and up to 500 lbs. when extended, providing substantial lifting capacity for various tasks. The crane is engineered to lift items from the ground to truck bed height effortlessly, and then it rotates smoothly into the cargo area for easy loading and unloading. Featuring a hand-operated winch, this jib crane offers precise control over lifting operations, ensuring safety and efficiency. Its durable construction ensures long-term reliability and performance, making it an essential addition to any truck used for transporting heavy items. Whether for industrial use, construction, or personal projects, the Vestil Hydraulic Pickup Truck Jib Crane with Hand Winch enhances the functionality of your vehicle, allowing you to handle heavy loads with ease and confidence.

What's Included

    (1) Winch operated truck jib crane

Downloads

Product Manual
Additional Product Info

Features + Benefits

  • Extended boom lift range: 0 to 102in.
  • Retracted boom load capacity: 1,000 lbs.; Extended boom load capacity at 102in.: 500 lbs.
  • Maximum usable cable length 108in.
  • Retracted boom reach: 30 1/4in. Retracted boom lift range: 13in to 90 1/2in.
  • Telescopic boom design with manual hydraulic hand pump to pivot boom up and down
  • Manual cable winch (with 3/16in. dia. cable) to lift and lower loads
  • Maximum usable cable length is 14 1/2 ft.
  • Unit comes with one grab hook, one chain slot lock, and one sling hook with latch
  • Crane swivels on a 360° base
  • Safety yellow
  • Welded steel construction

Key Specs

AttributeSpecification

item#

856318

Brand

Vestil

Manufacturer's Warranty

3 month limited warranty

Ship Weight

135.0 LB

Mount Type

Floor

Capacity

1,000 lb

Overall Boom Length

49.25 in
AttributeSpecification

Overall Height

56.75 in

Degree of Rotation

360

Diameter

3.5 in

Mounting Base Width

10.5 in

Usable Boom Length

102 in

Product Weight

135.0000 lb

Dimensions L x W x H (in.)

65.0 x 12.0 x 17.0 in

Reviews

Questions & Answers

9 Reviews This action will navigate to reviews.

Questions

1–10 of 24 Questions
Sort by:

  1. Does the winch hold the load in both directions? ie if you are cranking up or cranking down does the winch hold the load if you let go of the handle?

    1. yes, you must release the pressure manually and can control it.

      Helpful?

    2. The winch will hold the load if the handle is let go.

      Helpful?

  2. Bearings in the shaft?

    Does the shaft have bearings to make it easy to rotate? Does it have grease zerks for lubrication on the moving parts? Does the winch have ratchet action to lower the load or does it free wheel?

    1. This Vestil Winch Operated Truck Jib Crane does include a bearing for easy rotation.

      Helpful?

    2. This model includes a bearing for easy rotation.

      Helpful?

  3. Does the product come assembled?

    1. no

      Helpful?

    2. This Vestil crane requires assembly.

      Helpful?

  4. With the boom arm fully extended, what the maximum height measuring from the base?

    1 answer

    1. With the boom arm fully extended and crane lifted to it's max height, it will have an overall height of 102 inches.

      Helpful?

  5. how many pounds is the jack rated for??

    1 answer

    1. This is rated for 1000 pounds when retracted and 500 pounds when fully extended.

      Helpful?

  6. How far does the boom extend out? 102in?

    1 answer

    1. The extended boom length is 102 inches.

      Helpful?

  7. Could this be mounted on a boat and a sling added for getting a person in and out of the water?

    1 answer

    1. This Vestil pickup truck crane is not designed or recommended for lifting people.

      Helpful?

  8. Where can I get replacement hydraulic cylinders for this model crane?

    1 answer

    1. The part number is VLWTJ-2-11-25. Please contact our parts department at 1-800-657-0516 for price and availability.

      Helpful?

  9. Can you lock the swivel in any degree of rotation?

    1 answer

    1. The base of this jib crane does have a handle that twists to tighten down on the post that fits in the base. It can lock the crane in any degree of rotation.

      Helpful?

  10. package size

    I may need to carry 2 of these in my small plane. Please give packaging size and gross weight.

    Thanks Andrew Westin

    1 answer

    1. The weight for each package is 135 pounds. Each package size is 64 inches in length, 40 inches in width and 59 inches in height.

      Helpful?

Warranty

Manufacturer's Warranty

3 month limited warranty
