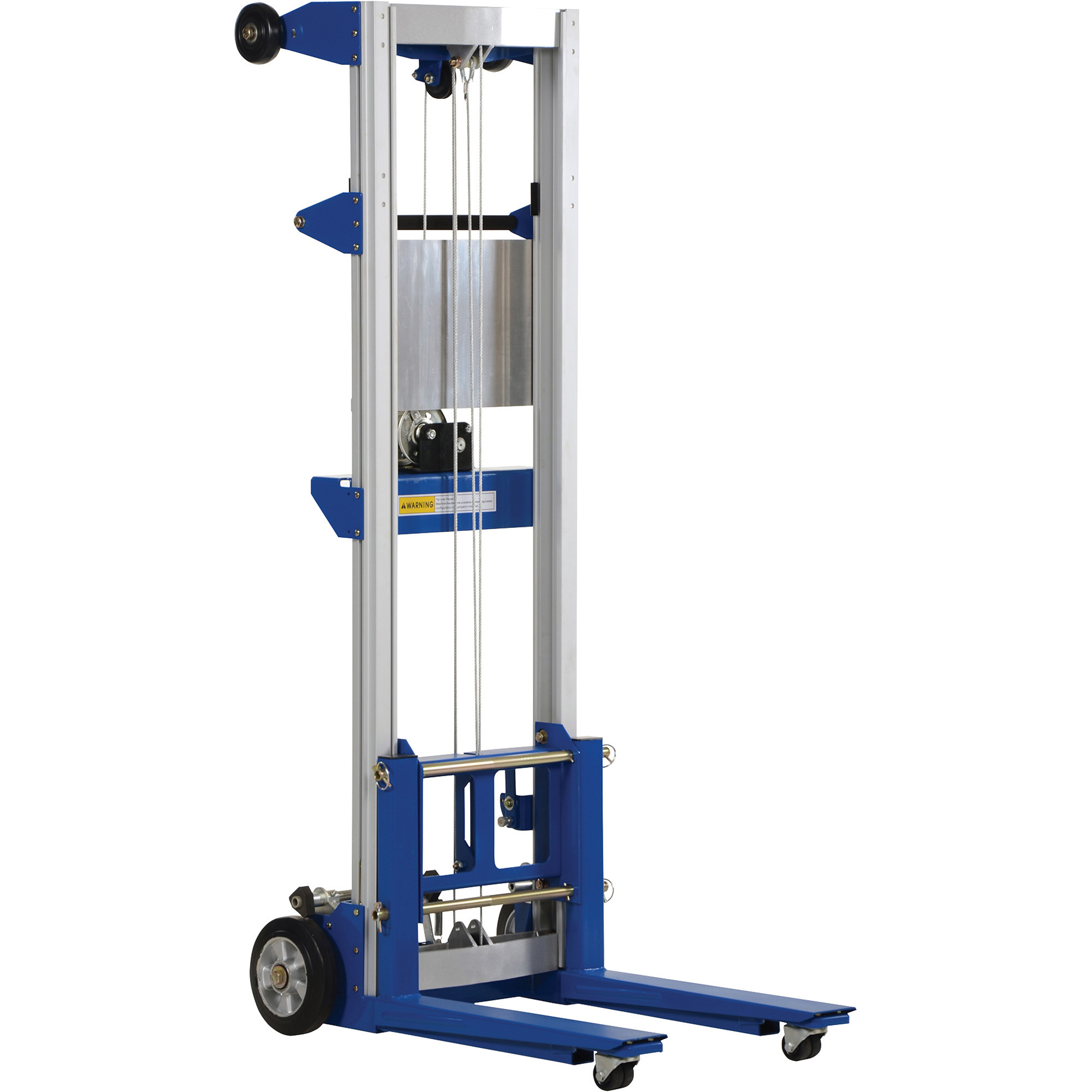

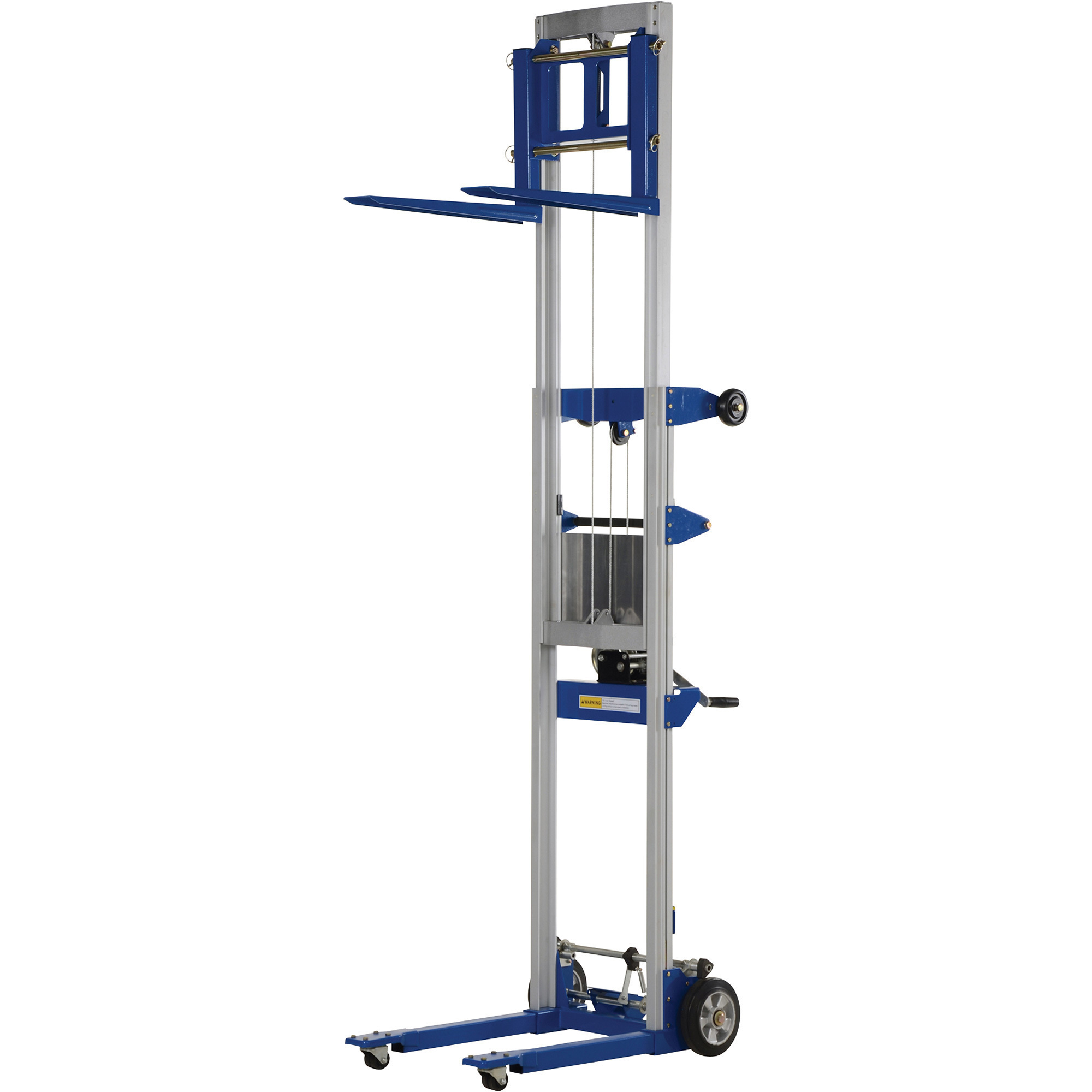

Vestil Hand Winch Lift Truck - 400-Lb. Capacity, 117in. Raised Height, 23.5in. Lowered Height, Model# A-LIFT-R-HP

Item# 856042
Vestil Hand Winch Lift Truck - 400-Lb. Capacity, 117in. Raised Height, 23.5in. Lowered Height, Model# A-LIFT-R-HP

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Vestil Hand Winch Lift Truck - 400-Lb. Capacity, 117in. Raised Height, 23.5in. Lowered Height, Model# A-LIFT-R-HP

Click or Tap image to Zoom

$1479.99

Choose Options for complete product description, reviews and purchasing.

CAPACITY | RAISED HEIGHT

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Use to lift material to and from shelves, move office equipment and install ceiling/wall appliances
  • Constructed of durable steel and aluminum
  • Rugged 4 in. W x 1 3/4 in. thick steel forks measure 20 1/2 in. W x 22 in. L

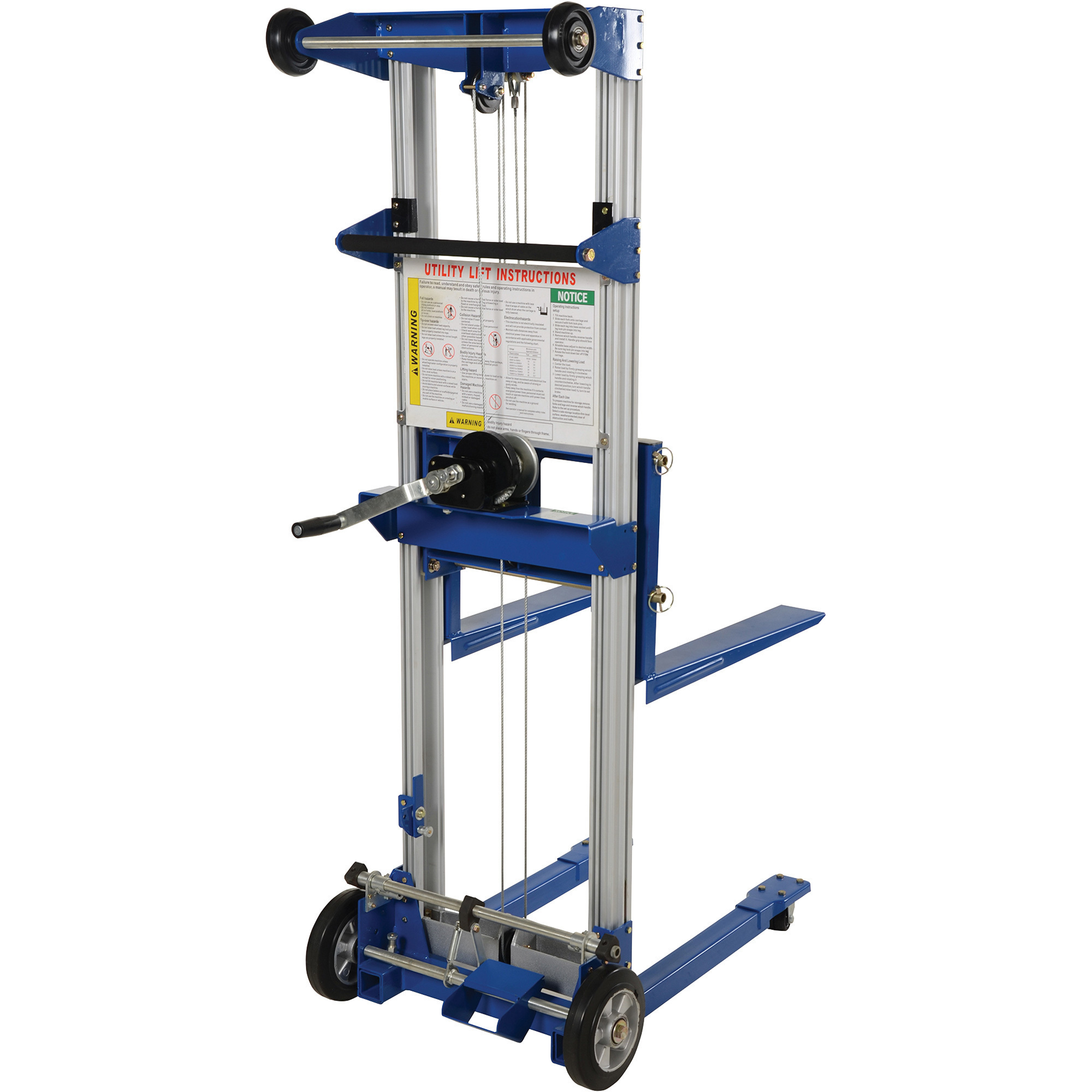

  • Operated by a hand crank winch that features a reversible handle and a hold-down device for securing the carriage during transport
  • Wheels at the top of unit for easy loading into a truck for transport

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Vestil Hand Winch Truck is a compact lift truck designed to lift material to and from shelves, move office equipment, and install ceiling/wall appliances.

What's Included

    (1) Hand winch lift truck

Downloads

Product Manual
Additional Product Info Additional Product Info2 Additional Product Info3

Features + Benefits

Key Specs

AttributeSpecification

item#

856042

Brand

Vestil

Manufacturer's Warranty

1 year limited warranty

Ship Weight

203.0 LB

Capacity

400 lb

Raised Height

117 in

Lowered Height

23.5 in

Material

Multiple

Extension Length

22 in
AttributeSpecification

Extension Width

4 in

Outside Fork Width

21 in

Fork Thickness

1.75 in

Caster Size

2 in

Caster Type

Swivel

Width Between Forks

12.75 in

Turning Radius

180 in

Product Weight

203.0000 lb

Dimensions L x W x H (in.)

92.0 x 29.0 x 18.0 in

Reviews

Questions & Answers

5 Reviews This action will navigate to reviews.

Questions

1–4 of 4 Questions
Sort by:

  1. What is the weight of the unit?

    1 answer
    Originally posted on "Vestil Hand Winch Lift Truck - 500-Lb. Capacity, Steel and Aluminum, 20.5in. x 22in. Forks, Model# A-LIFT-R"

    1. The weight of the unit would be 191 pounds.

      Helpful?

  2. What is the capacity if the load is at the end of the forks?

    1 answer
    Originally posted on "Vestil Hand Winch Lift Truck - 500-Lb. Capacity, Steel and Aluminum, 20.5in. x 22in. Forks, Model# A-LIFT-R"

    1. Any load must rest against the back of the forks and lifting any other way could create a dangerous situation.

      Helpful?

  3. What is the height of the legs

    1 answer
    Originally posted on "Vestil Hand Winch Lift Truck - 500-Lb. Capacity, Steel and Aluminum, 20.5in. x 22in. Forks, Model# A-LIFT-R"

    1. The height of the legs in the lowered position are 3 1/2 inches (forks down) and 23 1/2 inches (forks up.) The height of the legs in the raised position are 47 inches (forks down) and 67 inches (forks up.)

      Helpful?

  4. How tall is the mast when forks are at maximun height?

    Also, how tall is the mast when forks are at 72"?

    1 answer

    1. The overall height when the forks are completely raised is 112 1/4". When at 72" the height is 92".

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
