The Vestil Hand Chain Hoist is manufactured in China.

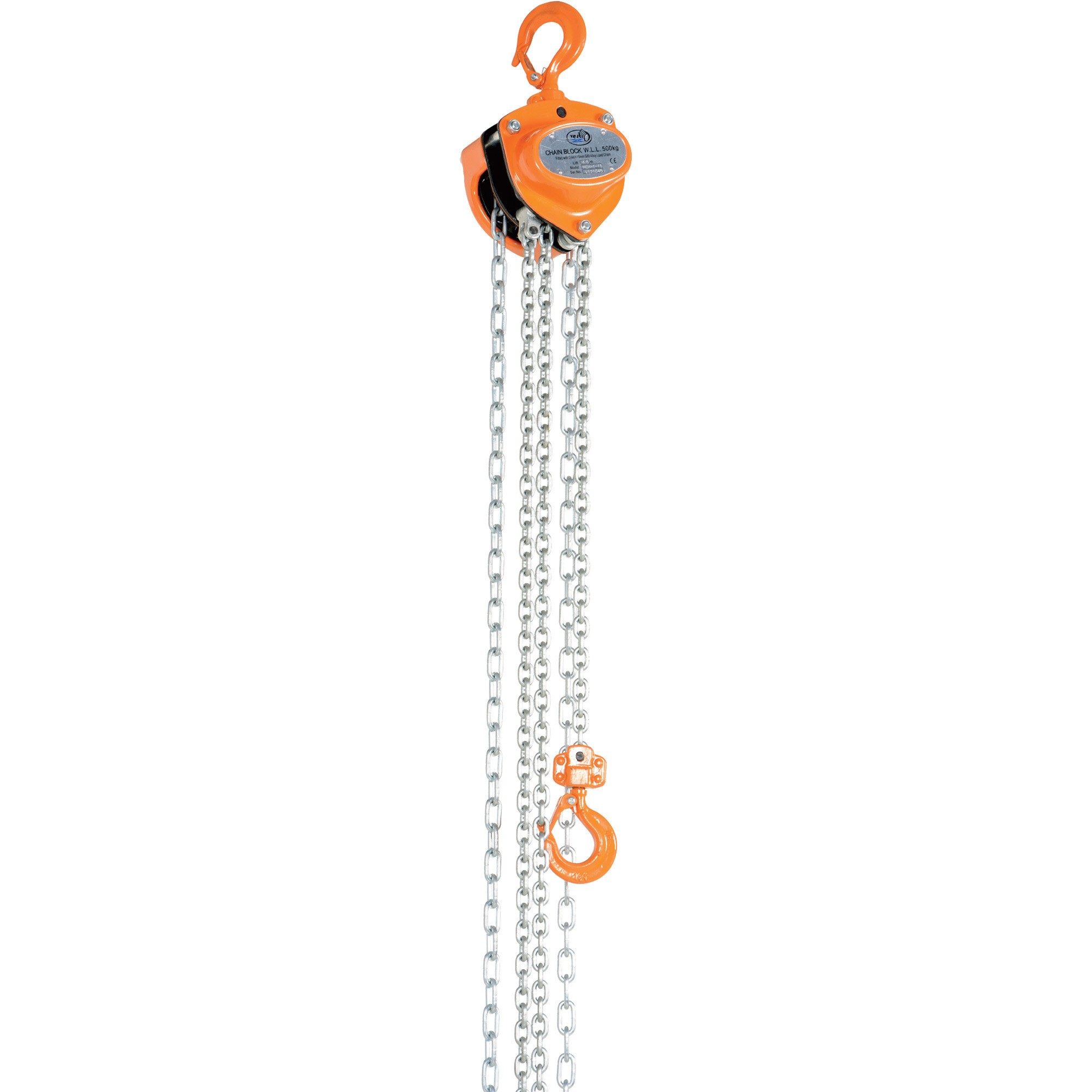

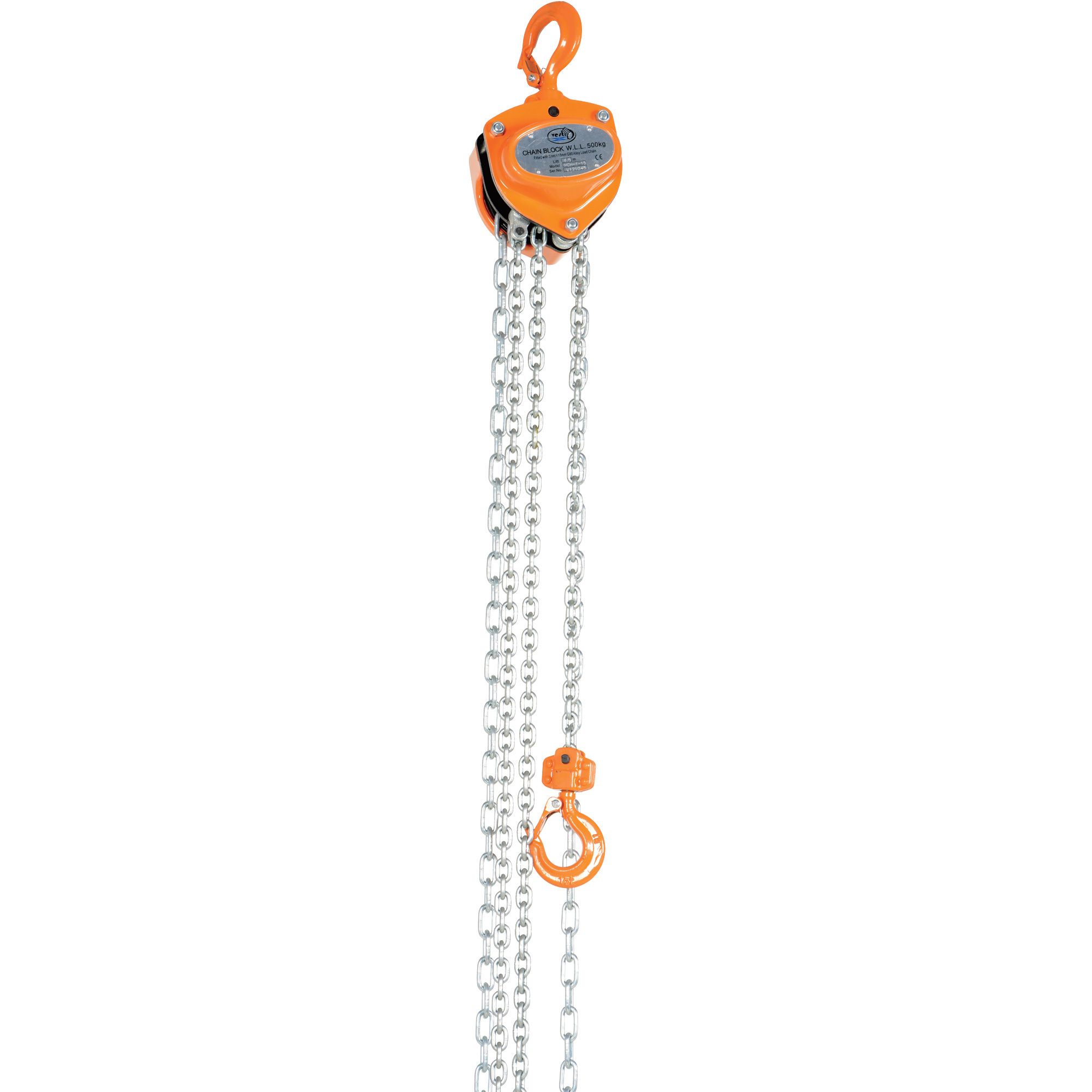

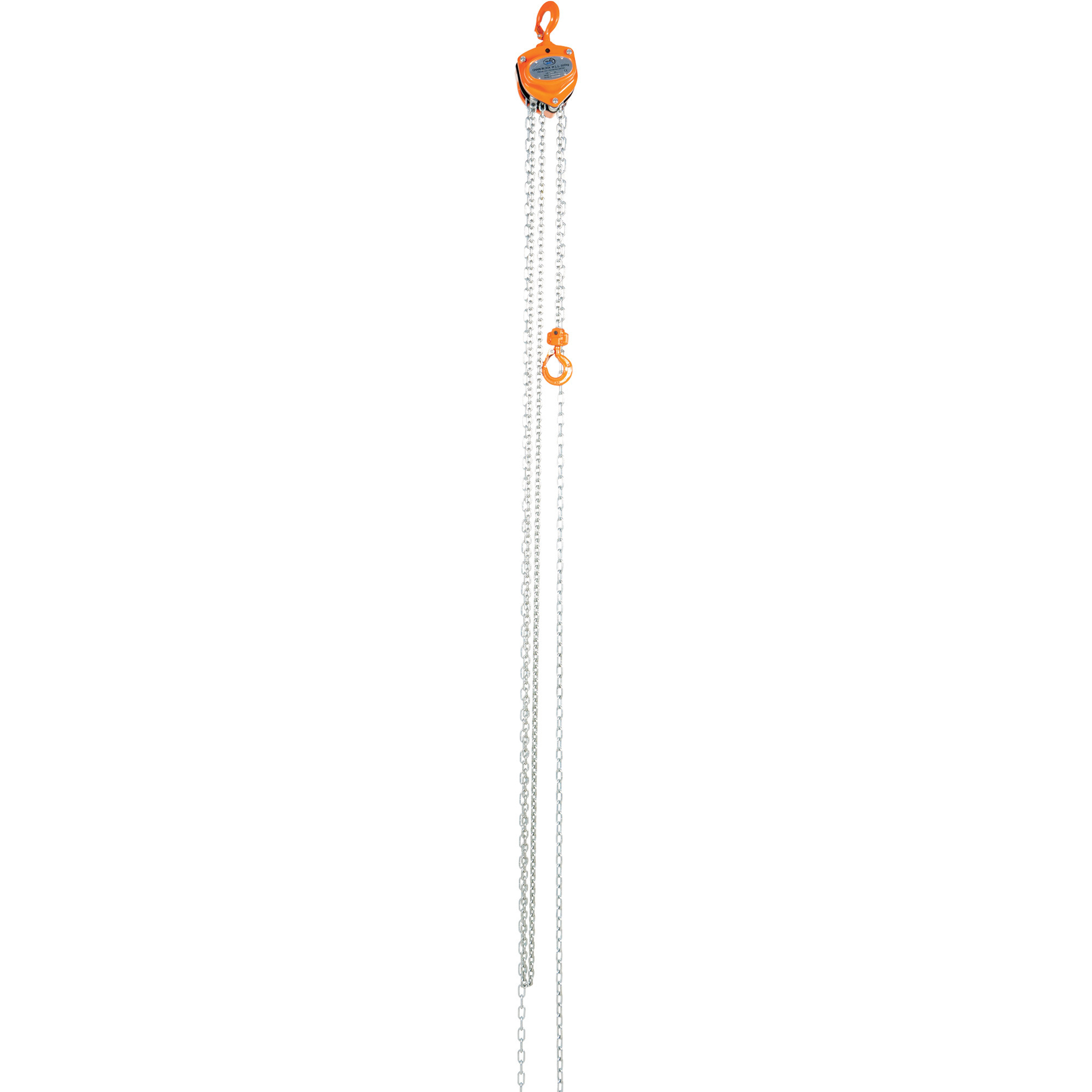

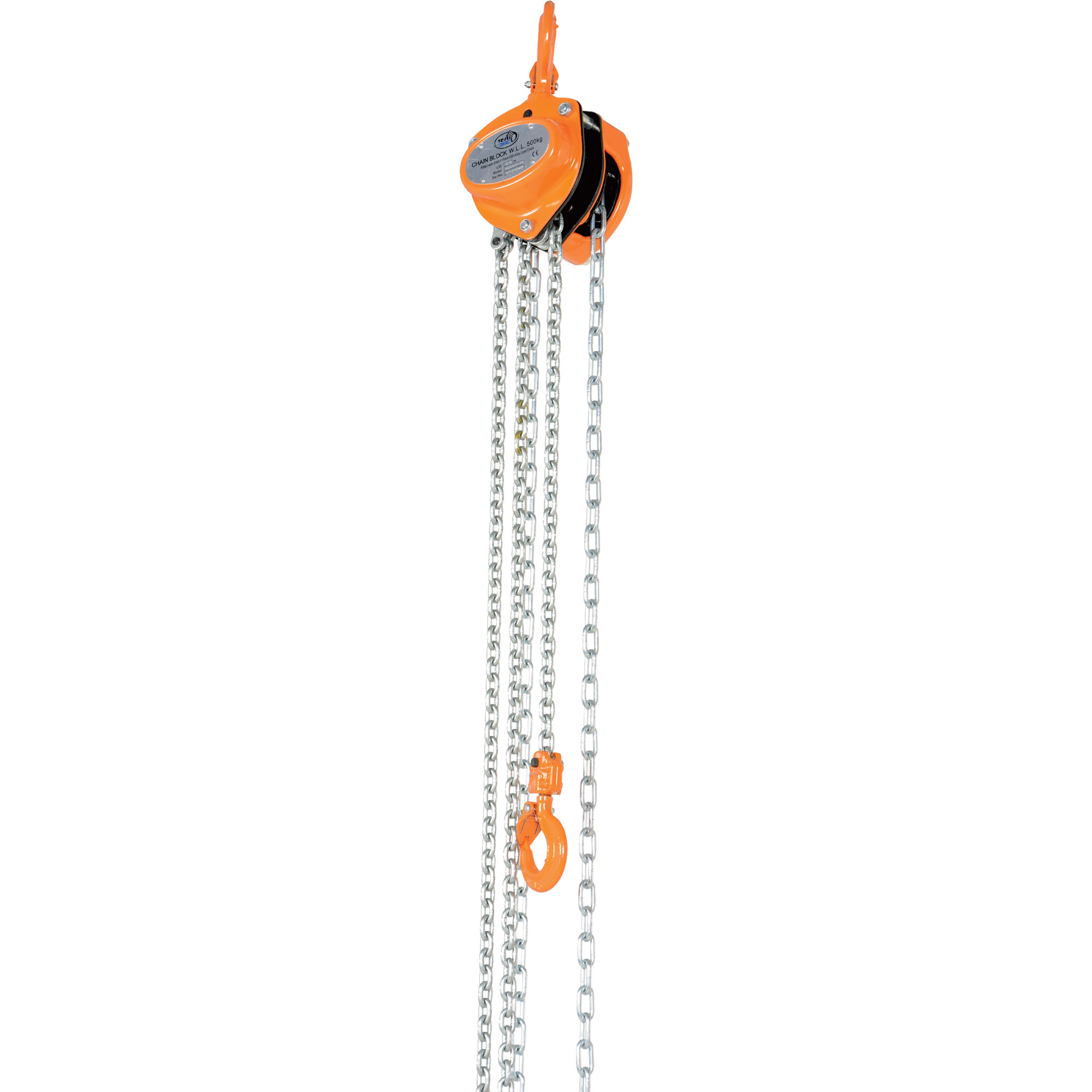

Vestil Hand Chain Hoist - 1/2-Ton Capacity, 15ft. Lift, Model# HCH-1-15
On Sale
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$164.99
Choose Options for complete product description, reviews and purchasing.
CAPACITY (LBS.)
LIFT HEIGHT (FT.)
- Portable, lightweight hoist is durable and easy to operate
- Compact design and low headroom allows for installation in confined areas
- Enclosed double ratchet pawl with self adjusting disc brake is standard
- Designed with a safety factor 4 times rated capacity
- Individually tested at 150% rated capacity
See full description
-
Where are these hoists made?
-
Helpful?
-
These chain hoists are a product of China
Helpful?
-
-
What is the length of hand pull chain and length of lifting chain?
1 answer-
The length of the hand pull chain is 19 ft and the length of the lifting chain is 20 ft.
Helpful?
-
-
What is thickness and rating on lifting chain?
1 answer-
The thickness of the chain would be 8mm (0.31"). It would have a grade 80 load chain.
Helpful?
-
-
Do these Vestil chain hoists come with certificates of conformance?
1 answer-
The certificate of compliance is not included with the hoist but is available on the manufacturer's web site directly. https://www.vestildocs.com/certificates/HCH-1-10.pdf
Helpful?
-
-
Gear Ratio
How much pull must be made on the chain to lift 1,000 lbs?
1 answer-
The gear ratio is 1:29. The pull force with full load is 50 lbs.
Helpful?
-
-
How wide and thick is this hoist?
I need to fit it between two beams. I need to know how far apart I would have to put my beams.
1 answer-
The width which also might be described as the thickness of this hoist is 7 inches. So the beams would need to be slightly further apart than 7 inches.
Helpful?
-
-
in what country was this produced
1 answer-
This Vestil Chain Hoist is manufactured in China.
Helpful?
-
-
Where is the chain hoist made?
1 answer-
This chain hoist is manufactured in China.
Helpful?
-
