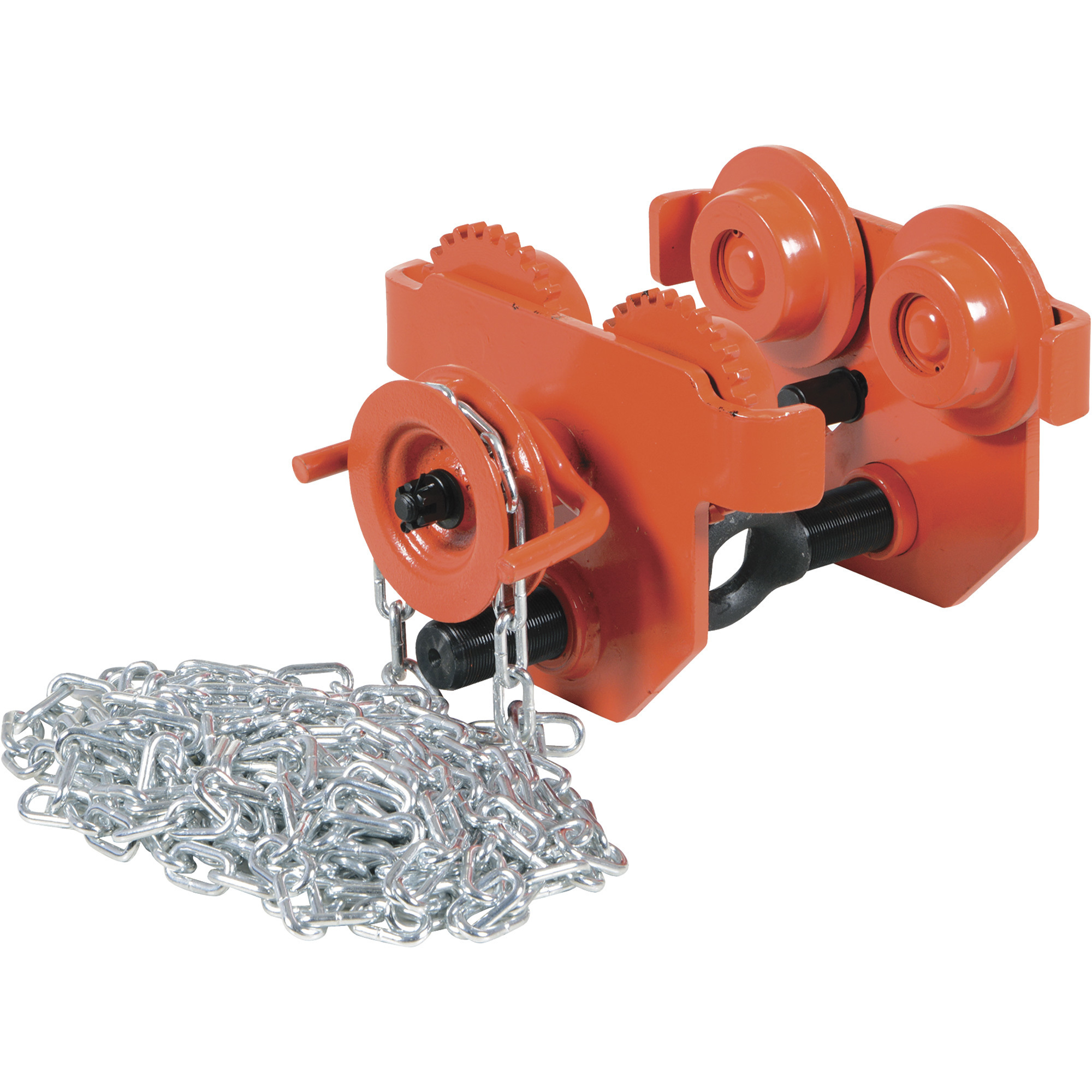

Vestil Geared Eye Manual Trolley - 2,000-Lb. Capacity, 2.5in. to 5.5in. I-Beam Flange, Model# E-MT-2-C

Name: Vestil Geared Adjustable Eye Manual Trolley
Brand: Vestil
SKU: 8567131

Item# 856714

Vestil Geared Eye Manual Trolley - 2,000-Lb. Capacity, 2.5in. to 5.5in. I-Beam Flange, Model# E-MT-2-C

Click or Tap image to Zoom

$233.12

Choose Options for complete product description, reviews and purchasing.

CAPACITY (LBS.)

Quantity

Save to List

Shipping:
Factory shipped
Store Pickup:
Not available - online only

Geared trolley is ideal for use when precise positioning of the trolley is required
Width is adjusted by rotating the center rod with lifting eye clockwise or counterclockwise
Once hoist (sold separately) is attached, center rod cannot be rotated which prevents trolley width from accidentally changing
Lifting eye is located at the bottom of the trolley for attaching a hoist (sold separately)
2 1/2" to 5 1/2in. I-beam flange; 5in. headroom

See full description

Product Summary

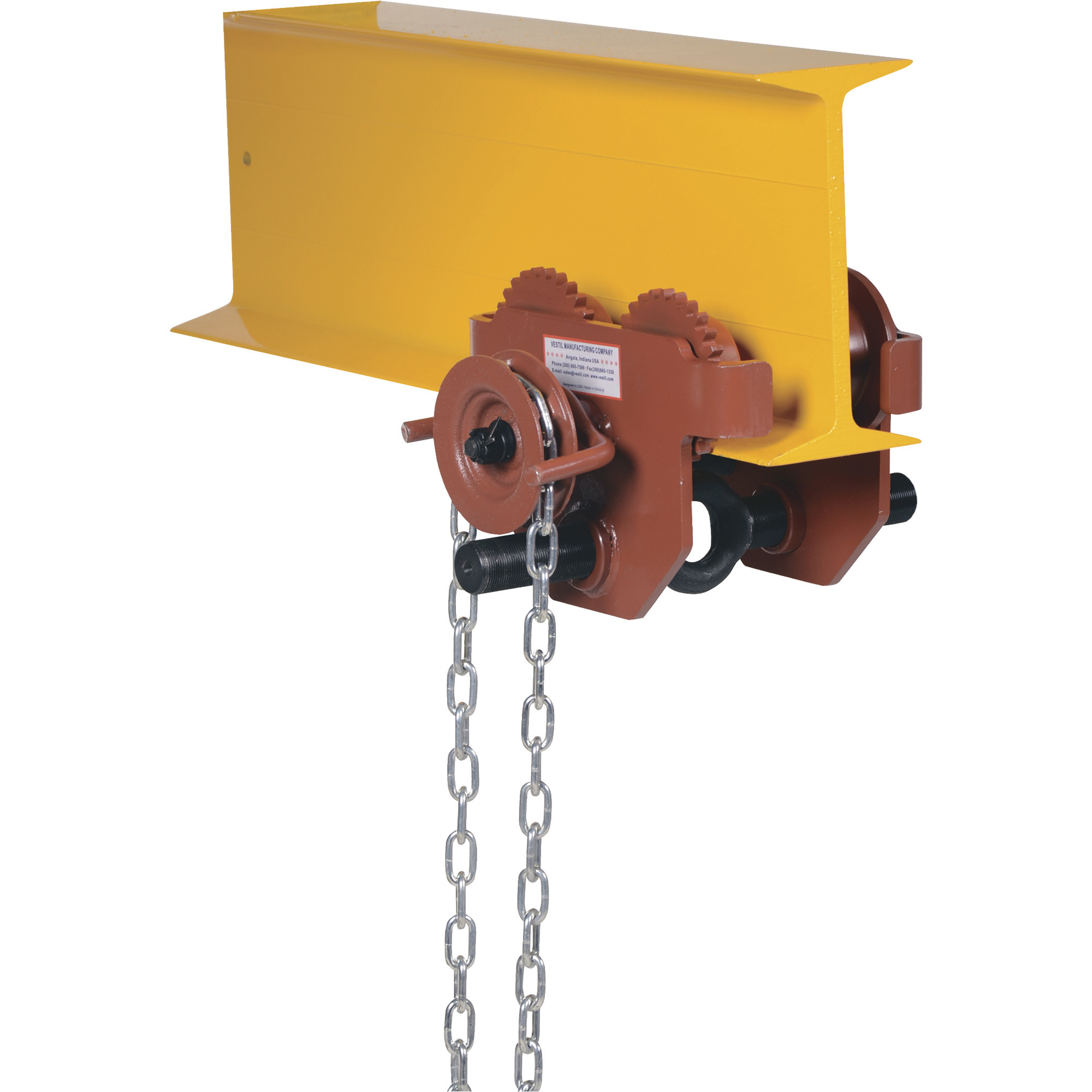

The Vestil geared trolley has been designed to quickly install on virtually any S-, H-, W- and M-type I-beams. Geared trolley is ideal for use when precise positioning of the trolley is required.

What's Included

(1) Eye manual trolley

Downloads

Product Manual

Additional Product Info

Key Specs

Attribute	Specification
item#	856714
Brand	Vestil
Manufacturer's Warranty	3 month limited warranty
Ship Weight	29.0 LB
Style	Manual Trolley
Capacity	2,000 lb
Adjustable	Yes

Attribute	Specification
Geared	Yes
Min. Flange Width	2.5 in
Max. Flange Width	5.5 in
OSHA Approved	Yes
Product Weight	29.0000 lb
Dimensions L x W x H (in.)	13.0 x 11.0 x 8.0 in

Reviews

Questions & Answers

Questions

1–5 of 5 Questions

5 years ago

Will this trolley work on the Strongway 1 ton gantry crane, item number 57021?

1 answer
1. ProductExpert10

  5 years ago

  This will work with the Strongway 57021.The Vestil E-MT-2-C is adjustable and will fit over the 2.95'' wide beam.

  Helpful?
6 years ago

How tall are the trolley wheels?

How tall of an I-beam would be required for this particular trolley? Smallest I-beam I know of is 4" (tall), then next size is typically 6". I would like to use this on a 4" beam.

1 answer
1. ProductExpert11

  6 years ago

  The trolley will fit beam flange of 2 1/2" to 5 1/2". The height from the bottom of the trolley to the top of the wheel will be 7.1/4". The height from the bottom of the trolley to the top of the trolley frame will be 6 3/8". The overall dimensions are 11 3/4" W x 9 5/8" L x 7 1/4" H.

  Helpful?
9 years ago

How long is the chain?

1 answer
1. ProductExpert9

  9 years ago

  The chain is 10 feet.

  Helpful?
11 years ago

about how far does it travel on the rail for each foot of chain pulled?

1 answer
1. ProductExpert30

  11 years ago

  This trolley will travel 3/4" per foot of chain pull.

  Helpful?
14 years ago

can the trolley be used on a 6 1/8 " wide flange H beam and is compatible with the northern 2000 lb wire rope hoist ? thanks

1 answer
1. ProductExpert13

  14 years ago

  This Vestil Eye Manual Trolley will work on any 2 1/2"-8 3/4" wide S type I beam. Lifting eye is located at the bottom of the trolley for attaching a hoist. The Hoist must be able to attach to the lifting eye. Once hoist is attached, center rod cannot be rotated which prevents trolley width from accidental. changing.

  Helpful?

Warranty

Manufacturer's Warranty

3 month limited warranty
