The forks on this pallet truck are 2-7/8" thick.

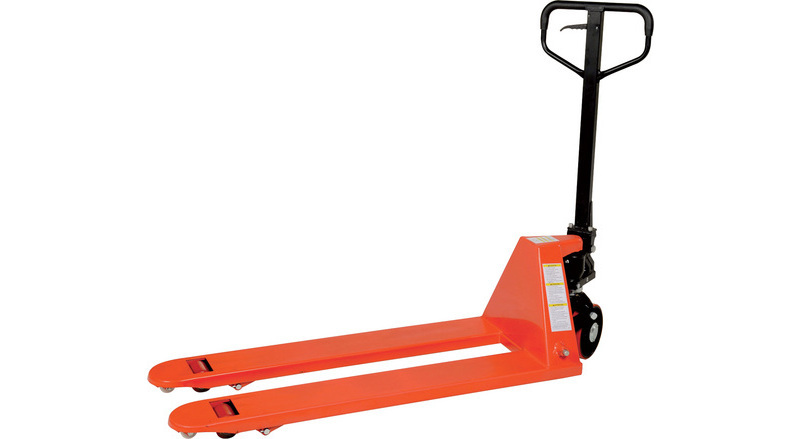

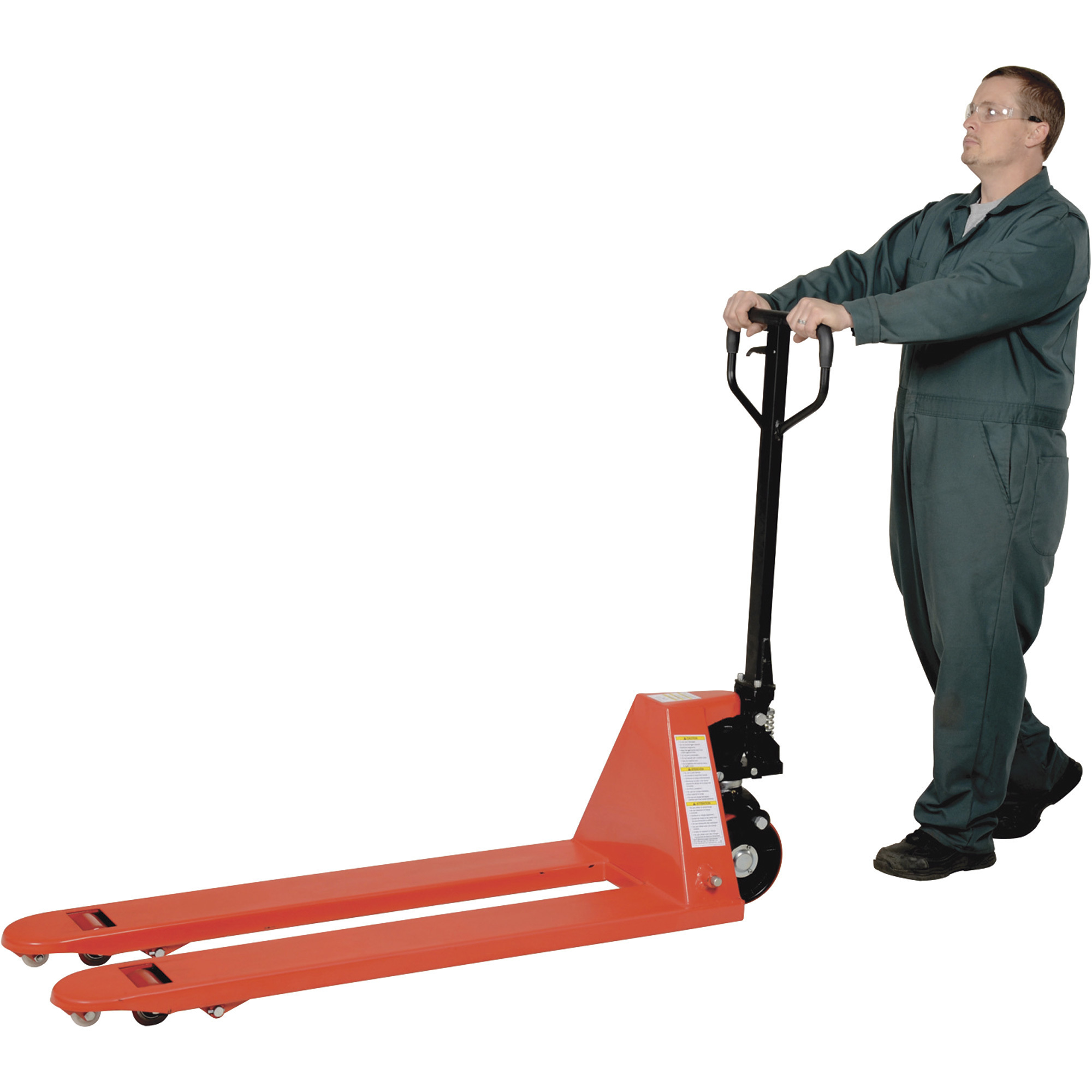

Vestil Full-Featured Pallet Truck - 5,500-Lb. Capacity, Poly-On-Steel Wheels, 49in.L x 22in.W Forks, Ergonomic Design, Model# PM5-2048
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$529.99
Buy 3 or more at $522.04 ea.
- User-friendly entry and exit rollers
- 2 articulating steering wheels
- 2 front load rollers
- Ergonomic design requires only 75 pounds of pulling force when fully loaded
- Steering wheels include bearing dust covers for added life
See full description
Price for all three:
$544.17
What's Included
- (1) Full-featured pallet truck
Features + Benefits
- User-friendly entry and exit rollers
- 2 articulating steering wheels
- 2 front load rollers
- Ergonomic design requires only 75 pounds of pulling force when fully loaded
- Steering wheels include bearing dust covers for added life
- Nose wheels are located on the front edge of each fork to assist in clean pallet entrance and exit
- Reinforced triple-formed steel forks provide twice the strength of standard single-formed forks
- Equipped with internally mounted solid steel adjustable push rods
- Spring-loaded handle automatically returns to vertical position when not in use
- Hydraulic pump design facilitates easy-access seal replacement
- Chrome-plated hydraulic pump piston for long seal life
-
What is the fork thickness of this pallet jack?
-
Helpful?
-
The fork thickness of this model is is 2-7/8".
Helpful?
-
-
What is difference between yellow or Red Poly coated wheel on Vestile Pallet truck.
Is there advantaage or disadvantage to having "steel" wheel or a poly coated steel wheel.
1 answer-
The poly on steel will be a softer wheel to roll on the inside floors, where the steel wheel is heavier duty for use on rougher surfaces.
Helpful?
-
Accessories We Recommend
This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.
See All Standard Fork Pallet Jacks + Trucks
See All Vestil Standard Fork Pallet Jacks + Trucks
Currently Viewing This Product
Specifications
Specifications
Vestil Full-Featured Pallet Truck - 5,500-Lb. Capacity, Poly-On-Steel Wheels, 49in.L x 22in.W Forks, Ergonomic Design, Model# PM5-2048
Vestil Ergonomic Quick Lift Pallet Truck — 5,500-Lb. Uniform Capacity
Vestil Low-Profile Pallet Truck - 4000-Lb. Capacity, 33in. x 48in., Steel Frame, Red, Model# PM4-3348_LP
Atlas Galvanized Pallet Truck, 5,500-Lb. Capacity, Model# 27X48EZVNNGALVANIZED
Load Capacity
Same
5,500 lb
-
4,000 lb
5,500 lb
Min. Lift Height
Same
2.875 in
-
1.87 in
3 in
Max. Lift Height
Same
7.75 in
-
6 in
7.75 in
Width Between Forks
Same
6 in
-
-
15 in
Turning Radius
Same
180 in
-
-
200 in
Wheel Type
Same
Poly-on-Steel
-
-
Nylon
Outside Fork Width
Same
22 in
-
-
-
Steering Wheel Size
Same
7 in
-
-
7 in
Product Weight
Same
210.0000 lb
-
286.0000 lb
-
Dimensions L x W x H (in.)
Same
64.0 x 40.0 x 23.0 in
-
64.0 x 40.0 x 23.0 in
-
Fork Length
Same
-
-
48 in
48 in
Power Source
Same
-
-
Manual
-
