The overall length of the fork extensions is 120".

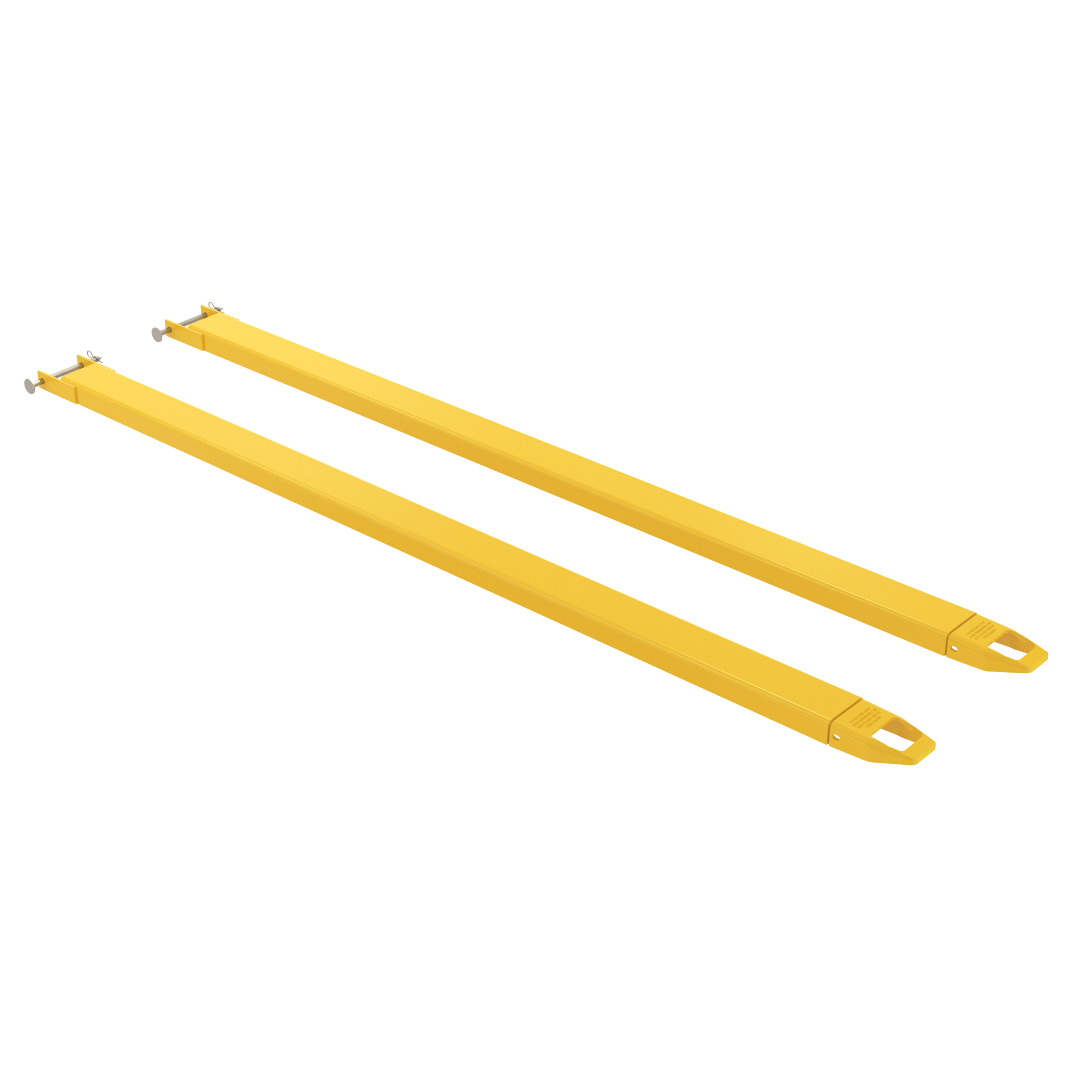

Vestil Fork Extensions - Pin Lock Style, 2-Pc. Set, 4,000-Lb. Capacity, Model# FE-4-120-P
On Sale
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$676.07
Choose Options for complete product description, reviews and purchasing.
FITS FORK WIDTH (IN.)
EXTENSION LENGTH (IN.)
- Provide the extra support needed to lift long or large objects with a fork truck
- Welded steel construction with cast steel tips

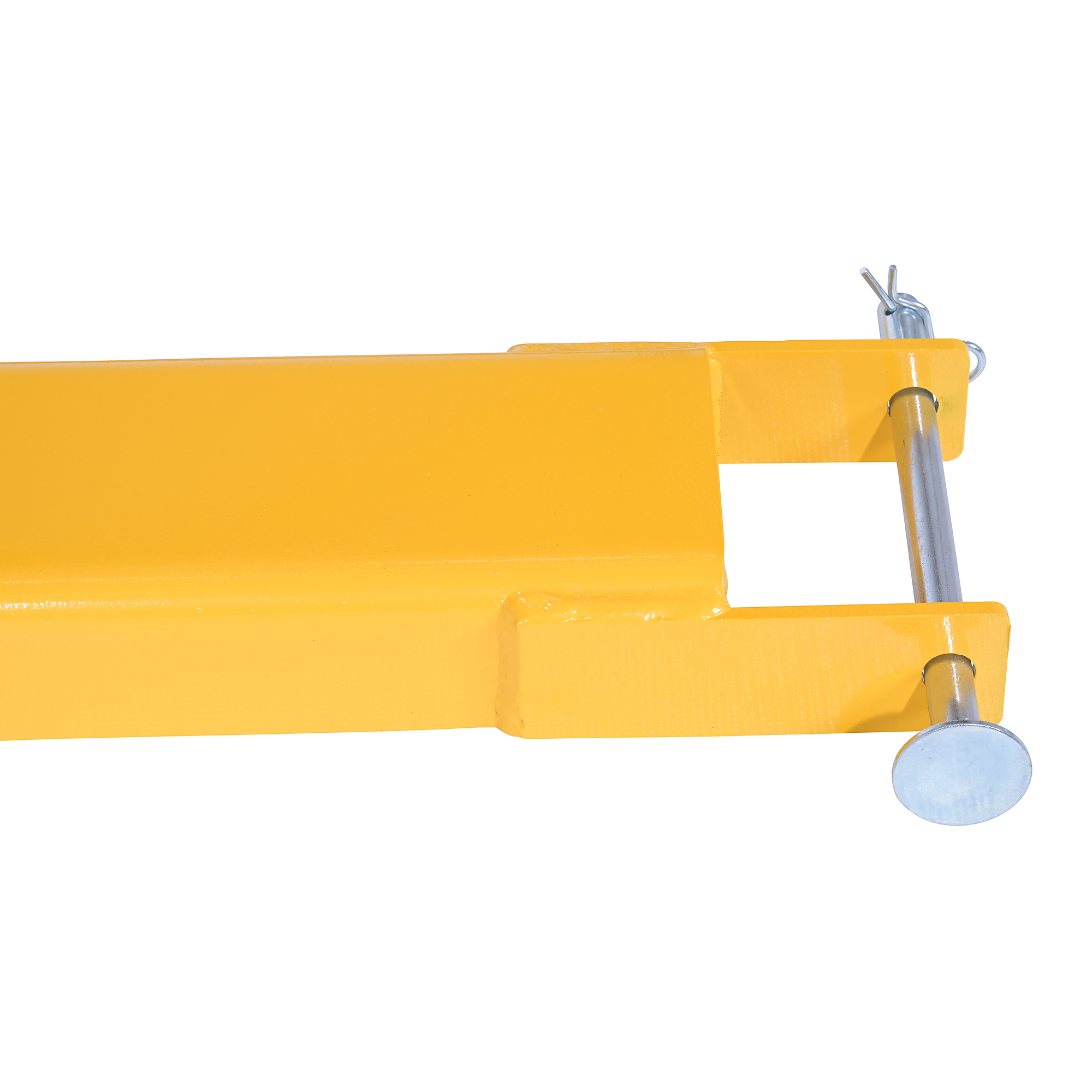

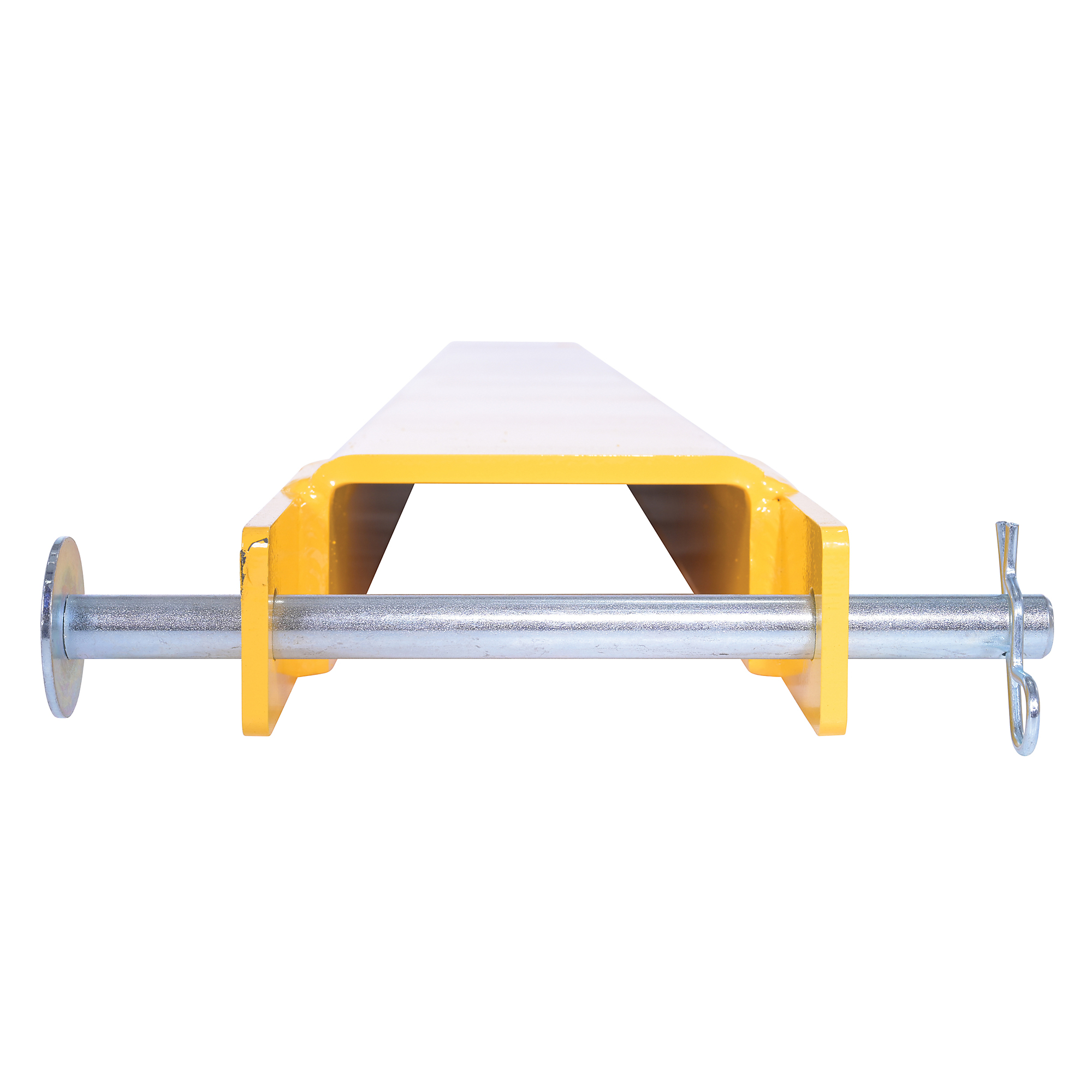

- Pin style operation - simply remove pin and lay extension over fork or drive fork truck into the extension, then re-insert the pin behind the heel of the fork to secure extension
- Powder-coat yellow finish
- OSHA regulations require that extensions are no more than 150% of the existing fork length (e.g. 48 in. existing forks, the fork extension should not exceed 72 in.)
See full description
What's Included
- (2) Fork Extensions
See All Fork Extensions
See All Vestil Fork Extensions
Currently Viewing This Product
Specifications
Specifications
Vestil Fork Extensions - Pin Lock Style, 2-Pc. Set, 4,000-Lb. Capacity, Model# FE-4-120-P
Vestil Pin Style Fork Extension - 8in. x 54in., 4000-Lb. Capacity, Steel, Model# FE-8-54-P
Vestil Pin Style Fork Extension - 7.5in. x 66in., 4000 Lb. Capacity, Steel, Model# FE-7-66-P
Vestil Thick Polyurethane Magnetic Fork Tip Protector 5-5/8 In. x 3/4 In. Fork Pocket Orange
Load Capacity
Same
4,000 lb
4,000 lb
4,000 lb
-
Extension Length
Same
120 in
54 in
66 in
7.25 in
Extension Width
Same
5.12 in
8.5 in
7.5 in
5.625 in
Fork Thickness
Same
2 in
0.313 in
0.313 in
0.75 in
Material
Same
Steel
Steel
Steel
Polyurethane
Product Style
Same
Pin lock
Pin lock
Pin lock
-
Product Weight
Same
208.0000 lb
124.0000 lb
144.0000 lb
7.0000 lb
Dimensions L x W x H (in.)
Same
124.0 x 12.0 x 8.0 in
58.625 x 11.0 x 2.3125 in
70.625 x 9.5 x 2.3125 in
7.25 x 8.8125 x 2.75 in
