The required voltage to operate will be 460 volts.

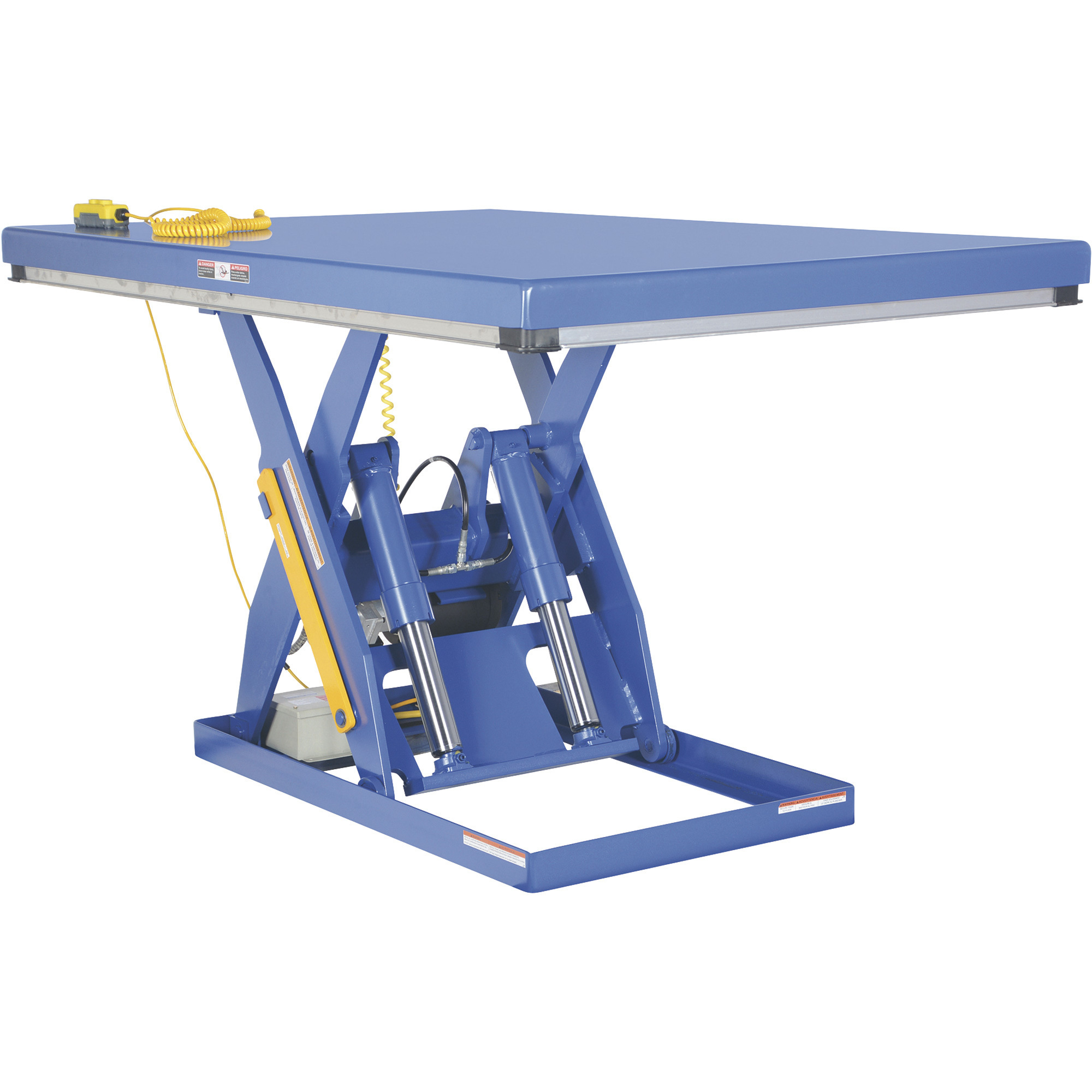

Vestil Electric Hydraulic Scissor Lift Table - 72 3/8in.L x 48 3/8in.W Platform, 3000-Lb. Capacity, 2 HP, Model# EHLT-4872-3-43-QS
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$4263.98
- Ideal for manufacturing and warehouse facilities
- 2 HP, 460V, 3 phase, 60 Hz totally enclosed motor
- 460/3 voltage phase
- 3000 PSI hydraulic component rating
- 72 3/8in.L x 48 3/8in.W platform
See full description
What's Included
- (1) Electric hydraulic scissor lift table
Features + Benefits
- Ideal for manufacturing and warehouse facilities
- 2 HP, 460V, 3 phase, 60 Hz totally enclosed motor
- 460/3 voltage phase
- 3000 PSI hydraulic component rating
- 72 3/8in.L x 48 3/8in.W platform
- Electric toe guard to protect pinch points during table lowering
- Internal safety velocity fuse to maintain platform height in case of hose or fitting failure
- 24V AC pushbutton hand control
- Maintenance prop
- Upper travel limit switch to stop table at maximum height
See All Hydraulic Lift Tables + Carts
See All Vestil Hydraulic Lift Tables + Carts
Currently Viewing This Product
Specifications
Specifications
Vestil Electric Hydraulic Scissor Lift Table - 72 3/8in.L x 48 3/8in.W Platform, 3000-Lb. Capacity, 2 HP, Model# EHLT-4872-3-43-QS
Vestil Electric Hydraulic Lift Table - 30in. x 72in., 3000-Lb. Capacity, 7in. to 43in. Height, Model# EHLT-3072-3-43
Vestil Electric Hydraulic Lift Table - 30in. x 72in., 4000-Lb. Capacity, 7in. to 43in. Height, Model# EHLT-3072-4-43
iDEAL by Tuxedo, 2500lbs Powertrain Platform Lift Table, Capacity 2500 lb, Lowered Height 35 in, Raised Height 72 in, Model# LT-PT2500AH-X
Capacity
Same
3,000 lb
3,000 lb
4,000 lb
2,500 lb
Lowered Height
Same
7 in
7 in
7 in
35 in
Raised Height
Same
43 in
43 in
43 in
72 in
Platform Length
Same
72.37 in
30.375 in
30.375 in
36.7 in
Platform Width
Same
48.37 in
72.375 in
72.375 in
23.6 in
Material
Same
Steel
Steel
Steel
Steel
Product Weight
Same
946.0000 lb
830.0000 lb
895.0000 lb
798.0000 lb
Dimensions L x W x H (in.)
Same
52.0 x 75.0 x 16.0 in
72.375 x 30.375 x 7.0 in
72.375 x 30.375 x 7.0 in
59.0 x 35.5 x 40.0 in
Tilting
Same
-
No
No
Yes
