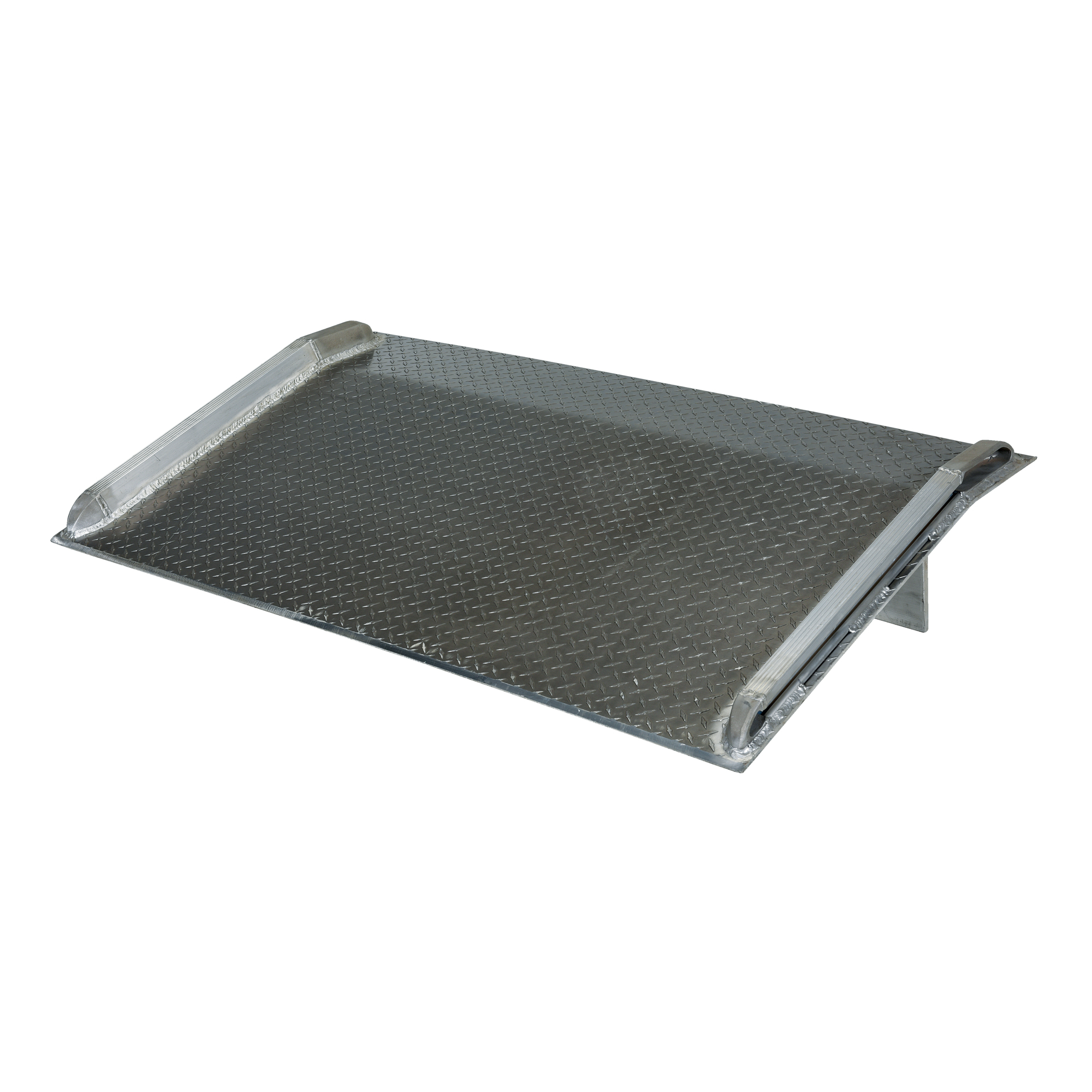

Vestil Aluminum Truck Dock Board 36 In. x 78 In. 5000 Lb. Capacity Silver

Name: Vestil Aluminum Truck Dock Board 36 In. x 78 In. 5000 Lb. Capacity Silver
Brand: Vestil
SKU: 4222815

Item# 4222815

Click or Tap image to Zoom

$1129.99

Quantity

Save to List

Shipping:
Factory shipped
Heavy/large item. Lift gate service available.
Store Pickup:

100% Aluminum construction provides rugged long lasting use
Raised-diamond tread plate dock board surface
Welded aluminum locking legs underneath dock board
Beveled entry and exit edges provide a smooth transition
Height Difference (in.): 8 degree/17 percent:4

Prop 65 Warning: See Details

See full description

Complete Your Solution

Price for all four:

$1619.96

Frequently Bought Together

This Item: Vestil Aluminum Truck Dock Board 36 In. x 78 In. 5000 Lb. Capacity Silver$1129.99
Strongway Aluminum Hand Truck, 600-Lb. Capacity$139.99
Strongway Industrial Hand Truck, 1200-Lb. Capacity$319.99
Buyers Products, Rubber Bumpers, Length 6 in, Model# B6000L$29.99

Product Summary

The Aluminum truck dock board is engineered and built to maximize safety while handling heavy fork trucks and loads. Locking legs prevent movement during loading and unloading operations. Locking legs are uneven to allow the dock board to sit canted, while not in use, for easier pickup by fork trucks. Welded aluminum safety curbs prevent accidental runoffs and provide visible driving lane. When using three-wheeled fork trucks order dock board with capacity at least four-times the lifting capacity of fork truck. The width of the dock board should be at least 15 (in.) wider than the load or equipment passing between the curbs. Bend is 11 degrees and 9in. from the edge and the legs are 12in. from the edge. Manufactured in compliance with OSHA.

What's Included

(1) ALUMINUM TRUCK DOCKBOARD

Features + Benefits

100% Aluminum construction provides rugged long lasting use
Raised-diamond tread plate dock board surface
Welded aluminum locking legs underneath dock board
Beveled entry and exit edges provide a smooth transition
Height Difference (in.): 8 degree/17 percent:4
Height Difference (in.): 11 degrees/19 percent:5
Bend Degree:11
Bend Distance from Edge (in.): 9
Leg Distance from Edge (in.): 12
Edge Type:Beveled
Equipped With Welded Aluminum Locking Legs
ANSI:MH 30.2
OSHA:1910.30 (a)
curbs Width (in.):2-1/8
curbs Height (in.):2

Key Specs

Attribute	Specification
item#	4222815
Brand	Vestil
Manufacturer's Warranty	3 month limited warranty
Ship Weight	164.0 LB
Capacity	5,000 lb
Ramp Length	36 in
Ramp Width	78 in
Deck Material	Aluminum
Height Difference	4 in
Dock Thickness	0.313 in

Attribute	Specification
Curb Material	Aluminum
Handle Included	No
Left Leg Height	8 in
Right Leg Height	9 in
OSHA Approved	Yes
Usable Ramp Length	36 in
Usable Ramp Width	73.75 in
Product Weight	151.0000 lb
Dimensions L x W x H (in.)	36.0 x 78.0 x 11.0 in
