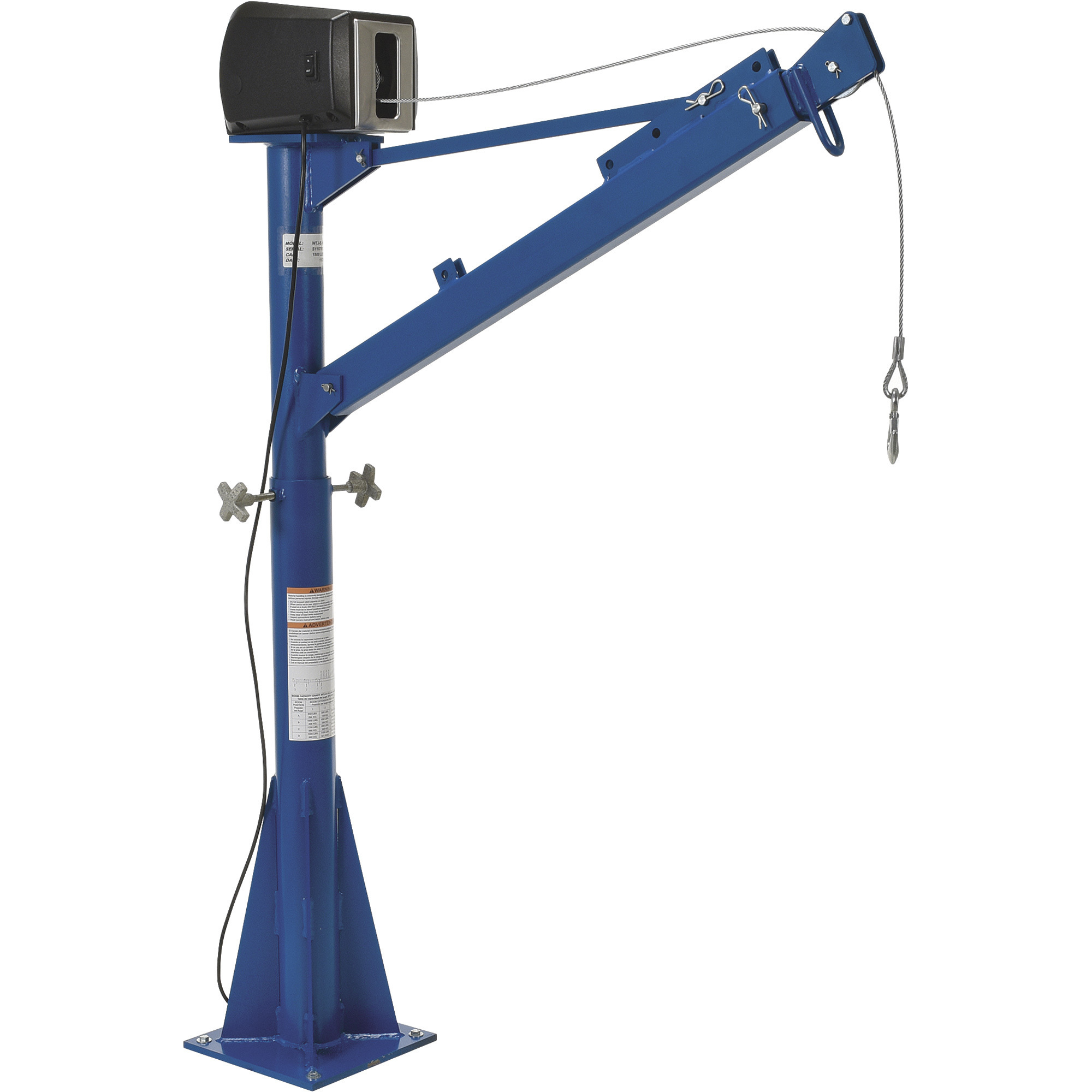

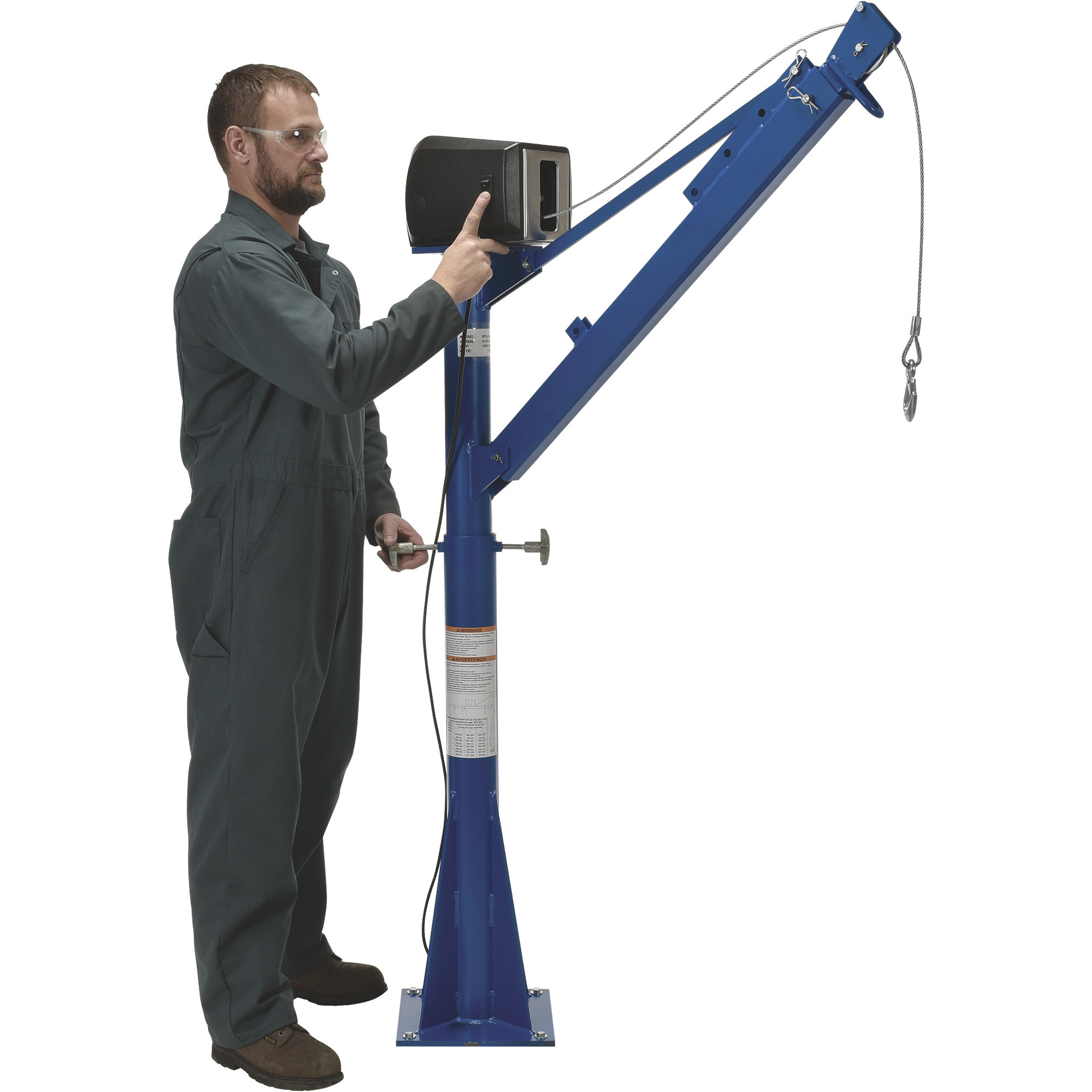

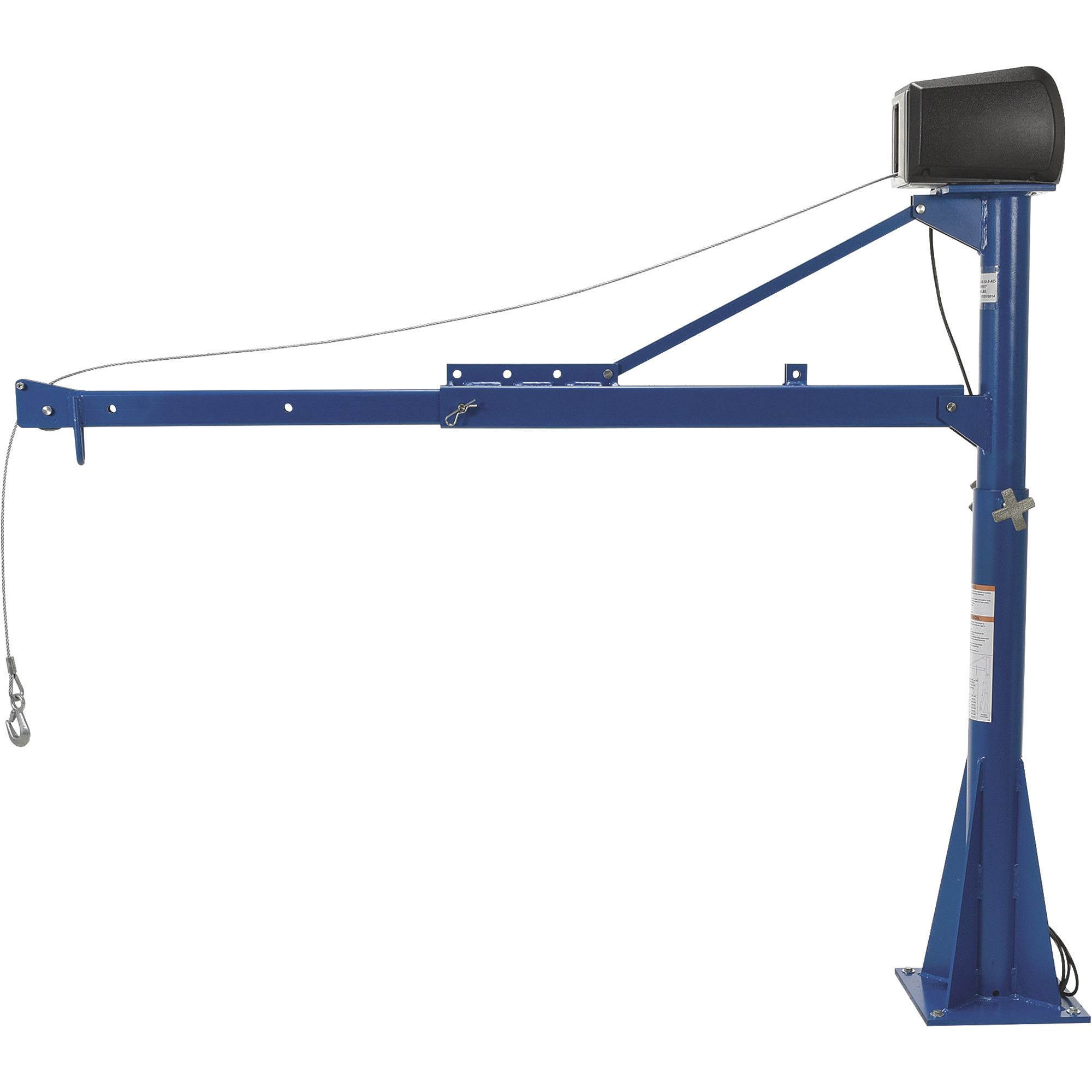

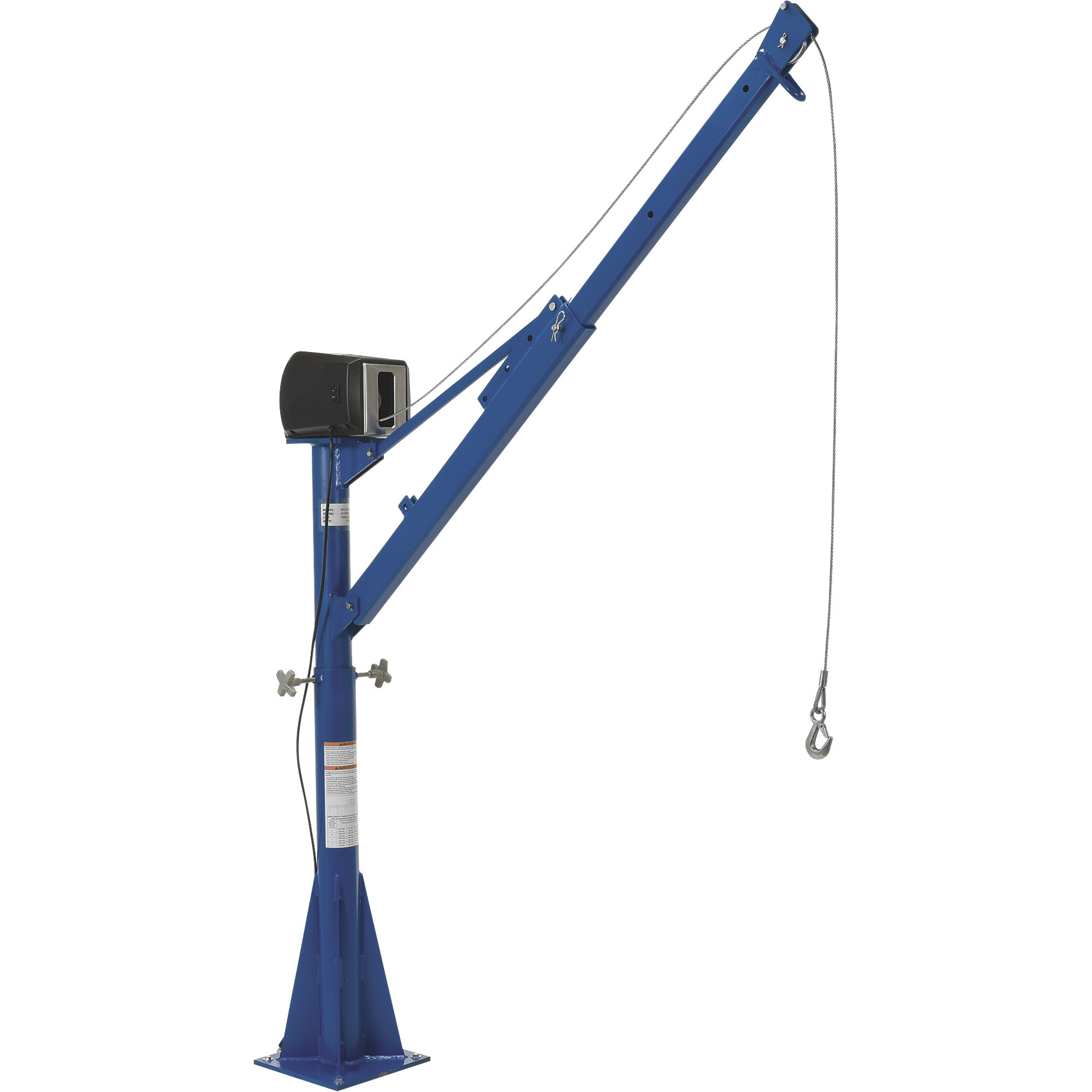

Vestil AC Powered Lift Jib Crane - 1500-Lb. Capacity, 25ft. Cable, 360° Swivel, Model# WTJ-E-15-3-AC-CSA

Item# 52838
Vestil AC Powered Lift Jib Crane - 1500-Lb. Capacity, 25ft. Cable, 360° Swivel, Model# WTJ-E-15-3-AC-CSA

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Vestil AC Powered Lift Jib Crane - 1500-Lb. Capacity, 25ft. Cable, 360° Swivel, Model# WTJ-E-15-3-AC-CSA

Click or Tap image to Zoom

$3469.17

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Powered cable winch makes lifting and maneuvering easy
  • Boom telescopes in and out in 12in. increments for greater reach and versatility
  • Boom can be positioned at 4 elevations
  • 360° swivel design allows for maximum accessibility
  • Pre-drilled 12in. x 12in. base plate makes mounting quick and easy

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Vestil AC Powered Lift Jib Crane is designed for material handling applications on docks, in warehouses or in truck beds. This lift jib crane is the economical answer to your material handling needs. Intermittent use crane features rotation hand brakes that offer unlimited 360° positioning. The 25ft. cable has a swivel snatch block and safety latch. Unit is designed for vertical lifting only. Do not use unit for lifting personnel or overhead lifting. U.S.A.

What's Included

    (1) AC powered lift jib crane with 25ft. cable

Downloads

Product Manual

Features + Benefits

  • Powered cable winch makes lifting and maneuvering easy
  • Boom telescopes in and out in 12in. increments for greater reach and versatility
  • Boom can be positioned at 4 elevations
  • 360° swivel design allows for maximum accessibility
  • Pre-drilled 12in. x 12in. base plate makes mounting quick and easy
  • Meets ANSI and OSHA specifications
  • Intermittent use crane with rotation hand brakes that offer unlimited 360° positioning
  • 1500-lb. capacity at boom extension (27 13/16in.)

Key Specs

AttributeSpecification

item#

52838

Brand

Vestil

Manufacturer's Warranty

3 month limited warranty

Ship Weight

227.0 LB

Mount Type

Floor

Capacity

1,500 lb
AttributeSpecification

Overall Boom Length

66.75 in

Overall Height

73.31 in

Degree of Rotation

360

Volts

115

Product Weight

227.0000 lb

Dimensions L x W x H (in.)

66.0 x 29.0 x 17.0 in

Reviews

Questions & Answers

Questions

1–3 of 3 Questions
Sort by:

  1. What is the required circuit amperage for this crane? I see the voltage, but not current.

    1 answer

    1. The amperage for 115 volts would be the standard 15 amps.

      Helpful?

  2. How reinforced does the floor need to be where you mount the base? The idea behind this is to put the crane into an enclosed tag trailer. Preferably near the end so an object can be picked up outside to be brought into the trailer to put on a test stand.

    1 answer

    1. There is no specified requirements for reinforcing the base. Just make sure that the surface the crane is mounted on can hold the weight of the crane and the loads being lifted.

      Helpful?

  3. What is the lenght of the extended boom

    I need the boom to be able to reach at least 70"

    1 answer

    1. The boom on this jib crane reaches 66 3/4 inches.

      Helpful?

Warranty

Manufacturer's Warranty

3 month limited warranty
