Vestil Basement Floor Jack - 150in. Max Height, 1.294-Ton Lift Capacity, 54in. Max Lift Height, Model# FJB-150

Item# 5030410
"Vestil Basement Floor Jack - 150in. Max Height, 1.294-Ton Lift Capacity, 54in. Max Lift Height, Model# FJB-150"
Top Seller
Vestil Basement Floor Jack - 150in. Max Height, 1.294-Ton Lift Capacity, 54in. Max Lift Height, Model# FJB-150

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Vestil Basement Floor Jack - 150in. Max Height, 1.294-Ton Lift Capacity, 54in. Max Lift Height, Model# FJB-150

Click or Tap image to Zoom

$109.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Jack provides support for leveling and stabilizing floor beams
  • The telescopic style positions the brace for better leveling

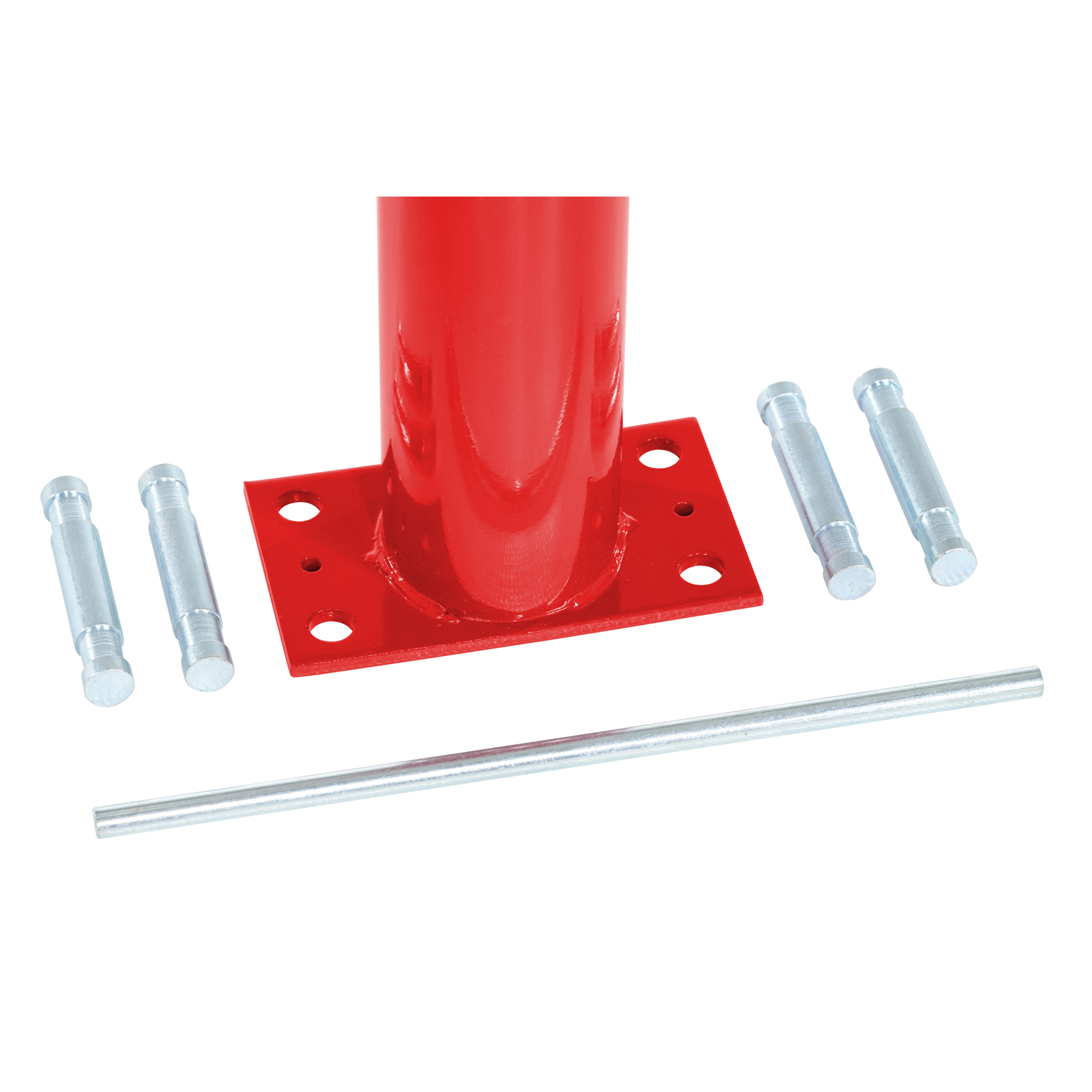

  • Includes locking pins and turning bar for easy height adjustment
  • Steel construction with red oxide finish for optimal durability

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

This basement floor jack provides extra support for leveling and stabilizing floor beams and joists during construction and repairs. Telescopic style with removable pins lets you properly position the brace for better leveling. Includes locking pins and turning bar for easy height adjustment. Rugged all welded steel construction. Red oxide finish.

What's Included

    (1) Basement Floor Jack

Downloads

Product Manual
Additional Product Info

Features + Benefits

  • Jack provides support for leveling and stabilizing floor beams
  • The telescopic style positions the brace for better leveling
  • Includes locking pins and turning bar for easy height adjustment
  • Steel construction with red oxide finish for optimal durability

Key Specs

AttributeSpecification

item#

5030410

Brand

Vestil

Manufacturer's Warranty

3 month limited warranty

Ship Weight

39.0 LB

Lift Capacity

1.294 Tons

Max. Lift Height

54 in
AttributeSpecification

Material

Steel

ANSI Approved

No

Single, Pair, or Set

Single

Product Weight

39.0000 lb

Dimensions L x W x H (in.)

6.0 x 3.5 x 54.0 in

Reviews

Questions & Answers

4 Reviews This action will navigate to reviews.

Questions

1–8 of 8 Questions
Sort by:

  1. A smaller tube slid out from the larger along with pins. A third tube still seems jammed inside the largest. As a result, the holes for the pins are blocked. I cannot rotate it or remove it. Is that inner sleeve meant to come out?

    1. I also had one of them stuck inside the other. I had to grab the end with pliers, rotate a little and bang it a little and it came out.

      Helpful?

    2. There would be two tubes that slide out of the main tube to create a total length of 150".

      Helpful?

  2. It says the max "lift" capacity is 1.294 ton, what is the carrying capacity at its max and minimum height adjustments?

    1 answer

    1. The minimum weight capacity at 54" would be 11,200 pounds. The maximum would be 150" and 2,588 pounds.

      Helpful?

  3. Which way do I separate the 2 inside tubes

    1 answer

    1. The tubes are telescoping and the 2 smaller ones are nested inside the bigger one. You would just slide it up or down to separate them.

      Helpful?

  4. How do I take apart to line up holes

    1 answer

    1. You would just slide it up or down to line up the holes.

      Helpful?

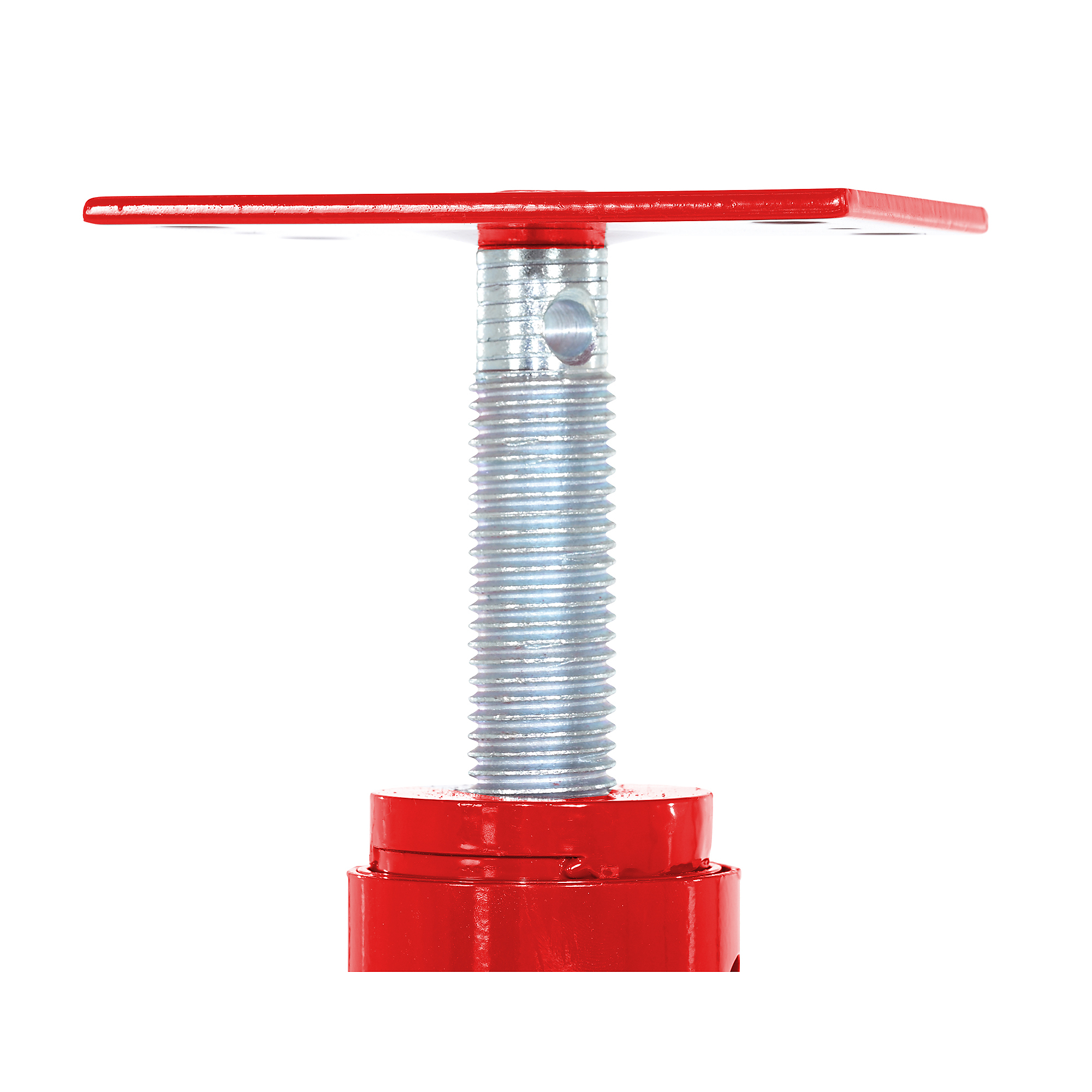

  5. Does the top plate swivel or does it rotate with the screw jack? I am trying to determine if I would still be able to make minor adjustments (ie turn the jack boIt) AFTER I bolt the top plate to the bottom of my beam,

    1 answer

    1. The plate will swivel, you should be able to make your adjustment then tighten it up.

      Helpful?

  6. Is the base plate welded to the bottom of tube or removable ?

    1 answer

    1. The base plate is welded to the tube.

      Helpful?

  7. What is the steel thickness of the column?

    1 answer

    1. The inner and outer tube wall thickness is 13 gauge steel.

      Helpful?

  8. Do the vestal 150in floor Jack go up to 150” or start at 150”? What’s the min and max range of height?

    1 answer

    1. The minimum height is 54 in and the maximum is 150 in.

      Helpful?

Warranty

Manufacturer's Warranty

3 month limited warranty
