Maxx Air 2-Speed Direct Drive Whole House Fan with Shutter — 30in., 4425 CFM, Model# CX302DDWT

Item# 17245
Top Seller
Maxx Air 2-Speed Direct Drive Whole House Fan with Shutter — 30in., 4425 CFM, Model# CX302DDWT

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Maxx Air 2-Speed Direct Drive Whole House Fan with Shutter — 30in., 4425 CFM, Model# CX302DDWT

Click or Tap image to Zoom

$319.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Designed for houses with 2,000 - 3,000 sq. ft. attics

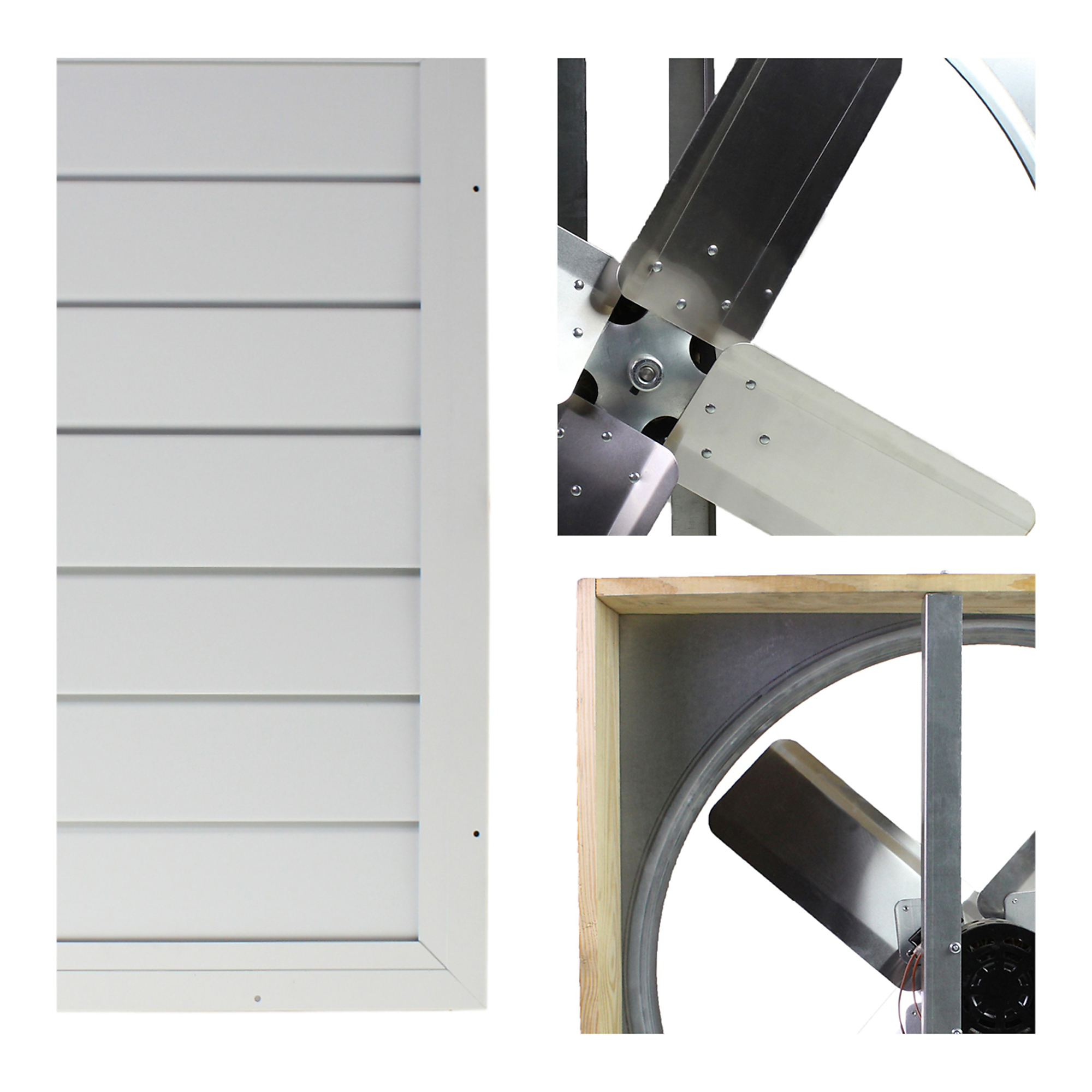

  • Steel venturi and motor struts with aluminum fan blade assembly and automatic shutter

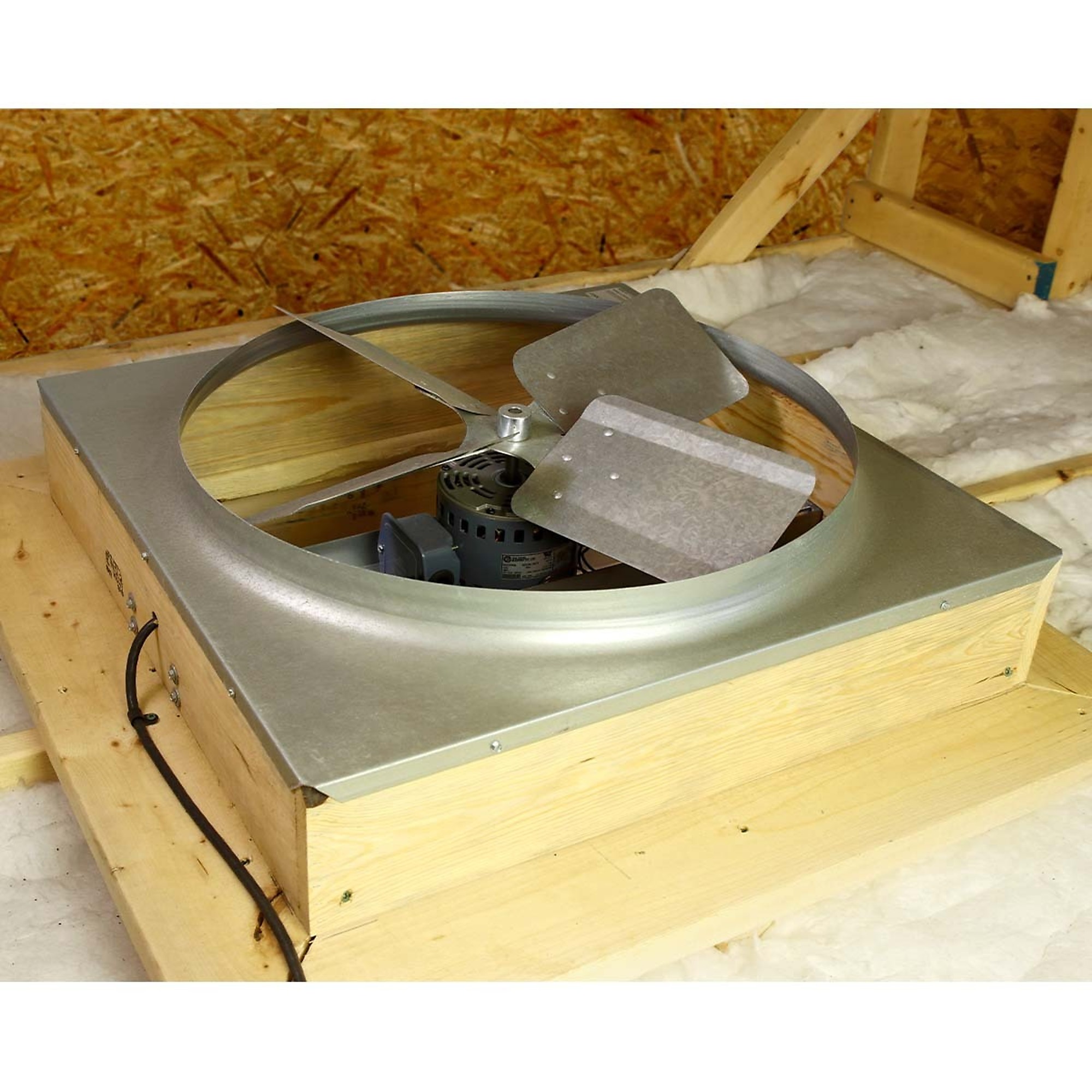

  • Joist-in or joist-out installation
  • For ceiling install only - not for wall exhaust use
  • 2-speed operation with included dual high/low and on/off wall switch

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

This Ventamatic Whole House Direct-Drive Fan offers an efficient way to trim cooling costs while keeping your entire home more comfortable. A 1/3 HP motor pulls hot air from your home and expels it through your attic exhaust vents.

What's Included

    (1) Whole House Fan (1) Shutter Assembly (1) White On/Off and Hi/Low Wall Switch with Plate (1) Hardware Package

Downloads

Product Manual Product Manual2

Features + Benefits

  • Designed for houses with 2,000 - 3,000 sq. ft. attics
  • Steel venturi and motor struts with aluminum fan blade assembly and automatic shutter
  • Joist-in or joist-out installation
  • For ceiling install only - not for wall exhaust use
  • 2-speed operation with included dual high/low and on/off wall switch
  • Requires 10 - 12 sq. ft. (1,440 to 1,728 sq. in.) of NFA
  • C/UL/US Listed
  • 10-year limited warranty

Key Specs

AttributeSpecification

item#

17245

Brand

Maxx Air

Manufacturer's Warranty

10 year limited warranty

Ship Weight

57.0 LB

Air Delivery

4,425 cfm

Outdoor Rated

No

Volts

120
AttributeSpecification

Fan Diameter

30 in

Assembly Required

No

Housing Material

Metal

Primary Color

White

Secondary Color

Silver

Speeds (qty.)

2

Hardwired

Yes

Reviews

Questions & Answers

3 Reviews This action will navigate to reviews.

Questions

1–5 of 5 Questions
Sort by:

  1. What is the shipping weight?

    1 answer

    1. The shipping weight for this fan is 57 pounds.

      Helpful?

  2. What is the outer dimension of the fan housing only .

    1 answer

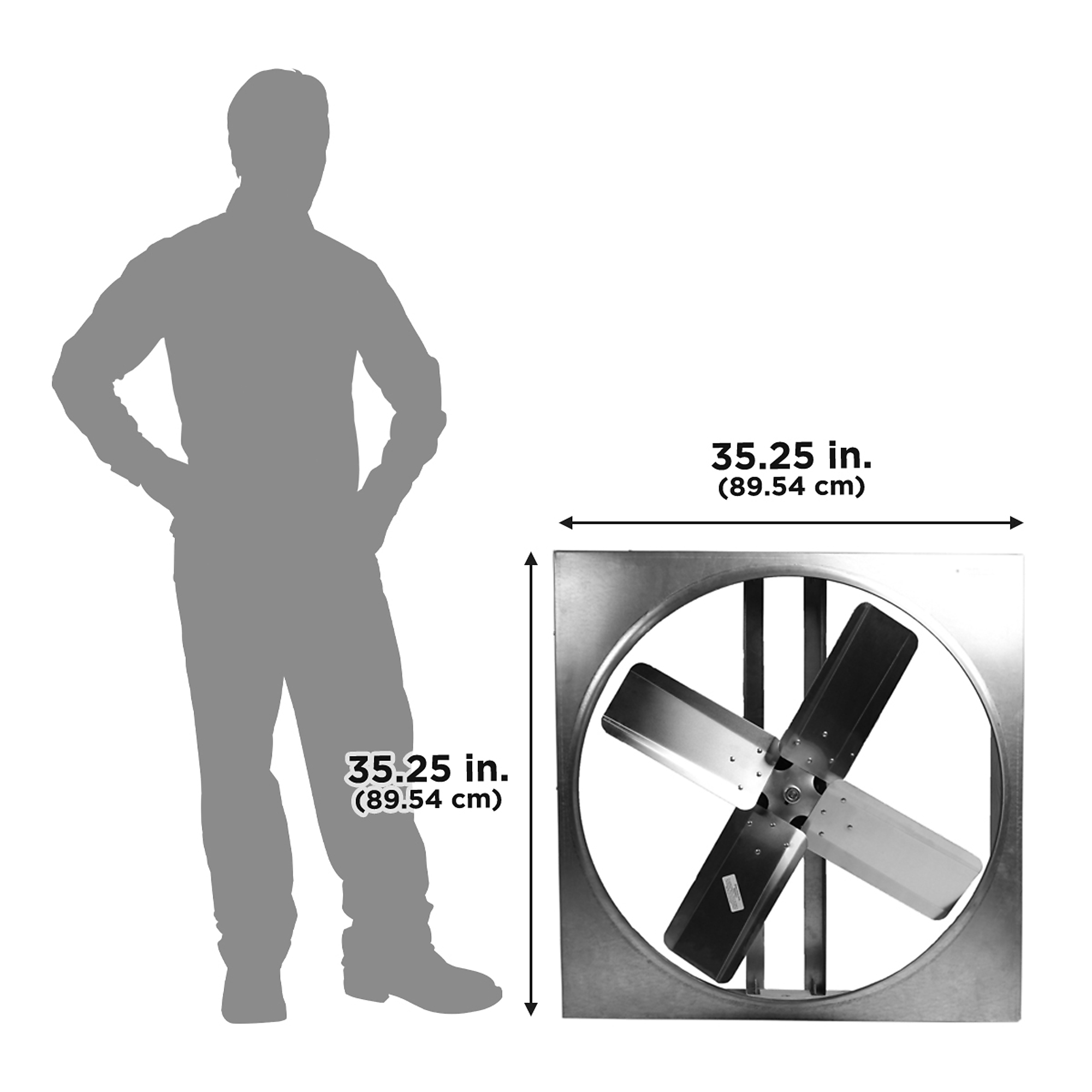

    1. The rough opening needed is 32"L x 29.25"W. The inside shutter dimension is 27.25" x29.75". The outside shutter dimensions are 31.5" x34". The finished frame dimension is 35"x 35".

      Helpful?

  3. Noise level

    If the manufacturer does not provide the noise level rating then what is the noise level for the motor itself?

    1 answer

    1. The manufacturer does not provide a noise level rating for the motor. The noise level rating will vary depending on installation.

      Helpful?

  4. How loud is this fan? Relative to window fan, etc?

    1 answer

    1. The manufacturer(Ventamatic), does not rate their fans on a decibel or noise level.

      Helpful?

  5. My current fan measures 34 x 34. I need to replace it. Will this unit be too small for existing hole in ceiling? Thanks

    0 answers

Warranty

Manufacturer's Warranty

10 year limited warranty
