Maxx Air 24in. 2-Speed Direct Drive Whole House Fan with Shutter — 2985 CFM, Model# CX24DDWTUPS

Item# 17228
Top Seller
Maxx Air 24in. 2-Speed Direct Drive Whole House Fan with Shutter — 2985 CFM, Model# CX24DDWTUPS

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Maxx Air 24in. 2-Speed Direct Drive Whole House Fan with Shutter — 2985 CFM, Model# CX24DDWTUPS

Click or Tap image to Zoom

$279.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only

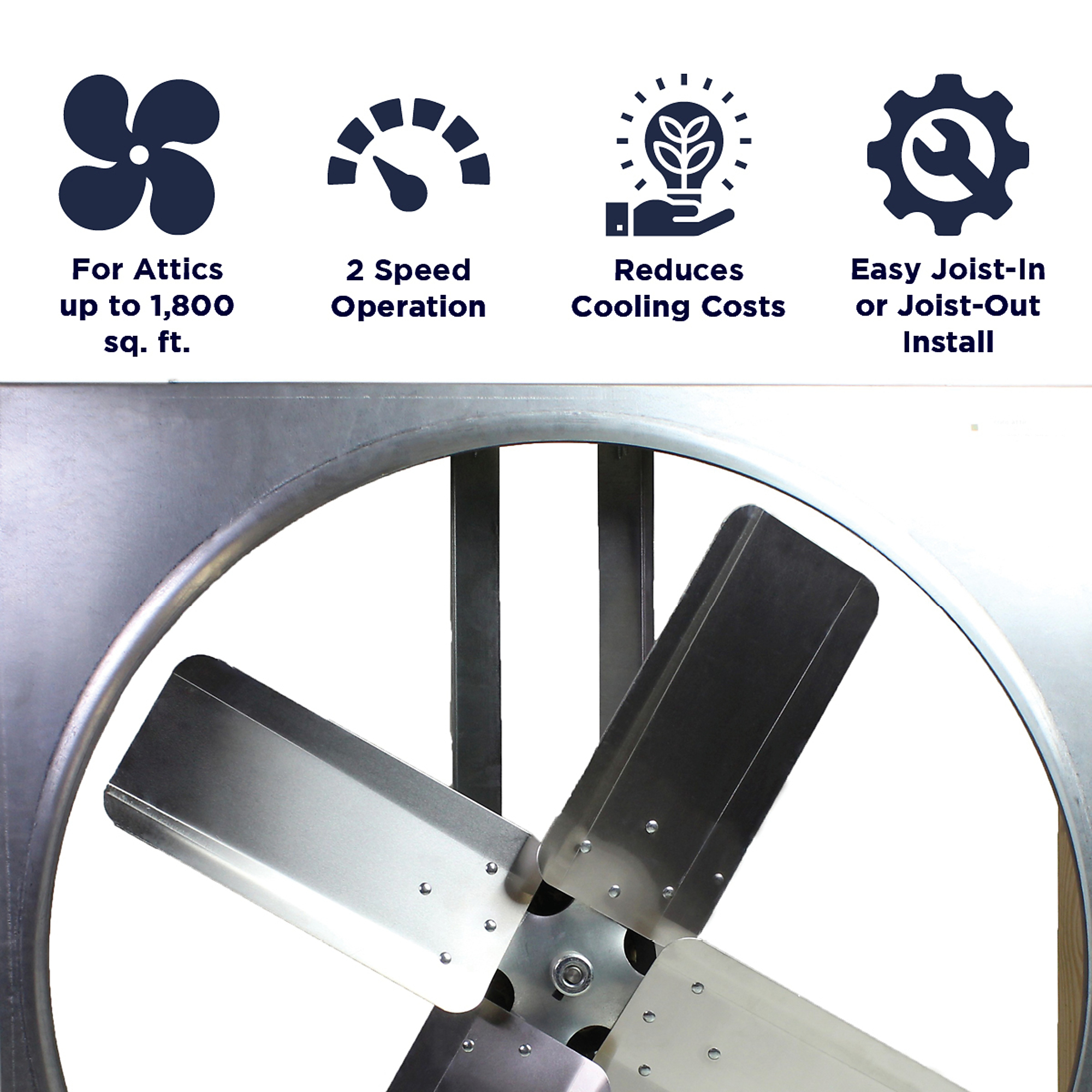

  • Designed for houses with 1,200 - 1,800 sq. ft. attics

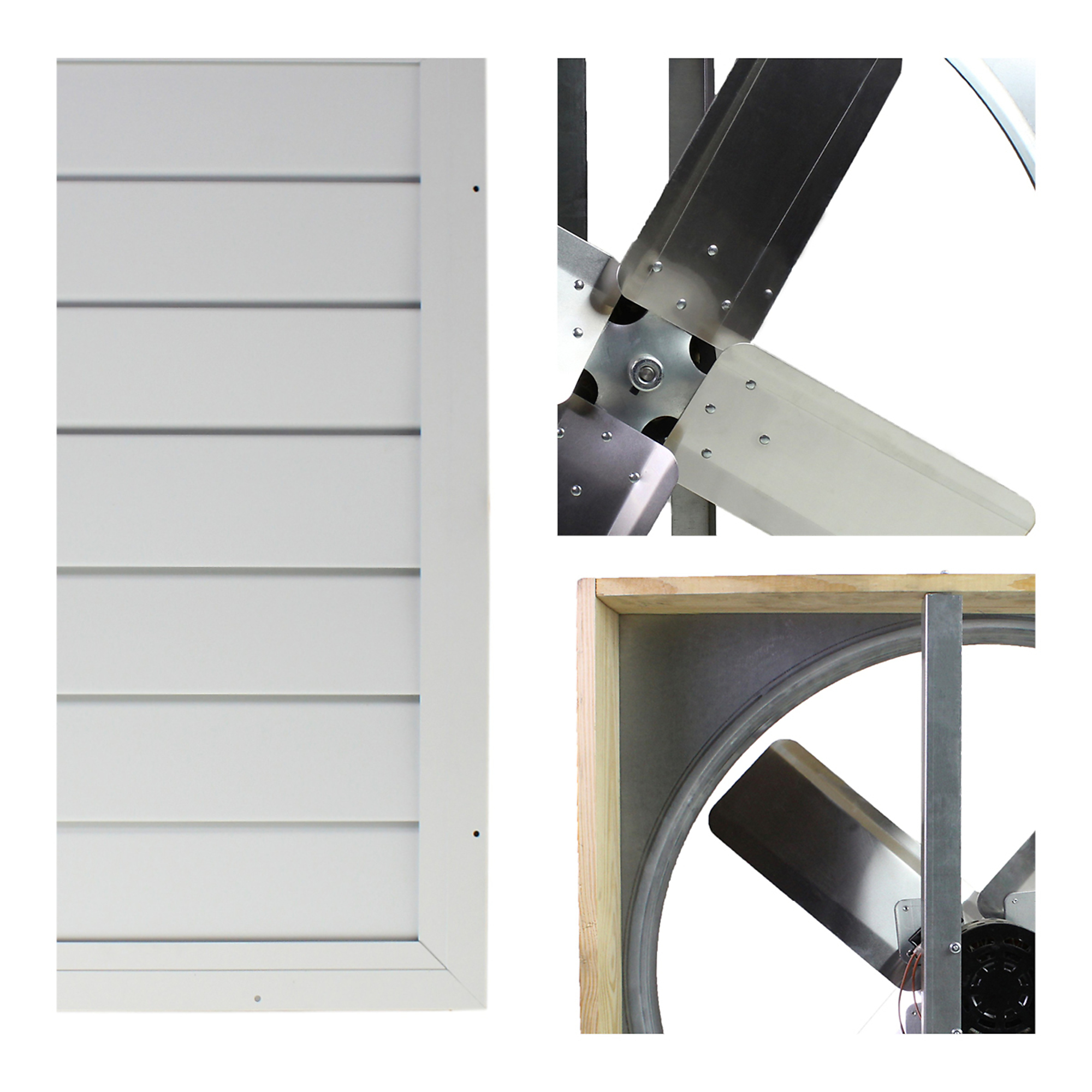

  • Steel venturi, fan blade assembly, and motor struts with automatic shutter

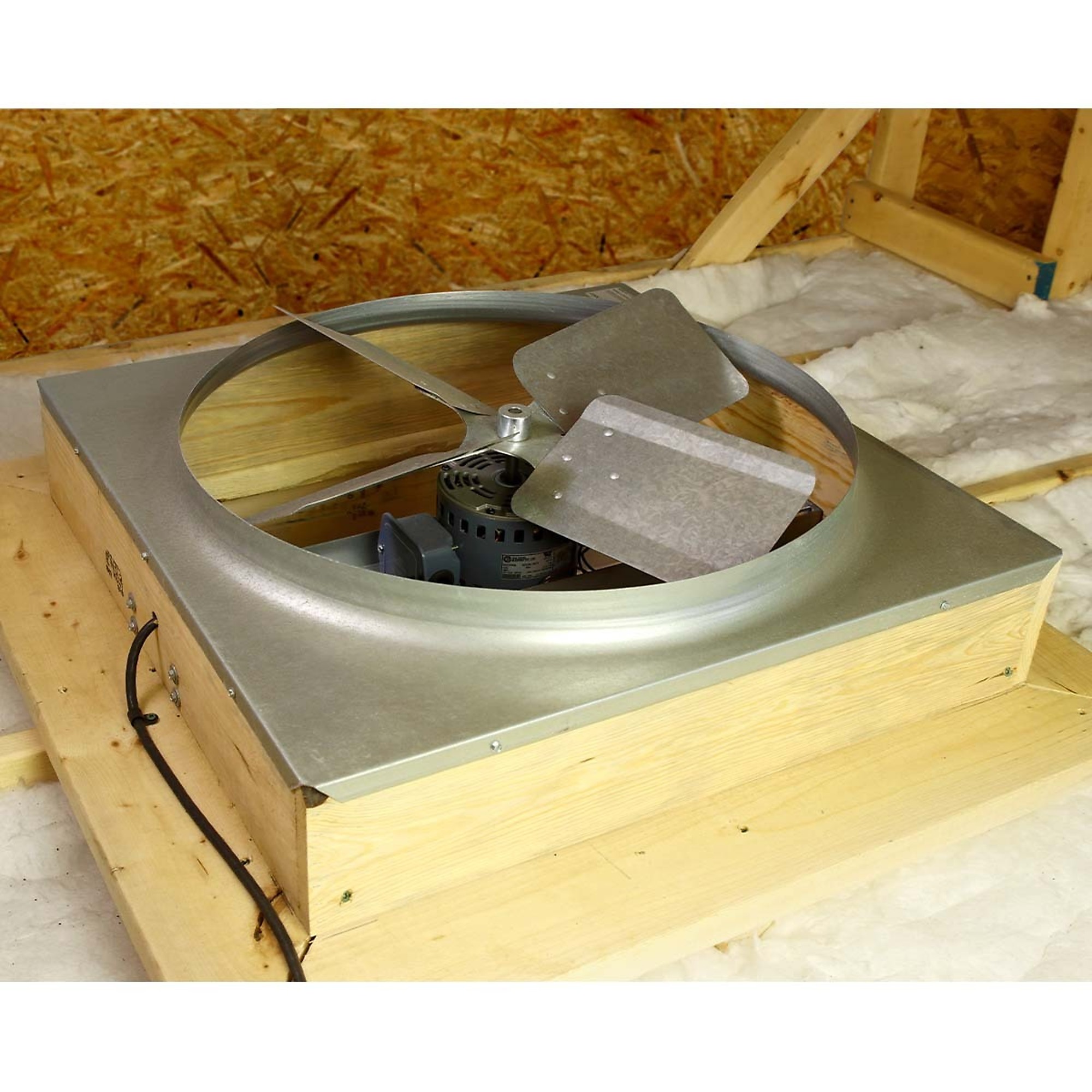

  • Joist-in or joist-out installation
  • For ceiling install only - not for wall exhaust use
  • 2-speed operation with included dual high/low and on/off wall switch

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Maxx Air Whole House Fans are ideal for residential use in mild to moderate climates as a supplement to air conditioning. Our direct drive fans use a precision-balanced blade assembly and a re-engineered bracing system for quiet, efficient air movement with low vibration, alongside an automatic shutter in a powder-coated white finish to blend in seamlessly with your home's ceiling. Install this electric fan in a joist-in or joist-out configuration. Whole House Fans offer an efficient way to reduce cooling costs by pulling fresh air in from the outside, expelling the warm air up into the attic, and pushing it out through the attic exhaust vents to create a cool and comfortable living environment.

What's Included

    (1) Whole House Fan (1) Shutter Assembly (1) White On/Off and Hi/Low Wall Switch with Plate (1) Hardware Package

Downloads

Product Manual Product Manual2

Features + Benefits

  • Designed for houses with 1,200 - 1,800 sq. ft. attics
  • Steel venturi, fan blade assembly, and motor struts with automatic shutter
  • Joist-in or joist-out installation
  • For ceiling install only - not for wall exhaust use
  • 2-speed operation with included dual high/low and on/off wall switch
  • Requires 8 - 10 sq. ft. (1,152 - 1,440 sq. in.) of NFA
  • C/UL/US Listed
  • 10-year limited warranty

Key Specs

AttributeSpecification

item#

17228

Brand

Maxx Air

Manufacturer's Warranty

10 year limited warranty

Ship Weight

45.0 LB

Air Delivery

2,985 cfm

Outdoor Rated

No

Volts

120

Fan Diameter

24 in

Watts

150
AttributeSpecification

Assembly Required

No

Housing Material

Galvanized Steel

Primary Color

White

Secondary Color

Silver

Speeds (qty.)

2

Hardwired

Yes

Product Weight

lb

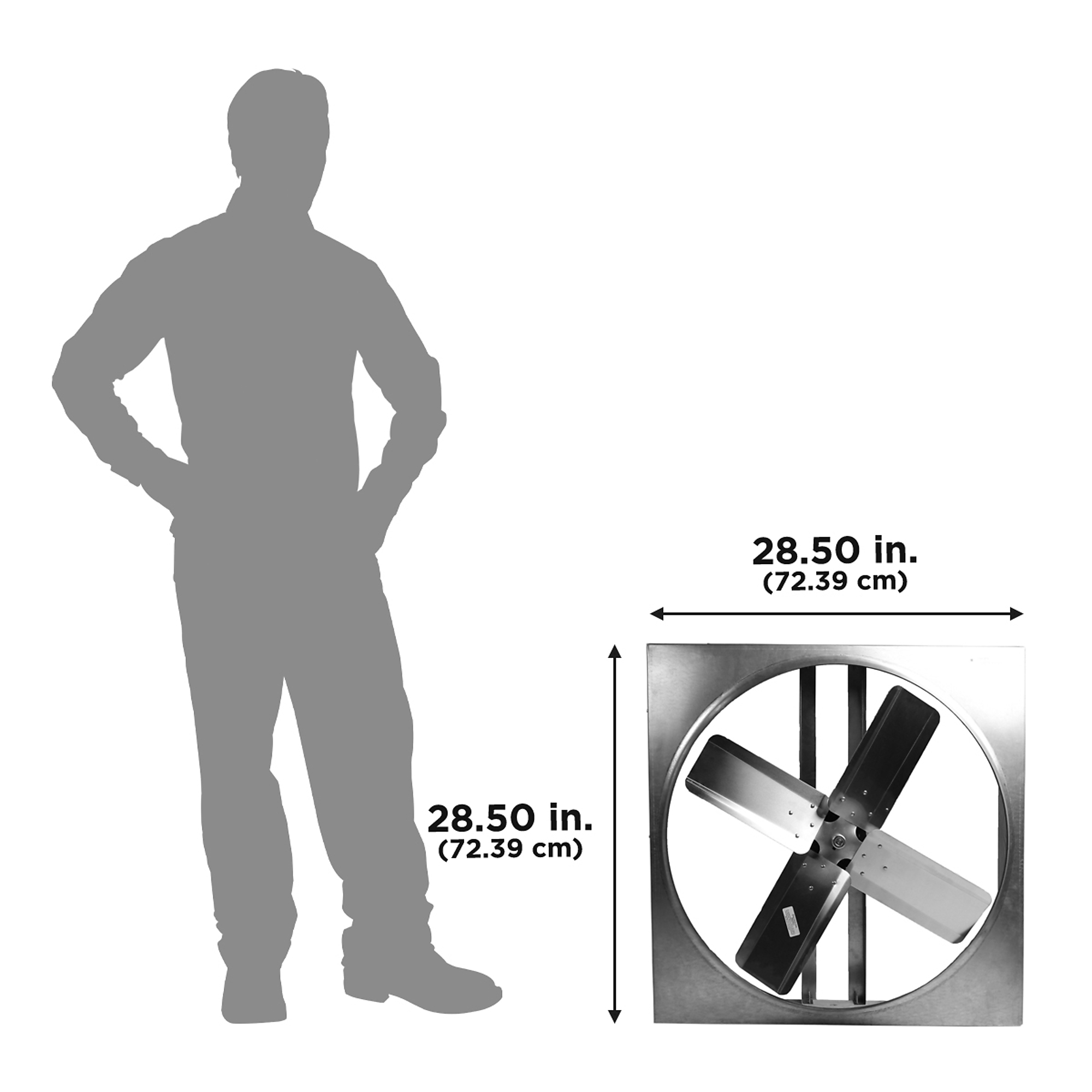

Dimensions L x W x H (in.)

28.5 x 28.5 x 11.0 in

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

1–9 of 9 Questions
Sort by:

  1. Do all the shutters open in the same direction?

    1 answer

    1. The center vane is stationary on this shutter, and all other vanes will open toward the center.

      Helpful?

  2. Can a simple on/off remote control be used with this fan?

    Do you have a remote control on/off available for this fan? Or do you have any recommendations on one?

    1 answer

    1. A remote control is not recommended with the Ventamatic House Fan.

      Helpful?

  3. What are the trade-offs between a belt drive and a direct drive fan

    Trying to decide between the two, but don't know the differences - performance? durability? noise? etc....

    1 answer

    1. In most cases, a belt-drive fan will keep noise levels slightly lower, and create less vibration which can prolong the life of the unit. The only downside for belt drive is more moving parts(belts & pulleys). Typically the upside of the belt-driven will outweigh the downside to produce a longer lifespan.

      Helpful?

  4. Can I mount the fan on top of the floor joist in my attic

    1 answer

    1. This fan is designed for joist installation, joist in or joist out.

      Helpful?

  5. can this fan be used with a timer? and is the low/high speed setting a wall switch or a pull chain on the fan itself?

    I have a house with an older fan with seperate low/high toggle switch and 12-hour timer in closet wall and on/off switch in another room. I would like to do a similar installation in a another house.

    1 answer

    1. This fan can be used with a timer, however it is not recommended by the manufacturer. The high/low setting is a wall switch. There are two switches. One is a on/off and the other is a high/low.

      Helpful?

  6. Can the CXX24DDWT Whole House Fan be mounted vertically?

    1 answer

    1. This fan can not be mounted vertically because gravity would close the shutters and they would not work properly.

      Helpful?

  7. can i use this fan with the switch i already have in the wall its a variable speed switch..

    1 answer

    1. This fan can not be used with a variable speed switch.

      Helpful?

  8. rough opening to install this fan 24"?

    What is the fan mount dimension?
    Rough opening to install this fan?

    1 answer

    1. To prepare your opening for the Ventamatic Whole House 24" fan the rough opening is 25 1/2 x 27 3/4. The Inside Shutter Dimensions are 23 3/4 x 25 1/2. The Outside Shutter Dimensions are 28 x 29 3/4. DO NOT use the dimension of the fan frame OR the inside/outside shutter dimensions.

      Helpful?

  9. Can this Fan be use with a Thermostat?

    Can this fan be connected to a Thermostat?
    If so do you sell a Thermostat that is compatible ?

    Thx

    1 answer

    1. No, this house fan operates off of a switch and is designed with a two speed motor that is not compatible with a thermostat.

      Helpful?

Warranty

Manufacturer's Warranty

10 year limited warranty
