Ventamatic Replacement Thermostat - 10 Amps, Adjustable Temperature, Firestat Safety, Model# XXFIRESTAT

Item# 17267
"Ventamatic Replacement Thermostat - 10 Amps, Adjustable Temperature, Firestat Safety, Model# XXFIRESTAT"
Ventamatic Replacement Thermostat - 10 Amps, Adjustable Temperature, Firestat Safety, Model# XXFIRESTAT

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Ventamatic Replacement Thermostat - 10 Amps, Adjustable Temperature, Firestat Safety, Model# XXFIRESTAT

Click or Tap image to Zoom

$29.00

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only

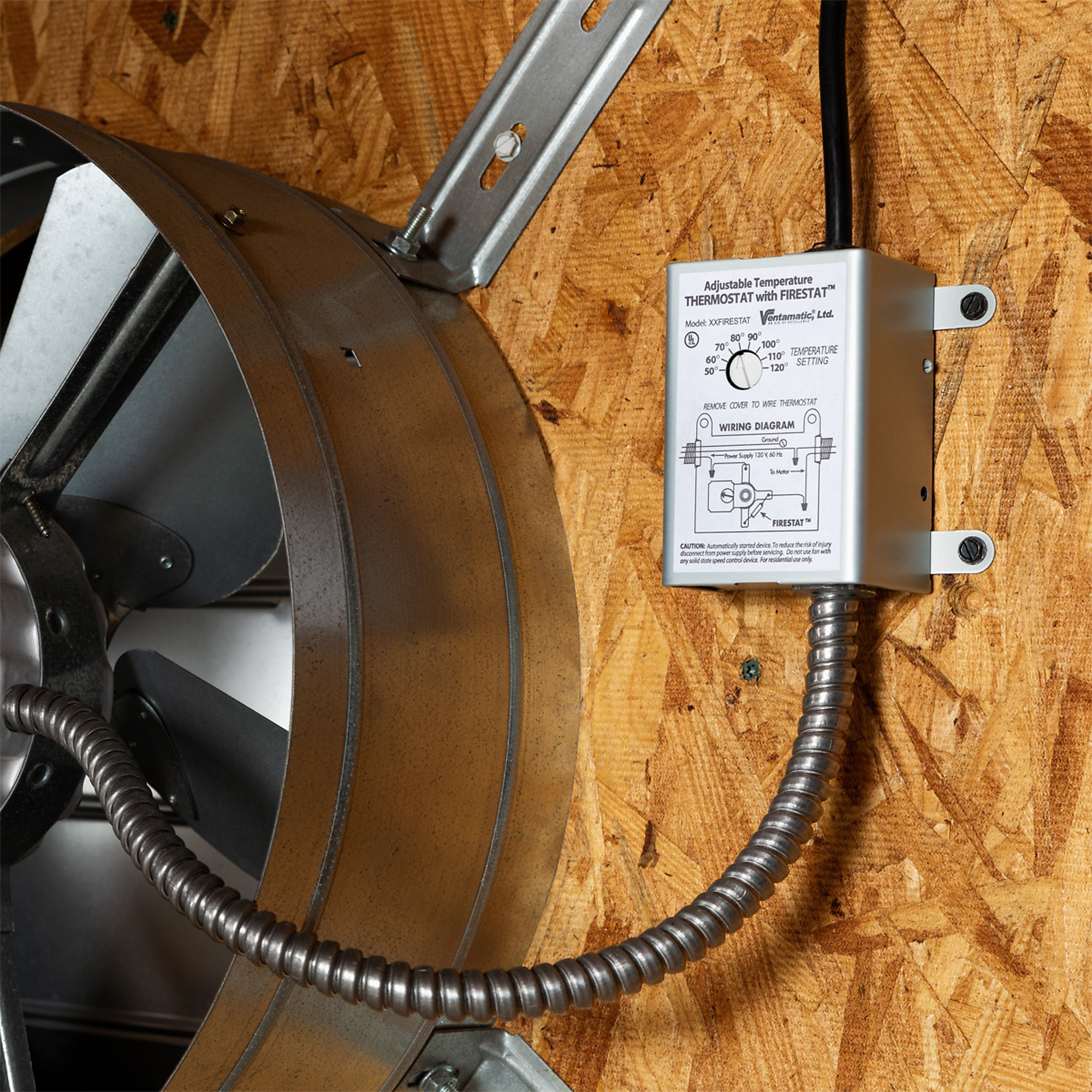

  • Mounts to attic rafter with wood screws

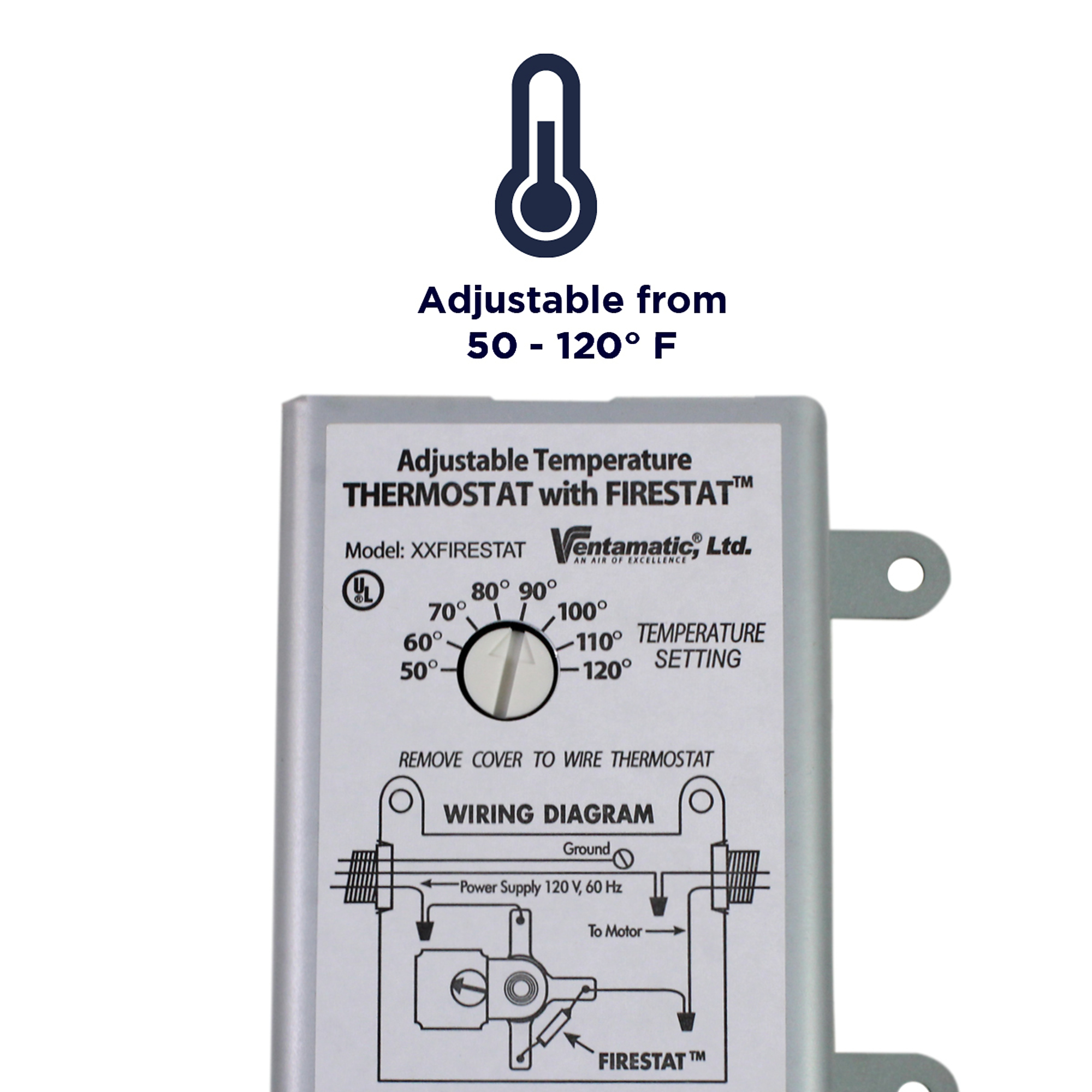

  • Adjustable temperature from 50 - 120° F
  • Controls the operation of your power attic ventilator, running the attic fan only when needed
  • Firestat safety fusible link will cut fan off at 183° F
  • Controls up to 3 units, not to exceed 10 amps

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

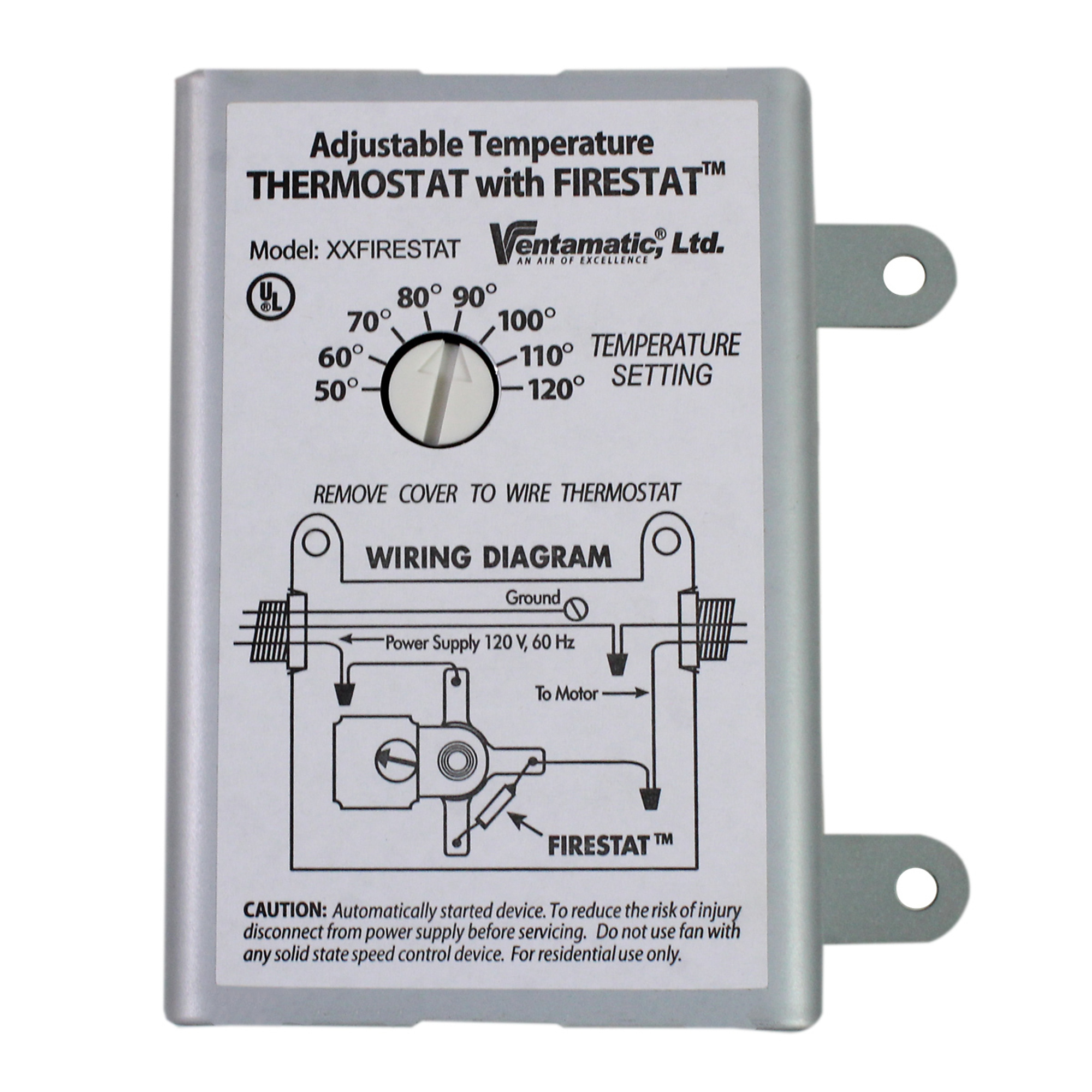

This temperature controller features a fusible link which will shut off your electric attic or exhaust fan in unsafe operating conditions exceeding 183° F, and is also used for the daily operation of your fan as a typical thermostat with a bi-metallic switch. This thermostat mounts to a rafter using wood screws and has a wiring diagram provided to complete installation. As a general rule for power attic fans, your normal temperature setting will range from 95 - 115° F depending on average regional temperatures—a setting too low will run the fan continuously, and a setting too high will result in insufficient air turns for proper ventilation.

What's Included

    (1) Adjustable thermostat

Downloads

Product Manual

Features + Benefits

  • Mounts to attic rafter with wood screws
  • Adjustable temperature from 50 - 120° F
  • Controls the operation of your power attic ventilator, running the attic fan only when needed
  • Firestat safety fusible link will cut fan off at 183° F
  • Controls up to 3 units, not to exceed 10 amps
  • Compatible with Maxx Air roof and gable mount power attic ventilators (excluding solar vents), as well as exhaust fans (IF14 - IF36).
  • Not for use with Maxx Air whole house fans.

Key Specs

AttributeSpecification

item#

17267

Brand

Ventamatic

Manufacturer's Warranty

2 year limited warranty

Ship Weight

1.0 LB

Product Type

Thermostat

Height

2 in
AttributeSpecification

Width

4 in

Length

4 in

Compatible With

Maxx Air roof and gable mount power attic ventilators (excluding solar vents), as well as exhaust fans (IF14 - IF36)

Volts

120

Product Weight

lb

Dimensions L x W x H (in.)

4.0 x 4.0 x 2.0 in

Reviews

Questions & Answers

5 Reviews This action will navigate to reviews.

Questions

1–3 of 3 Questions
Sort by:

  1. How many fans can this operate?

    How many attic fans can this thermostat operate?

    1 answer

    1. The Ventamatic Thermostat can control up to three fans, not to exceed 10 amps.

      Helpful?

  2. can this Thermostat work good with a exhaust fan in my garage for lower temperture in summer?

    1 answer

    1. This item is listed at 15 amps and 110v (volts). Once the temp is set the item would automatically shut off if the temp goes below the selected temp on the unit.

      Helpful?

  3. open and shut water line

    can i use this thermostat model #xxadjtstat , to control a hot water line . like shuting it of , and open it again

    1 answer

    1. No, This Ventamatic thermostat is intended to control attic fan ventilators.

      Helpful?

Warranty

Manufacturer's Warranty

2 year limited warranty
