Ventamatic Dual Temperature/Humidity Control - Adjustable Thermostat and Humidistat, Model# XXDUOSTAT

Item# 17269
Top Seller
Ventamatic Dual Temperature/Humidity Control - Adjustable Thermostat and Humidistat, Model# XXDUOSTAT

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Ventamatic Dual Temperature/Humidity Control - Adjustable Thermostat and Humidistat, Model# XXDUOSTAT

Click or Tap image to Zoom

$59.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only

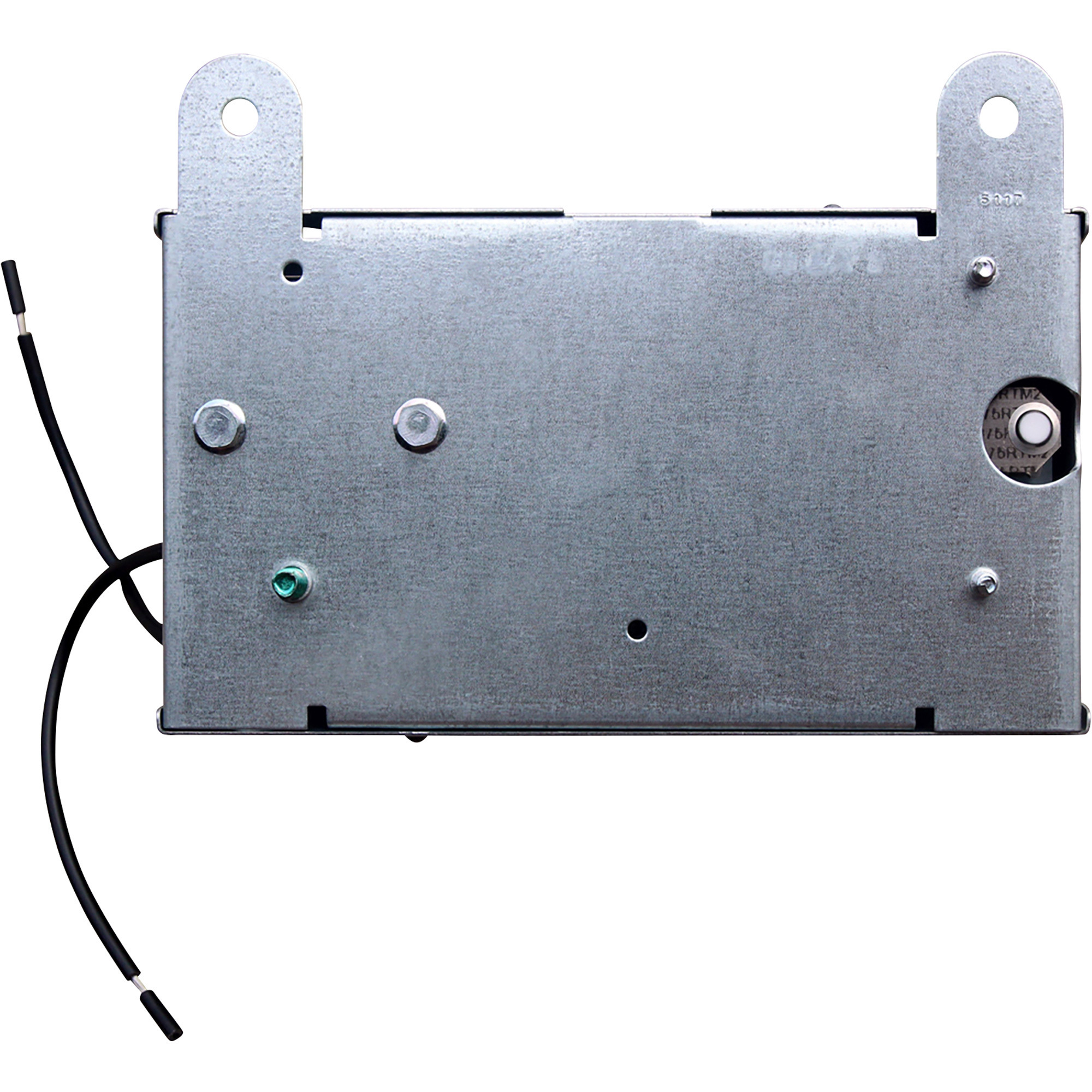

  • Mounts to attic rafter with wood screws
  • Adjustable temperature from 60 - 120° F.
  • Adjustable humidistat setting from 50 - 90%.
  • Controls the operation of your power attic ventilator, running the fan only when needed
  • Controls up to 3 units, not to exceed 10 amps

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

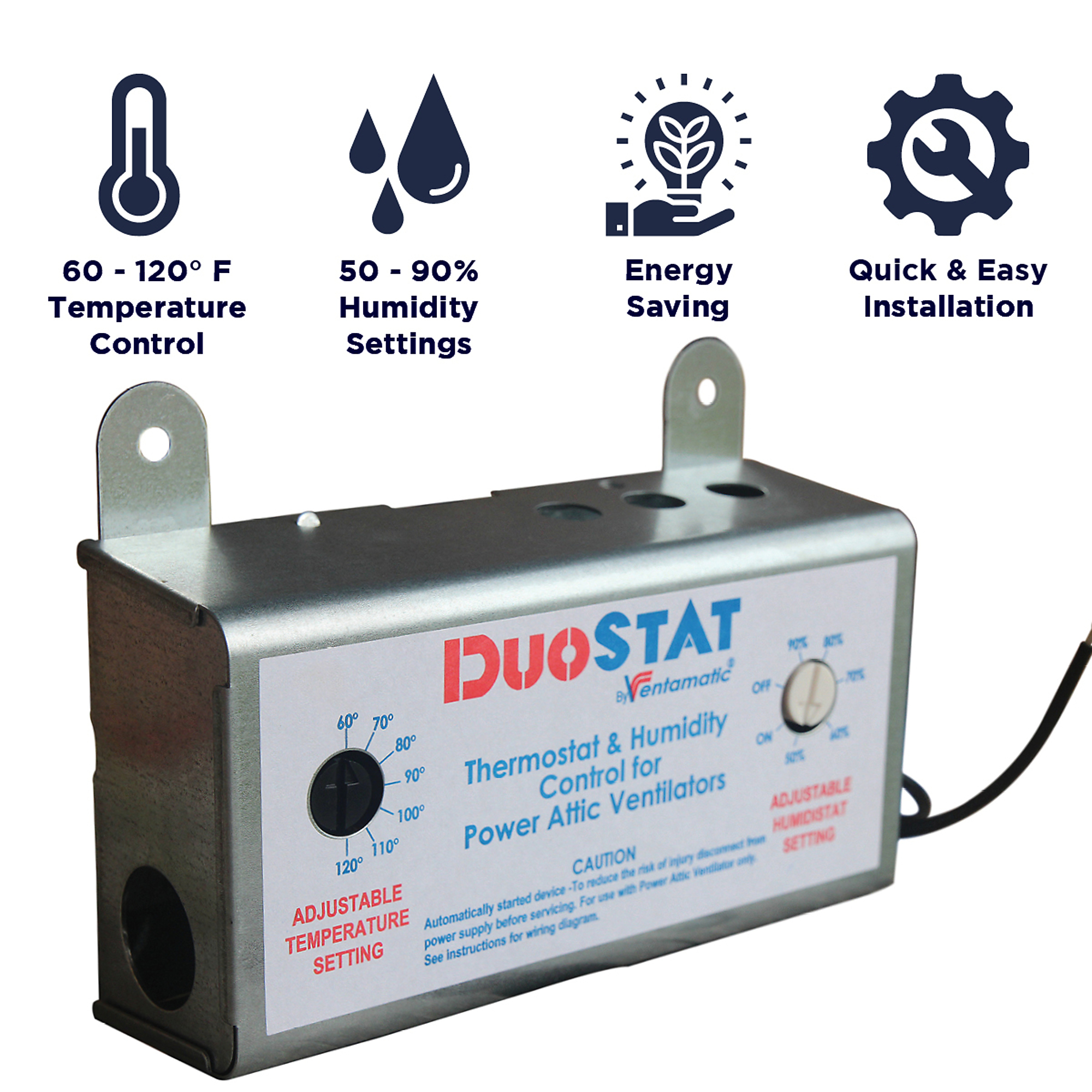

Reduce both moisture and excess heat in your attic with this dual thermostat-humidistat control to avoid mold and mildew issues, prolong the life of your roofing components, and reduce your energy costs when paired with your electric attic fan. This controller mounts to a rafter using wood screws and has a wiring diagram provided to complete installation. As a general rule for power attic vents, your normal temperature setting will range from 95 - 115° F and humidity setting from 60 - 70% depending on average regional temperatures and local humidity levels—a setting too low will run the fan continuously, and a setting too high will result in inadequate ventilation.

What's Included

    (1) Dual temp/humidity control

Downloads

Product Manual

Features + Benefits

  • Mounts to attic rafter with wood screws
  • Adjustable temperature from 60 - 120° F.
  • Adjustable humidistat setting from 50 - 90%.
  • Controls the operation of your power attic ventilator, running the fan only when needed
  • Controls up to 3 units, not to exceed 10 amps
  • Compatible with Maxx Air roof and gable mount power attic ventilators (excluding solar vents).
  • Not for use with whole house fans.

Key Specs

AttributeSpecification

item#

17269

Brand

Ventamatic

Manufacturer's Warranty

Lifetime Limited Warranty

Ship Weight

1.0 LB

Product Type

Temp/humidity Control

Height

2 in
AttributeSpecification

Width

4 in

Length

7 in

Compatible With

Maxx Air roof and gable mount power attic ventilators (excluding solar vents)

Volts

120

Product Weight

lb

Dimensions L x W x H (in.)

7.0 x 4.0 x 2.0 in

Reviews

Questions & Answers

3 Reviews This action will navigate to reviews.

Questions

1–3 of 3 Questions
Sort by:

  1. Can I use this to control my crawl space powered vents?

    I have 3 powered foundation vents.

    1 answer

    1. This unit is made to work with Ventamatic & Cool Attic roof and gable power attic ventilators. At this time the manufacturer has not tested this for use with crawl space ventilators.

      Helpful?

  2. Will this work with your Q Standard Oscillating Wall Circulator — 30in., 3/10 HP, 8778 CFM, Model# 10306 Item# 250768

    1 answer

    1. This "Ventamatic Dual Temp/Humidity Control" is to be used with Power attic ventilators only. Controls up to three units, not to exceed 10 amps.

      Helpful?

  3. What is the amps & voltage of this unit?

    1 answer

    1. This dual temp/humidity control is a 10 amp 115-120 volt.

      Helpful?

Warranty

Manufacturer's Warranty

Lifetime Limited Warranty
