These gauges do not come with NIST certification.

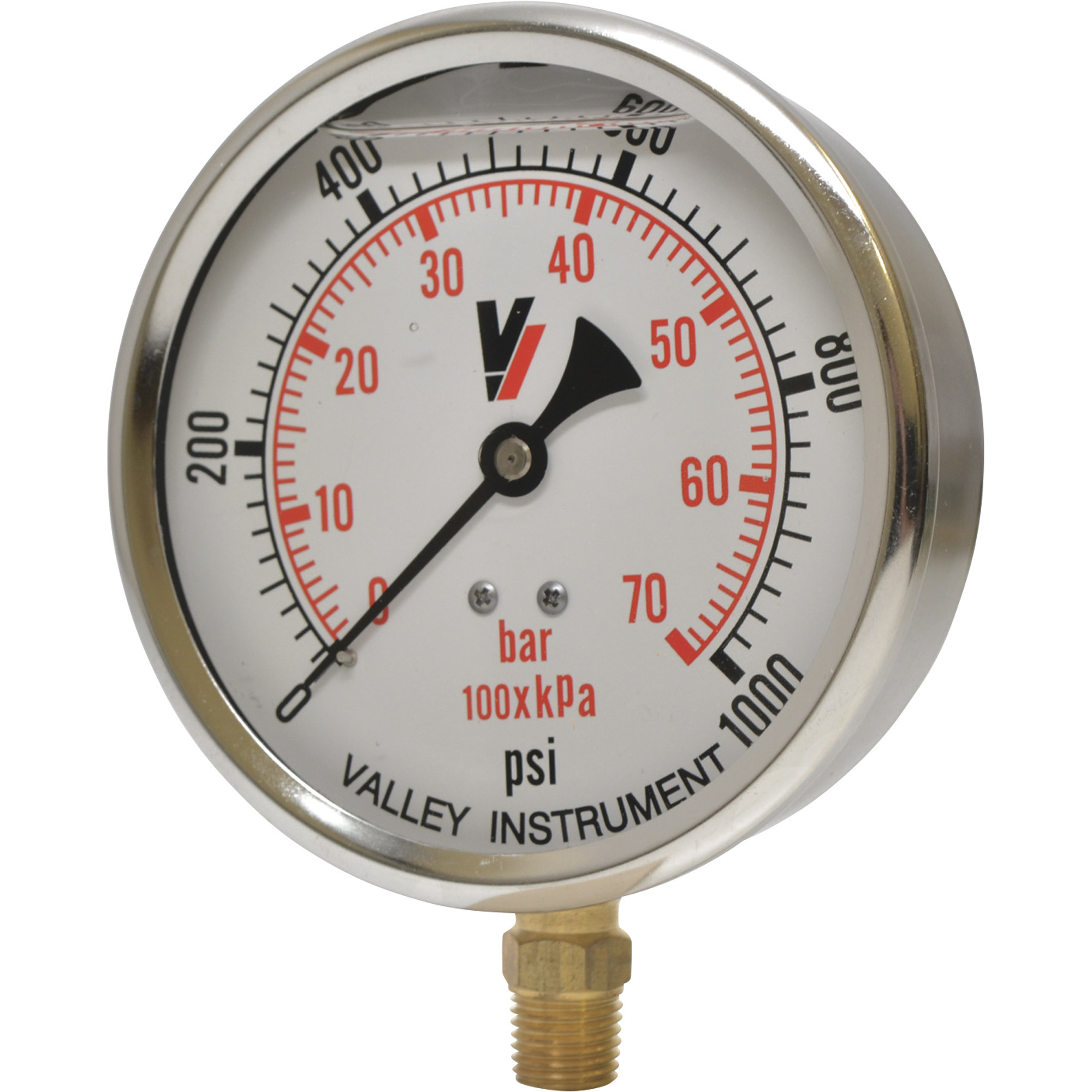

Valley Industries Glycerin Filled Pressure Gauge — 4in. Stem Mount, 0-1,000 PSI, 1/4in. NPT, Grade A, Model# 4140GXB1000
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$42.99
- 1000 PSI pressure gauge
- 4" diameter face
See full description
See All Hydraulic Gauges
See All Valley Industries Hydraulic Gauges
Currently Viewing This Product
Specifications
Specifications
Valley Industries Glycerin Filled Pressure Gauge — 4in. Stem Mount, 0-1,000 PSI, 1/4in. NPT, Grade A, Model# 4140GXB1000
Valley Industries, 4in. Bottom Mt Gauge 6000PSI, Case Material Stainless Steel, Min. Operating Pressure 0 PSI, Max. Operating Pressure 6000 PSI, Model# 4140GXB6000
Valley Industries, 2.5in. Panel Mt Gauge 5000PSI, Case Material Stainless Steel, Min. Operating Pressure 0 PSI, Max. Operating Pressure 5000 PSI, Model# 2441GXB5000
Valley Industries, 4in. Back Mt Gauge 5000PSI, Case Material Stainless Steel, Min. Operating Pressure 0 PSI, Max. Operating Pressure 5000 PSI, Model# 4240GXB5000
Case Material
Same
Stainless Steel
Stainless Steel
Stainless Steel
Stainless Steel
Min. Operating Pressure
Same
0 PSI
0 PSI
0 PSI
0 PSI
Max. Operating Pressure
Same
1,000 PSI
6,000 PSI
5,000 PSI
5,000 PSI
Gauge Diameter
Same
4 in
4 in
2.5 in
4 in
Connection Size
Same
0.25 in
0.25 in
0.25 in
0.25 in
Bourdon Tube
Same
Copper
Phosphor Bronze
Phosphor Bronze
Phosphor Bronze
Pointer Material
Same
Aluminum
Aluminum
Aluminum
Aluminum
Connection Type
Same
Male
Male
Male
Male
Connection Material
Same
Brass
Brass
Brass
Brass
Dial Material
Same
Aluminum
Aluminum
Aluminum
Aluminum
Window Material
Same
Polycarbonate
Polycarbonate
Acrylic
Polycarbonate
Fill Material
Same
Glycerin
Glycerin
Glycerin
Glycerin
Movement
Same
Clockwise
Clockwise
Clockwise
Clockwise
Accuracy
Same
Asme/ansi B40.1 Grade A (2-1-2%)
Meets ASME/ANSI B40.1 Grade A standards with an accuracy of ±2-1-2% of full scale, ensuring precise pressure measurements
Meets ASME/ANSI B40.1 Grade B standards with an accuracy of ±3-2-3% of full scale, ensuring precise pressure measurements
Meets ASME/ANSI B40.1 Grade A standards with an accuracy of ±2-1-2% of full scale, ensuring precise pressure measurements
Gauge Application
Same
Air, Gas, Oil, Water
Ideal for gas, oil, hydraulics, utility, and more
Ideal for agriculture, hydraulics, utility, and more
Ideal for gas, oil, hydraulics, utility, and more
Mounting Type
Same
Stem
Stem
Stem
Stem
Product Weight
Same
-
1.0000 lb
0.5000 lb
1.0000 lb
Dimensions L x W x H (in.)
Same
-
4.2 x 1.27 x 5.0 in
3.54 x 2.27 x 2.46 in
4.2 x 2.73 x 3.97 in
