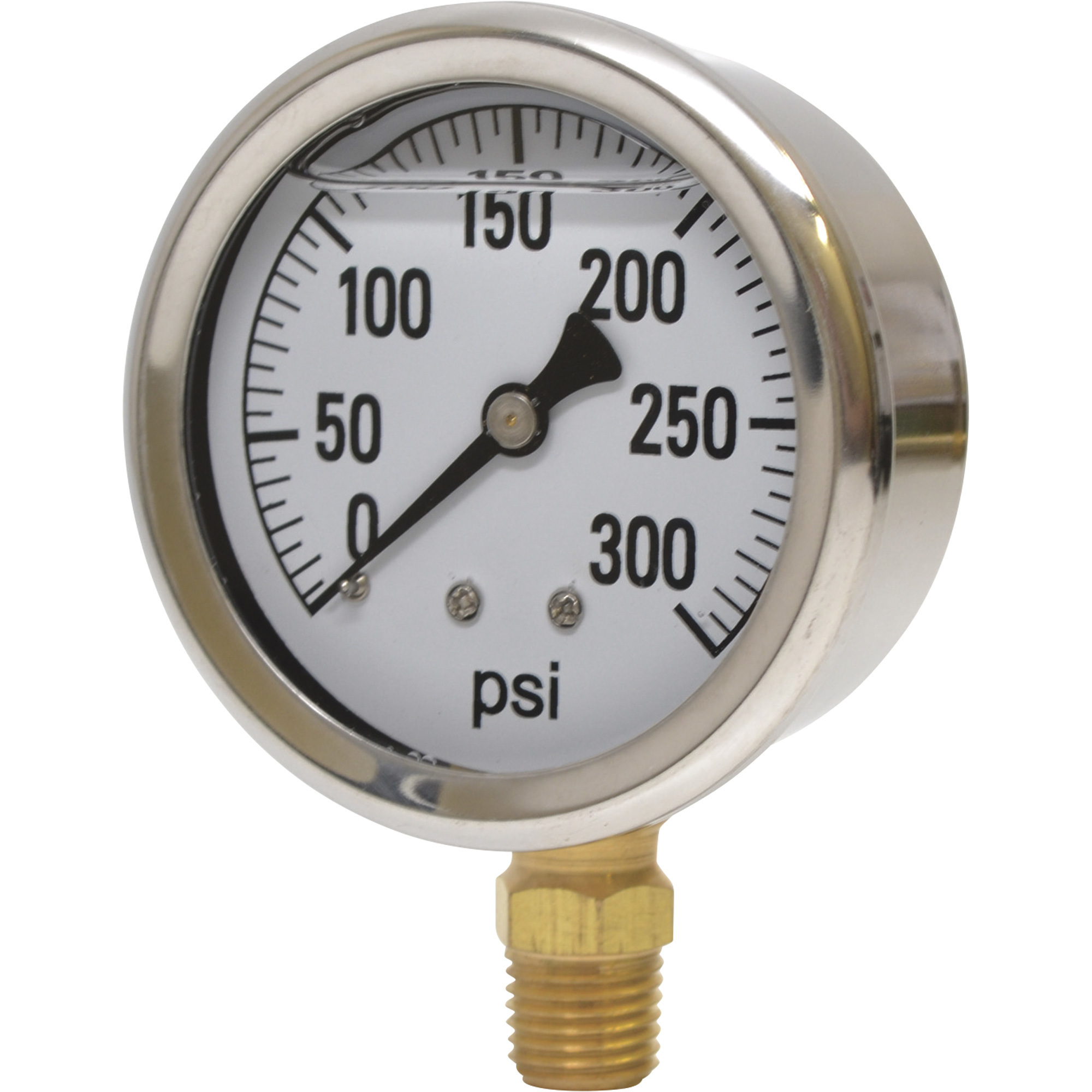

Valley Industries, 2.5in. Bottom Mt Gauge 300PSI, Case Material Stainless Steel, Min. Operating Pressure 0 PSI, Max. Operating Pressure 300 PSI, Model# 2141GXB300

Item# 53702
"Valley Industries, 2.5in. Bottom Mt Gauge 300PSI, Case Material Stainless Steel, Min. Operating Pressure 0 PSI, Max. Operating Pressure 300 PSI, Model# 2141GXB300"
Top Seller
Valley Industries, 2.5in. Bottom Mt Gauge 300PSI, Case Material Stainless Steel, Min. Operating Pressure 0 PSI, Max. Operating Pressure 300 PSI, Model# 2141GXB300

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Valley Industries, 2.5in. Bottom Mt Gauge 300PSI, Case Material Stainless Steel, Min. Operating Pressure 0 PSI, Max. Operating Pressure 300 PSI, Model# 2141GXB300

Click or Tap image to Zoom

$27.99

  • Shipping:

    Available now

  • Store Pickup:

    Not Available
  • Ideal for agriculture, hydraulics, utility, and more
  • Accurately measures pressure from 0-300PSI
  • Single scale PSI face for a clean, easy-to-read display
  • Meets ASME/ANSI B40.1 Grade B standards with an accuracy of ±3-2-3% of full scale, ensuring precise pressure measurements
  • Glycerin-filled setup that provides vibration damping, reduces wear and tear, & improves accuracy

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

Brass movement with phosphor bronze Bourdon tube. Grade B #410 stainless steel. 1/4in. NPT 316 brass male connection. Grade B accuracy. For use with air, gas, oil or water. Black enameled aluminum pointer, white background and acrylic window. Glycerin filled.

What's Included

    (1) Pressure Gauge

Features + Benefits

  • Ideal for agriculture, hydraulics, utility, and more
  • Accurately measures pressure from 0-300PSI
  • Single scale PSI face for a clean, easy-to-read display
  • Meets ASME/ANSI B40.1 Grade B standards with an accuracy of ±3-2-3% of full scale, ensuring precise pressure measurements
  • Glycerin-filled setup that provides vibration damping, reduces wear and tear, & improves accuracy
  • Stainless steel casing for long-lasting durability in harsh environments
  • C-shaped bourdon tube made from copper alloy, providing excellent durability & corrosion resistance
  • IP65 rated for protection against dust and water, ensuring reliability in tough conditions
  • Operates efficiently between 32°F to 150°F, ensuring reliable performance in cold and hot environments
  • 1/4” brass bottom mount stem for effortless installation
  • Compact 2.5" diameter face that is clear and easy-to-read pressure measurements
  • Simple to clean and maintain, with a durable design that minimizes the need for frequent service
  • Backed by a one-year manufacturer warranty

Key Specs

AttributeSpecification

item#

53702

Brand

Valley Industries

Manufacturer's Warranty

1 year limited warranty

Ship Weight

0.48 LB

Case Material

Stainless Steel

Min. Operating Pressure

0 PSI

Max. Operating Pressure

300 PSI

Gauge Diameter

2.5 in

Connection Size

0.25 in

Bourdon Tube

Copper

Pointer Material

Aluminum
AttributeSpecification

Connection Type

Male

Connection Material

Brass

Dial Material

Aluminum

Window Material

Acrylic

Fill Material

Glycerin

Movement

Clockwise

Accuracy

Meets ASME/ANSI B40.1 Grade B standards with an accuracy of ±3-2-3% of full scale, ensuring precise pressure measurements

Gauge Application

Ideal for agriculture, hydraulics, utility, and more

Mounting Type

Stem

Product Weight

0.5000 lb

Dimensions L x W x H (in.)

2.67 x 1.1 x 3.5 in

Reviews

Questions & Answers

4 Reviews This action will navigate to reviews.

Questions

  1. can this gage be used for heating oil or diesel fuel?

    1 answer

    1. This gauge can be used for heating oil or diesel fuel.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
