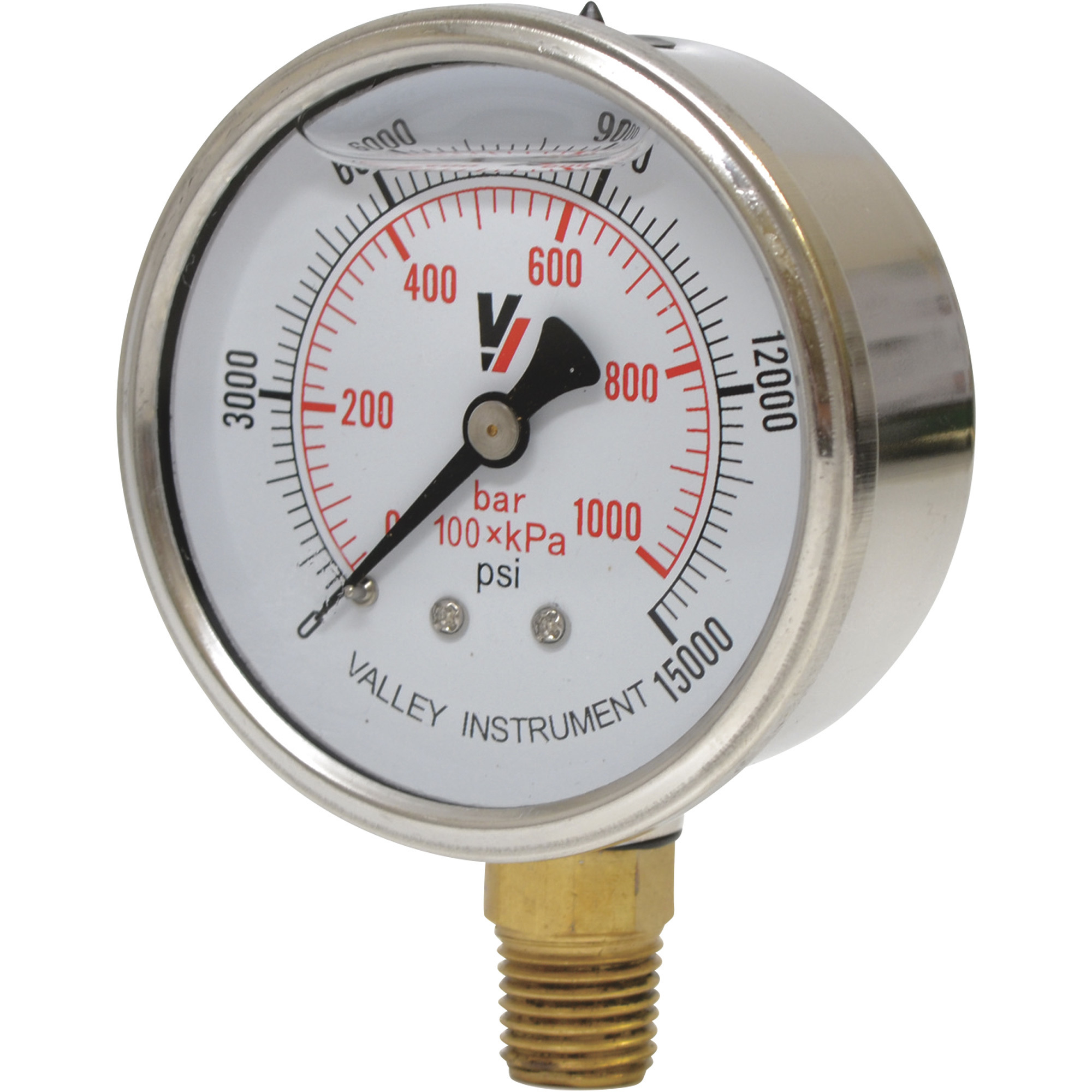

Valley Industries, 0-15000 PSI,S STL LIQUID GAUGE, Case Material Stainless Steel, Min. Operating Pressure 0 PSI, Max. Operating Pressure 15000 PSI

Item# 53712
Valley Industries, 0-15000 PSI,S STL LIQUID GAUGE, Case Material Stainless Steel, Min. Operating Pressure 0 PSI, Max. Operating Pressure 15000 PSI

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Valley Industries, 0-15000 PSI,S STL LIQUID GAUGE, Case Material Stainless Steel, Min. Operating Pressure 0 PSI, Max. Operating Pressure 15000 PSI

Click or Tap image to Zoom

$27.99

  • Shipping:

    Available now

  • Store Pickup:

    Not available - online only
  • 0-5000 PSI glycerin filled dual scale industrial pressure gauge
  • Featuring a 1/4" MNPT brass bottom mount
  • 2.5" dial face with stainless steel casing and polycarbonate lens
  • Grade A accuracy (ASME/ANSI B40.1, 2-1-2%)

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

Brass movement with phosphor bronze Bourdon tube. Grade B #410 stainless steel. 1/4in. NPT 316 brass male connection. Grade B accuracy. For use with air, gas, oil or water. Black enameled aluminum pointer, white background and acrylic window. Glycerin filled.

What's Included

    (1) Gauge

Features + Benefits

  • 0-5000 PSI glycerin filled dual scale industrial pressure gauge
  • Featuring a 1/4" MNPT brass bottom mount
  • 2.5" dial face with stainless steel casing and polycarbonate lens
  • Grade A accuracy (ASME/ANSI B40.1, 2-1-2%)

Key Specs

AttributeSpecification

item#

53712

Brand

Valley Industries

Manufacturer's Warranty

12 months parts/12months labor

Ship Weight

0.44 LB

Case Material

Stainless Steel

Min. Operating Pressure

0 PSI

Max. Operating Pressure

15,000 PSI

Gauge Diameter

2.5 in

Connection Size

0.25 in

Bourdon Tube

Phosphor Bronze
AttributeSpecification

Pointer Material

Aluminum

Connection Type

Male

Connection Material

Brass

Dial Material

Aluminum

Window Material

Acrylic

Fill Material

Glycerin

Movement

Clockwise

Accuracy

Grade B

Gauge Application

Air, Gas, Oil, Water

Mounting Type

Stem

Reviews

Questions & Answers

6 Reviews This action will navigate to reviews.

Questions

1–2 of 2 Questions
Sort by:

  1. what is the diameter of the threaded connector? i want to install this on my hydrogen canister regulator which has 2/5" threaded orifice

    1. 1/4" NPT

      Helpful?

    2. This gauge has a 1/4" male pipe thread. Pipe is measured on the inside, the outside threads are tapered from the tip and measure .50"-.52".

      Helpful?

    3. This gauge has a 1/4" male NPT threaded connector.

      Helpful?

  2. Will this gauge fit on your 20 ton or 30 ton bottle jack?

    1 answer

    1. This stainless steel gauge will not attach/connect to the 20 or 30 ton bottle jacks. Northern Tool doesn't carry bottle jacks with ports for pressure gauge attachment.

      Helpful?

Warranty

Manufacturer's Warranty

12 months parts/12months labor
