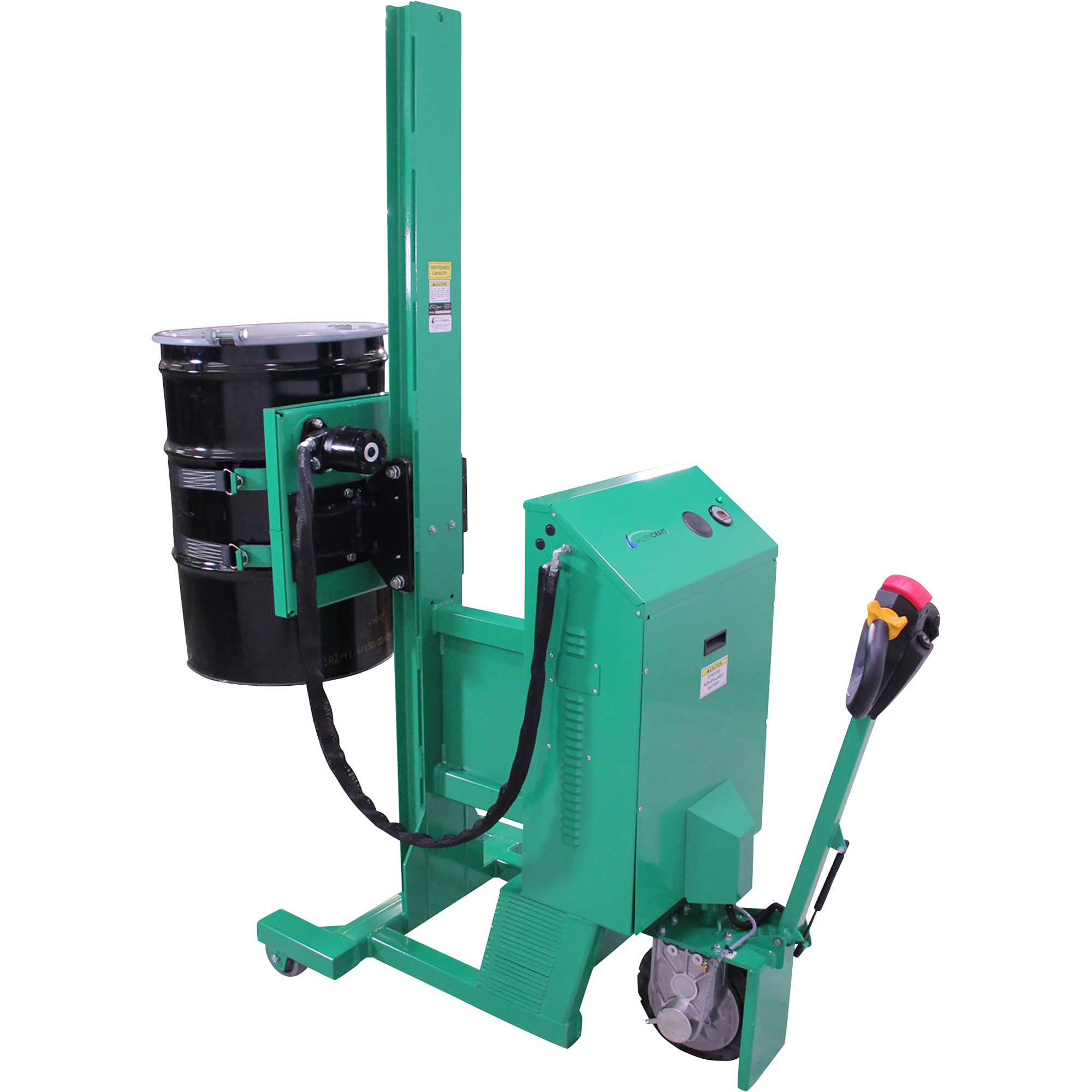

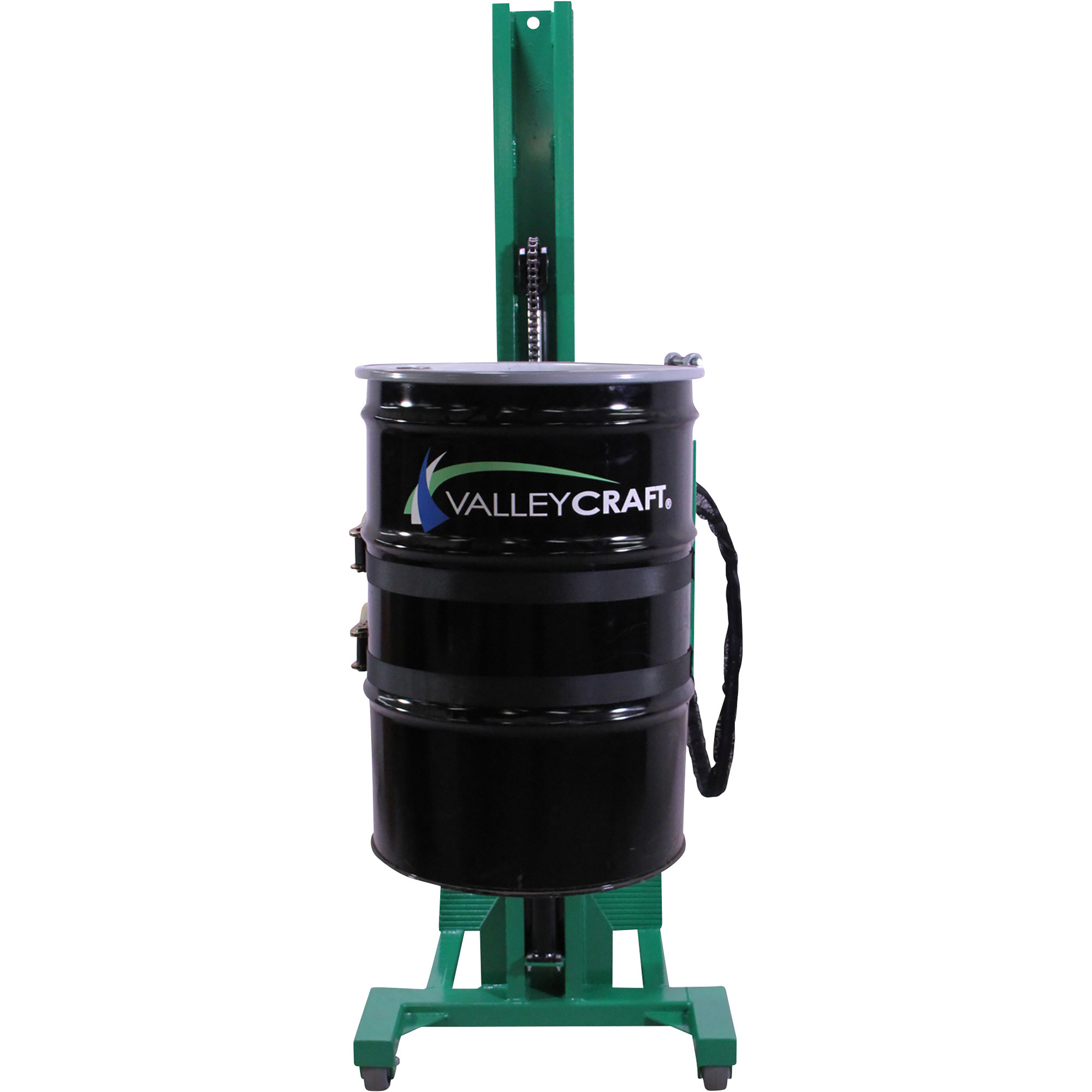

Valley Craft Drum Lift and Rotator, Fully Powered Lift/Rotate/Drive, Strap Connection, Counterweighted, 78in.H, 1000-Lb. Capacity, Model# F89832A5

Item# 57905
Valley Craft Drum Lift and Rotator, Fully Powered Lift/Rotate/Drive, Strap Connection, Counterweighted, 78in.H, 1000-Lb. Capacity, Model# F89832A5

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Valley Craft Drum Lift and Rotator, Fully Powered Lift/Rotate/Drive, Strap Connection, Counterweighted, 78in.H, 1000-Lb. Capacity, Model# F89832A5

Click or Tap image to Zoom

$18,529.99

Buy 2 or more at $16,479.04 ea.

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Safely and ergonomically lift, rotate and maneuver drums throughout your facility
  • Standalone unit (no forklift required)
  • 24V battery powered drive, lift and rotate
  • Raise middle of drum to a maximum height of 71in. off the floor
  • Minimum center grip height of 13in. off the floor

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Valley Craft's 78in. Fully Powered Drum Lifts and Rotators simplify the lifting, rotating and transporting of drums by utilizing power. Drums lift up to 71in. in height in less than 30 seconds, rotate up to 360° continuously in either direction at 6 RPM and drive up to 2.5 MPH. This unit is compatible with all drum styles (steel, plastic and fiber). Drum handling and maneuvering has never been easier. Power source is a 24V system featuring (2) 12V DC batteries and an AC charger (included) that plugs into any standard outlet using an extension cord (not included). This premium system includes an adjustable drive system of 1-2.5 MPH (default set to 2.5 MPH) and an ergonomic Curtis TM-1 Tiller head for simple handling. Tiller handle features keyed on/off, reverse, adjustable throttle, rocker switches, horn and a battery indicator light. The strap configuration (Roto-Lift) utilizes the included straps to safely secure drums (14in.-24in.). This hydraulic actuator has an adjustable pressure gauge to help ensure the appropriate amount of pressure is applied to secure your unit without damaging it. With a 1000-lb. capacity it's simple to maneuver units on (2) 6in. front rigid casters and (1) 12in. rear power drive wheel. Designed as a standalone lift and rotator, this unit doesn't require forklift assistance. Counter-weighted models improve handling with the ability to butt directly up to pallets, shelving or other units without having to worry about extended straddle legs getting in the way. Optional floor locks are available (sold separately). Valley Craft's Fully Powered Drum Lifts and Rotators improve the safety and productivity of any facility that is lifting, rotating and transporting drums by eliminating the need for heavy manual assistance. Constructed of heavy-gauge steel with a premium powder-coat paint finish in green, you can be confident these units are built to last. All products are shipped fully assembled, ready-to- use.

What's Included

    (1) Drum lift and rotator, fully powered

Downloads

Product Manual

Features + Benefits

  • Safely and ergonomically lift, rotate and maneuver drums throughout your facility
  • Standalone unit (no forklift required)
  • 24V battery powered drive, lift and rotate
  • Raise middle of drum to a maximum height of 71in. off the floor
  • Minimum center grip height of 13in. off the floor
  • Rotate 360° continuously in either direction, at 6 RPM
  • Counterweighted unit butts directly up to pallets, shelving or other items
  • Dual ratchet straps for securing drums
  • Compatible with steel/plastic/fiber drums, 10-55 gallons (14in.-24in. in diameter)
  • Drive up to 2.5 MPH on (2) 5in. front swivel casters and (1) 12in. powered rear wheel
  • 53in.L x 32in.W x 78in.H
  • 1000-lb. capacity
  • Heavy-gauge steel construction
  • Premium powder-coat paint finish in green
  • Ships fully assembled, ready to use

Key Specs

AttributeSpecification

item#

57905

Brand

Valley Craft

Manufacturer's Warranty

1 year limited warranty

Ship Weight

1339.0 LB

Capacity

1,000 lb
AttributeSpecification

Material

Steel

Product Type

Drum Lifter

Wheel Size

12 in

Wheel Type

Poly on Poly

Reviews

Questions & Answers

Questions

  1. What is the range of drum diameters this can accomodate?

    1 answer

    1. The drum lifter and rotator will accept drums and cylinders that are 14 to 24 inches in diameter.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
