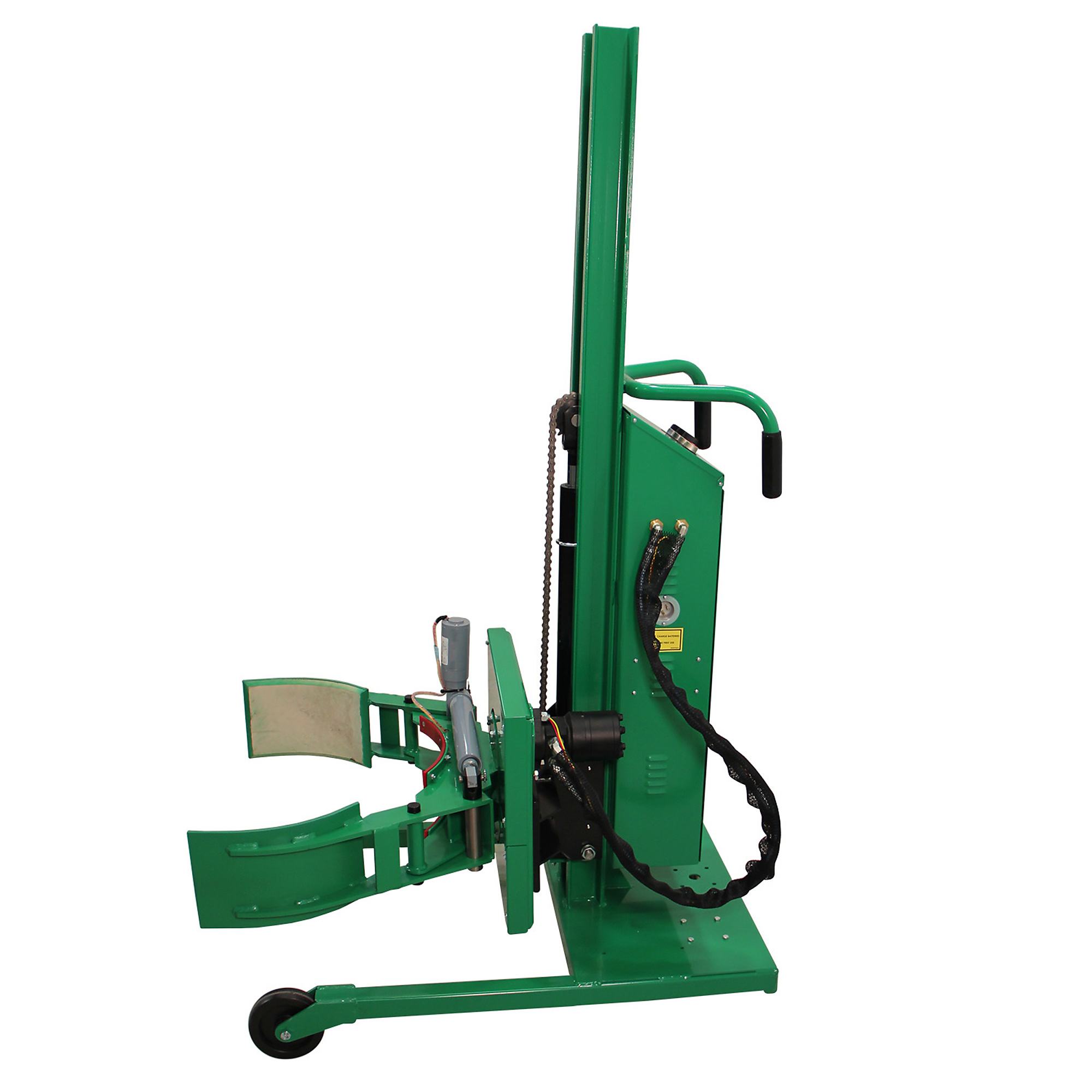

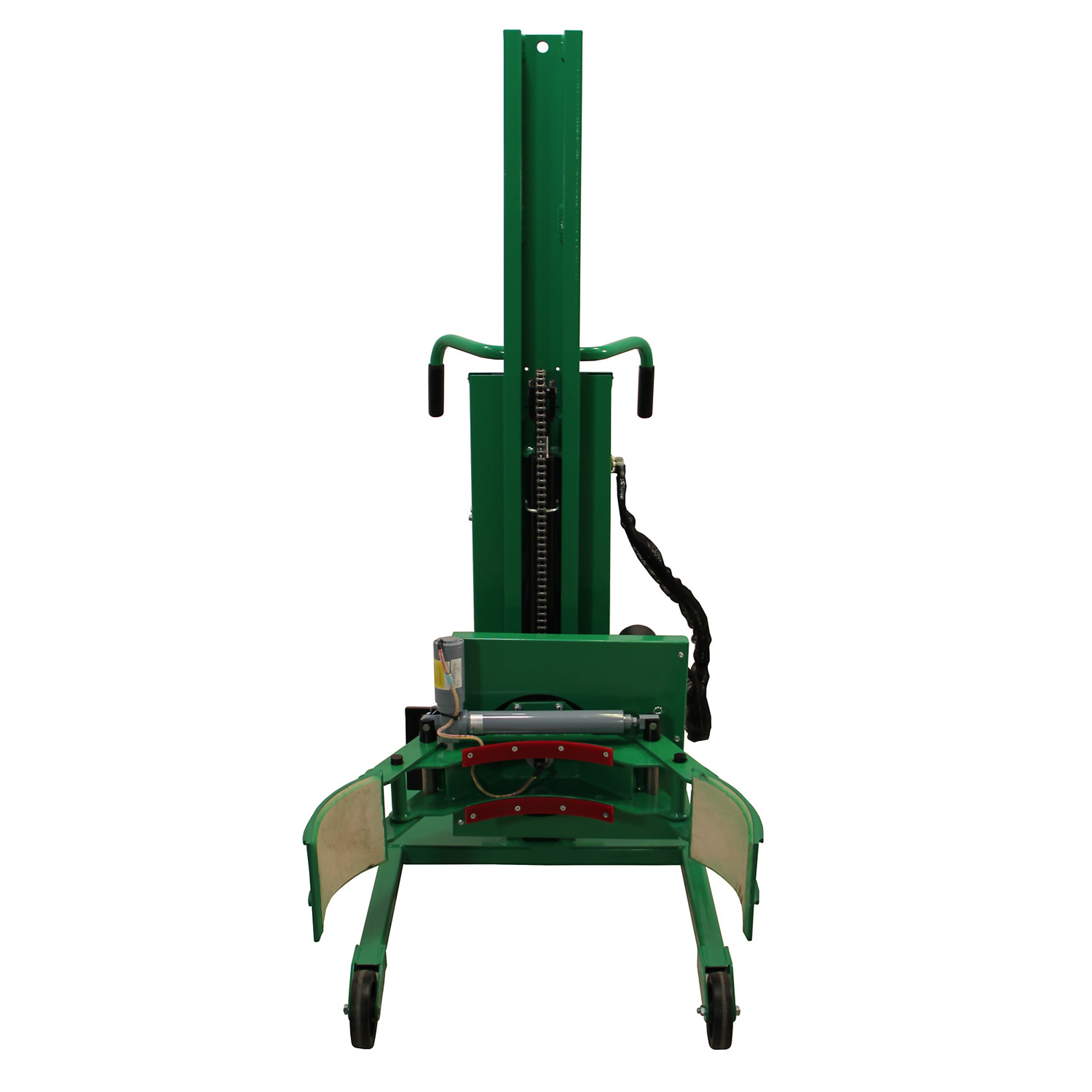

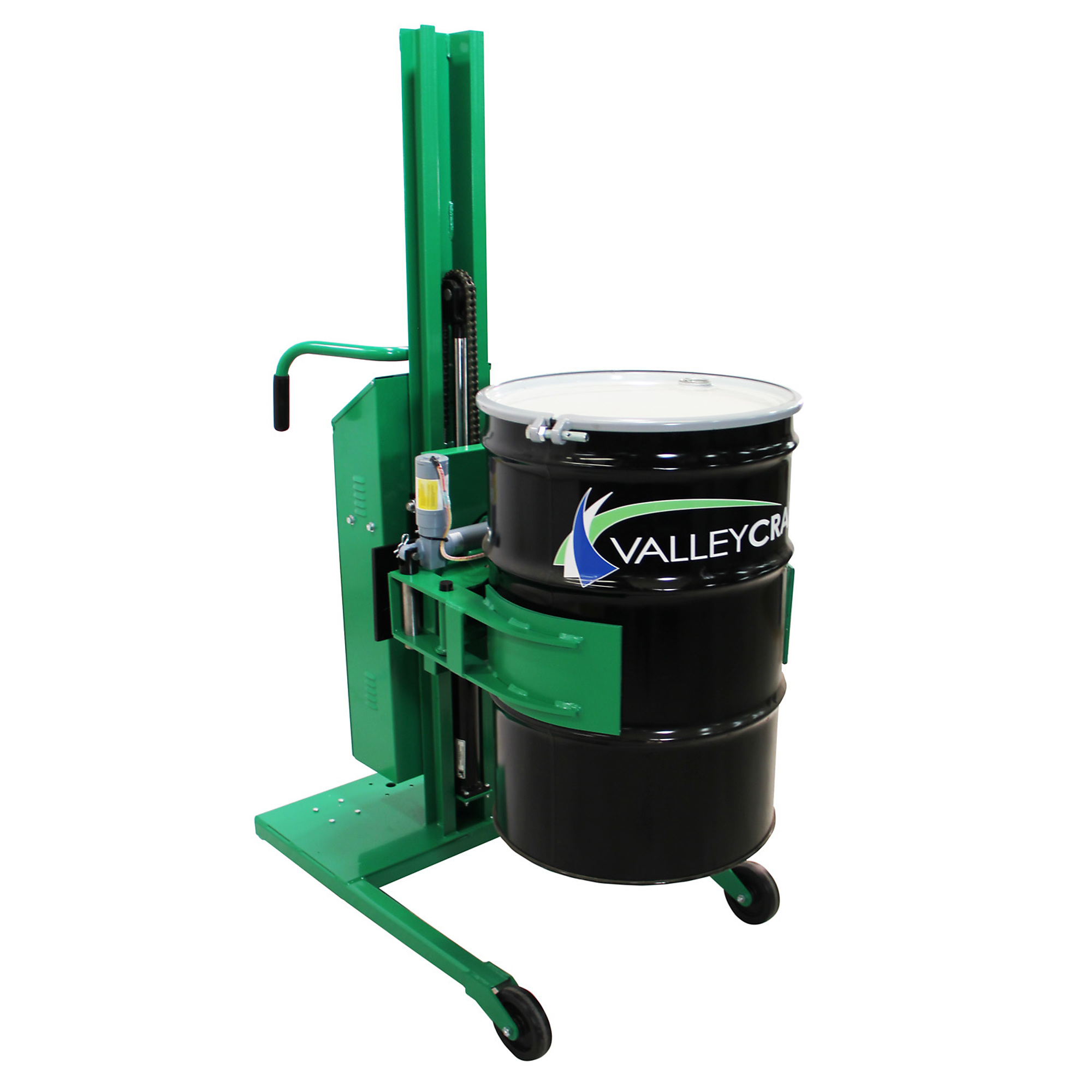

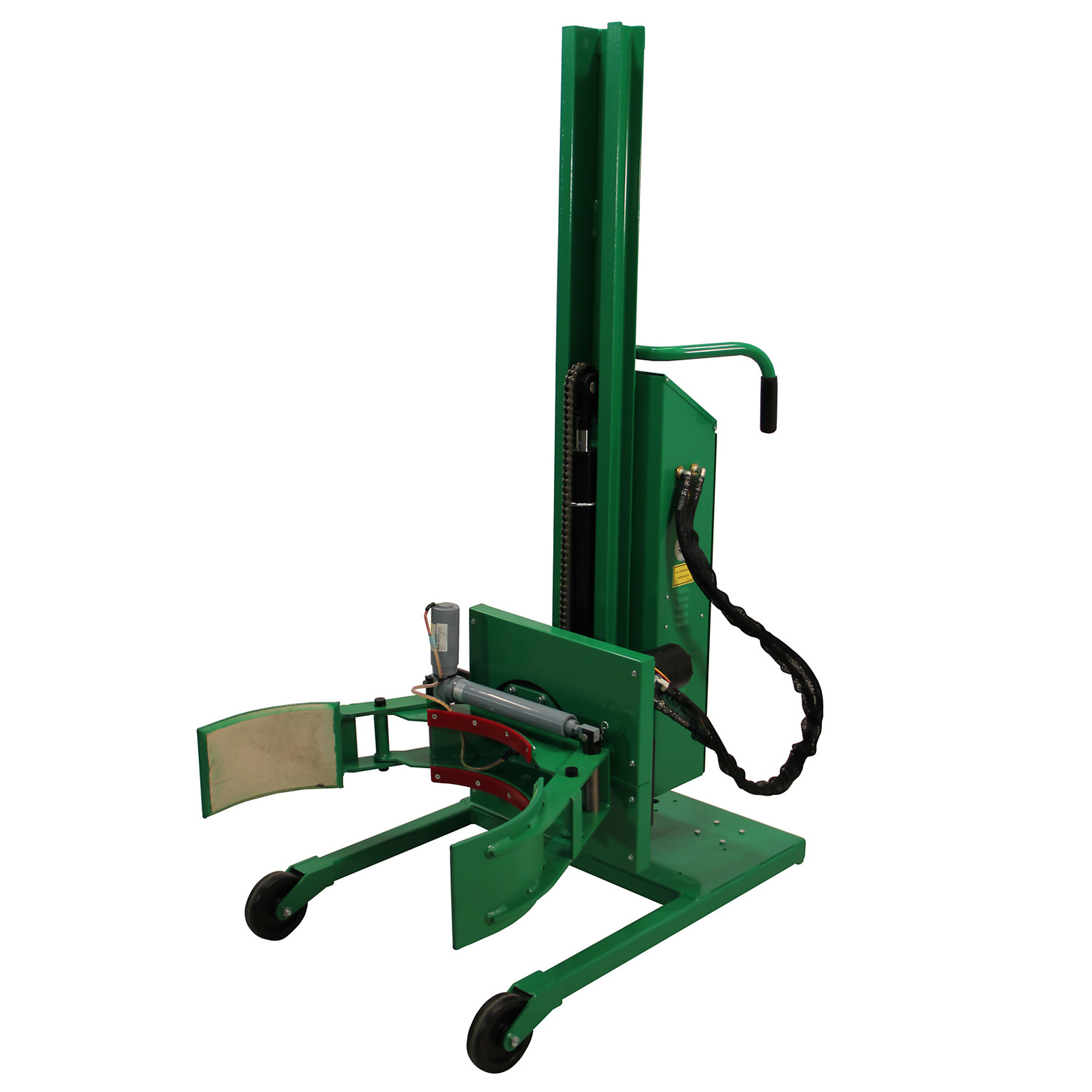

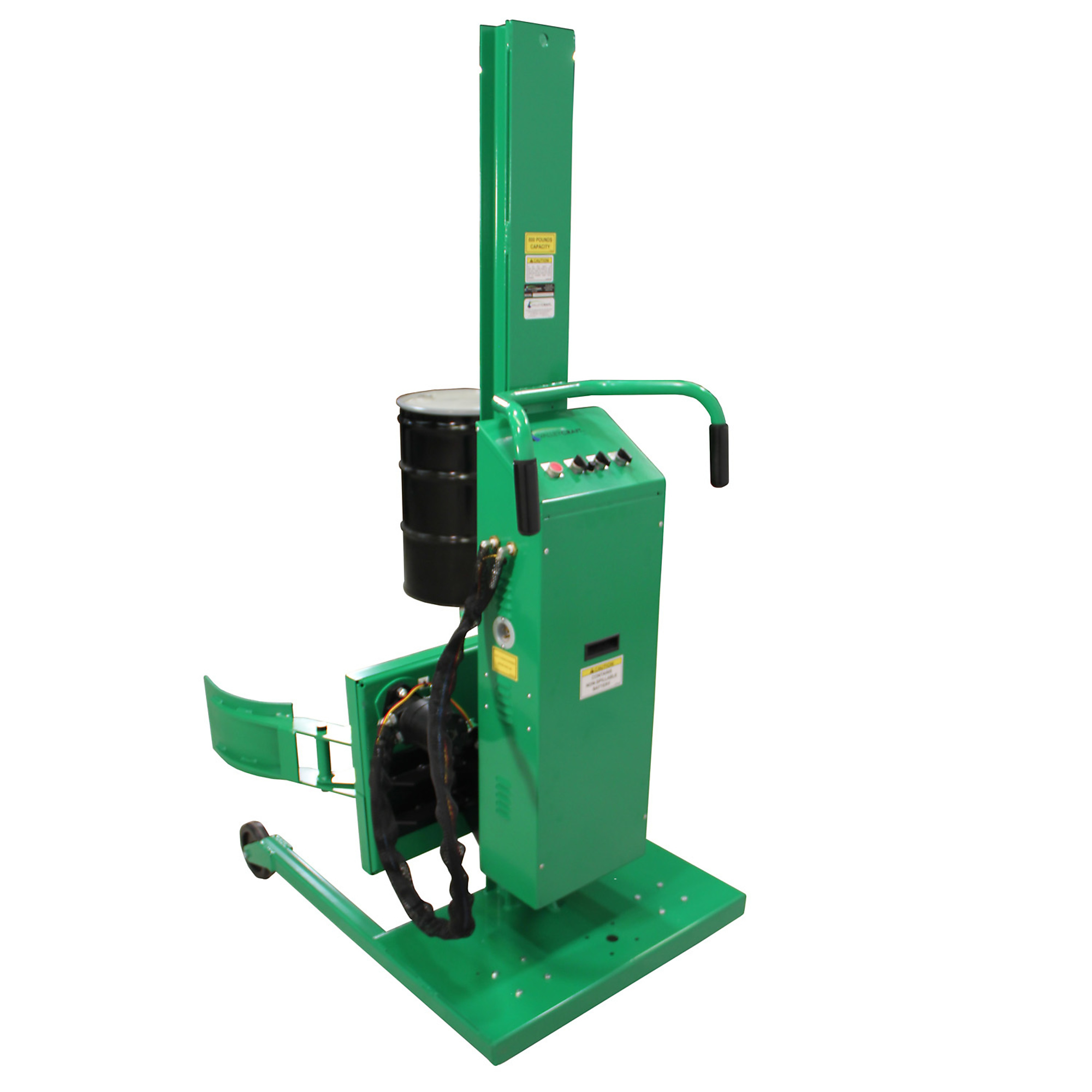

Valley Craft, Drum Lift Rotator, Semi-Powered, Battery Included, Capacity 800 lb, Model# F88586C2

Item# 5705181
Valley Craft, Drum Lift Rotator, Semi-Powered, Battery Included, Capacity 800 lb, Model# F88586C2

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Valley Craft, Drum Lift Rotator, Semi-Powered, Battery Included, Capacity 800 lb, Model# F88586C2

Click or Tap image to Zoom

$11,349.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Safely and ergonomically lift, rotate, and maneuver drums throughout your facility.
  • Standalone unit (no forklift required).
  • 24V battery powered lift and rotate, manual drive.
  • Raise middle of drum to a maximum height of 84” off the floor.
  • Minimum center grip height of 13” off the floor.

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Valley Craft’s 90” Semi-Powered Drum Lifts and Rotators simplifies the lifting and rotating of drums by utilizing power. Drums electronically clamp and lift up to 84” in height in less than 30 seconds, and can hydraulically rotate up to 360° continuously in either direction. Compatible with all drum styles (steel, plastic and fiber), units offer convenient push/pull transporting as needed. The Grip configuration (Roto-Grip) combines jaws with an electronic actuator to grab drums (18-28”), requiring no manual assistance. With an 800 lb. capacity it is simple to maneuver unit on (4) Casters (2) 6” front rigid, and (2) 4” rear swivel). Power source is a 12V DC battery (included) that plugs into any standard outlet using an extension cord (not included). Designed as a standalone lift and rotator, forklift assistance is not required. Standard straddle units have extended front legs that go under pallets/shelving or on the outside of the drums when being handled. Optional floor locks are available (sold separately). Valley Craft’s Semi-Powered Drum Lifts and Rotators improve the safety and productivity of any facility that is lifting, rotating, and transporting drums. Constructed of heavy gauge steel with a premium powder coat paint finish in green, you can be confident these units are built to last. All products are shipped fully assembled, ready-to-use, and are made in the U.S.A.

What's Included

    (1) Drum Lift & Rotator

Features + Benefits

  • Safely and ergonomically lift, rotate, and maneuver drums throughout your facility.
  • Standalone unit (no forklift required).
  • 24V battery powered lift and rotate, manual drive.
  • Raise middle of drum to a maximum height of 84” off the floor.
  • Minimum center grip height of 13” off the floor.
  • Rotate 360° continuously in either direction, at 6 RPM
  • Straddle legs extend under pallets, shelving, or on outside of drums.
  • Electronic jaws for securing drums.
  • Compatible with steel/plastic/fiber drums, 30-55 gallons (18-24” in diameter).
  • Manuevers easily on 4 casters: (2) 6" front rigid, (2) 4" rear swivel.
  • 45"L x 30"W x 90"H.
  • 800 lb. capacity.
  • Heavy gauge steel construction.
  • Premium powder coat paint finish in green.
  • Accessory options include: floor lock (sold separately).
  • Ships fully assembled, ready to use.
  • Made in the U.S.A.

Key Specs

AttributeSpecification

item#

5705181

Brand

Valley Craft

Manufacturer's Warranty

1 year limited warranty

Ship Weight

630.0 LB

ANSI Approved

No

Battery Included

Yes

Capacity

800 lb

Charger Included

Yes

Degree of Rotation

360
AttributeSpecification

Drum Size

30 and 55

Latch Type

Other

OSHA Approved

Yes

Power Source

Battery

Product Type

Transportation or Dumping

Rotation Method

Pull Chain

Product Weight

595.0000 lb

Dimensions L x W x H (in.)

45.0 x 30.0 x 90.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
