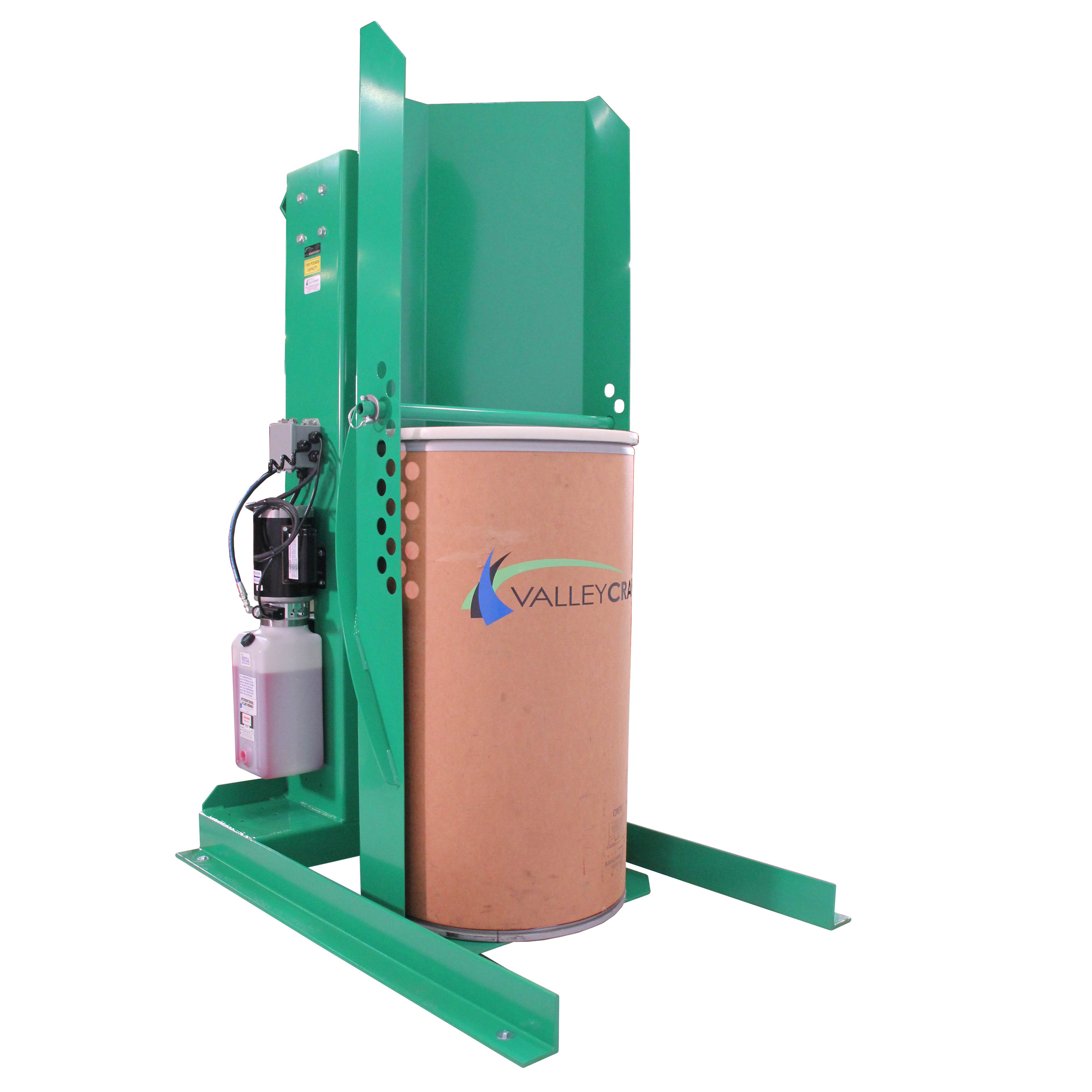

Valley Craft, Drum Dumper, Load Capacity 1500 lb, Max. Lift Height 36 in, Drum Size Multiple Gal, Model# F80163A3

Item# 5700399
Valley Craft, Drum Dumper, Load Capacity 1500 lb, Max. Lift Height 36 in, Drum Size Multiple Gal, Model# F80163A3

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Valley Craft, Drum Dumper, Load Capacity 1500 lb, Max. Lift Height 36 in, Drum Size Multiple Gal, Model# F80163A3

Click or Tap image to Zoom

$4579.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

  • Effortlessly dump drums with improved efficiency.
  • Reduce need for manual lifting, bending, and loading.
  • Eliminate fatigue or possible injury.
  • Stationary unit with 36” dump height.
  • Operate using convenient handheld pendant with magnetic back, controlling the 20 amp, 110 volt motor.

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

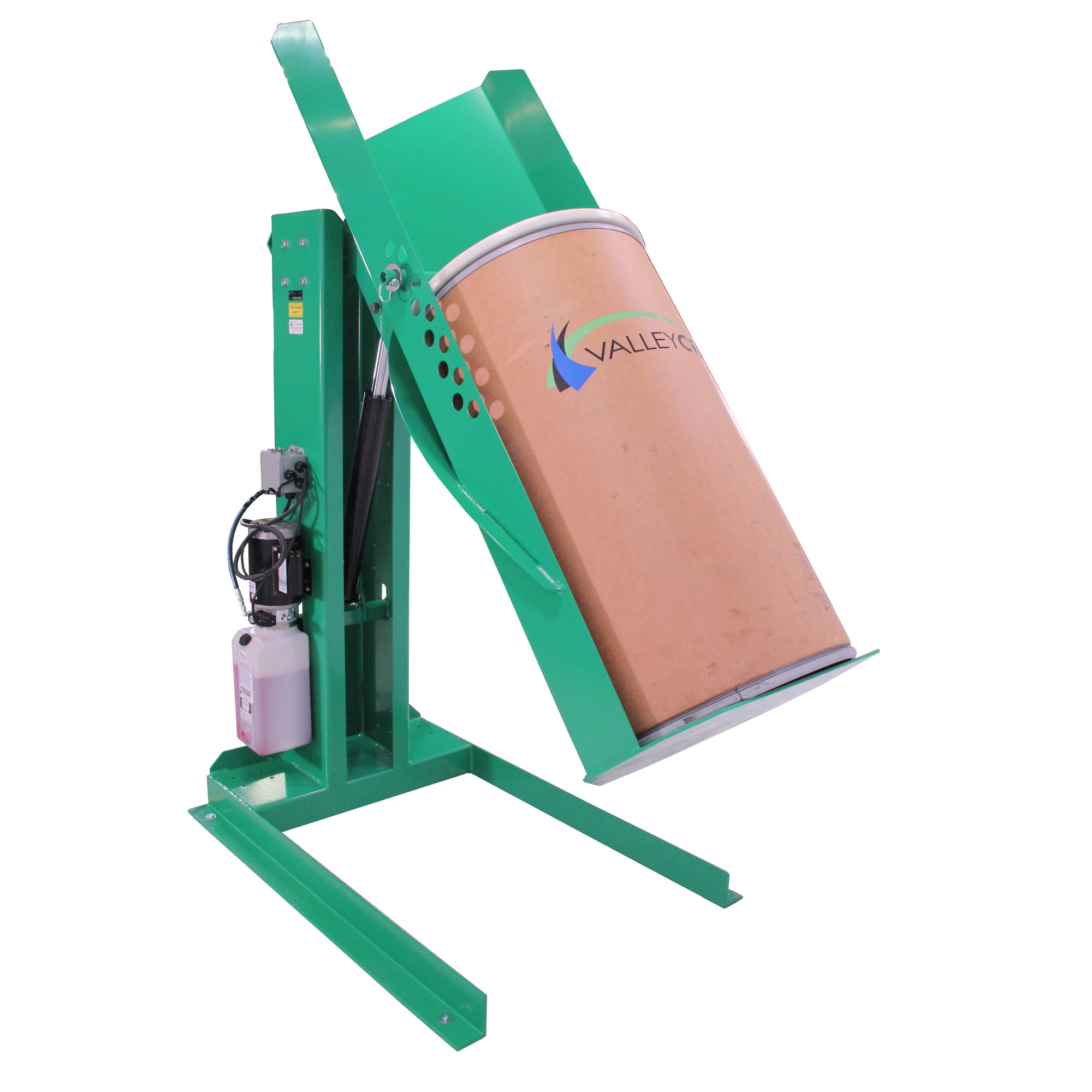

Valley Craft’s 36” Dump Height Drum Dumper is the perfect solution to improve efficiency and safety while dumping material by utilizing a powered lifting and dumping process. Designed with a stationary base and predrilled floor mounting holes, this unit is great for dedicated dump areas. The dump chute accommodates a variety of steel, plastic or fiber drums; ranging up to 25” in diameter and between 26-43” in height. An included hold down bar secures your drum and is adjustable on 1” increments. Unit provides a dump height of 36” and a load capacity of 1500 lbs. Constructed of heavy duty 7 gauge steel, this drum dumper is built to withstand the most rigorous use. Loading drums is made simple with the chute conveniently at floor level. Simply operate the unit using the convenient hand-held pendant with magnetic back. Pendant completes powered dump cycle and gravity return in less than 60 seconds. Using a single stage dump cycle, this unit can provide a quick, safe, and efficient dump. The chute rises vertically until arms meet the pivot rollers causing the chute to rotate. Unit operates using 60 Hz / 110V power, a 1HP motor, and a 1GPM pump. Valley Craft’s Drum Dumpers reduce the need for manual lifting and dumping, and you can be confident they are built to last using a heavy gauge carbon steel construction with a premium powder coat paint finish in green. All products are shipped fully assembled, ready-to-use, and are made in the U.S.A.

What's Included

    (1) Drum Dumper

Features + Benefits

  • Effortlessly dump drums with improved efficiency.
  • Reduce need for manual lifting, bending, and loading.
  • Eliminate fatigue or possible injury.
  • Stationary unit with 36” dump height.
  • Operate using convenient handheld pendant with magnetic back, controlling the 20 amp, 110 volt motor.
  • 60 second powered dump cycle, with gravity return.
  • Unit bolts directly to the floor to ensure safety and stability throughout operation.
  • Smooth operation utilizing dual flow hydraulic control valve system.
  • Simply load containers at floor level.

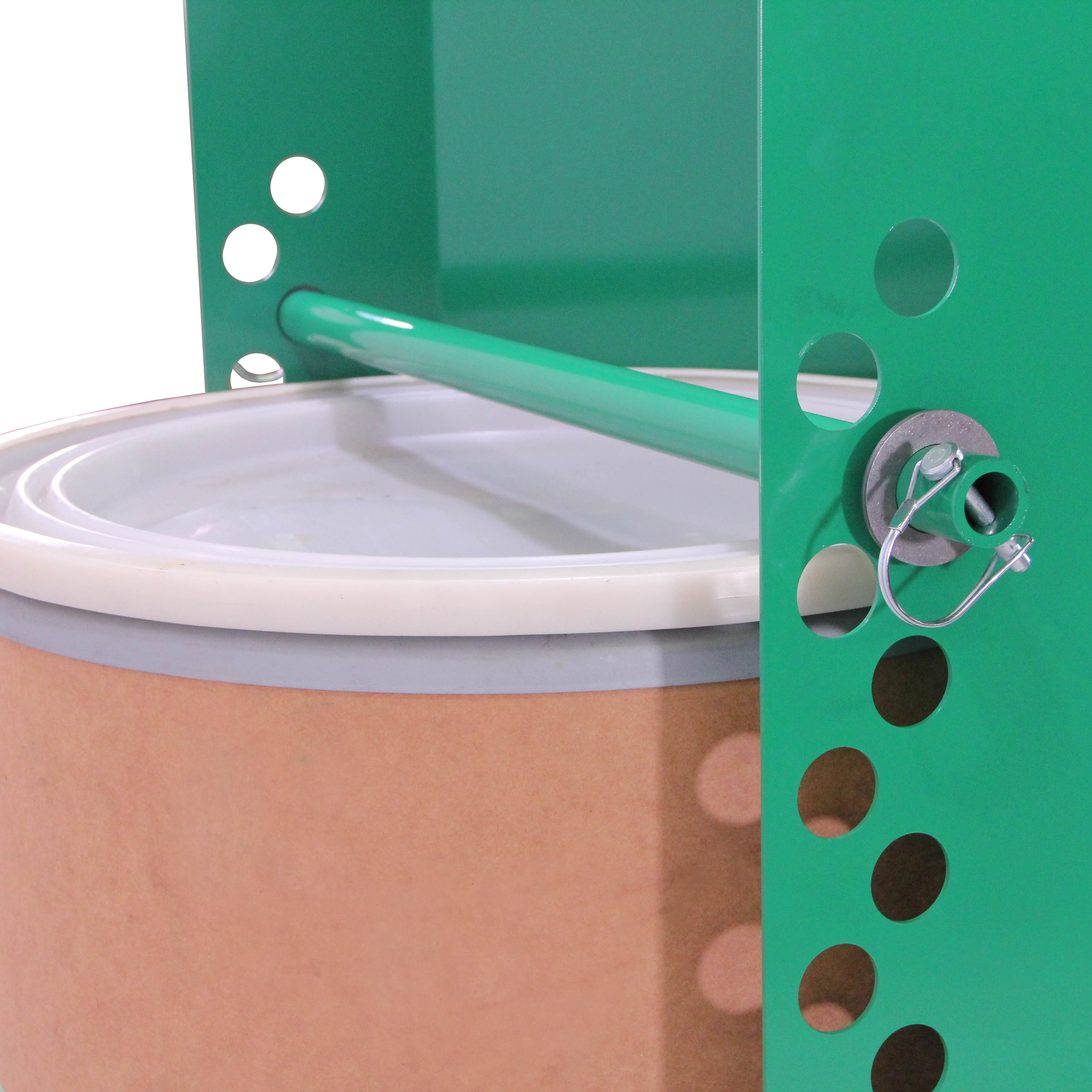

  • Hold down bar secures 26-43"H drums, adjustable on 1” increments.
  • Compatible with steel/plastic/fiber drums up to 50 gallons (up to 25” in diameter).
  • 52"L x 36"W x 60"H.
  • 1,500 lb. capacity.
  • Heavy duty 7 gauge steel construction.
  • Premium powder coat paint finish in green.
  • Ships fully assembled, ready to use.
  • Made in the U.S.A.

Key Specs

AttributeSpecification

item#

5700399

Brand

Valley Craft

Manufacturer's Warranty

1 year limited warranty

Ship Weight

514.0 LB

Load Capacity

1,500 lb

Max. Lift Height

36 in

Drum Size

Multiple Gal
AttributeSpecification

Volts

110

Portable

No

Power Source

Corded

Chute Rotation Clearance

98 in

Phase

Single-phase

Product Weight

450.0000 lb

Dimensions L x W x H (in.)

52.0 x 36.0 x 60.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
