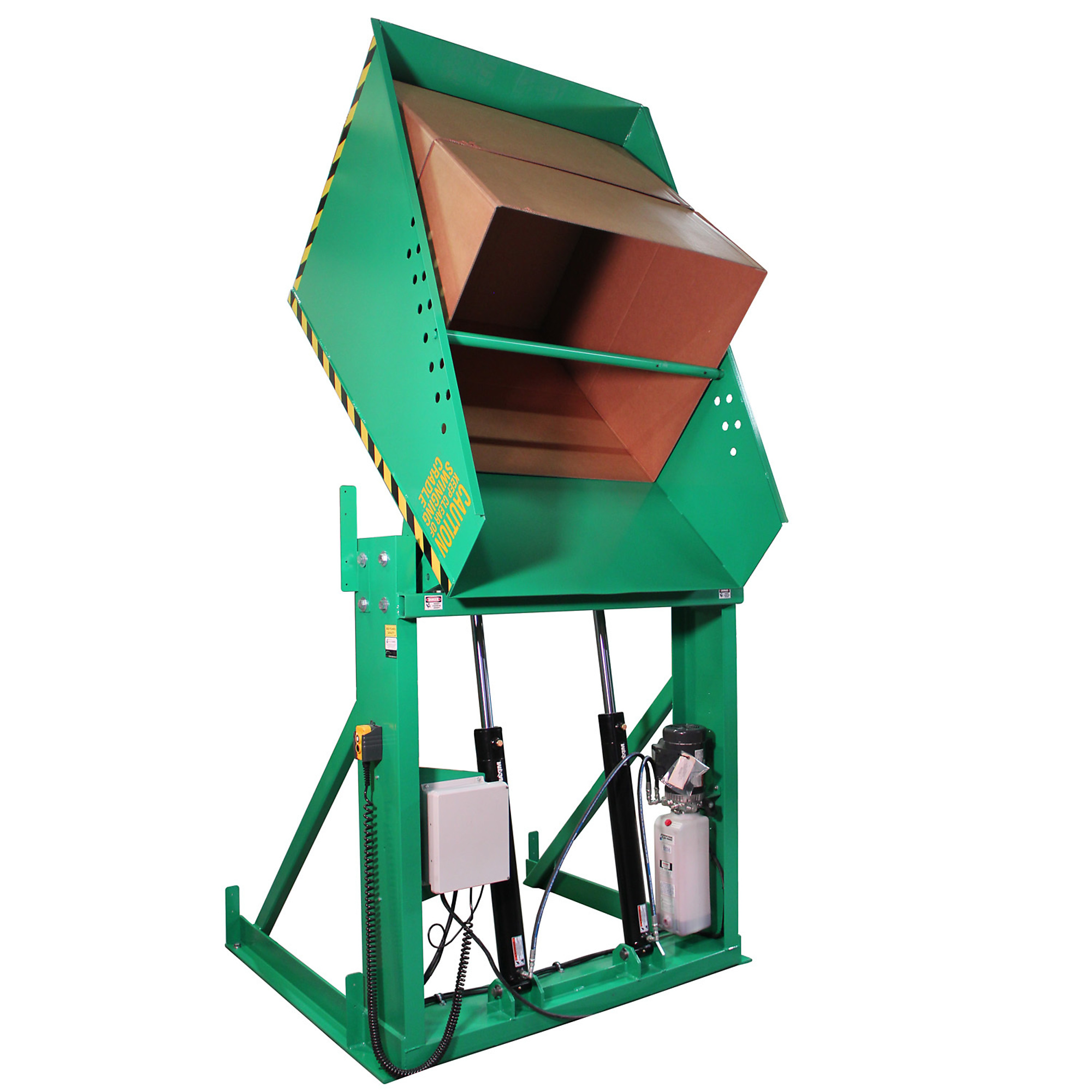

Valley Craft, Box Dumper, 36x36in. Chute, 230V Motor, Capacity 2000 lb, Model# F89036

Item# 6031078
Valley Craft, Box Dumper, 36x36in. Chute, 230V Motor, Capacity 2000 lb, Model# F89036

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Valley Craft, Box Dumper, 36x36in. Chute, 230V Motor, Capacity 2000 lb, Model# F89036

Click or Tap image to Zoom

$8899.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Effortlessly dump material with improved efficiency and reduced fatigue or injury.
  • Ideal for use with a variety of gaylords, totes, crates, tubs, cartons, and other containers.
  • Reduce need for manual lifting, bending, and loading.
  • Chute size accommodates containers up to 36”W x 36”D.
  • Simply load containers by hand or using a standard pallet jack.

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Valley Craft’s Box Dumper (230V, 36 x 36” chute 2,000 lb. capacity 36” dump height) is the perfect solution to effortlessly dump material with improved efficiency while reducing employee fatigue or injury. This premium box bumper is designed to be compatible with a variety of gaylords, crates, tubs, cartons and other containers to fit your needs. The chute is conveniently sized to accommodate containers up to 36”W x 36”D. A spring-loaded hold down bar is included to help keep containers secure, ranging from 30” to 56” in height (adjustable on 2” increments). Dump height is 36” with a large load capacity of 2,000 lbs. Side walls and body are constructed of heavy duty 7 gauge steel to withstand the most rigorous use. Create added safety and stability by bolting your unit directly to the floor using the predrilled mounting holes. Simply operate the unit using the convenient hand-held corded (20ft. pigtailed) pendant with magnetic back (pendant holder included and can be easily installed on either side of unit). Pendant completes the powered dump cycle in less than 30 seconds and has a gravity return. Added safety decals along chute create additional awareness and protection for operators and bystanders. Stop and start your unit at any point during the entire dump process. The premium single flow hydraulic control valve system ensures a smooth operation every time while balancing the load and strain on the cylinders, adding longevity to your unit. Loading containers is simple to do manually or using a standard pallet jack. Unit operates using a 3 phase/60 hz/230V, 2HP motor. Standard rating: 12 DPH. Optional side guards are available (sold separately). Valley Craft’s Box Dumpers reduce the need for manual bending and loading, and you can be confident they are built to last with a premium powder coat paint finish in green. All products are shipped fully assembled, ready-to-use, and are made in the U.S.A.

What's Included

    (1) Box Dumper

Features + Benefits

  • Effortlessly dump material with improved efficiency and reduced fatigue or injury.
  • Ideal for use with a variety of gaylords, totes, crates, tubs, cartons, and other containers.
  • Reduce need for manual lifting, bending, and loading.
  • Chute size accommodates containers up to 36”W x 36”D.
  • Simply load containers by hand or using a standard pallet jack.
  • Spring-loaded hold down bar compatible with containers 30” to 56? in height, adjustable on 2” increments.
  • Operate using convenient handheld pendant with magnetic back, controlling the 3 phase 60 hertz, 230 volt motor (2HP).
  • 30 second powered dump cycle, with gravity return.
  • Unit may be bolted to the floor for added safety and stability throughout operation.
  • Smooth operation utilizing single flow hydraulic control valve system.
  • Safely stop and start at any point during dump cycle.
  • Dump height of 36”.
  • 51"W x 50"D x 66"H.
  • 2,000 lb. capacity.
  • Heavy duty 7 gauge steel construction.
  • Premium powder coat paint finish in green.
  • Accessory options include: side guards (sold separately).
  • Ships fully assembled, ready to use.
  • Made in the U.S.A.

Key Specs

AttributeSpecification

item#

6031078

Brand

Valley Craft

Manufacturer's Warranty

1 year limited warranty

Ship Weight

1226.0 LB

Capacity

2,000 lb
AttributeSpecification

Color

Green

Dump Angle

45 °

Product Weight

1210.0000 lb

Dimensions L x W x H (in.)

50.0 x 51.0 x 66.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
