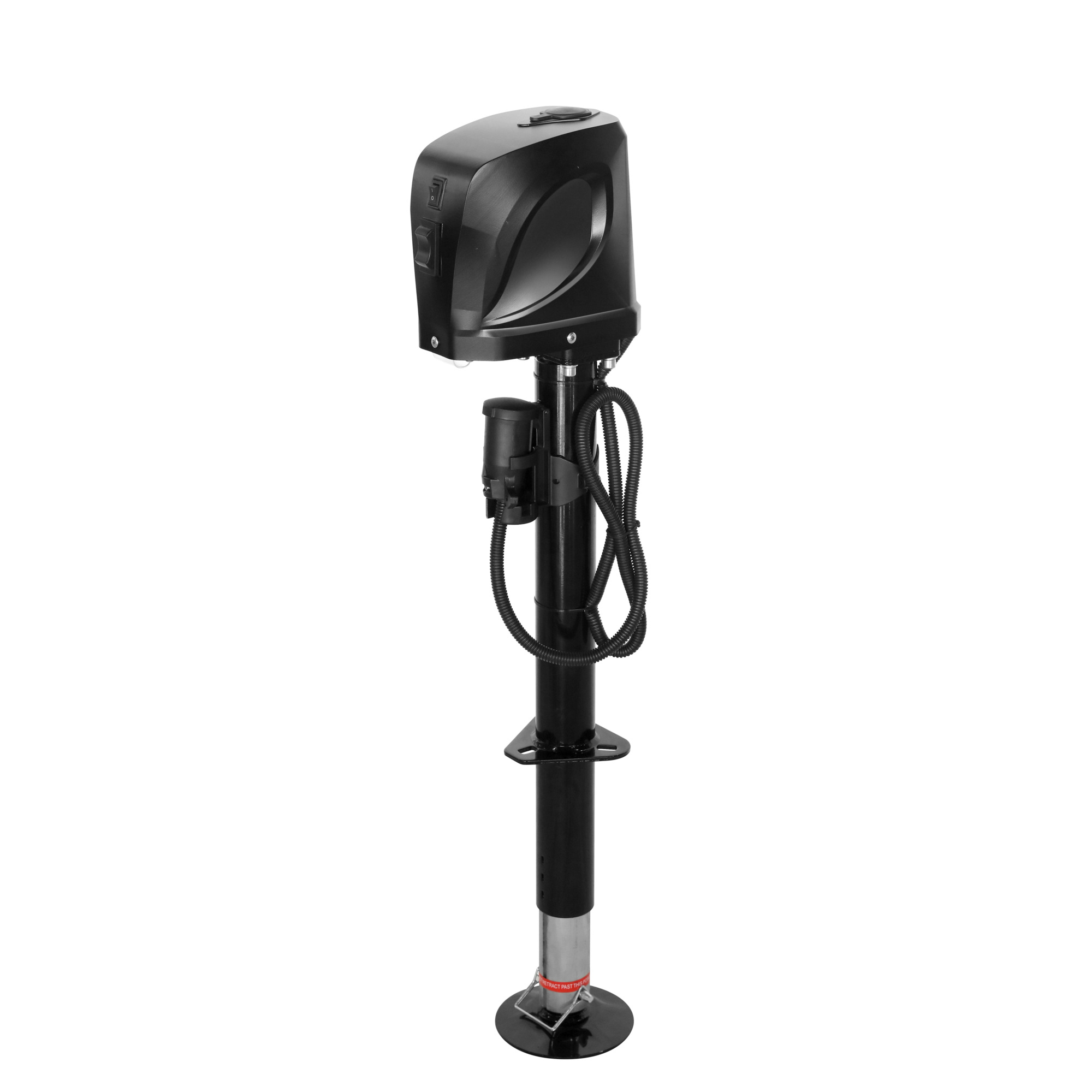

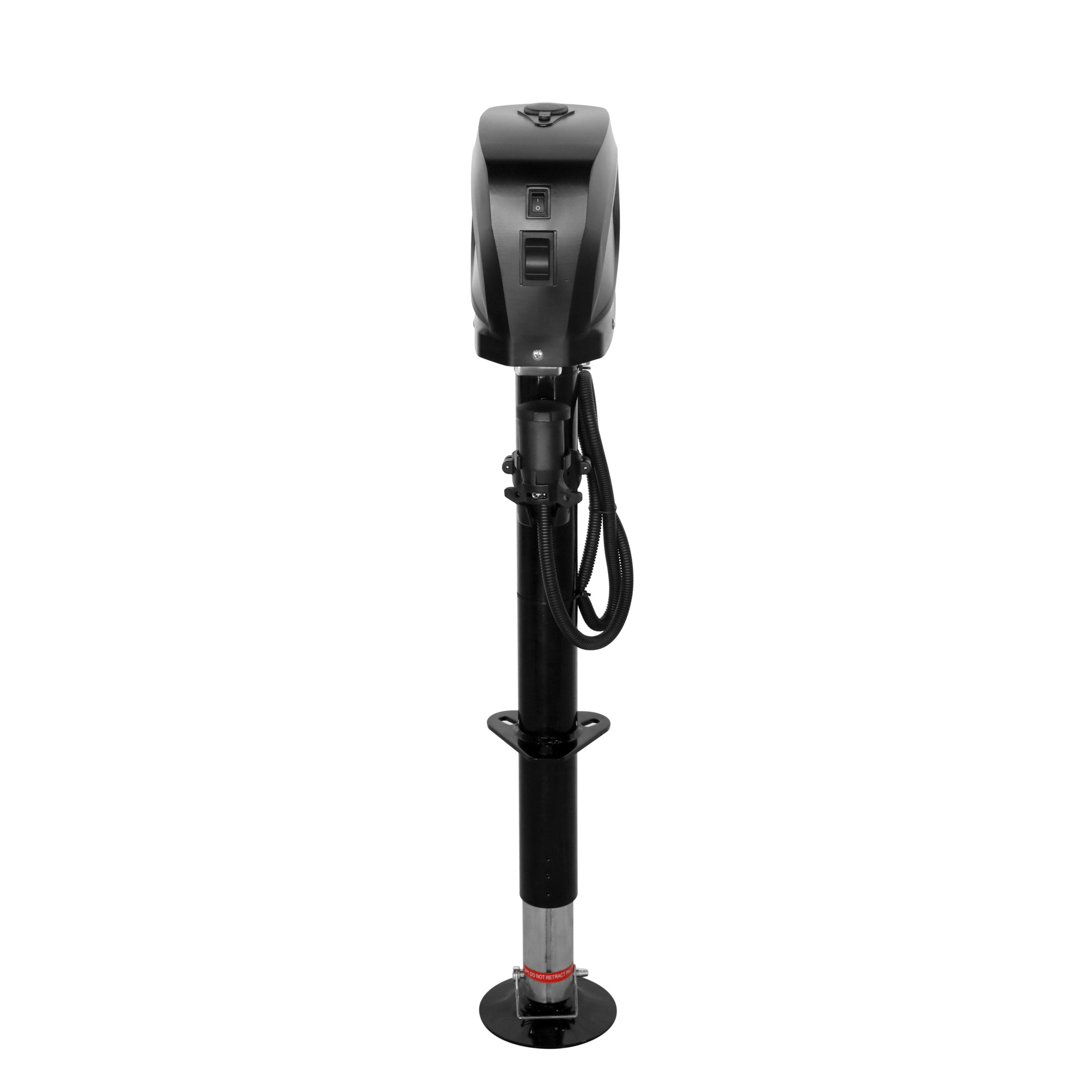

Uriah Products 12V DC Electric Trailer Jack – 5,000 lb Lift, 7-Way Plug, LED Light, Model UC500010

Item# 6927923
"Uriah Products 12V DC Electric Trailer Jack – 5,000 lb Lift, 7-Way Plug, LED Light, Model UC500010"
Uriah Products 12V DC Electric Trailer Jack – 5,000 lb Lift, 7-Way Plug, LED Light, Model UC500010

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Uriah Products 12V DC Electric Trailer Jack – 5,000 lb Lift, 7-Way Plug, LED Light, Model UC500010

Click or Tap image to Zoom

$209.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Powerful 12-Volt DC Motor – Effortlessly raises and lowers trailers with up to 5,000 lb lift capacity, saving time and strain.

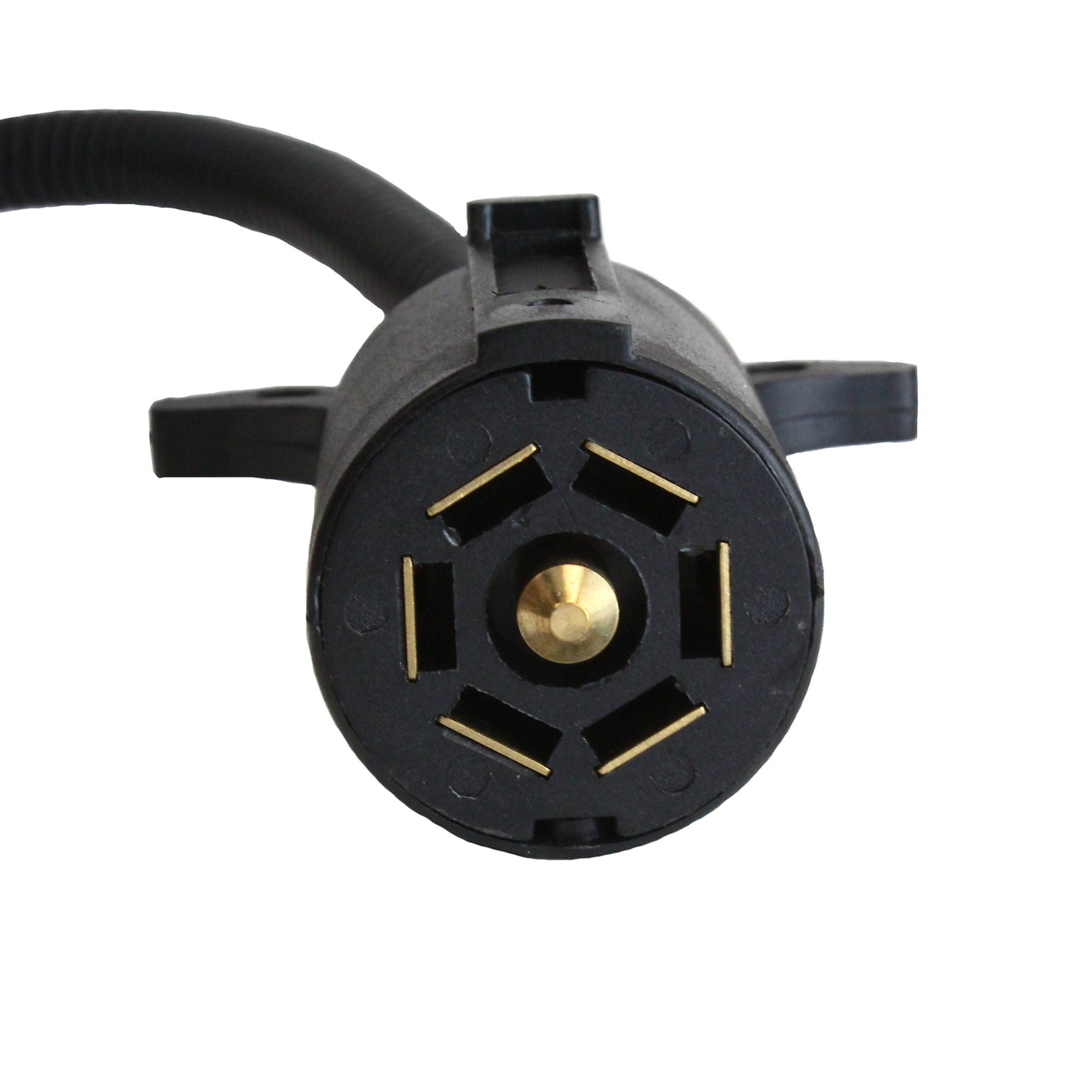

  • Plug-and-Play 7-Way Connector – Simply plug into your vehicle’s existing 7-way RV connector; no wiring or battery clips required.
  • Extended Lift Range – Provides 18? of travel plus an additional 4.5? drop leg, allowing a total height range of 9? – 31.5?.
  • Integrated LED Work Light – Bright built-in light illuminates your hitch area for safe operation in low-light conditions.
  • Durable, Weather-Resistant Design – Sealed power head protects internal components from moisture, dust, and debris.

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

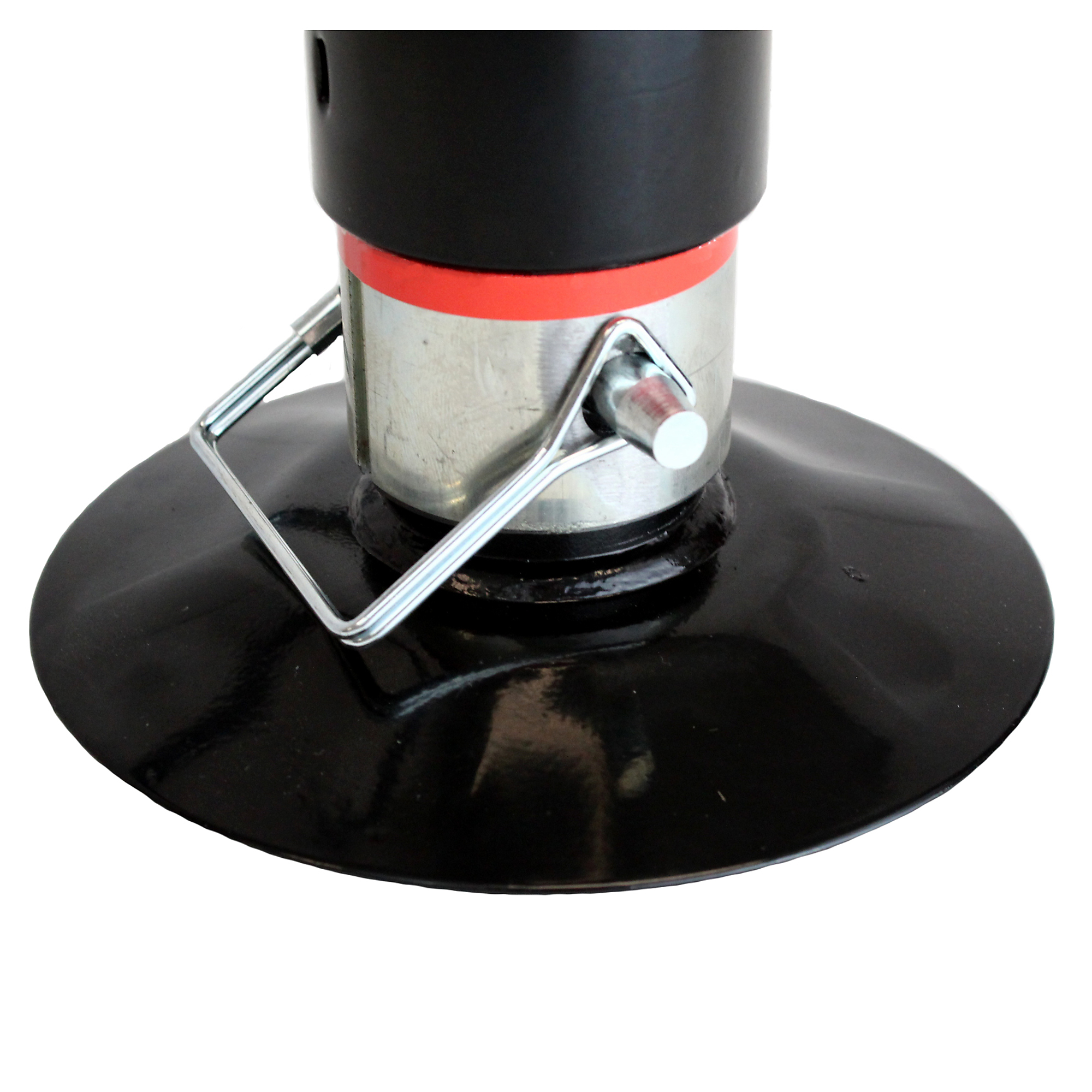

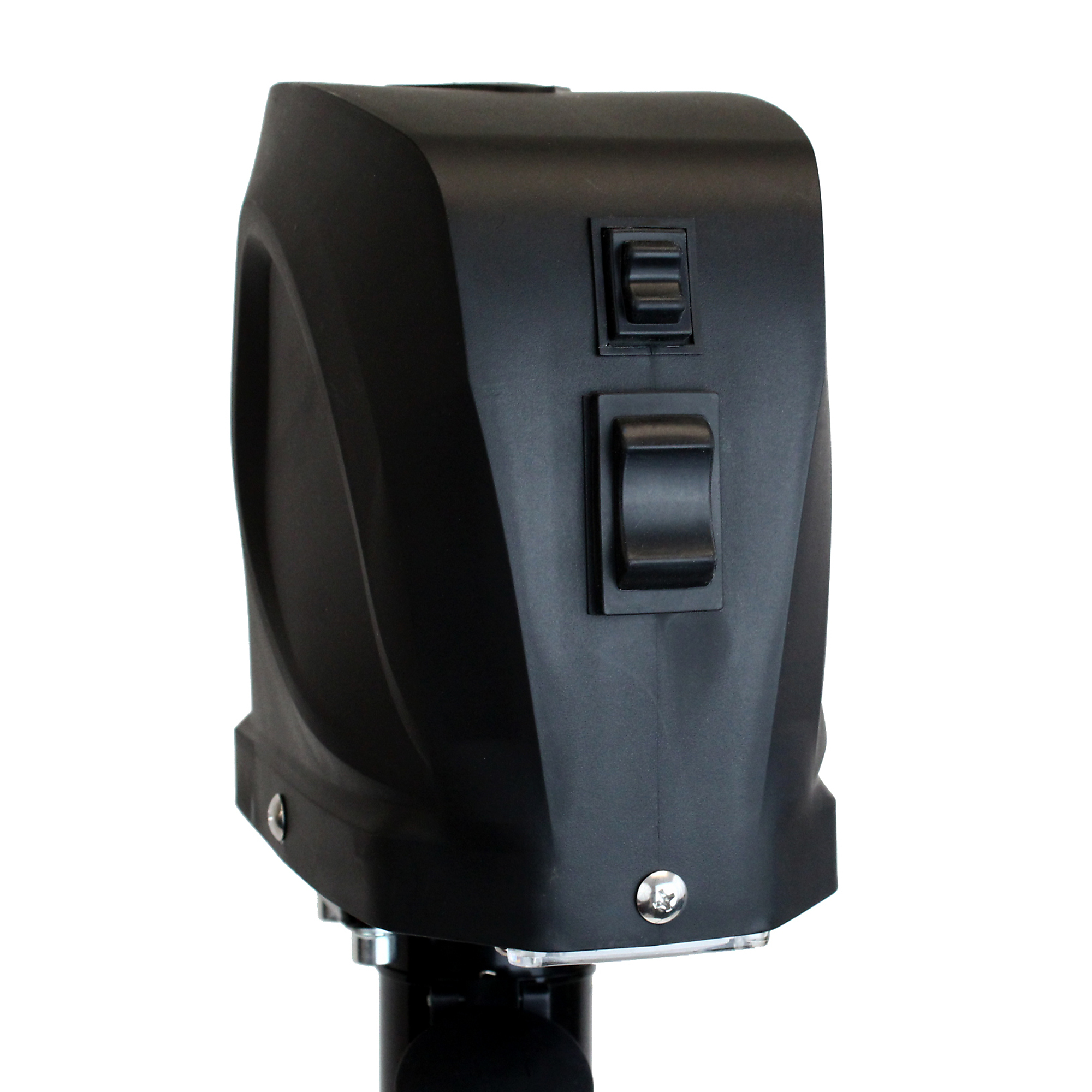

Say goodbye to hand cranking and upgrade your towing rig with this 5000lb 12V DC Electric Trailer Jack from Uriah Products. This jack is loaded with features that will make your next towing job quick and easy, like the plug-and-go 7-way connector. Simply unplug your trailer connector, plug the jack into your vehicle’s pre-wired 7-way connector and push the easy-to-use switch. You’re ready to go! The UC500010 jack runs off your vehicle’s battery … it’s as simple as that! No hard wiring required! The jack is also equipped with an LED light for nighttime use, automatic thermal protection to prevent damage from motor overheating and an automatic shutoff when the jack reaches its minimum (9in.) or maximum (31.5in., including the 4.5in. drop leg) height. Water-resistant housing keeps the elements away from the motor, improving the life of your trailer jack. Other features include a 5,000-pound lift capacity, a built-in storage bracket that secures the 7-way connector when the jack is not in use and an oversized footplate provides extra stability. A manual hand crank is included for emergency use. Uriah Products jacks are backed by a 1-year warranty, so you can shop with confidence. Whether you are looking to upgrade to an electric jack or purchasing a new accessory for your new trailer, the 5,000lb 12V Electric Trailer Jack with 7-way Connector is an excellent choice.

What's Included

    (1) Electric trailer jack (Model UC500010) (1) Manual hand crank handle (1) Mounting hardware kit (bolts, washers, nuts) (1) Footplate / Drop leg assembly (1) Instruction manual

Features + Benefits

  • Powerful 12-Volt DC Motor – Effortlessly raises and lowers trailers with up to 5,000 lb lift capacity, saving time and strain.
  • Plug-and-Play 7-Way Connector – Simply plug into your vehicle’s existing 7-way RV connector; no wiring or battery clips required.
  • Extended Lift Range – Provides 18? of travel plus an additional 4.5? drop leg, allowing a total height range of 9? – 31.5?.
  • Integrated LED Work Light – Bright built-in light illuminates your hitch area for safe operation in low-light conditions.
  • Durable, Weather-Resistant Design – Sealed power head protects internal components from moisture, dust, and debris.

Key Specs

AttributeSpecification

item#

6927923

Brand

Uriah

Manufacturer's Warranty

12 months parts/12months labor

Ship Weight

27.0 LB

Lift Capacity

5,000 lb

Jack Type

Electric

Mount Type

Bolt-On

Tube Type

Round
AttributeSpecification

Tube Size

2.25 in

Length Extended

31.5 in

Length Retracted

9 in

Clearance: Bracket to Jack Top

20 in

Support Capacity

5,000 lb

Ground Support

Foot Plate

Product Weight

27.0000 lb

Dimensions L x W x H (in.)

36.5 x 10.5 x 6.625 in

Reviews

Questions & Answers

138 Reviews This action will navigate to reviews.

Questions

Warranty

Manufacturer's Warranty

12 months parts/12months labor
