Ultra-Tow XTP Ultra-Pack Trailer Hub, 5 on 4-1/2in., 1250-Lb. Capacity

Item# 572051
Top Seller
Ultra-Tow XTP Ultra-Pack Trailer Hub, 5 on 4-1/2in., 1250-Lb. Capacity

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Ultra-Tow XTP Ultra-Pack Trailer Hub, 5 on 4-1/2in., 1250-Lb. Capacity

Click or Tap image to Zoom

$77.99

  • Shipping:

    Free shipping (lower 48 states) - Available now
    $19.99 Same Day

  • Store Pickup:

    7 in stock at Fredericksburg VA - Pickup in under 1 hr

  • Ultra-Pack grease-through system repacks bearings without hub removal
  • 5 on 4-1/2in. bolt pattern with 1,250-lb. capacity
  • Triple-lip spring-loaded seal helps prevent water and contaminant intrusion
  • Electroplated marine-grade hub resists corrosion
  • High-quality cast iron construction

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

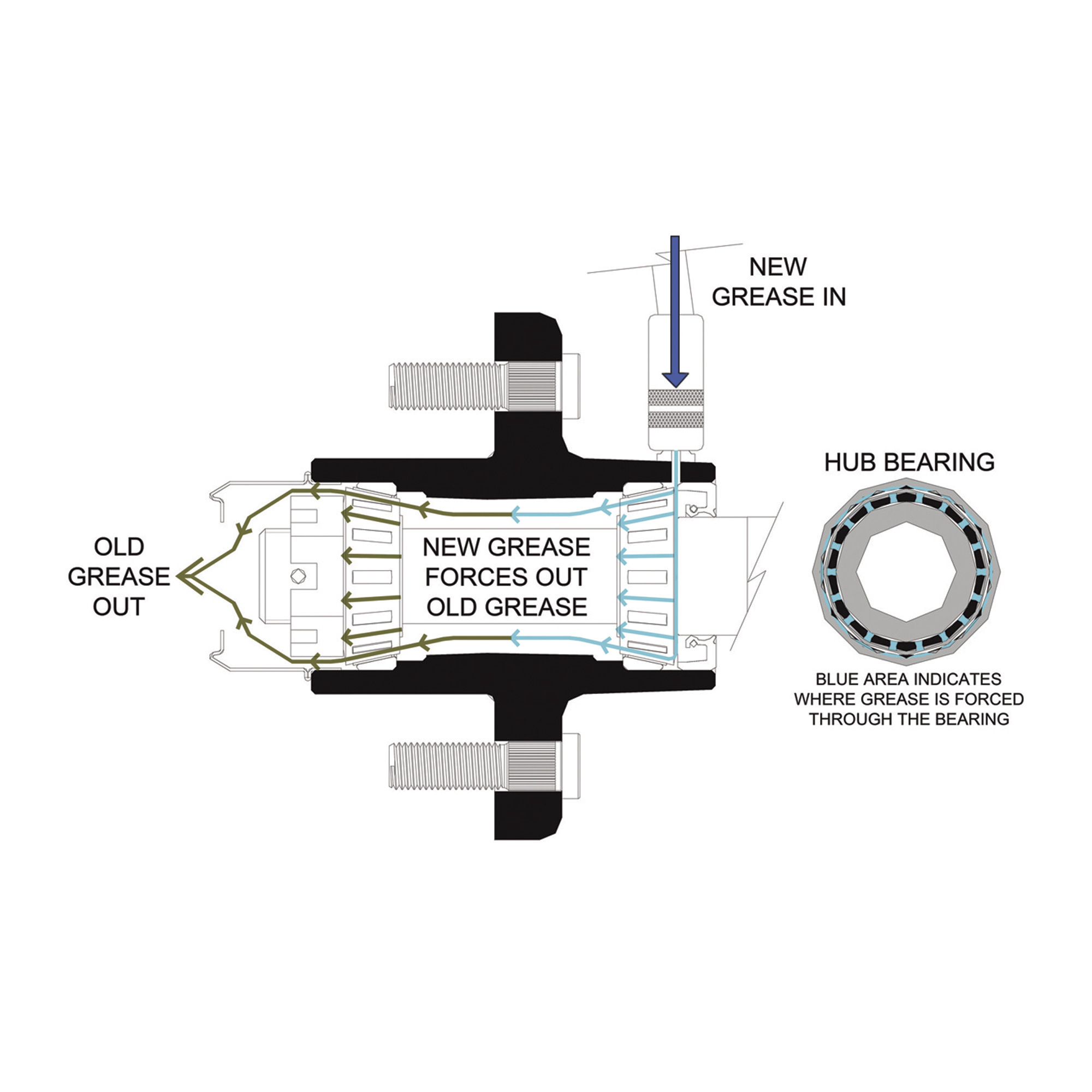

The Ultra-Tow XTP Ultra-Pack Trailer Hub comes fully assembled and prelubed with a proprietary grease-through system that allows complete bearing repacking without hub removal. Fresh grease is injected through the zerk fitting and flows through both inner and outer bearings, purging old grease out the front to protect the rear seal and simplify maintenance. A triple-lip spring-loaded seal helps guard against corrosion while the electro-plated finish resists rust for long service life. Designed to work with an existing spindle for quick installation.

What's Included

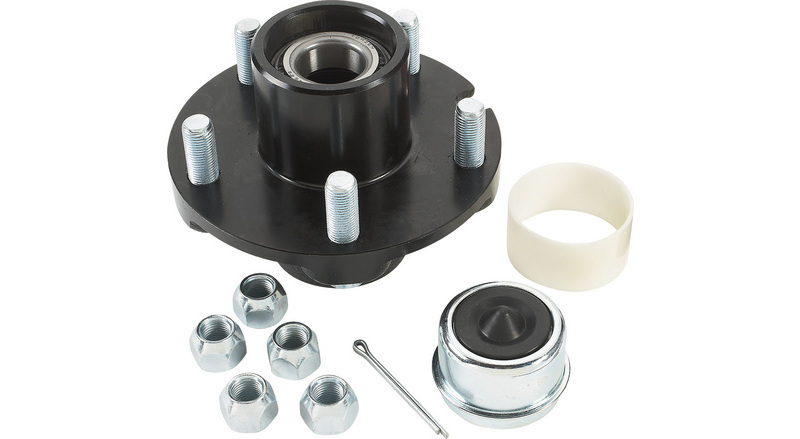

    (1) Ultra-Tow XTP Ultra Pack Trailer Hub (1) Seal (1) Grease cap with zerk (5) Lug nuts (1) Dust cap installation tool
Play Item Video

Features + Benefits

  • Ultra-Pack grease-through system repacks bearings without hub removal
  • 5 on 4-1/2in. bolt pattern with 1,250-lb. capacity
  • Triple-lip spring-loaded seal helps prevent water and contaminant intrusion
  • Electroplated marine-grade hub resists corrosion
  • High-quality cast iron construction

Key Specs

AttributeSpecification

item#

572051

Brand

Ultra-Tow

Manufacturer's Warranty

2 year limited warranty

Ship Weight

6.72 LB

Studs (qty.)

5

Bolt Circle Pattern

4.5 in
AttributeSpecification

Weight Capacity Each

1,250 lb

Seal Size ID

1.25 in

Bearing Size ID

1 in

Bearing Size OD

1 in

Spindle Size

1.25 in

Reviews

Questions & Answers

22 Reviews This action will navigate to reviews.

Questions

1–10 of 16 Questions
Sort by:

  1. What is the length of this hub?

    The hub I am replacing has 4 1/8 ''. length measured thru the center . Will this hub replace the original ?
    Thank you.

    1. The hub length is 4-1/8" measured through the center. You will need to make sure that the current hub will have the same bolt circle and inner and outer bearing sizes.

      Helpful?

    2. This hub's length is 4-1/8" measured through the center. As long as the hub you're replacing has the same bolt circle and bearing sizes, this hub will replace it.

      Helpful?

  2. what is rhe size for a bearing dust cap replacement

    1. The trailer hub will have a 2" outside diameter metal dust cap. The inside diameter of the metal dust cap rubber seal is 1 1/8".

      Helpful?

    2. This Ultra-Tow Ultra Pack Trailer Hub will have a 2" outside diameter metal dust cap. The inside diameter of the metal dust cap, for the rubber seal, is 1 1/8".

      Helpful?

  3. Do these hubs have the ability for brakes

    If so what brake package is needed? Thank you

    1. No

      Helpful?

    2. Brakes cannot be attached to these hubs. Whether using disc or drum brakes, the hubs will be built into the brake mechanisms. We do not sell any brakes that would match the spindle size that marries with this hub.

      Helpful?

  4. I have both bearing numbers l44643 inside and out . 1.25 seal 1.25 spindle.. which hub do I need?

    1 answer

    1. This hub has a 1" inner and outer bearing size. It features a 1.25" seal size to fit a 1.25" spindle.

      Helpful?

  5. Do these Hubs come pre-packed with Marine grease?

    1 answer

    1. This hub comes pre-greased with an NLGI grade #2 lithium complex grease. It is not packed with a marine grease.

      Helpful?

  6. What is the flange diameter of this hub? Thank you.

    1 answer

    1. The outside diameter of the flange is 5.65 inches.

      Helpful?

  7. Will these work to replace the hubs and wheels on the Ultra Tow 40x48 Trailer? Planning for a future purchase

    1 answer

    1. The Ultra-Tow 40" x 48" trailers, item 5569386 and item 49804 have 4 on 4" hubs. This would not be a recommended replacement hub.

      Helpful?

  8. What size spindle is it

    1 answer

    1. This trailer hub fits a 1.25" spindle.

      Helpful?

  9. The description on this states that this is for a 1.25 straight spindle but the picture shows a bearing number that would be on a 1 1/16 spindle. Which one of these is correct? I need one for a 1.25 straight spindle.

    1 answer

    1. This is the correct trailer hub for a 1.25" spindle.

      Helpful?

  10. What races are included?

    1 answer

    1. This hub includes an L44610 race.

      Helpful?

Warranty

Manufacturer's Warranty

2 year limited warranty
