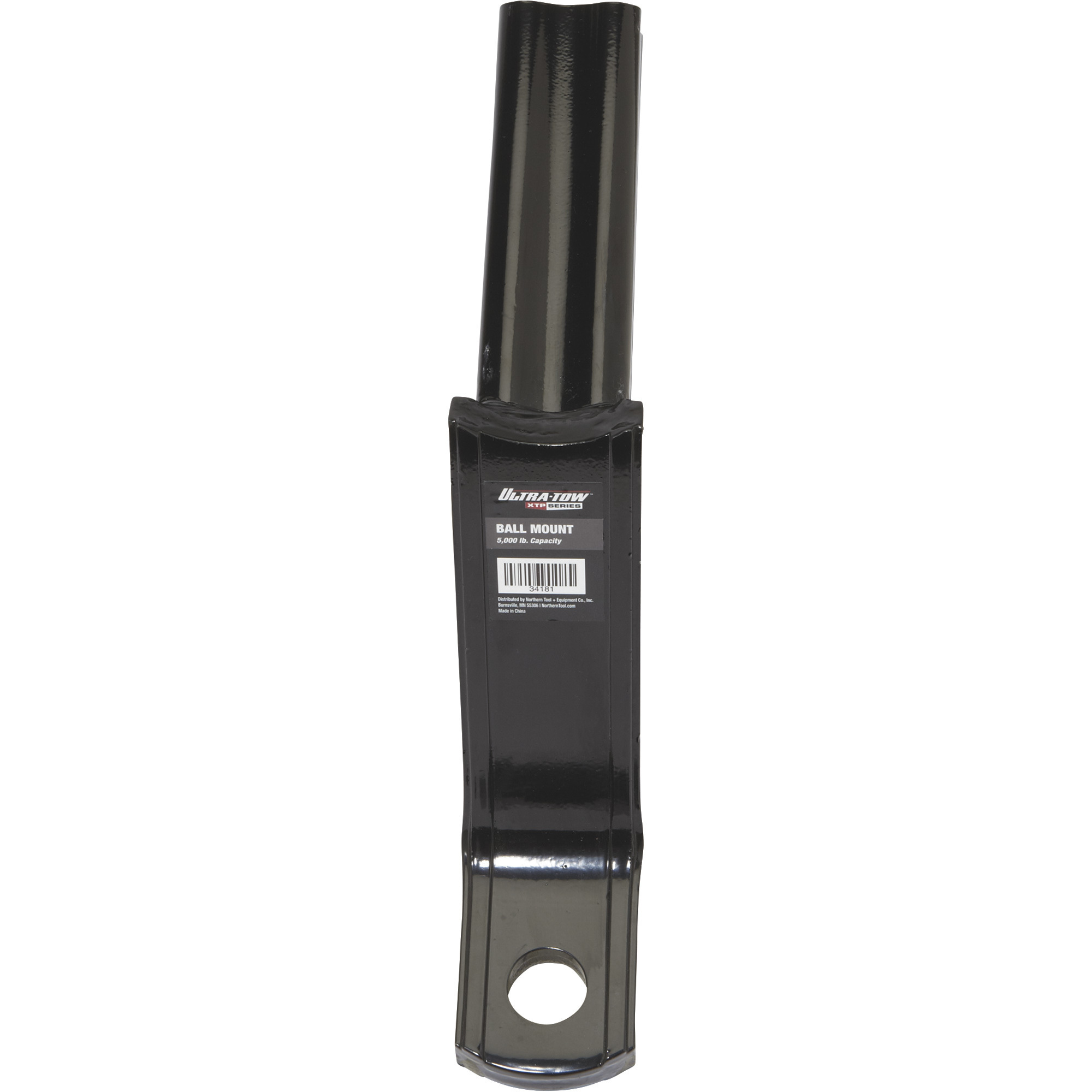

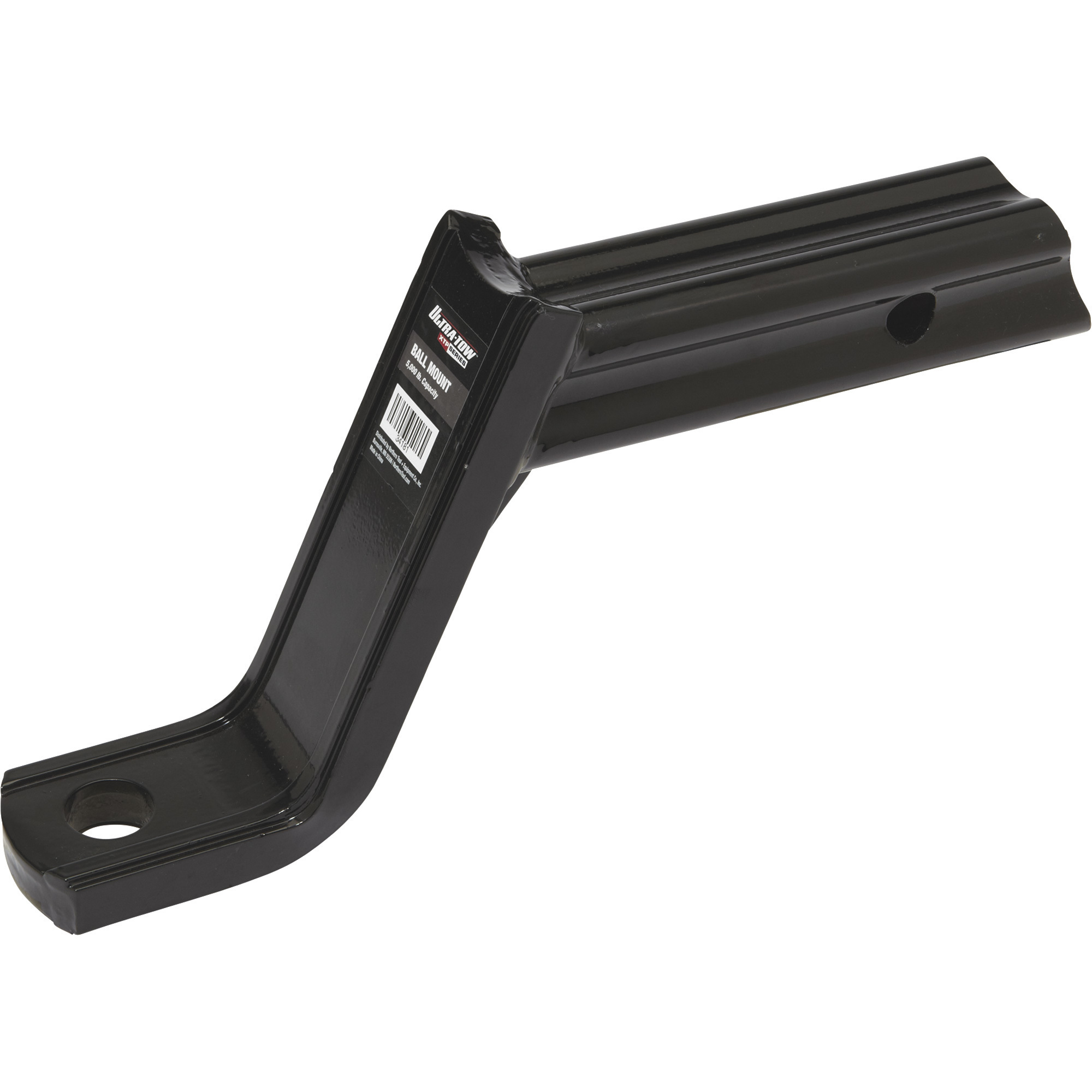

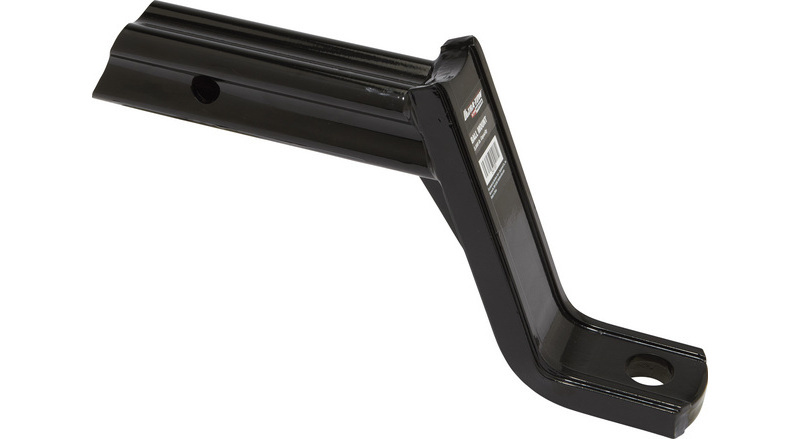

Ultra-Tow XTP Receiver Hitch Ball Mount, Class III, 6in. Drop, 5000-Lb. Trailer Weight

Item# 34181
"Ultra-Tow XTP Receiver Hitch Ball Mount, Class III, 6in. Drop, 5000-Lb. Tow Weight"
Ultra-Tow XTP Receiver Hitch Ball Mount, Class III, 6in. Drop, 5000-Lb. Trailer Weight

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Ultra-Tow XTP Receiver Hitch Ball Mount, Class III, 6in. Drop, 5000-Lb. Trailer Weight

Click or Tap image to Zoom

$39.99

  • Shipping:

    Available now

  • Store Pickup:

    Call Store for Availability
  • Special Channel System design prevents hitch from rusting into the receiver
  • Built-in lockrail system allows you to tighten or loosen the hitch ball using a single wrench
  • Use with any flat wrench hitch ball with 1in. shank dia. (ball not included)
  • Tough steel construction handles the tough towing jobs
  • Special XTP 2-Coat System comprised of an E-coat base with black powder-coat finish for exceptional rust resistance

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Ultra-Tow XTP Receiver Hitch Ball Mount has a Special Channel System design that channels away moisture to resist rust seize-up, making the hitch easy to remove when not in use. Fits 2in. receivers. Class III ball mount has a 6in. drop or 4-3/4in. rise with 5,000-lb. trailer weight capacity and 500-lb. tongue weight capacity.

What's Included

    (1) Ultra-Tow XTP Receiver Hitch Ball Mount
Play Item Video

Features + Benefits

  • Special Channel System design prevents hitch from rusting into the receiver
  • Built-in lockrail system allows you to tighten or loosen the hitch ball using a single wrench
  • Use with any flat wrench hitch ball with 1in. shank dia. (ball not included)
  • Tough steel construction handles the tough towing jobs
  • Special XTP 2-Coat System comprised of an E-coat base with black powder-coat finish for exceptional rust resistance

Key Specs

AttributeSpecification

item#

34181

Brand

Ultra-Tow XTP

Manufacturer's Warranty

1 year limited warranty

Ship Weight

8.19 LB

Gross Towing Weight

5,000 lb

Class Rating

Class III

Fits Receivers

2 in
AttributeSpecification

Rise

4.75 in

Drop

6 in

Material

Steel

Tongue Weight

500 lb

Hitch Pin Included

No

Ball Diameter Hole

1 in

Reviews

Questions & Answers

6 Reviews This action will navigate to reviews.

Questions

1–3 of 3 Questions
Sort by:

  1. How is the measurement made for this item 34181?

    I need to know where you start and end the measurement for the 6" drop.

    1. For the "drop", you'd measure the difference in the height of the upper surface of the square steel tube and the height of the top surface of the bar where the ball is mounted.

      Helpful?

    2. Drop and rise is measured from the top of the receiver hitch opening, to the top of the ball platform.

      Helpful?

    3. The 6" drop measurement on the hitch is from the bottom of the top tube to the bottom of the bar that the ball fits into.

      Helpful?

  2. For the XTP Receiver Hitch Ball Mount with 6" drop. 2" ball what diameter and length of threaded shank?

    1 answer

    1. This hitch can be used with any flat wrench hitch ball with a 1" diameter shank and 2" minimum shank length.

      Helpful?

  3. Measurement

    What is the distance from the center of the pin to the rise/drop? I need about 10-12 inches to clear the bumper and need to find one that is longer than most.

    1 answer

    1. The distance from the center of the pin hole to the center of the ball hole is 10 inches. That distance from the pin hole to the rise/drop would be less than 10 inches.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
