The overall dimensions of this winch are 13" long x 5" wide x 5" high.
Ultra-Tow XTP 12 Volt DC-Powered Electric ATV/UTV Winch, 4500-Lb. Capacity, Steel Wire Rope
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$379.99

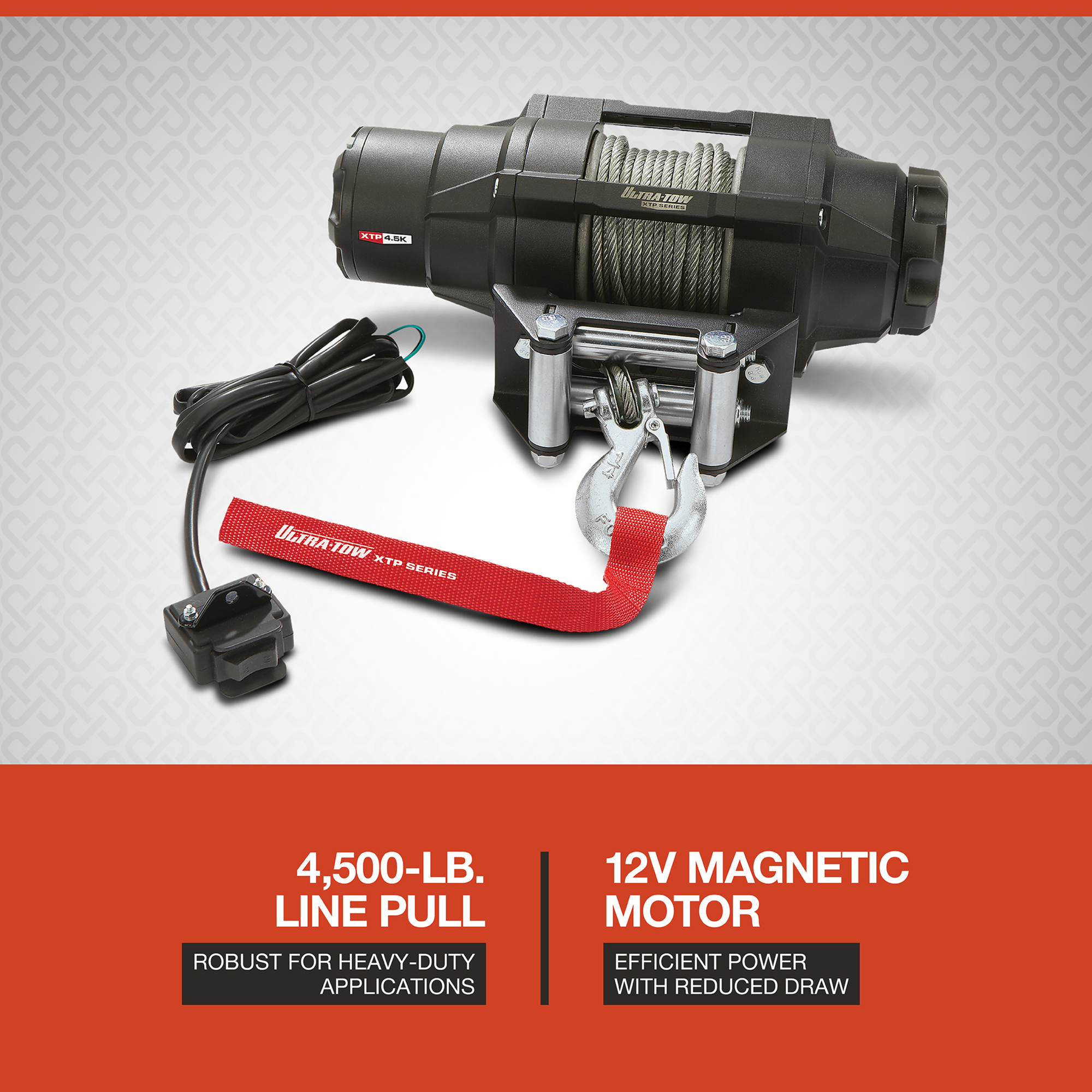

- Energy-efficient 1.5 HP, 12V permanent magnetic motor delivers a powerful 4,500-lb. line pull rating

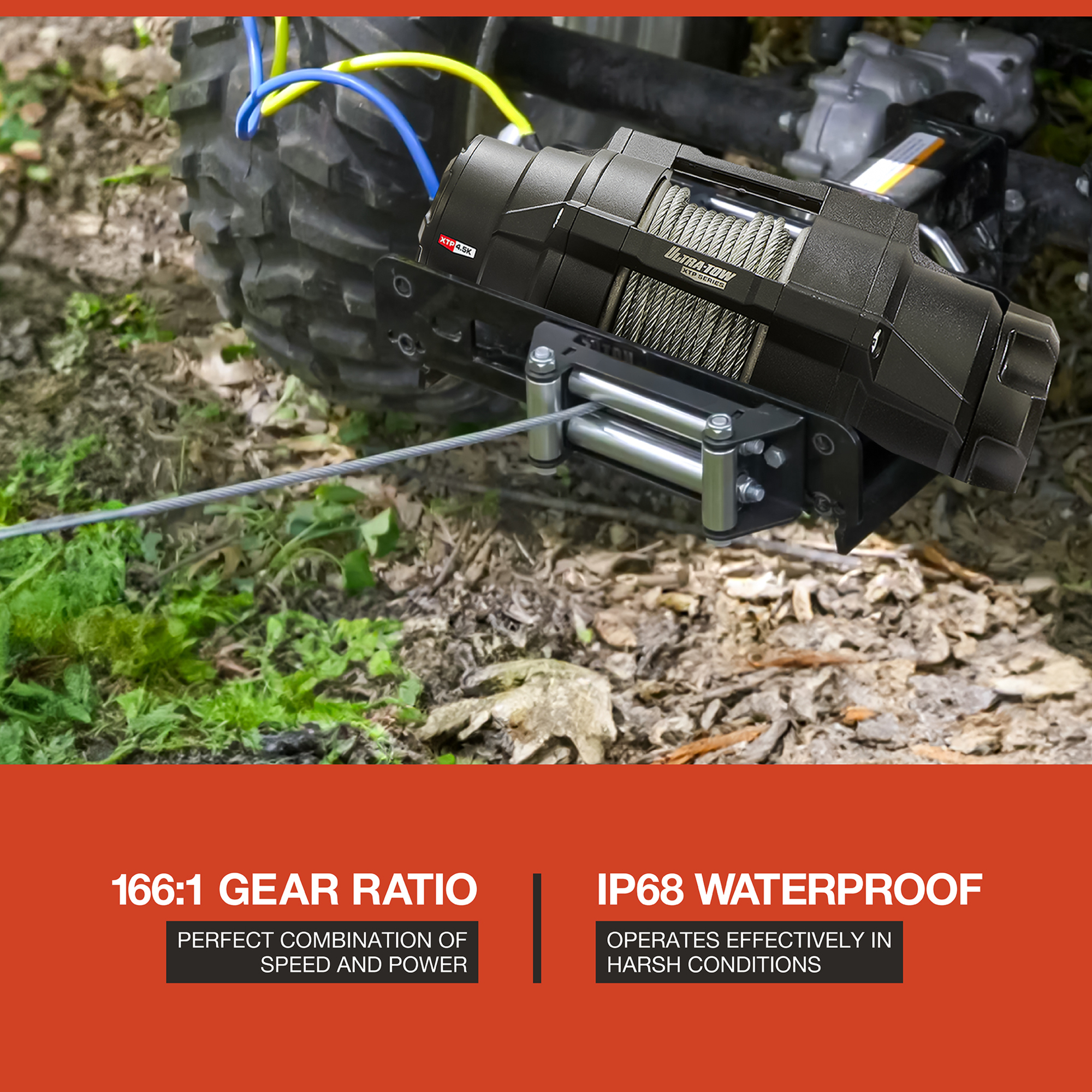

- Well-balanced planetary gear design with a 166:1 gear ratio for exceptional strength teamed with the speed you need
- Dependable mechanical braking system plus automatic load holding for added safety
- IP68 weatherproof rating for all-weather performance
- 40ft. of 0.217in. dia. aircraft-grade galvanized steel wire winch rope for durability and dependable performance
Prop 65 Warning: See Details
See full description
What's Included
- (1) Ultra-Tow XTP 12 Volt DC-Powered Electric ATV/UTV Winch (1) Hook (1) Roller fairlead
Remote Operation Capability
Features a mini rocker switch with a 12 FOOT CORD for convenient remote operation, allowing for safe distance control
Robust and Reliable
Constructed with HIGH-QUALITY MATERIALS to withstand harsh conditions, whether on the TRAIL, the FARM or any OUTDOOR ACTIVITIES
High-Efficiency Motor
The PERMANENT MAGNETIC MOTOR is specifically designed to DRAW LESS CURRENT, improving energy efficiency and extending battery life during use
Features + Benefits
- Energy-efficient 1.5 HP, 12V permanent magnetic motor delivers a powerful 4,500-lb. line pull rating
- Well-balanced planetary gear design with a 166:1 gear ratio for exceptional strength teamed with the speed you need
- Dependable mechanical braking system plus automatic load holding for added safety
- IP68 weatherproof rating for all-weather performance
- 40ft. of 0.217in. dia. aircraft-grade galvanized steel wire winch rope for durability and dependable performance
- Mini rocker switch with 12ft. cord offers remote operation
See All DC Powered Winches
See All Ultra-Tow DC Powered Winches
Currently Viewing This Product
Specifications
Specifications
Ultra-Tow XTP 12 Volt DC-Powered Electric ATV/UTV Winch, 4500-Lb. Capacity, Steel Wire Rope
Mile Marker HI-Series 12 Volt DC Powered Hydraulic Truck Winch, 10,500-lb. Capacity, Galvanized Aircraft Cable, Model# HI10500
Mile Marker HI-Series Hydraulic 12 Volt DC Powered Electric Truck Winch, 12,000-lb. Capacity, Galvanized Aircraft Cable, Model# HI12000
Mile Marker SEC8 Scout 12 Volt DC Powered Electric Truck Winch, 8000-Lb. Capacity, Synthetic Rope, Model# 77-53141
Horsepower
Same
1.5 HP
-
-
4.8 HP
Capacity (Line Pull)
Same
4,500 lb
10,500 lb
12,000 lb
8,000 lb
Volts
Same
12
-
-
-
Max. Amps
Same
275
-
-
-
Application
Same
ATV
-
-
-
Gear Type
Same
Planetary
Planetary
Planetary
Planetary
Line Speed
Same
21 ft./min.
31 ft./min.
31 ft./min.
10.8 ft./min.
Gear Ratio
Same
166:1
6:1
6:1
152:1
Rope Length
Same
40 ft
100 ft
100 ft
96 ft
Rope Material
Same
Galvanized Steel
Galvanized Steel
Galvanized Steel
Synthetic Fiber
Brake Type
Same
Self-Locking
-
-
-
Remote
Same
Yes
Yes
Yes
Yes
Remote Cord Length
Same
12 ft
-
-
12 ft
Automatic Load Holding
Same
Yes
-
-
-
Freespooling
Same
Yes
Yes
Yes
Yes
Fairlead Type
Same
Roller
-
-
Hawse
Underwater Use
Same
Yes
-
-
-
Mounting Hardware Included
Same
Yes
-
-
-
Dimensions L x W x H (in.)
Same
13.0 x 5.0 x 5.0 in
-
-
-
Product Weight
Same
27.0000 lb
-
-
-
Rope Diameter
Same
-
3/8 in
3/8 in
3/8 in
