Ultra-Tow XTP 12 Volt ATV/UTV Winch, 3500-Lb. Capacity, 232 Max. Amps

Item# 4995914
"Ultra-Tow XTP 12 Volt ATV/UTV Winch, 3500-Lb. Capacity, 232 Max. Amps"
Ultra-Tow XTP 12 Volt ATV/UTV Winch, 3500-Lb. Capacity, 232 Max. Amps

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Ultra-Tow XTP 12 Volt ATV/UTV Winch, 3500-Lb. Capacity, 232 Max. Amps

Click or Tap image to Zoom

$354.99

  • Shipping:

    Available now
    $19.99 Same Day

  • Store Pickup:

    1 in stock at Fredericksburg VA - Pickup in under 1 hr

  • Permanent magnetic motor draws less current while delivering the torque needed for 3,500-lb. rated line pull
  • IP68 waterproof rating for all-weather performance
  • Mechanical braking system for safety and security
  • 50ft. long x 3/16in. dia. aircraft-grade wire rope provides strength and durability
  • Includes hook and roller fairlead

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

This Ultra-Tow XTP 12 Volt ATV/UTV Winch features an energy-efficient permanent magnetic motor that delivers the power and performance you need. It's well balanced to deliver strength plus speed with a line pull rated for up to 3,500 lbs. And it also includes durable aircraft-grade wire rope and more to keep it safe, dependable and performing in all weather conditions. Comes compete with hook and roller fairlead.

What's Included

    (1) Winch (1) Hook (1) Roller fairlead

ENERGY EFFICIENCY

The WINCH’S ENERGY-EFFICIENT DESIGN not only enhances battery life but also provides ample power to handle demanding tasks without excessive current draw

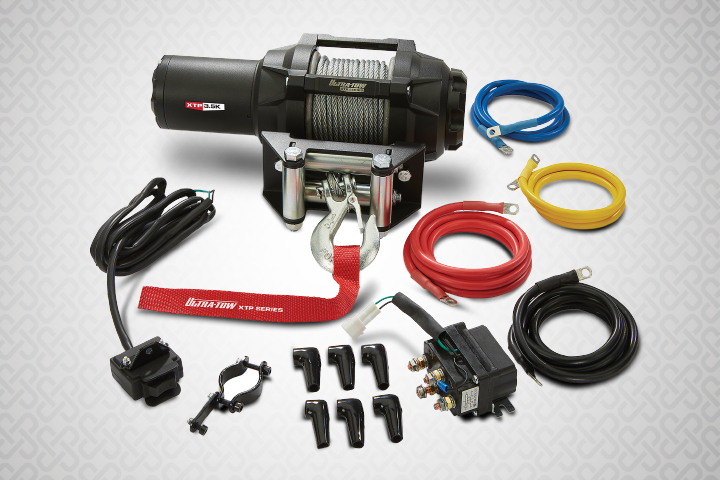

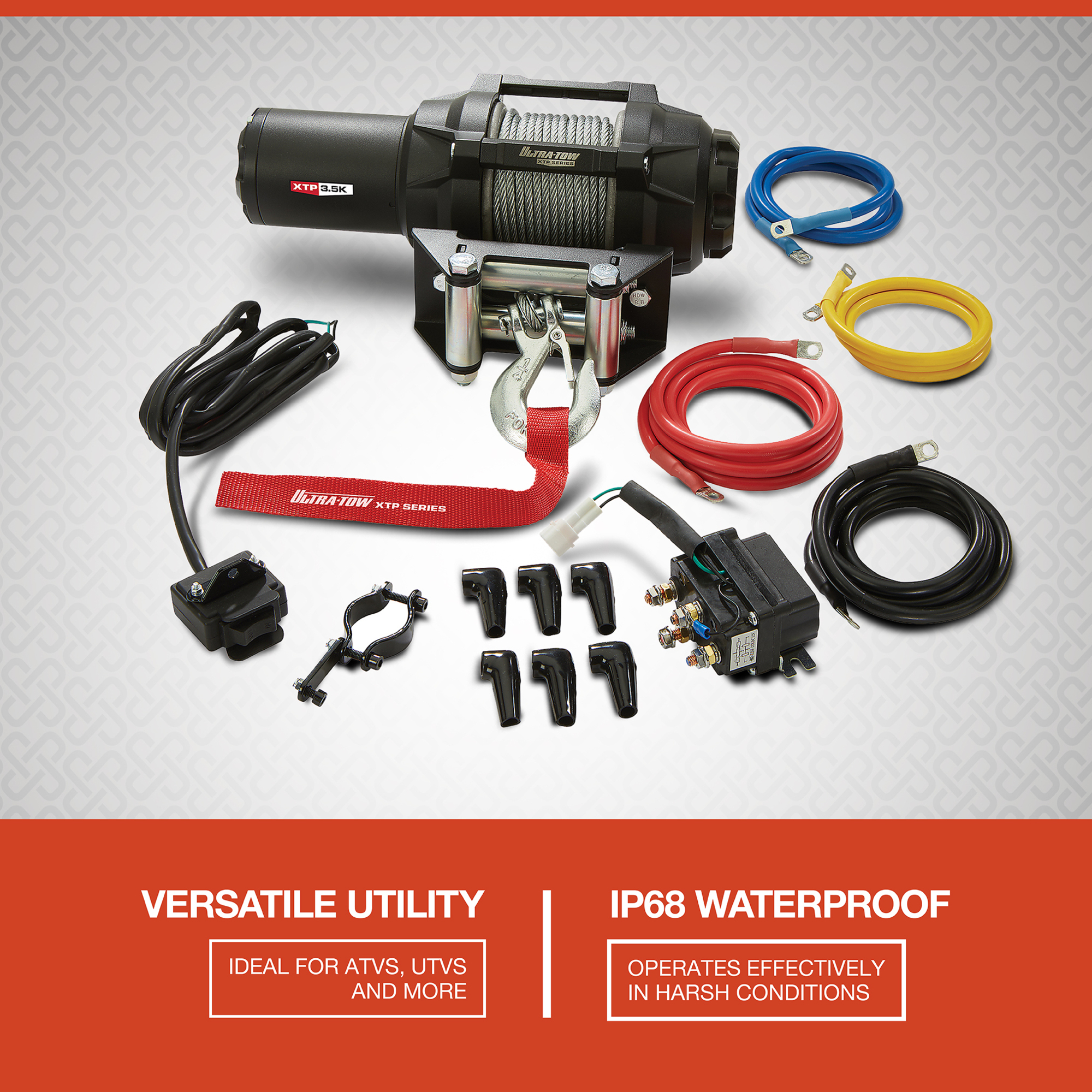

VERSATILE APPLICATION

Ideal for ATVs and UTVs, this winch is perfect for PULLING HEAVY LOADS in a variety of outdoor settings, from farms to off-road trails

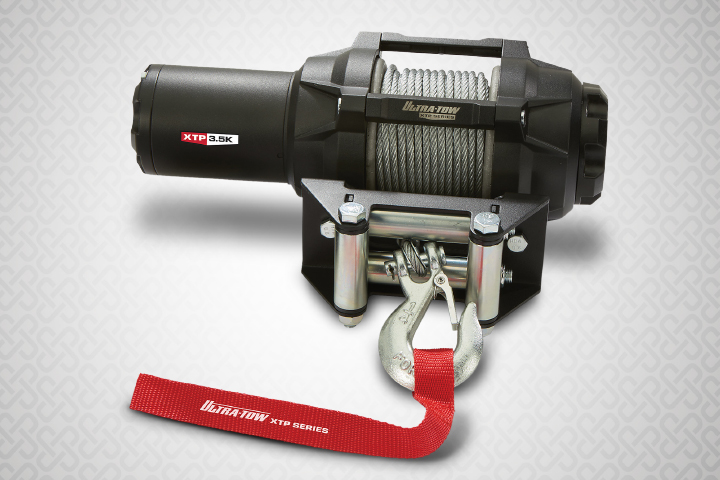

ALL-WEATHER CAPABILITY

With its SUPERIOR WATERPROOF RATING, the winch operates FLAWLESSLY IN RAIN, SNOW, MUD or DUST, making it a reliable tool in any environment

Features + Benefits

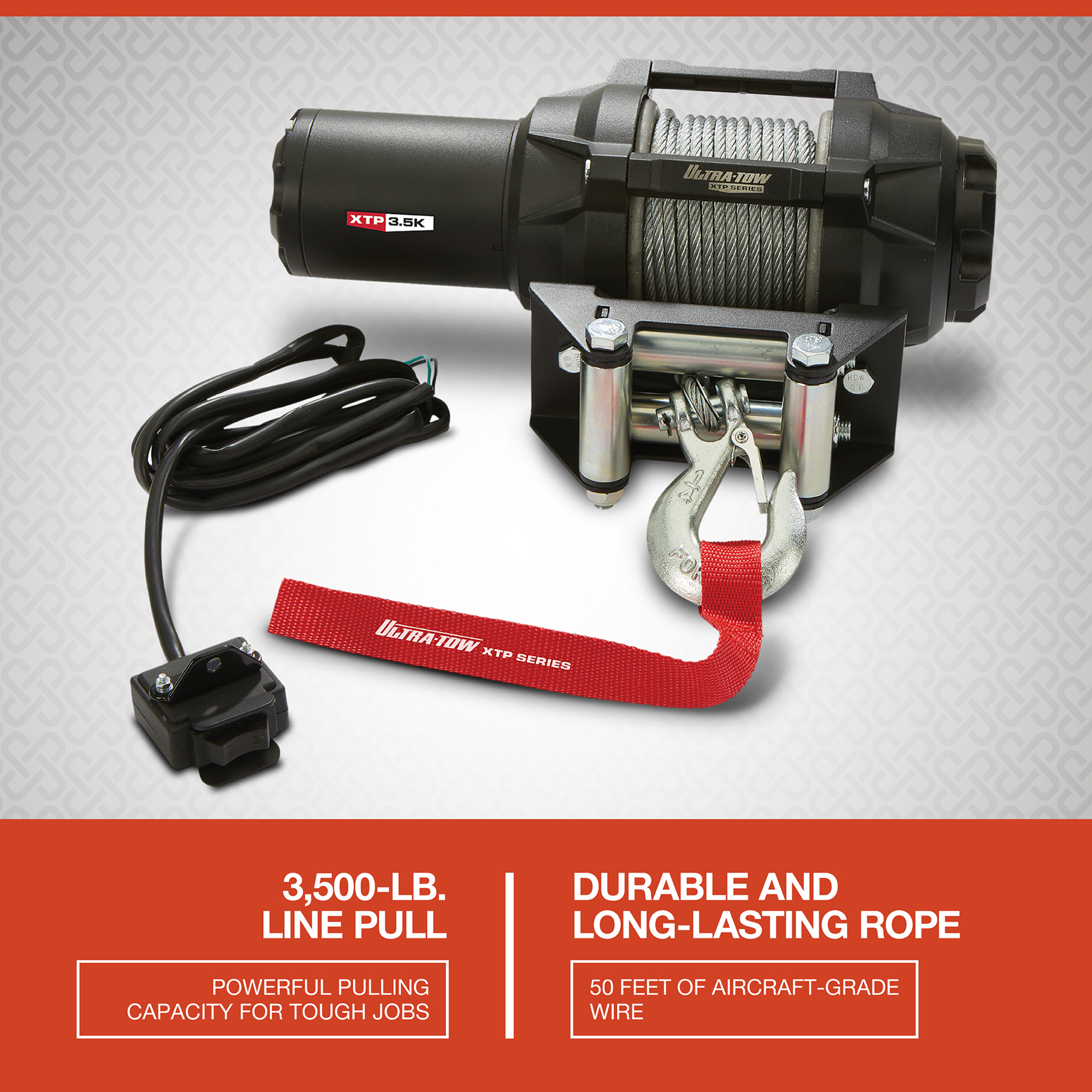

  • Permanent magnetic motor draws less current while delivering the torque needed for 3,500-lb. rated line pull
  • IP68 waterproof rating for all-weather performance
  • Mechanical braking system for safety and security
  • 50ft. long x 3/16in. dia. aircraft-grade wire rope provides strength and durability
  • Includes hook and roller fairlead

Key Specs

AttributeSpecification

item#

4995914

Brand

Ultra-Tow

Manufacturer's Warranty

1 year limited warranty

Ship Weight

24.4 LB

Horsepower

2 HP

Capacity (Line Pull)

3,500 lb

Volts

12

Max. Amps

232

Application

ATV

Gear Type

Planetary

Line Speed

23 ft./min.

Gear Ratio

136:1

Rope Length

50 ft
AttributeSpecification

Rope Diameter

3/16 in

Rope Material

Galvanized Steel

Brake Type

Self-Locking

Remote

Yes

Remote Cord Length

12 ft

Automatic Load Holding

Yes

Freespooling

Yes

Fairlead Type

Roller

Underwater Use

Yes

Mounting Hardware Included

Yes

Dimensions L x W x H (in.)

13.0 x 4.0 x 4.0 in

Product Weight

24.0000 lb

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

  1. What is the foot print and bolt pattern of the mounting plate?

    1 answer

    1. The mounting plate is 5.87" (149mm) long x 5.12" (130mm) deep x 2.05" (52mm) high.

      The outside holes on the bottom plate and the front plate are 124 +/-0.1mm apart on center. Front to back those bolt holes on the bottom plate are 76.2 mm on center. The two holes in the middle of the bottom plate are spaced 63 +/- 0.1mm on center.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
