Ultra-Tow Spring-Return Trailer Sidewind Jack, Weld-On, 54in. Extended Length, 10,000-Lb. Lift Capacity

Item# 113369
Ultra-Tow Spring-Return Trailer Sidewind Jack, Weld-On, 54in. Extended Length, 10,000-Lb. Lift Capacity

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Ultra-Tow Spring-Return Trailer Sidewind Jack, Weld-On, 54in. Extended Length, 10,000-Lb. Lift Capacity

Click or Tap image to Zoom

$189.99

  • Shipping:

    Available now

  • Store Pickup:

    Not Available
  • Twin thrust bearing design inside the jack allows for easier expanding and retracting
  • Heavy welding on crankshaft increases strength
  • Large 3/4in. pull pin easily activates the spring-return mechanism when dropping the leg
  • Direct weld jack offers a strong, reliable, permanent mount
  • 10,000-lb. lift capacity; 12,000-lb. support capacity

See full description

Complete Your Solution

  • Ultra-Tow Spring-Return Trailer Sidewind Jack, Weld-On, 54in. Extended Length, 10,000-Lb. Lift Capacity
  • Ultra-Tow Spring-Return Jack Handle, Fits Ultra-Tow 10,000-Lb. Jack
  • Ironton 1in. x 14ft. Standard-Duty Ratchet Tie-Down Straps, 4-Pk., 300-Lb. Working Load, 900-Lb. Capacity, 14ft.L, Polyester
Price for all three:

$228.97

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

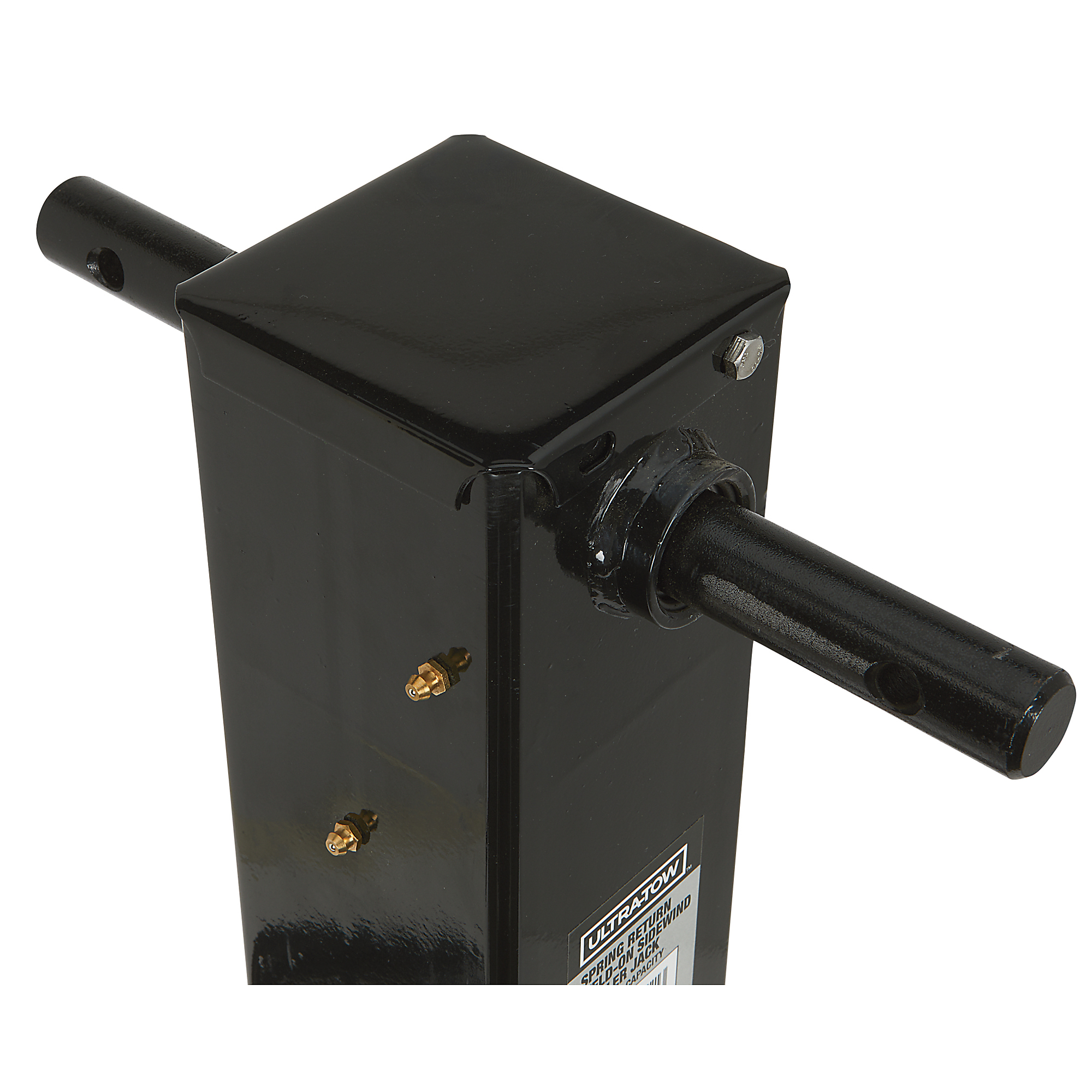

This Ultra-Tow Spring-Return Trailer Sidewind Jack offers a strong, reliable, permanent mount. The twin thrust bearing design inside the jack allows for easier expanding and retracting, and heavy welding on the crankshaft increases strength. A large 3/4in. pull pin easily activates the spring-return mechanism when dropping the leg. The jack has a sturdy 4in. square tube that delivers 10,000-lb. lift capacity, 12,000-lb. support capacity. 28-1/4in. retracted length; 54in. extended length. Manufactured to exact specifications and tolerances using the toughest materials, precision crafting, exterior-grade finishes and more. Top engineering and strenuous testing goes above and beyond industry requirements, ensuring long-term durability that withstands the most extreme conditions.

What's Included

    (1) Spring-return weld-on sidewind trailer jack

Features + Benefits

  • Twin thrust bearing design inside the jack allows for easier expanding and retracting
  • Heavy welding on crankshaft increases strength
  • Large 3/4in. pull pin easily activates the spring-return mechanism when dropping the leg
  • Direct weld jack offers a strong, reliable, permanent mount
  • 10,000-lb. lift capacity; 12,000-lb. support capacity
  • 28-1/4in. retracted length; 54in. extended length
  • Sidewind model with large, comfortable, grooved handle for almost effortless cranking
  • Built-in grease zerk fitting for easy greasing of the jack
  • Includes foot pad for added stability
  • Corrosion-resistant exterior-grade black powder-coat finish inside and out for long-term durability

Key Specs

AttributeSpecification

item#

113369

Brand

Ultra-Tow

Manufacturer's Warranty

1 year limited warranty

Ship Weight

55.0 LB

Lift Capacity

10,000 lb

Mount Type

Weld-On

Length Extended

54 in
AttributeSpecification

Length Retracted

28.25 in

Support Capacity

12,000 lb

Ground Support

Foot Plate

Drop Leg Travel

13.5 in

Length of Travel

25.5 in

Product Weight

55.0000 lb

Dimensions L x W x H (in.)

28.0 x 11.8 x 8.66 in

Reviews

Questions & Answers

23 Reviews This action will navigate to reviews.

Questions

1–5 of 5 Questions
Sort by:

  1. Are there grease zerks on these legs

    1 answer

    1. This trailer jack has a built in grease zerk fitting.

      Helpful?

  2. Does it come with a handle.

    1 answer

    1. The handle is not included. Please refer to item 113375 for the compatible handle.

      Helpful?

  3. Is this jack 4"x4" or 4.5"x4.5"

    1 answer

    1. This jack has a 4" x 4" tube.

      Helpful?

  4. Can 2 of these jack’s be paired for easier lifting

    1 answer

    1. Two jacks are able to be paired. When they are paired, lifting becomes faster and more stable.

      Helpful?

  5. What is the retractable length?

    1 answer

    1. The retracted length of this jack is 28.25" and the extended length is 54".

      Helpful?
