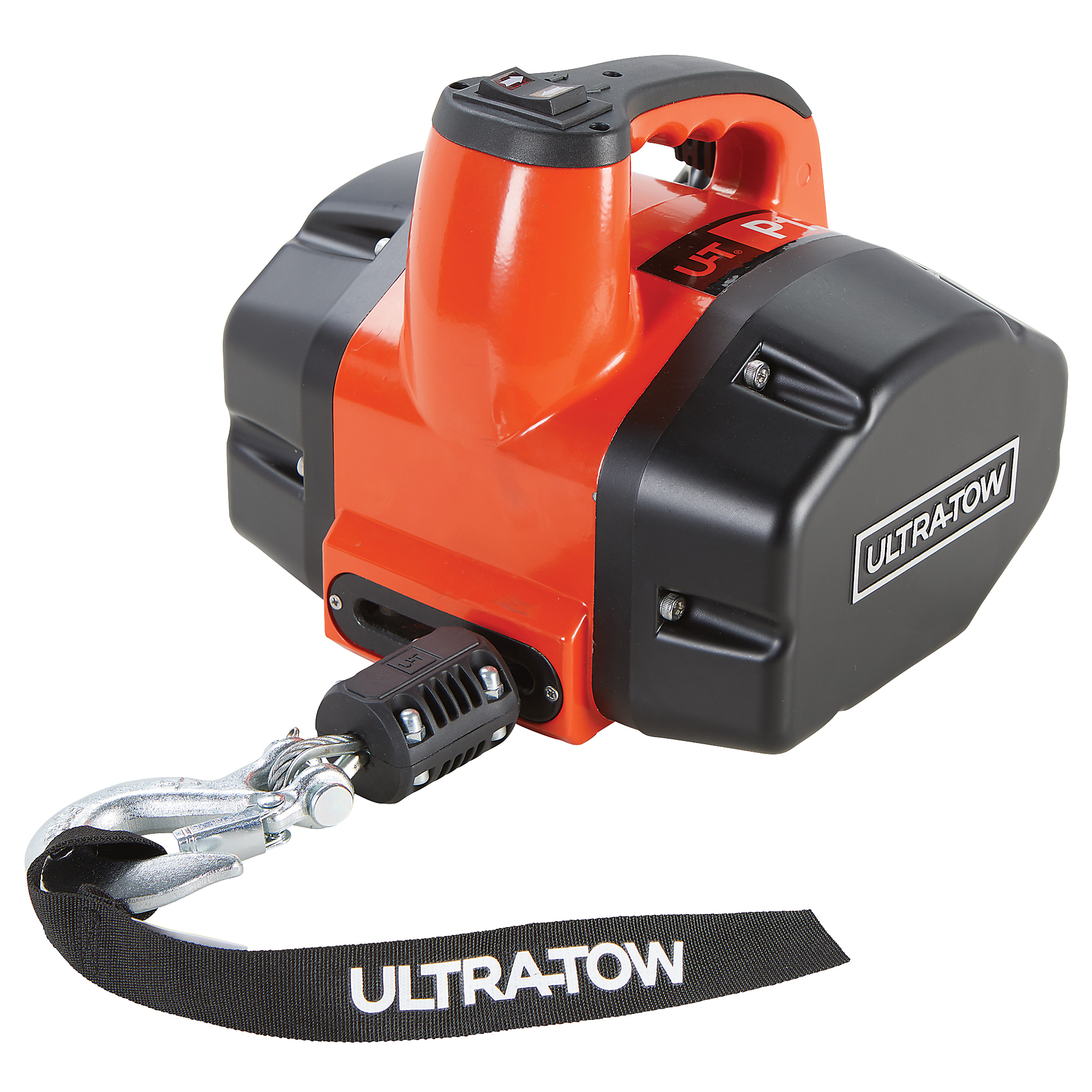

Ultra-Tow Portable Electric Winch, 120V, 1100-Lb. Capacity, Steel Cable, Brushless

Item# 5689273
"Ultra-Tow Portable Electric Winch, 120V, 1100-Lb. Horizontal and Vertical Capacity, Steel Cable, Brushless Motor"
Top Seller
Ultra-Tow Portable Electric Winch, 120V, 1100-Lb. Capacity, Steel Cable, Brushless

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Ultra-Tow Portable Electric Winch, 120V, 1100-Lb. Capacity, Steel Cable, Brushless

Click or Tap image to Zoom

$224.99

  • Shipping:

    $19.99 Same Day

  • Store Pickup:

    3 in stock at Fredericksburg VA

  • 1,100-Lb. Lifting/Pulling Capacity: Handles heavy-duty lifting and pulling in horizontal or vertical applications
  • 110/120V AC Power: Plugs into standard outlets for broad jobsite and home use
  • Brushless Motor: Delivers quiet high-torque performance with extended service life
  • A380 Aluminum Housing: Protects internal components from jobsite wear and impact
  • Compact Design: Improves portability for transport between jobsites

  • Prop 65 Warning: See Details

See full description

Complete Your Solution

  • Ultra-Tow Portable Electric Winch, 120V, 1100-Lb. Capacity, Steel Cable, Brushless
  • SmartStraps Heavy-Duty Tow Strap with Loops, 20ft.L, 17,000-Lb. Breaking Strength, Yellow, Model# 130
Price for all two:

$259.98

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This Ultra-Tow Portable Handheld Winch is the compact electric pulling tool that handles double duty, making it more versatile than a come-along or standard winch. With 1,100 lbs. of capacity, the compact yet powerful winch can lift vertically or pull horizontally. It gets right down to work, quickly and easily with fully powered line-in and line-out capabilities. And even though its operation is silky smooth and ultra-efficient, it never skimps on safety—boasting an unbeatable dynamic dual-spring brake system to ensure safe operation. The 110/120V AC-powered Ultra-Tow Winch features robust construction with rugged aluminum housing and a durable brushless motor to handle rough and tumble applications around the home, in the garage, on the boat, in the field, at the worksite or just about anywhere else you need to add enough muscle to move up to 1,100 lbs.

What's Included

    (1) Ultra-Tow Portable Electric Winch (1) 16ft. wire aircraft cable with hook and handsaver

Downloads

Product Manual
Play Item Video

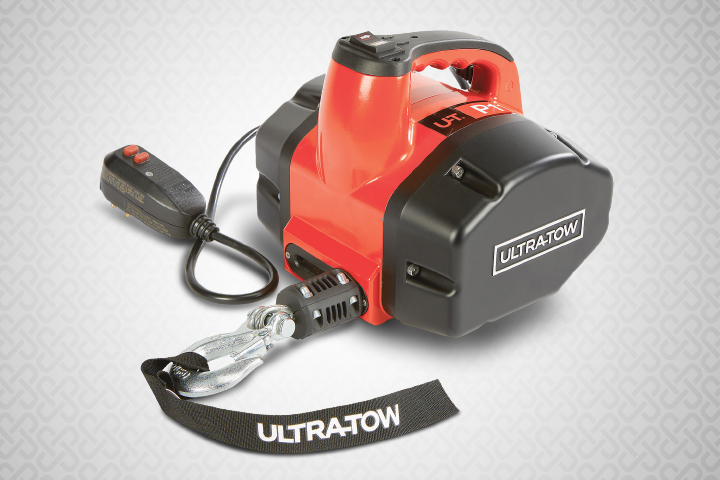

SMOOTH OPERATION

Features POWER-IN and POWER-OUT LINE control for seamless and quick setup, getting you to work without delay

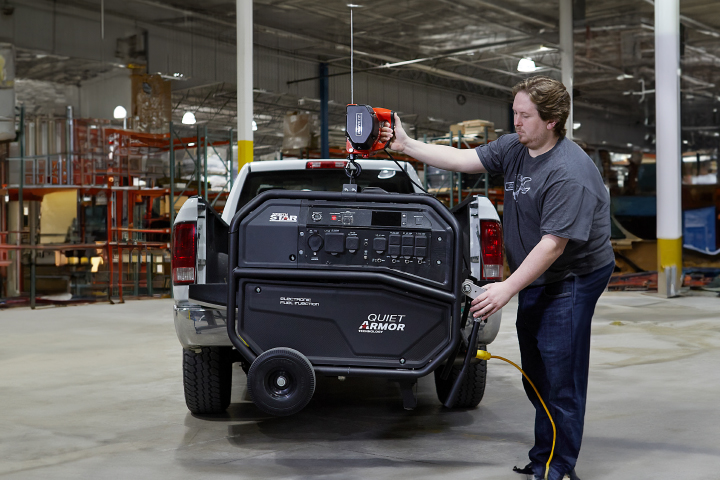

HIGH TORQUE AND EFFICIENCY

The BRUSHLESS MOTOR DELIVERS QUIET, EFFICIENT and HIGH-TORQUE PERFORMANCE, making it suitable for a variety of demanding applications

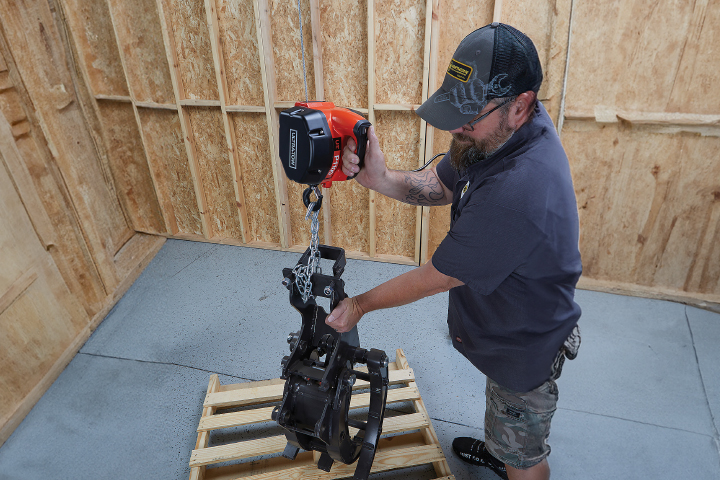

VERSATILE MOUNTING OPTIONS

Includes a ROTATABLE ANCHOR HOOK that can be attached to TRUCKS, ATVs, BOATS or secure overhead mounts, offering flexible setup options

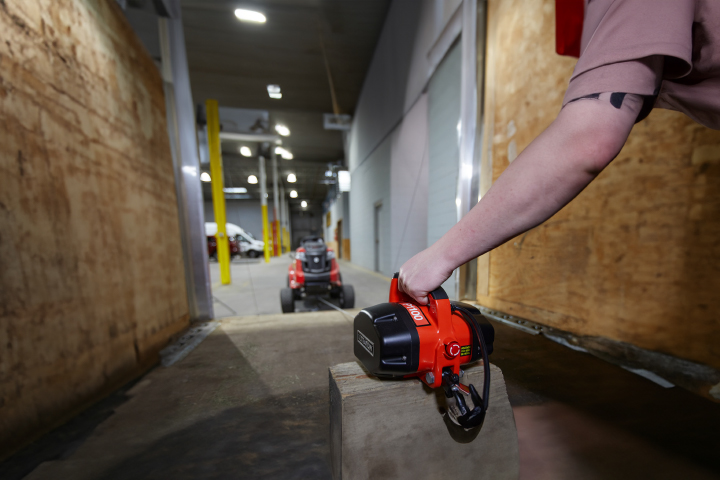

USER-FRIENDLY DESIGN

Designed for EASE OF USE, with 1,100-lb. line pull allowing for EFFORTLESS LIFTING OR PULLING of heavy objects, reducing manual strain and increasing efficiency

Features + Benefits

  • 1,100-Lb. Lifting/Pulling Capacity: Handles heavy-duty lifting and pulling in horizontal or vertical applications
  • 110/120V AC Power: Plugs into standard outlets for broad jobsite and home use
  • Brushless Motor: Delivers quiet high-torque performance with extended service life
  • A380 Aluminum Housing: Protects internal components from jobsite wear and impact
  • Compact Design: Improves portability for transport between jobsites
  • Power-In/Power-Out Operation: Provides controlled line movement for efficient operation
  • Dual-Spring Brake System: Enhances load control and holding safety during use
  • "Danger Zone" Cable Marking: Alerts when line is near full extension to prevent overrun
  • Integrated Safety Stopper: Prevents hook damage during retraction
  • Grooved Drum Design: Guides cable evenly for smooth winding and reduced tangling
  • Rotatable Anchor Hook: Adapts to trucks, ATVs, ceiling mounts and secure anchor points
  • Dual Winch/Hoist Function: Supports lifting and pulling across worksite and recreational applications

Key Specs

AttributeSpecification

item#

5689273

Brand

Ultra-Tow

Manufacturer's Warranty

1 year limited warranty

Ship Weight

26.0 LB

Horsepower

1 HP

Capacity (Line Pull)

1,100 lb

Volts

110/120

Max. Amps

7

Application

Multiple

Gear Type

Combination

Line Speed

6.5 ft./min.

Gear Ratio

68.16736111

Rope Length

16 ft
AttributeSpecification

Rope Diameter

7/32 in

Rope Material

Galvanized Steel

Brake Type

Combination

Remote

No

Automatic Load Holding

Yes

Freespooling

No

Fairlead Type

Roller

Underwater Use

No

Power Cord Length

3 ft

Mounting Hardware Included

No

Dimensions L x W x H (in.)

9.45 x 8.2 x 8.11 in

Product Weight

24.0000 lb

Reviews

Questions & Answers

20 Reviews This action will navigate to reviews.

Questions

1–10 of 14 Questions
Sort by:

  1. Can I get a parts list I need parts for cable guide

    1 answer

    1. Parts are currently not available for this winch.

      Helpful?

  2. Does it reverse to lower

    1 answer

    1. This winch does have a power-out function to lower a load.

      Helpful?

  3. Is it waterproof

    1 answer

    1. The winch would not be waterproof.

      Helpful?

  4. How many amps does this use at maximum weight? Also, plug type?

    1 answer

    1. The maximum amperage draw of this winch is 7 amps. It is equipped with a 3-prong plug for use in standard 120V household outlets.

      Helpful?

  5. Can this winch have a 100ft cable?

    1 answer

    1. The winch is unable to accept 100 feet of cable.

      Helpful?

  6. How to start 1st time

    1 answer

    1. Ensure the system/emergency stop button is disabled. Connect the power plug into a single phase grounding power socket. Securely connect the winch anchor and cable hooks. Clear winching area. To power the winch, turn the system/emergency button clockwise to confirm the button is in the enabled state. Operate the winch by pressing the cable out at least for 5 seconds to release the cable. Unspool wire cable as needed, but only until you see red paint indicating a minimum wrap on the drum. Do not unspool past this point. 5 wraps of wire cable must be kept on the drum at all times. Make sure that the winch cable is properly wrapping the drum in an orderly fashion. When winching is complete push the red system/emergency button and unplug the unit.

      Helpful?

  7. Who manufactures this product and what warranty is included

    1 answer

    1. This winch is made by Novawinch. This has a 1 year warranty.

      Helpful?

  8. What is the amp draw when pulling 1100 pounds?

    1 answer

    1. The maximum draw for this winch is 7 amps.

      Helpful?

  9. Where is it made?

    1 answer

    1. This electric winch is manufactured to our specifications in China.

      Helpful?

  10. Can a wireless remote be added to this winch?

    1 answer

    1. There is no remote available for the winch.

      Helpful?
